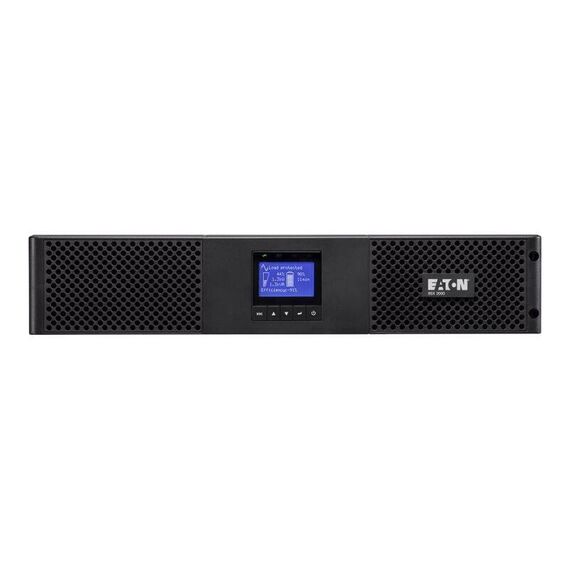

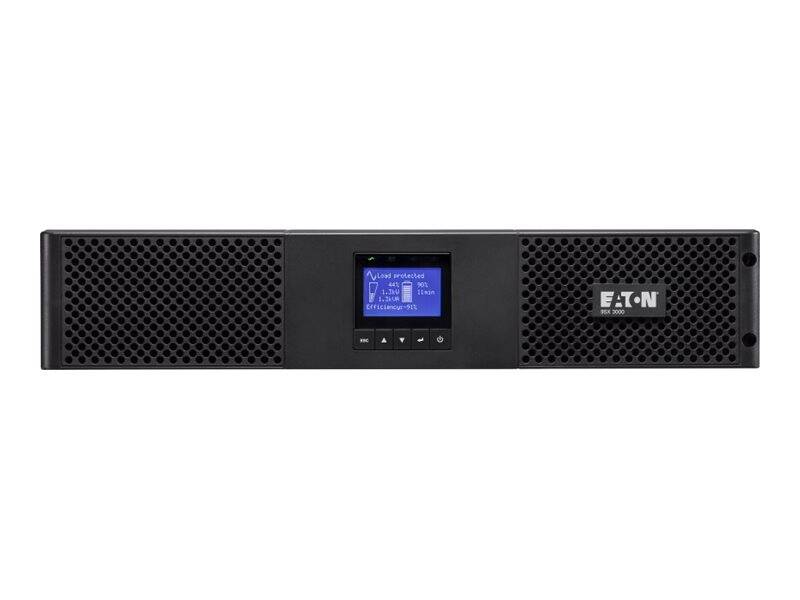

Eaton 9SX 9SX3000IR - UPS (rack-mountable) - AC 200/208/220/230/240 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 9 - PFC - 2U - 19" | 9SX3000IR
Eaton 9SX 9SX3000IR - UPS (rack-mountable) - AC 200/208/220/230/240 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 9 - PFC - 2U - 19" | 9SX3000IR
€3263.55 inc. VAT
9SX3000IR
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Double conversion topology
- Constantly monitors power conditions and regulates voltage and frequency
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Internal bypass allows service continuity in case of UPS fault
- Next-generation graphical LCD display
- Meter energy consumption (at the UPS level)
- Hot swappable batteries
- Advanced Battery Management (ABM) technology to increase battery lifetime
- Long backup time with up to 4 optional EBM
- Cable locking system
- Warranty: 2 years
Product Specification
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 140 - 276 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C20 16A |
| Power Output Connectors Details | 8 x power IEC 60320 C13 10A ¦ 1 x power IEC 60320 C19 16A |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Power Capacity | 2700 Watt / 3000 VA |
| Power Factor (PF) | 0.9 |
| Battery | |
| Type | Expandable |
| Run Time (Up To) | 6 min at 2500 Watts |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ EPO (emergency power off) - mini terminal block ¦ Relay output - mini terminal block |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | |
| Features | Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, temperature-compensated battery charging, 3-stage charging, double conversion, power measuring |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 45 dB |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 60.8 cm |
| Height | 8.65 cm |
| Weight | 26.5 kg |
Features - Eaton Power Quality - 9SX3000IR
More Details
Product Code
Y712616
EAN Code
0743172091147
Manufacturer
Eaton Power Quality
