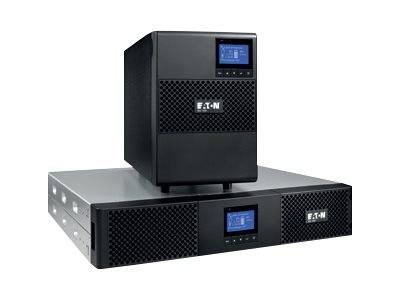

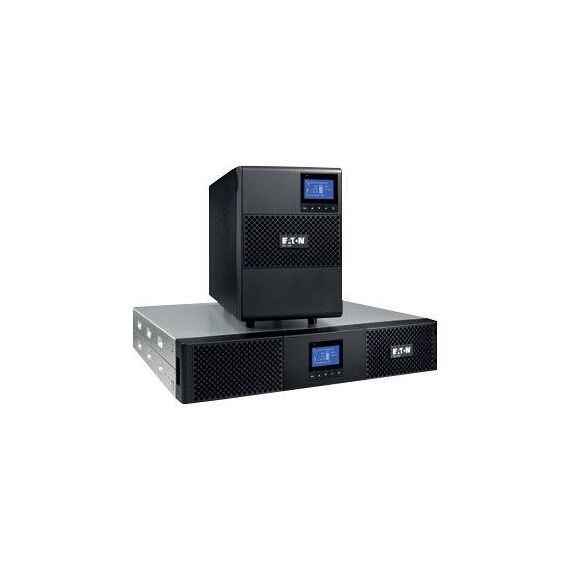

Eaton 9SX 9SX700I / UPS / AC 200/208/220/230/240 V / 630 Watt / 700 VA / RS-232, USB / output connectors: 6 / PFC | 9SX700I
Eaton 9SX 9SX700I / UPS / AC 200/208/220/230/240 V / 630 Watt / 700 VA / RS-232, USB / output connectors: 6 / PFC | 9SX700I
€981.61 inc. VAT
9SX700I
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Eaton 9SX 9SX700I / UPS / AC 200/208/220/230/240 V / 630 Watt / 700 VA / RS-232, USB / output connectors: 6 / PFC | 9SX700I
Description
The Eaton 9SX uninterruptible power system (UPS) protects your sensitive electronic equipment from the most common power problems, including power failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients, and harmonic distortion. Power outages can occur when you least expect it and power quality can be erratic. These power problems have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware - causing hours of lost productivity and expensive repairs.
Eaton 9SX 9SX700I / UPS | 9SX700I
Special Features
- True online double-conversion technology with high power density, utility frequency independence, and generator compatibility
- ABM technology that uses advanced battery management to increase battery service life, optimize recharge time, and provide a warning before the end of useful battery life
- Selectable high efficiency mode of operation
- Firmware that is easily upgradable without a service call
- Remote on/off control through Remote On/Off (ROO) and Remote Power Off (RPO) ports
Product Specification
| Device Type | UPS - Power Factor Correction (PFC) - external |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 120 - 276 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C14 10A |
| Power Output Connectors Details | 6 x power IEC 60320 C13 10A |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Power Capacity | 630 Watt / 700 VA |
| Power Factor (PF) | 0.9 |
| Run Time (Up To) | 7.5 min at 500 Watts ¦ 14 min at 300 Watts |
| Remote Management Interface | RS-232, USB |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ EPO (emergency power off) - mini terminal block ¦ Relay output - mini terminal block |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Features | Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, temperature-compensated battery charging, 3-stage charging, double conversion, power measuring |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, KCC, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1, BIS |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 40 dBA |
| Width | 16 cm |
| Depth | 35.7 cm |
| Height | 25.2 cm |
| Weight | 11.5 kg |
Features - Eaton Power Quality - 9SX700I
More Details
Product Code
Y712617
EAN Code
0743172090911
Manufacturer
Eaton Power Quality
