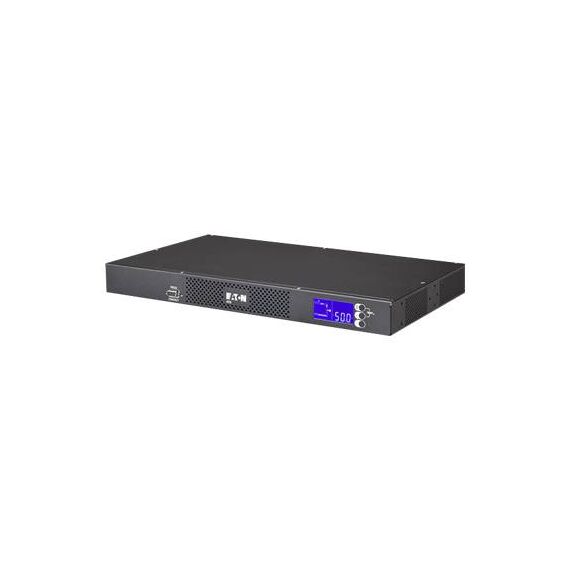

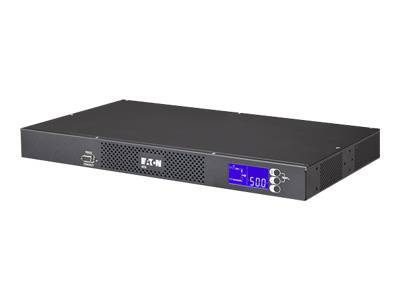

Eaton ATS 16 / Redundant switch (rack-mountable) / AC 208/220/230/240 V / output connectors: 9 / 1U | EATS16
Special Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions
- LCD with metering and basic configuration capabilities
Product Specification
| Device Type | Redundant switch - rack-mountable |
| Height (Rack Units) | 1U |
| Input Voltage | AC 208/220/230/240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C20 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
| Max Electric Current | 16 A |
| Cables Included | 2 x power cable |
| Features | LCD display, voltage monitoring |
| Compliant Standards | IEC 60950-1, EN 60950-1 |
| Service & Support | Limited warranty - 2 years |
| Width | 43 cm |
| Depth | 25 cm |
| Height | 4.3 cm |
| Weight | 3.3 kg |
Features - Eaton Power Quality - EATS16
More Details
Product Code
Y712188
EAN Code
0743172079404
Manufacturer
Eaton Power Quality
