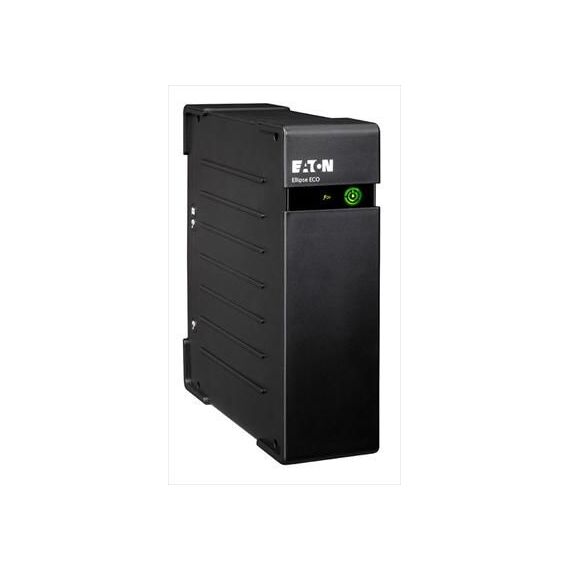

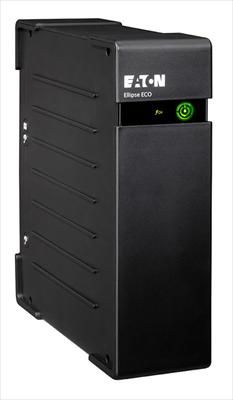

Eaton Ellipse ECO 500 DIN - UPS - AC 230 V - 300 Watt - 500 VA - 4 Output Connector(s) - 2U - 19"
Please sign in so that we can notify you about a reply
Eaton Power Quality EL500DIN Eaton Ellipse ECO 500 DIN - UPS - AC 230 V - 300 Watt - 500 VA - 4 Output Connector(s) - 2U - 19"
Eaton Ellipse ECO 500 DIN - UPS - AC 230 V - 300 Watt - 500 VA - 4 Output Connector(s) - 2U - 19"
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device compliant with IEC 61643-1 standard. With an efficient electrical design and the EcoControl function USB models the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.Feature list
| Output power capacity VA: | 500 VA |
| Output power: | 300 W |
| Power supply input frequency: | 50/60 Hz |
| Emergency Power Off EPO: | Y |
| AC outlets quantity: | 4 |
| AC outlet types: | Type F |
| Power plug: | C14 coupler |
| Modem RJ-11 ports: | 1 |
| Ethernet LAN RJ-45 ports quantity: | 1 |
| Form factor: | Rackmount |
| Rack mounting: | 2U |
| Surge protection: | Y |
| Surge protection features: | Tel, Fax, Modem, Ethernet |
| Battery technology: | Sealed Lead Acid VRLA |
| Typical backup time at half load: | 9 min |
| Hot-swap battery: | Y |
| Cold start: | Y |
| Automatic battery test: | Y |
| Battery replacement alarms: | Audible, LED |
| Colour of product: | Black |
| Weight: | 2900 g |
| Width: | 81 mm |
| Depth: | 235 mm |
| Height: | 263 mm |
| Fan: | N |
| Safety: | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| LED indicators: | Y |
| Audible alarms: | Y |
| Input connection type: | Schuko |
| Nominal output voltage: | 220-240 V |
| Nominal input voltage: | 230 V |
| Overload protection: | Y |
Eaton Ellipse ECO 500 DIN - UPS - AC 230 V - 300 Watt - 500 VA - 4 Output Connector(s) - 2U - 19"
Features - Eaton Power Quality - EL500DIN
More Details
Product Code
03:135432
EAN Code
3553340620522
Manufacturer
Eaton Power Quality
