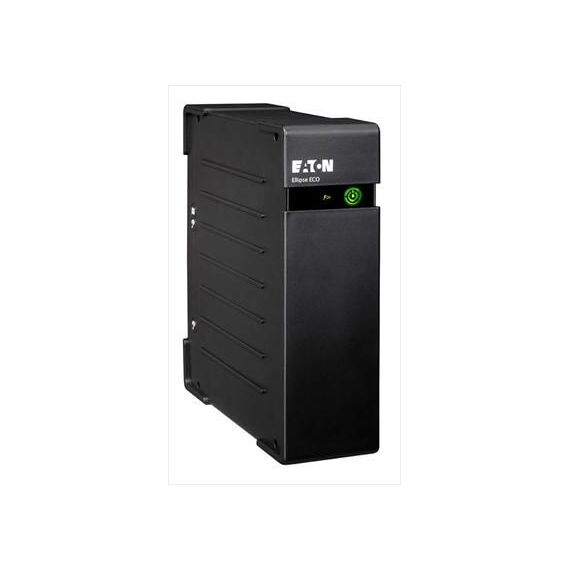

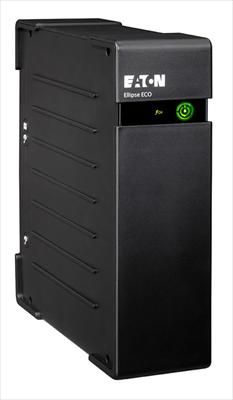

Eaton Ellipse ECO 650 DIN / UPS (rack-mountable / external) / AC 230 V / 400 Watt / 650 VA / output connectors: 4 / 2U / 19" | EL650DIN
Brand: Eaton Power Quality
EL650DIN
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Special Features
- Up to 25% energy savings
- Surge protection compliant with IEC 61643-1 standards
- 4 to 8 local outlets
- Attractive design with versatile, extra-flat format
- Dataline protection: Tel/Internet/Ethernet
- Replaceable battery
Product Specification
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | Power Device |
| UPS Technology | Off-line |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 184 - 264 V |
| Input Voltage Range (Adjustable) | AC 161 - 284 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power |
| Power Output Connectors Details | 3 (UPS and surge) 1 (surge) |
| Output Voltage | AC 220/230/240 V 50/60 Hz |
| Power Capacity | 400 Watt / 650 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | Battery |
| Technology | Lead Acid |
| Run Time (Up To) | 9 min at half load 6 min at 70% load |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Optional |
| Features | Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function |
| Compliant Standards | CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8.1 cm |
| Depth | 23.5 cm |
| Height | 26.3 cm |
| Weight | 3.6 kg |
Features - Eaton Power Quality - EL650DIN
More Details
Product Code
04:407677
EAN Code
3553340620621
Manufacturer
Eaton Power Quality
