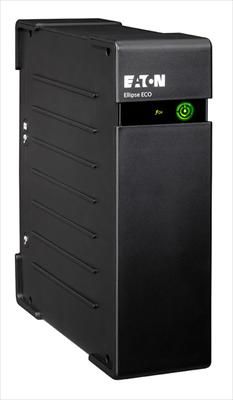

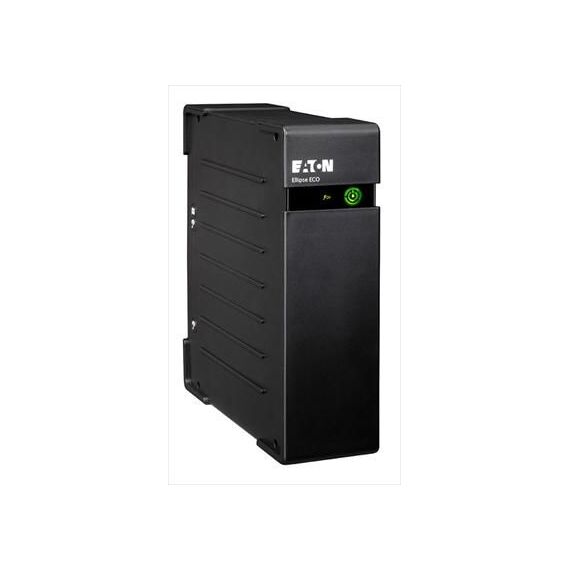

Eaton Ellipse ECO 650 USB DIN - UPS - AC 230 V - 400 Watt - 650 VA - USB - 4 Output Connector(s) - 2U - 19"

EL650USBDIN
151.29
180.04 inc. VAT
Out of stock
Find similar
Delivery
Payment options
Product CodeY710708 EAN Code3553340620720 ManufacturerEaton Power Quality

Description

Eaton Power Quality EL650USBDIN Eaton Ellipse ECO 650 USB DIN - UPS - AC 230 V - 400 Watt - 650 VA - USB - 4 Output Connector(s) - 2U - 19"

Eaton Ellipse ECO 650 USB DIN - UPS - AC 230 V - 400 Watt - 650 VA - USB - 4 Output Connector(s) - 2U - 19"

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Energy management
Output power capacity (VA) 650 VA
Output power 400 W
Power supply input frequency 50/60 Hz
Emergency Power Off (EPO) Yes
Connectivity
AC outlets quantity 4
AC outlet types Type F
Power plug C14 coupler
Modem (RJ-11) ports 1
Ethernet LAN (RJ-45) ports quantity 1
USB 2.0 ports quantity 1
Technical details
Form factor Rackmount
Rack mounting 2U
Surge protection Yes
Surge protection features Tel, Fax, Modem, Ethernet
Battery
Battery technology Sealed Lead Acid
Typical backup time at half load 9 min
Hot-swap battery Yes
Cold start Yes
Automatic battery test Yes
Battery
Battery replacement alarms Audible, LED
Colour
Colour of product Black
Weight & dimensions
Weight 3600 g
Operating system/software
Bundled software Eaton Intelligent Power
Cooling
Fan No
Certificates
Safety IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Illumination/Alarms
LED indicators Yes
Audible alarms Yes
Other features
Input connection type Schuko
Nominal input voltage 230 V
Nominal output voltage 220-240 V
Mac compatibility Yes
Compatible operating systems Windows 7/Vista/XP
Mac OS X
Linux
Overload protection Yes
