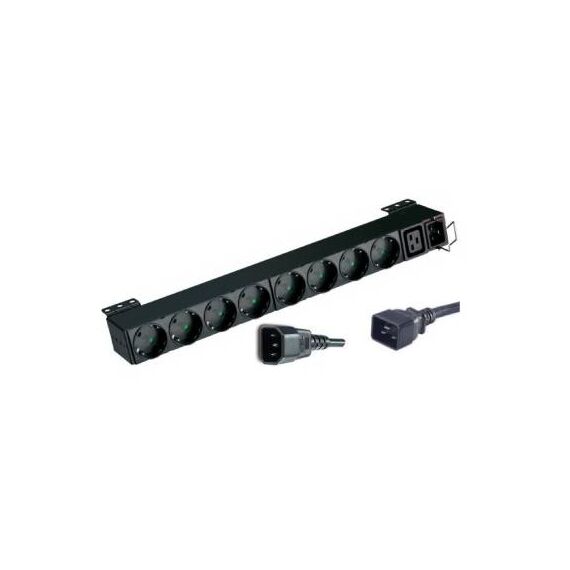

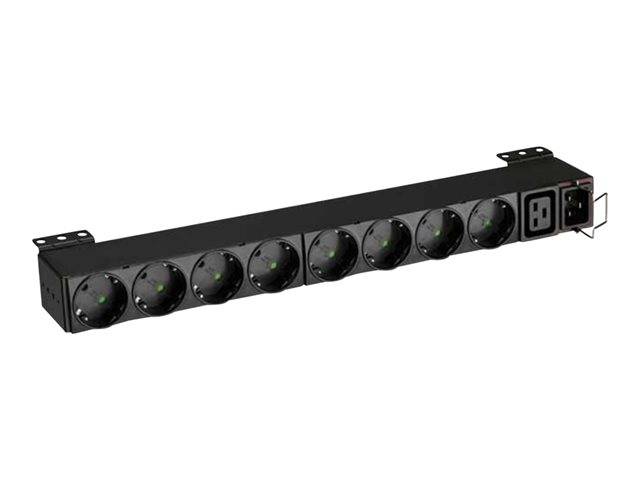

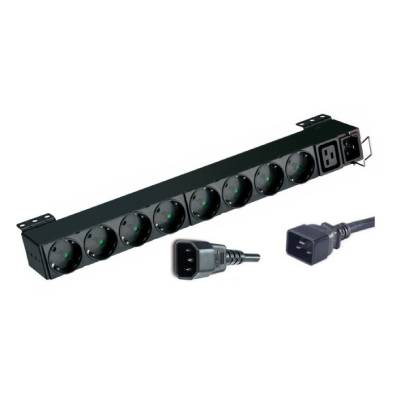

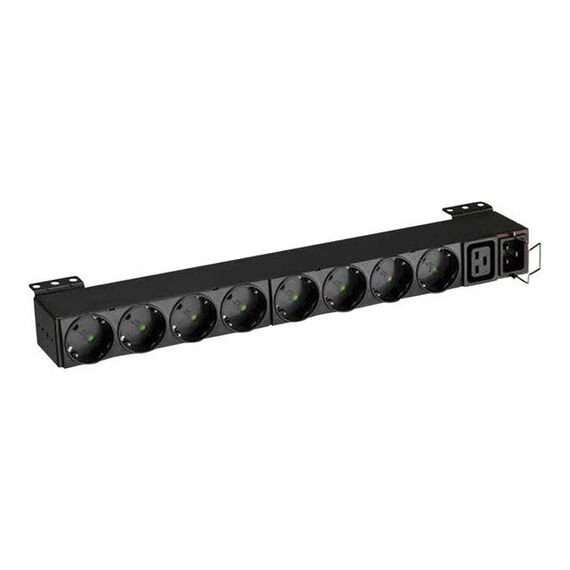

Eaton FlexPDU / Power distribution unit (rack-mountable) / AC 220-240 V / 3000 VA / input: IEC 60320 C20 16A / output connectors: 9 (IEC connector, CEE 7/4) / 1U / 19" | EFLX8D
Please sign in so that we can notify you about a reply
Eaton FlexPDU / Power distribution unit (rack-mountable) / AC 220-240 V / 3000 VA / input: IEC 60320 C20 16A / output connectors: 9 (IEC connector, CEE 7/4) / 1U / 19" | EFLX8D
Description
These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.
Eaton FlexPDU / Power distribution unit (rack-mountable) | EFLX8D
Special Features
- Extend the number of devices that can be connected to a single UPS
- Can be rackmounted, wallmounted or connected at the rear of a Eaton UPS in 3 different ways
- 1U versatile power distribution unit
- Easy plug-in connectivity
- Universal solution
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Input Voltage | AC 220-240 V |
| Input Connectors | 1 x power IEC 60320 C20 16A |
| Power Output Connectors Details | 8 x power CEE 7/4 ¦ 1 x IEC connector |
| Power Capacity | 3000 VA |
| Cables Included | 2 x power cable |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Width | 48.3 cm |
| Depth | 8 cm |
| Height | 4.4 cm |
Features - Eaton Power Quality - EFLX8D
More Details
Product Code
Y712254
EAN Code
3553340684258
Manufacturer
Eaton Power Quality
