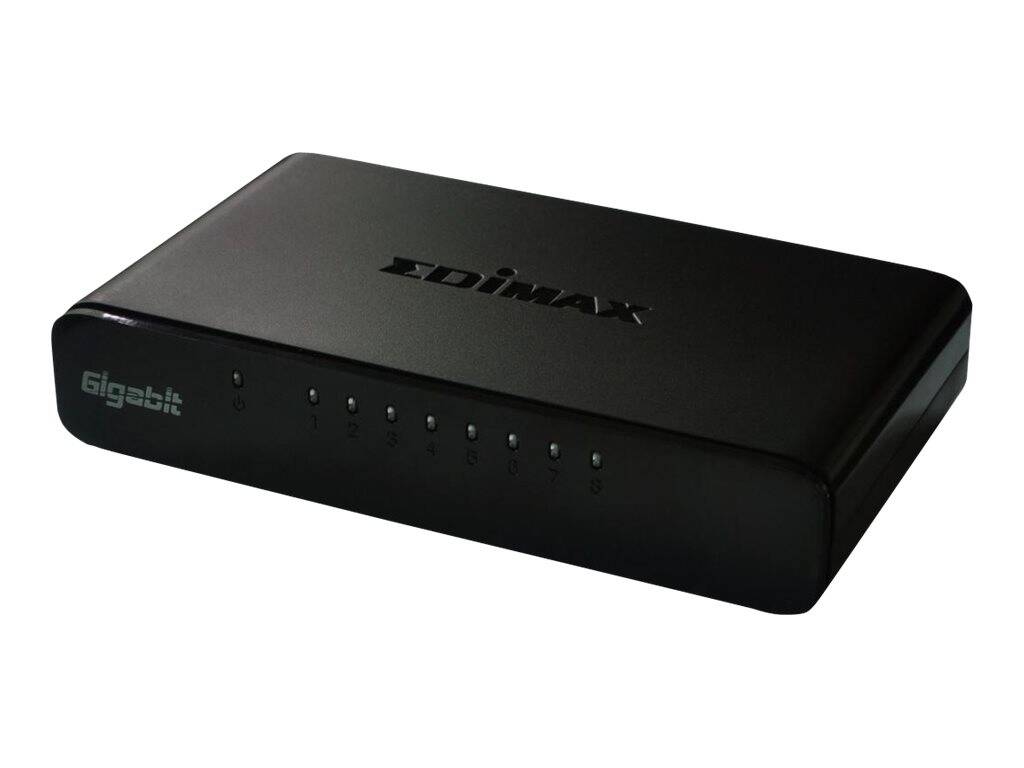

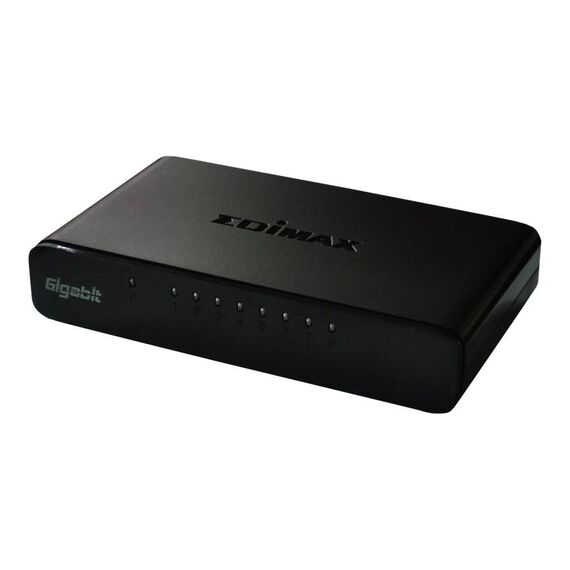

Edimax ES-5800G V3 - Switch - unmanaged - 8 x 10/100/1000 - desktop | ES-5800G V3

Product Features

• IEEE Energy Efficient Ethernet (EEE) compliance
  The Switch ES-5800G V3 offers environmental efficiency with Fast Ethernet speeds critical for next-generation network applications. To comply with the IEEE802.3az standard, the Switch ES-5800G V3 provides power saving functions to reduce energy consumption to help business save cost.
• Inactive link detection
  When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature automatically reduces power usage. The switch's power consumption will be dynamically adjusted according to the link status and the number of active network devices.
• Cable length detection
  Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.
• Supports high-speed networking and jumbo frames
  The ES-5800G V3 is an excellent solution to expand your Gigabit network. With Gigabit speed, the ES-5800G V3 gives high flexibility and high bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time when transferring large files. In addition, it also supports Jumbo Frames 9K to improve network utilization in large files transfer.
• Supports auto-negotiation
  Every port of the ES-5800G V3 can automatically distinguish the connected network devices are running at 10 Mbps, 100 Mbps and 1000 Mbps for half/full-duplex mode. The ES-5800G V3 can adjust the speed and mode accordingly.
• Easy to use
  The ES-5800G V3 is Plug-and-Play and supports all kind of network protocols to make installation and network management easy and fast. LED indicators provide a quick and easy way to read port and switch information.

Special Fetures

• Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
• Supports auto MDI/MDI-X crossover detecting and auto correction
• Supports full and half duplex for 10/100 Mbps, and full duplex for 1000 Mbps
• Wire-speed packet filtering and forwarding rate
• Store-and-forward architecture filters fragment & CRC error packets
• Supports jumbo frames up to 9K bytes
• Supports IEEE802.3az energy efficient Ethernet function

Product Specification
