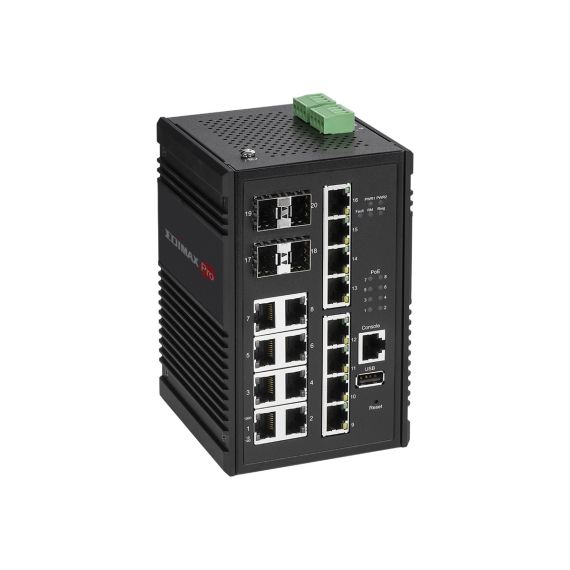

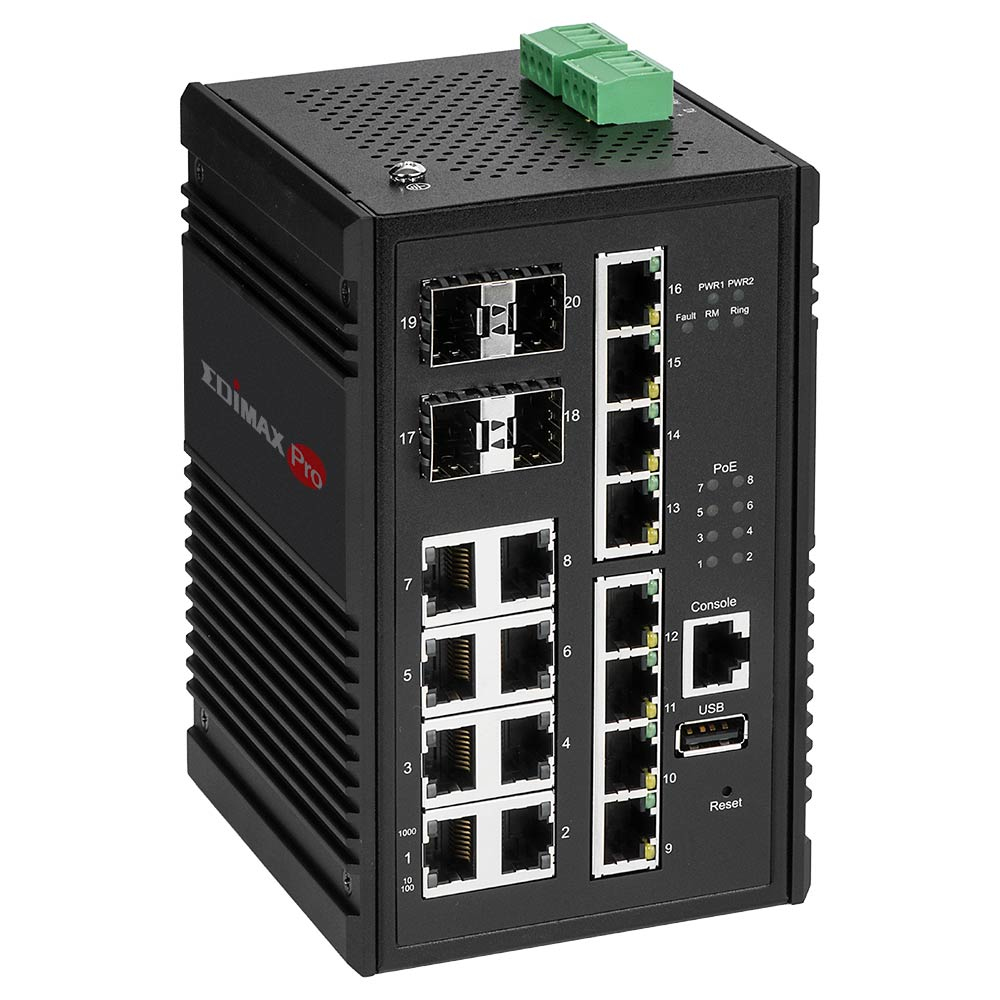

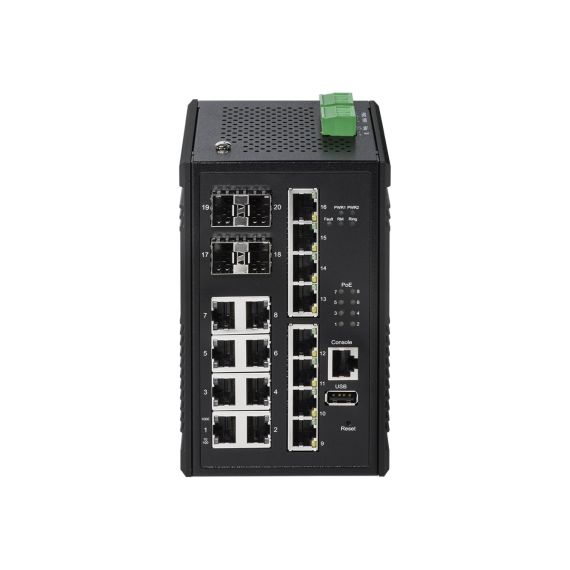

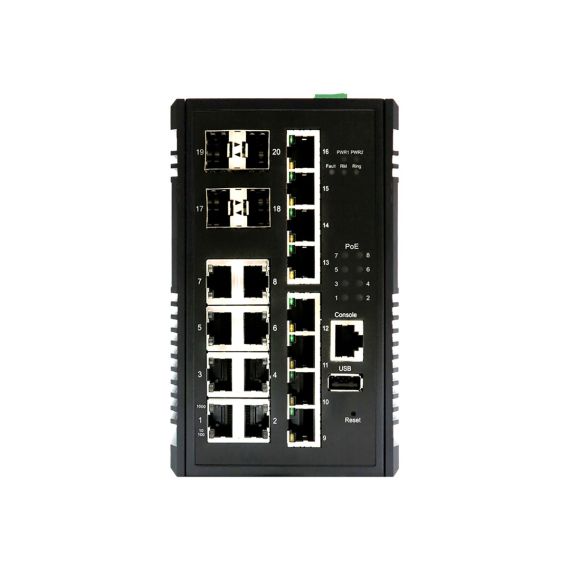

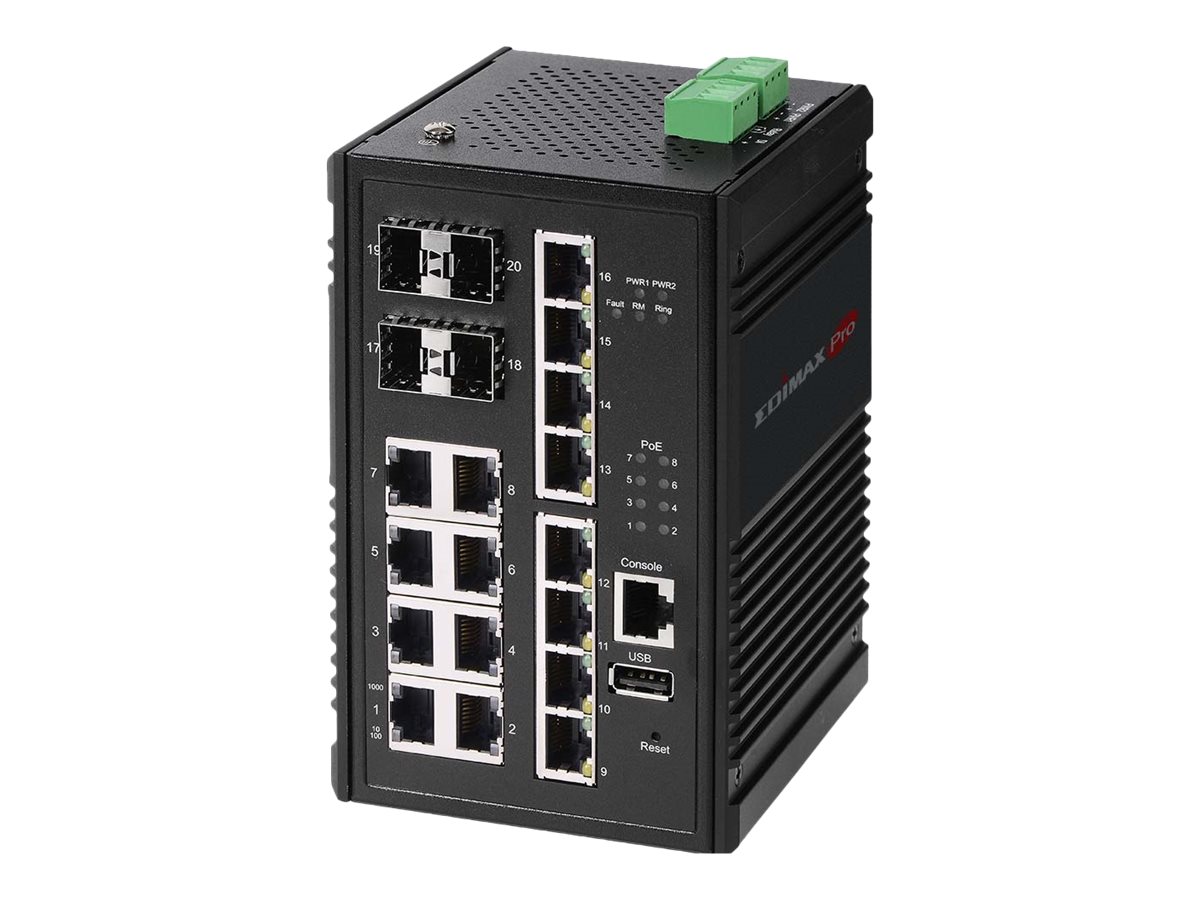

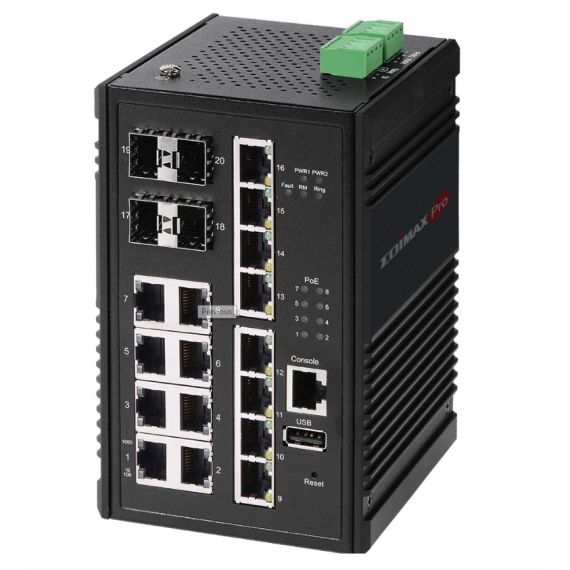

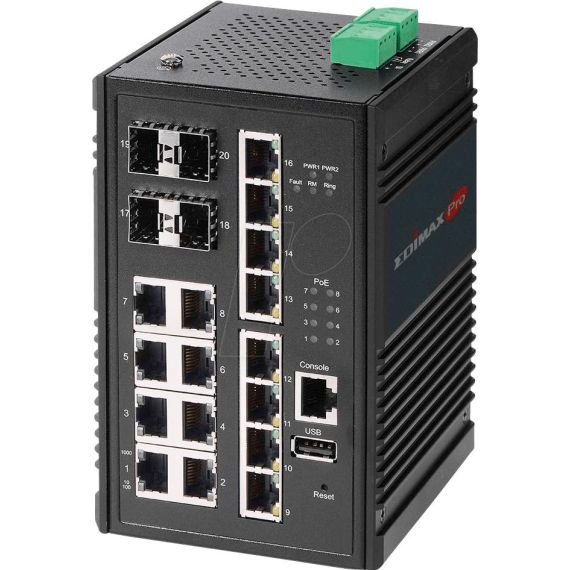

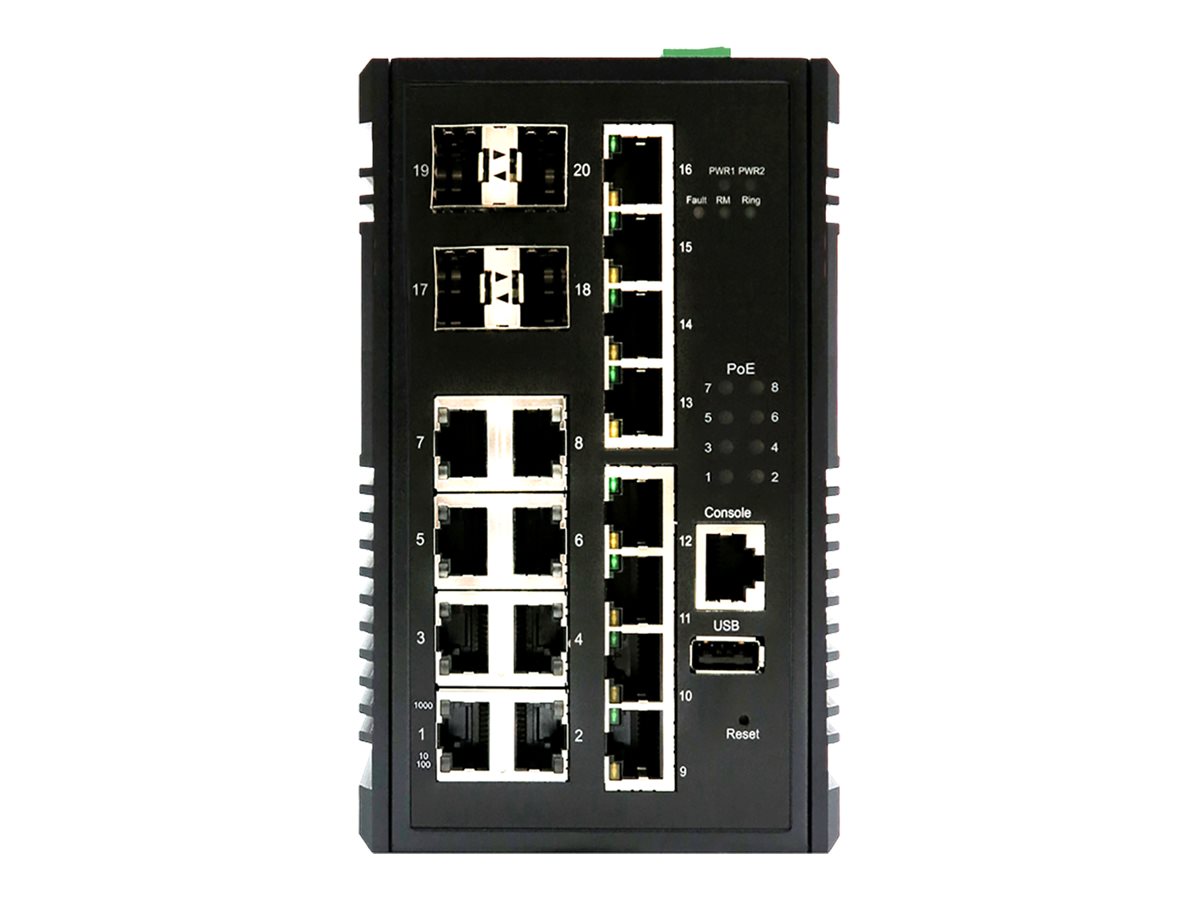

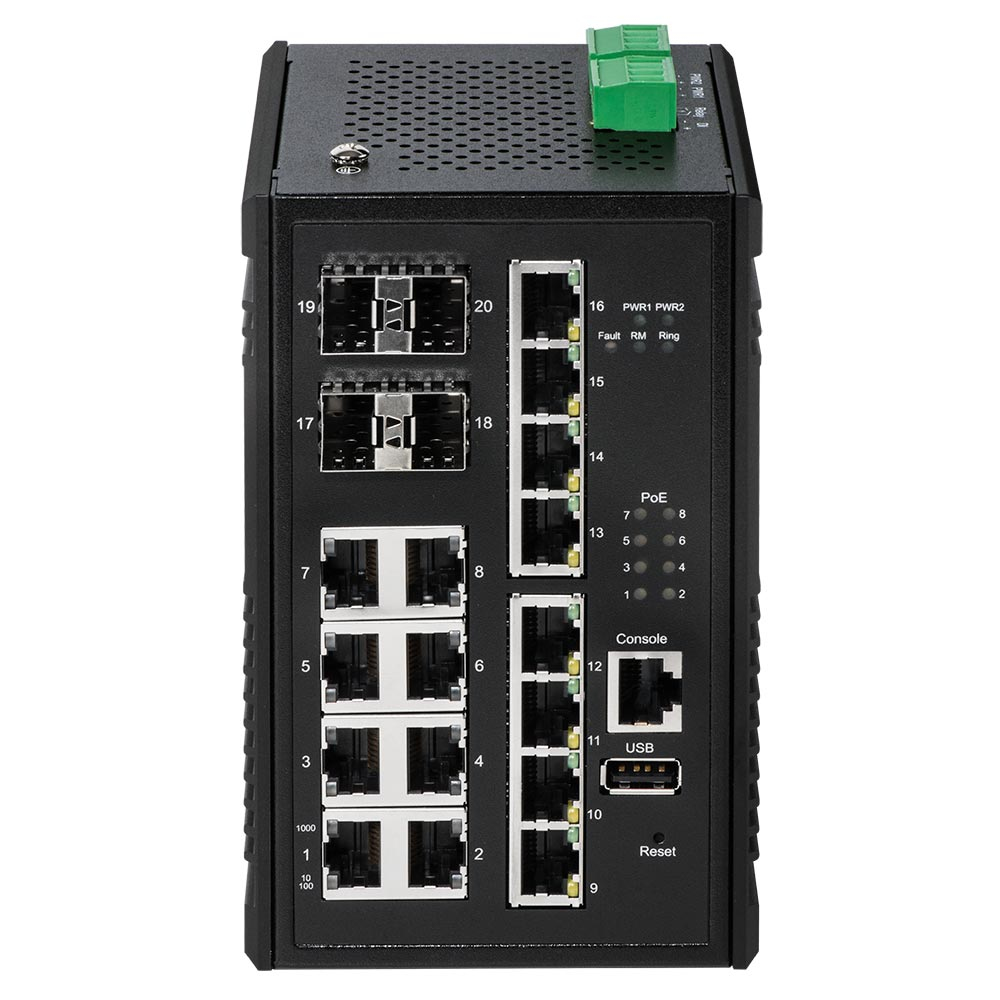

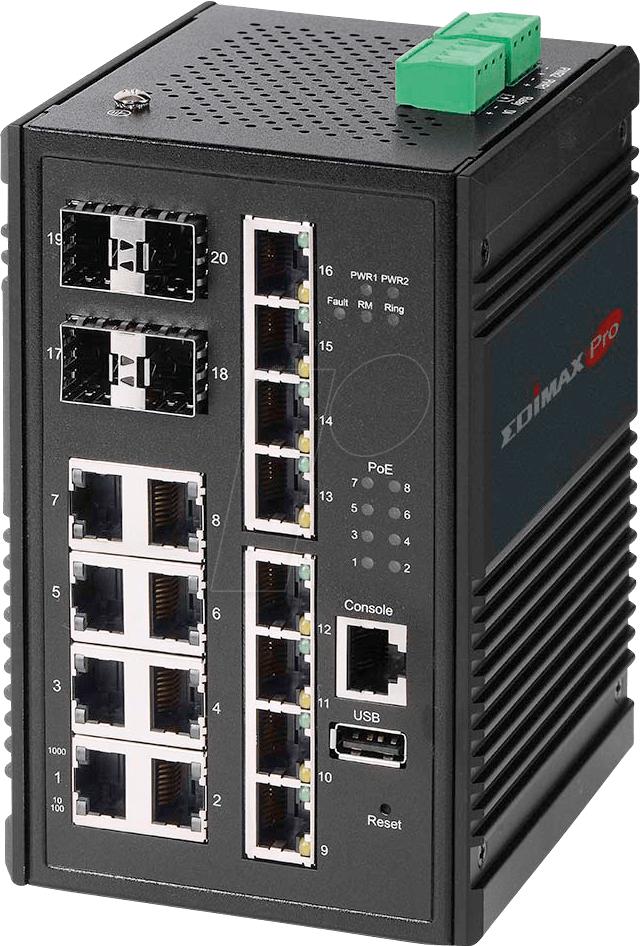

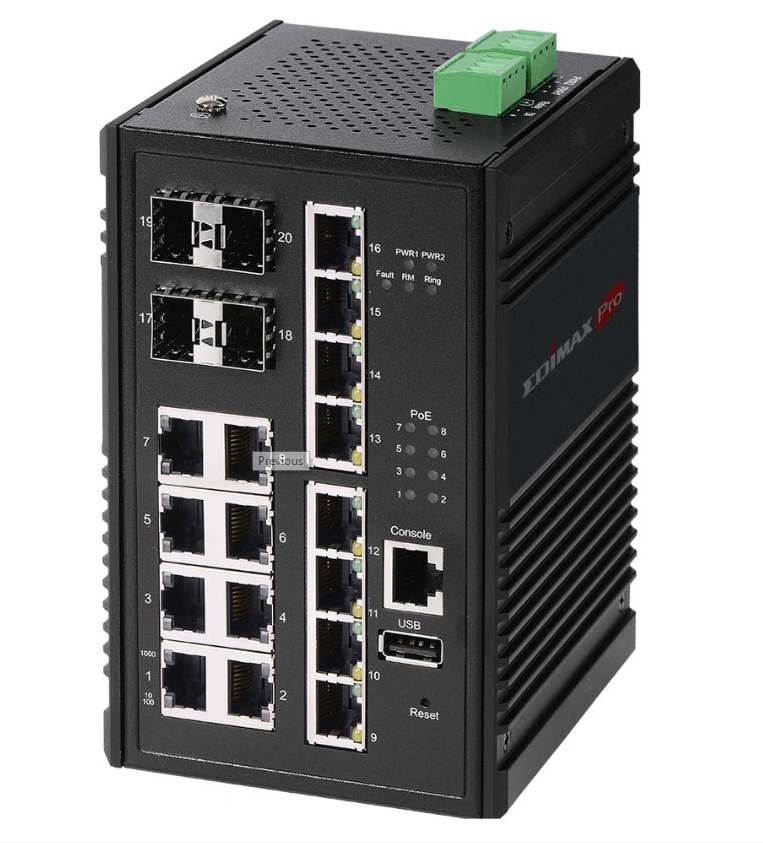

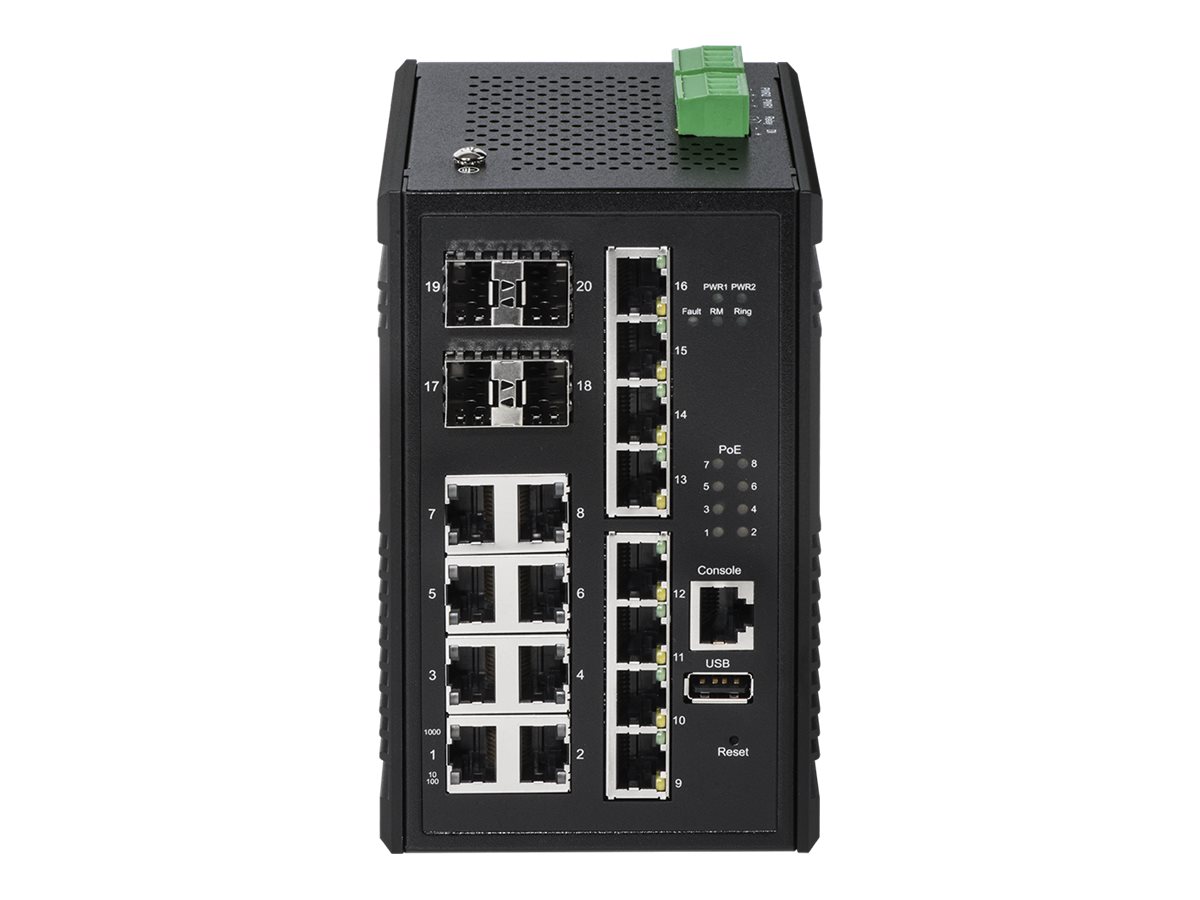

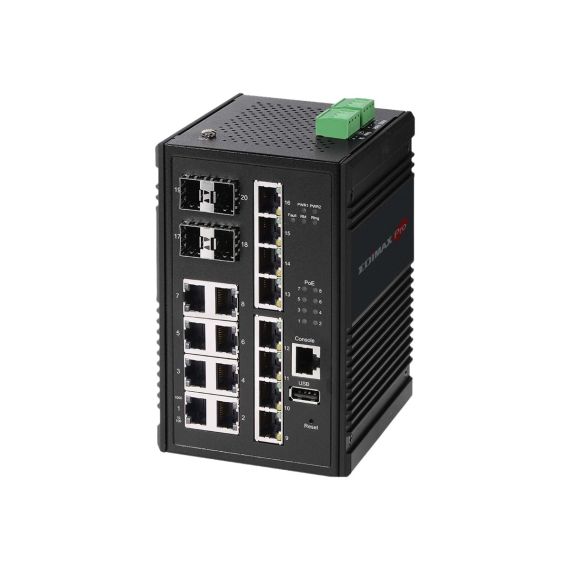

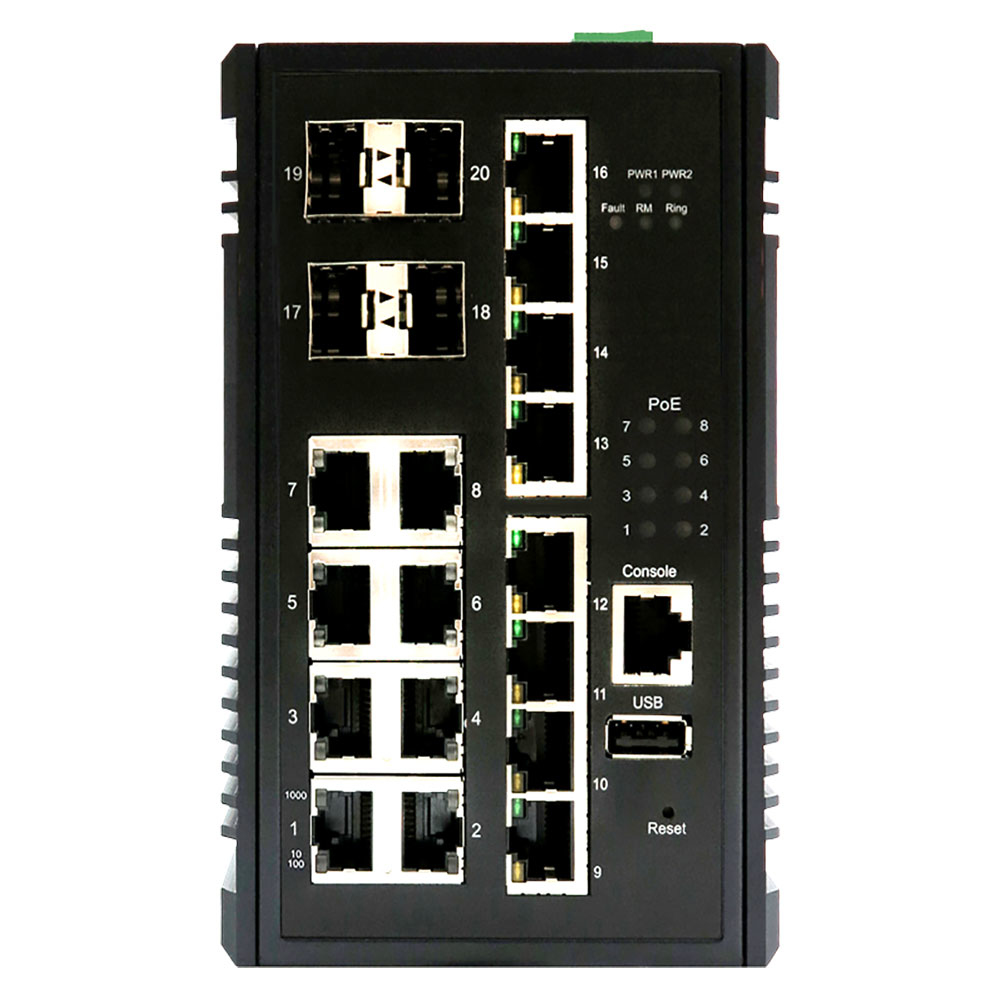

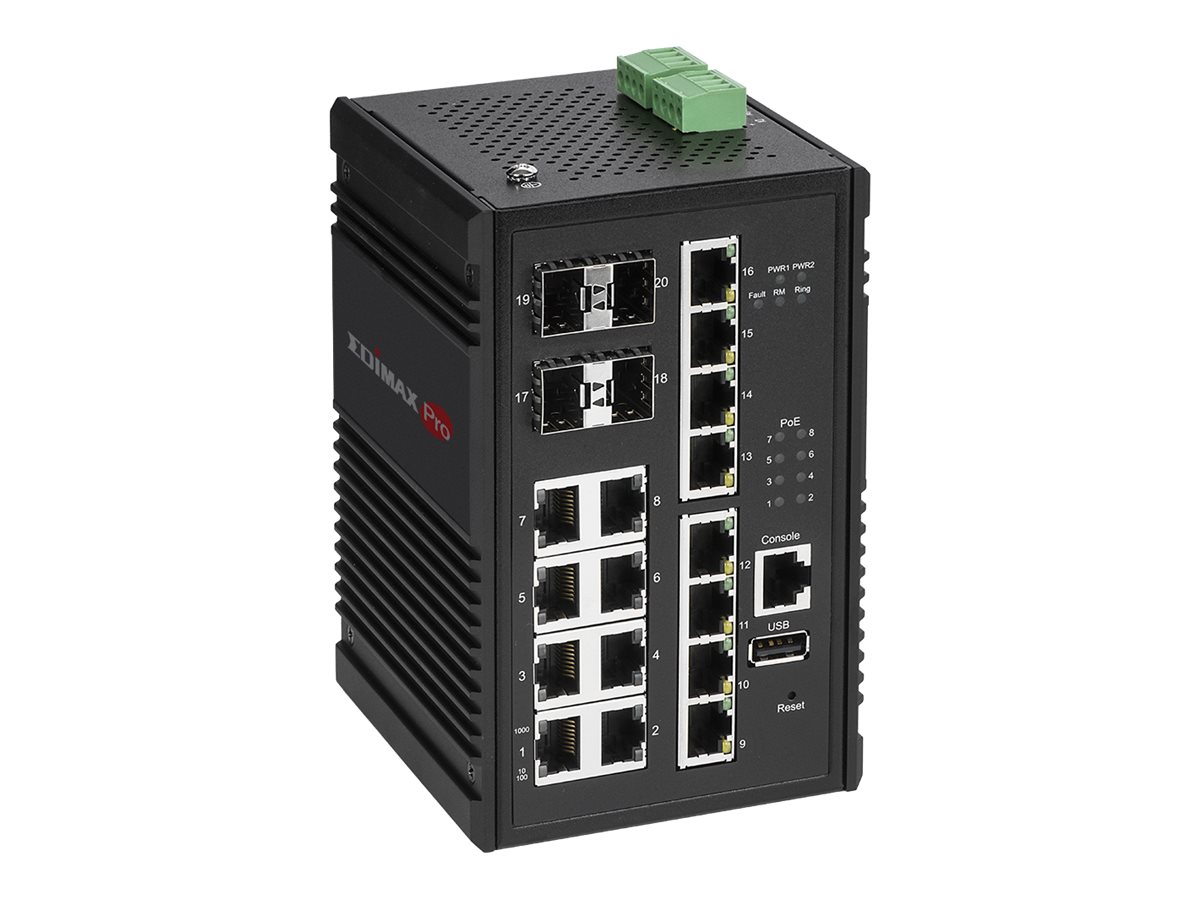

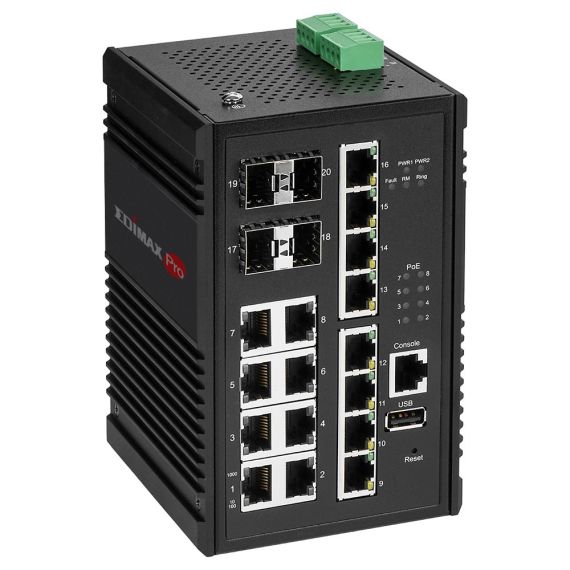

Edimax Pro IGS-5416P / Switch / smart / 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 + 4 x Gigabit SFP / DIN rail mountable / PoE+ (240 W) / DC power | IGS-5416P
Edimax Pro IGS-5416P / Switch / smart / 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 + 4 x Gigabit SFP / DIN rail mountable / PoE+ (240 W) / DC power | IGS-5416P
€2148.91 inc. VAT
IGS-5416P
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Ruggedized design
Equipped with anti-dust IP30-rated aluminum alloy case, the switch is designed and certified to withstand a high degree of vibration, shock, free-fall protection and against ESD/EMI surge for harsh environments. - USB console port
Designed with the USB console port for convenient system backup, restoration and upgrade to enhance maintenance efficiency and reduce system downtime. - Reliable dual redundancy
Supports network redundancy with RSTP, MSTP, ERPS, LACP and power redundancy with two power inputs to ease the unexpected risk and ensure stable and reliable network service quality.
Special Fetures
- Sixteen Gigabit Ethernet ports with eight PoE+ ports and four SFP slots
- PoE powered devices (PD) alive check to enhance the reliability of the network
- Industrial ruggedized design with IP30-rating aluminum alloy case
- Supports RSTP, MSTP, ERPS, LACP for network redundancy to ensure the network connection reliability
- Equipped with redundant power inputs (both Digital Input (DI) and Digital Output (DO)) and embedded protecting circuit to avoid damaging the switch
- Supports Storm Control to suppress a packet storm in a network (Storm Protection)
- DHCP snooping to protect the integrity of legitimate DHCP server and its operations
- Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror
- USB console port for efficient configuration backup and restore and firmware upgrade
- 40Gbps switch capacity
- 16K MAC address table and jumbo frame support up to 16KB

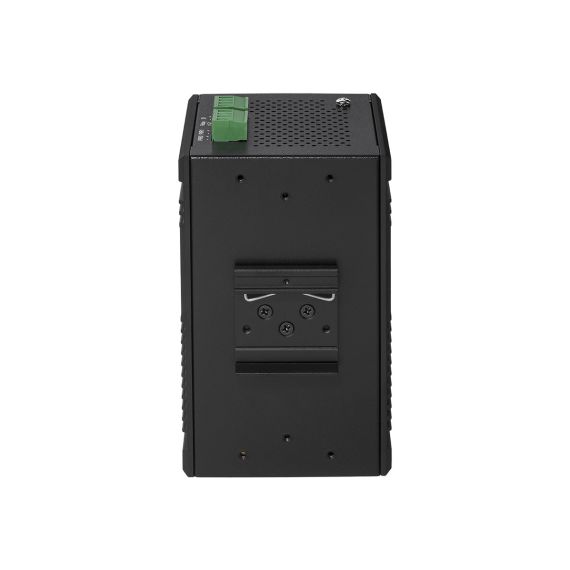

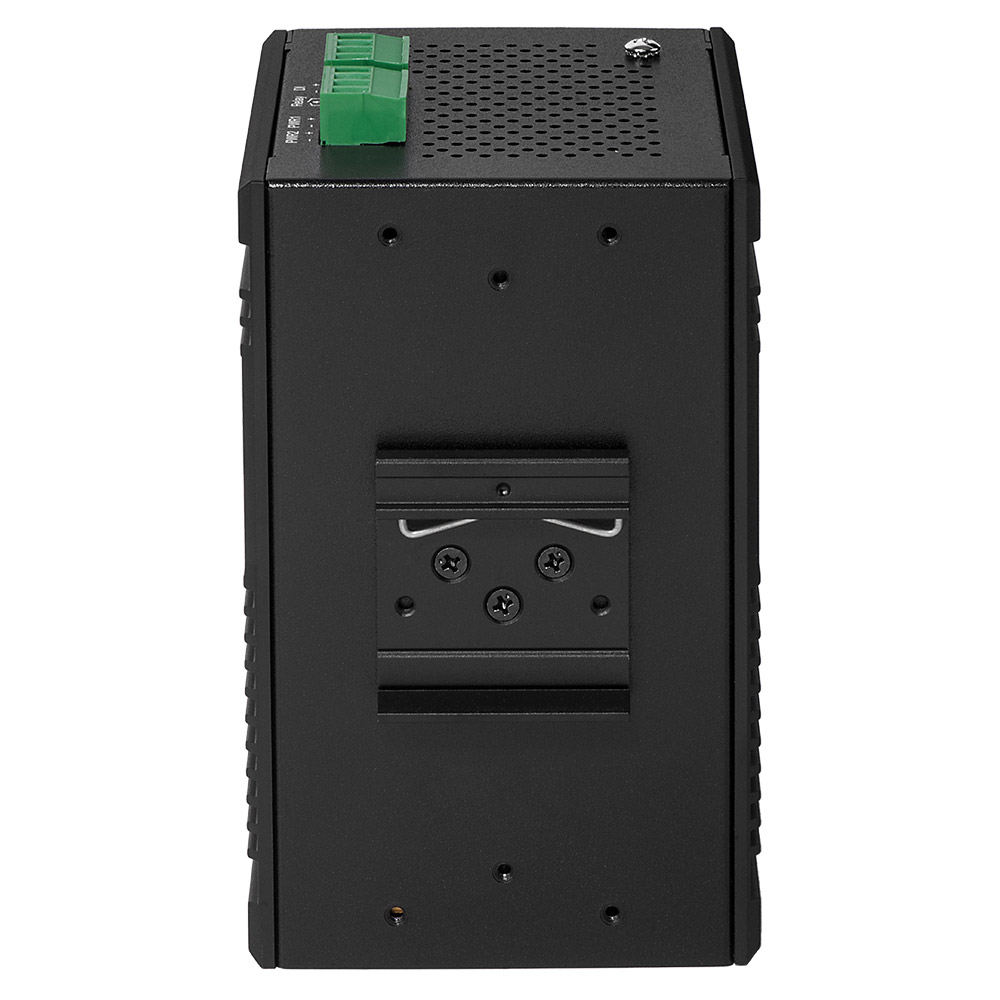

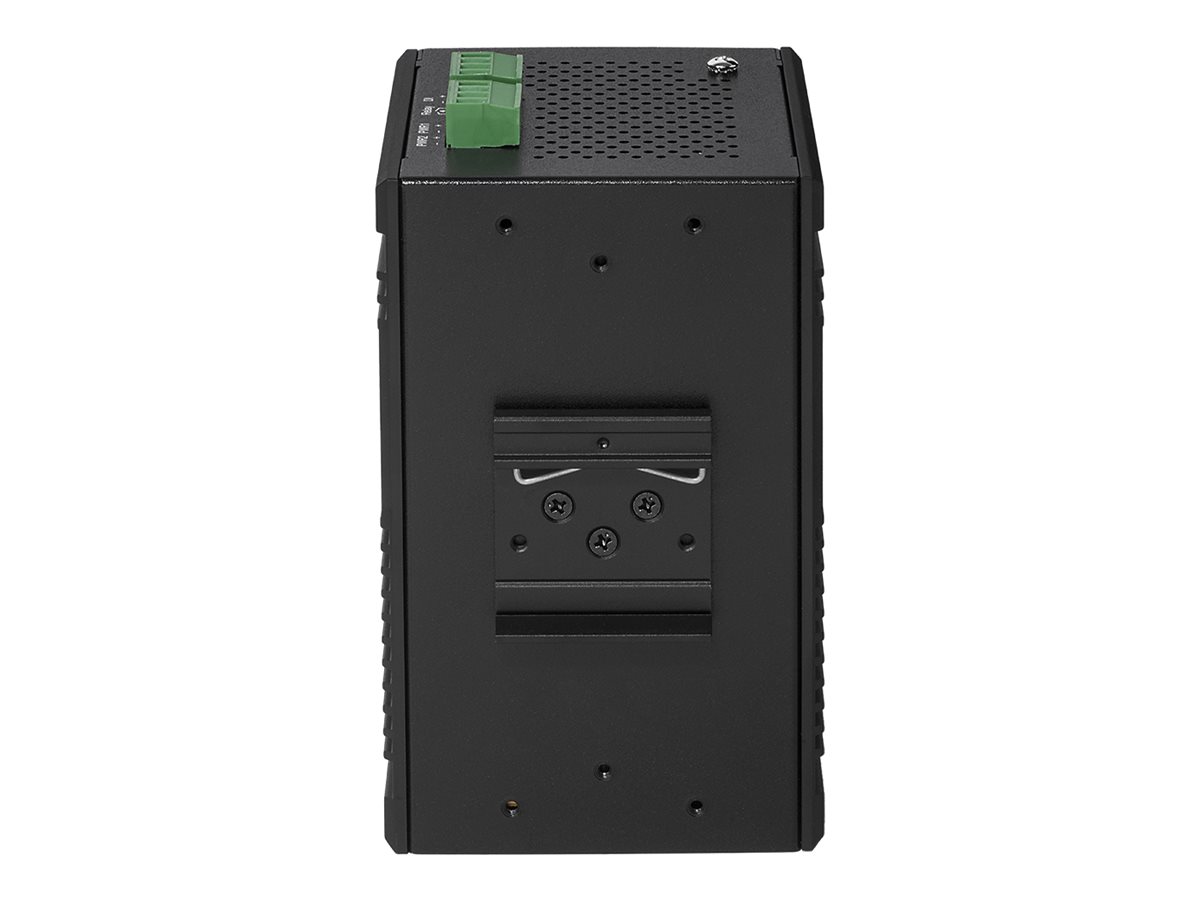

- Fanless, compact size with DIN-Rail and wall mounting enabled design
Product Specification
| Device Type | Switch - 16 ports - smart |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 40 Gbps <br /> Forwarding rate: 29.76 Mpps |
| Capacity | VLAN IDs: 4096 <br /> Virtual interfaces (VLANs): 200 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 16KB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP 3, HTTP, SSH, CLI, DHCP |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | IGMP snooping, Syslog support, port mirroring, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), fanless, LLDP support, 12Mbit packet buffer, NTP client, Weighted Round Robin (WRR), DSCP based CoS, port-based VLAN, port trunking, Q-in-Q tunnelling, IPv4 and IPv6 dual stack |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W <br /> 4 x 1000Base-X SFP <br /> 8 x 1000Base-T RJ-45 <br /> 1 x console RJ-45 <br /> 1 x USB 2.0 Type A |
| Power | |
| Voltage Required | DC 48 - 57 V |
| Power Consumption Operational | 22.08 Watt |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 B Class A, IP30, EN 55032 Class A |
| Dimensions & Weight | |
| Width | 14.5 cm |
| Depth | 9.08 cm |
| Height | 11.3 cm |
| Weight | 1.4 kg |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 80 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
