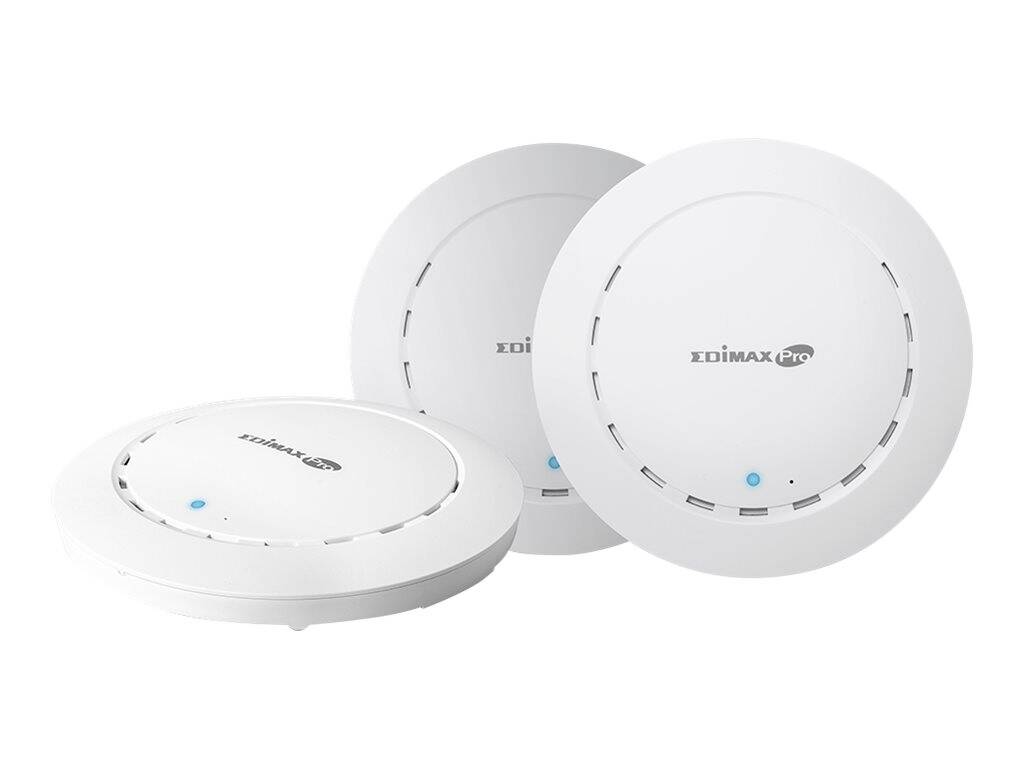

Edimax Pro OFFICE 1-2-3 - Wi-Fi system (3 access points) - 802.11ac Wave 2 - 802.11a/b/g/n/ac Wave 2 - Tri-Band | OFFICE 1-2-3

Description
Features
Reviews

Product Features

Dedicated office Wi-Fi
Designed for high density offices for 100 employees or less, ideal for crowded environments and BYOE (Bring Your Own Everything) workplace Wi-Fi connection.
Easy setup, self-managed & pre-configured Wi-Fi system
Three pre-configured APs with self-managed functions for easy setup.
Secure & separated Wi-Fi networks
Three separate Wi-Fi networks by default - office, guest and Wi-Fi device - secure Wi-Fi network. Supports up to 32 SSIDs in total and is ideal for different departmental groups or user groups.
High-speed 802.11ac Wave 2 & efficient MU-MIMO
Features IEEE 802.11ac concurrent dual-band with 1300 Mbps wireless speed and serves multiple devices simultaneously to enhance connected devices capacity.
High performance Wi-Fi
Beamforming improves Wi-Fi performance with targeted, directional signals for better range and reliability. AirTime Fariness (ATF) function optimizes Wi-Fi speed among each client and eliminate Wi-Fi lag. Band Steering balances channel utilization, enabling high capacity environment.

Special Fetures

Dedicated office Wi-Fi
Easy setup, self-managed & pre-configured Wi-Fi system
Secure & separated Wi-Fi networks
High-speed 802.11ac Wave 2 & efficient MU-MIMO
High performance Wi-Fi

Product Specification

Device Type	Wi-Fi system
Wi-Fi System Components	3 access points
Enclosure Type	Desktop
Connectivity Technology	Wireless
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band	2.4 GHz (1 band) / 5 GHz (2 bands)
Data Transfer Rate	1267 Mbps
Performance	Multicast rate: up to 54 Mpps
Capacity	Maximum number of configured SSIDs (2.4 Ghz): 16 ¦ Maximum number of configured SSIDs (5 Ghz): 16 ¦ Number of RADIUS clients: 256 ¦ Concurrent users per radio: 100 ¦ Captive portal accounts: 128 ¦ MAC addresses: 256 ¦ Maximum number of access points: 16 ¦ VLAN IDs: 4095
Network / Transport Protocol	PPTP, L2TP, IPSec, RTSP
Remote Management Protocol	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Encryption Algorithm	PEAP, WPA, WPA2, WEP
Authentication Method	Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP), RADSEC
Wi-Fi Rating	AC1300
Features	VPN support, manageable, MAC address filtering, IPv6 support, Wireless Distribution System (WDS) support, Access Point operational mode, firmware upgradable, Spanning Tree Protocol (STP) support, WPA2 encryption, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, hidden SSID, PoE+, reset button, Wireless Client Mode, rogue access point detection, Management Information Base (MIB), ceiling mountable, Captive Portal, WEP encryption, DiffServ Code Point (DSCP) support, MU-MIMO technology, WPA encryption, beamforming technology, band steering, WDS bridge, Security Management System (SMS), WDS access point, Private MIB, guest access, wireless access scheduling, Air Time Fairness (ATF), Layer 2 isolation
Compliant Standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, FCC, RoHS, UL 94
RAM	256 MB
Flash Memory	32 MB
Status Indicators	Power, diagnostic
Expansion / Connectivity

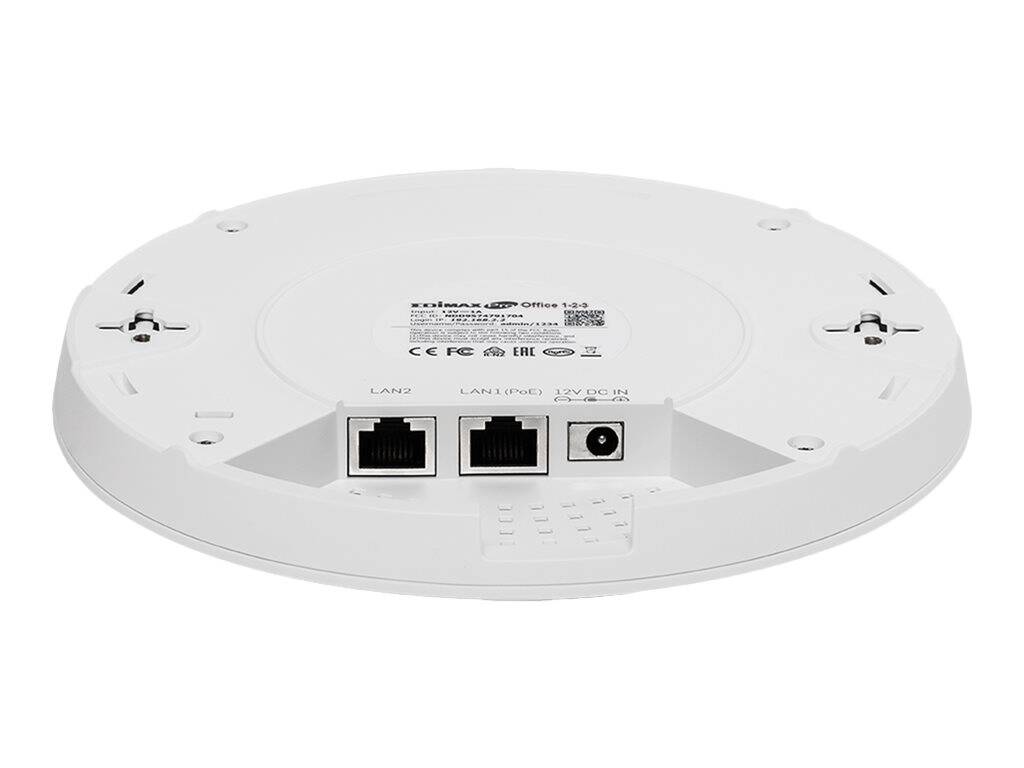

Interfaces	LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Aerial
Aerial	Internal
Antenna Qty	4
Power
Power Device	External power adapter
Installed Qty	3
Miscellaneous
Included Accessories	Ceiling mounting kit, T-Rail mounting kit
Cables Included	3 x network cable
Dimensions & Weight
Width	17.6 cm
Depth	17.6 cm
Height	3.2 cm
Weight	342 g
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 90%
