Edimax Pro Office +1 - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - wall / ceiling mountable | Office +1
Product Features
- License-free intutive UI, simple yet powerful
Built-in with the AP management software, no need for server or controller software and no extra license fee. The dedicated icon-based user interface of Office 1-2-3/Office +1 can easily walk you through the entire process of setting up the Wi-Fi networks. - Secure & separated - 3 Wi-Fi networks
By default, each AP has three Wi-Fi networks: office, guest and device networks. For Wi-Fi network security, each network has its own secure authentication. - Three easy ways of authentication
Office networks use radius function that works like Wi-Fi access key. Enter the password once and it will remember. Each employee will have his/her own Wi-Fi access key. Guest networks use SMS authentication and captive portal login. Administrators can print out account tickets for the guests and setup expiry time. Device networks use access control list for equipment that are unable to enter account information. - E-MAP and Wireless Scheduling
Featuring E-MAP shows wireless coverage and status of your APs and Wireless Scheduling lets network manager to define when to provide Wi-Fi services to guest, office or device networks. - Optimal Wi-Fi performance
Featuring with 11ac Wave 2 MU-MIMO, Beamforming, AirTime Fairness, Band Steering improved Wi-Fi range, reliability and performance.
Special Fetures
- Dedicated office Wi-Fi
- Zero configuration, self-managed & pre-configured Wi-Fi system
- Secure & separated Wi-Fi networks
- Maximized cost efficiency
- Expandable Wi-Fi system
- Flexible PoE deployment
- High-speed 802.11ac Wave 2 & efficient MU-MIMO
- Built-in RADIUS server
Product Specification
Device Type | Radio access point |
Width | 17.6 cm |
Depth | 17.6 cm |
Height | 3.2 cm |
Weight | 342 g |
Processor / Memory / Storage | |
RAM | 256 MB |
Flash Memory | 32 MB |
Networking | |
Form Factor | Wall / ceiling mountable |
Connectivity Technology | Wireless |
Data Transfer Rate | 1267 Mbps |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Network / Transport Protocol | PPTP, L2TP, IPSec |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Frequency Band | 2.4 GHz, 5 GHz |
Capacity | Maximum number of configured SSIDs (2.4 Ghz): 16 ¦ Maximum number of configured SSIDs (5 Ghz): 16 ¦ Number of RADIUS clients: 256 ¦ Concurrent users per radio: 100 ¦ Captive portal accounts: 128 ¦ MAC addresses: 256 ¦ Maximum number of access points: 16 ¦ VLAN IDs: 4095 |
Status Indicators | Power, diagnostic |
Features | Power over Ethernet (PoE), VPN support, manageable, MAC address filtering, IPv6 support, Wireless Distribution System (WDS) support, firmware upgradable, Spanning Tree Protocol (STP) support, WPA2 encryption, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, Multiple SSID support, hidden SSID, PoE+, reset button, Wireless Client Mode, rogue access point detection, Management Information Base (MIB), ceiling mountable, Captive Portal, WEP encryption, DiffServ Code Point (DSCP) support, MU-MIMO technology, WPA encryption, beamforming technology, band steering, WDS bridge, Security Management System (SMS), WDS access point, Private MIB, guest access, wireless access scheduling, Air Time Fairness (ATF), Layer 2 isolation |
Encryption Algorithm | PEAP, WPA, WPA2, WEP |
Authentication Method | RADIUS, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP) |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2 |
Aerial | |
Antenna | Internal |
Antenna Qty | 4 |
Expansion / Connectivity | |

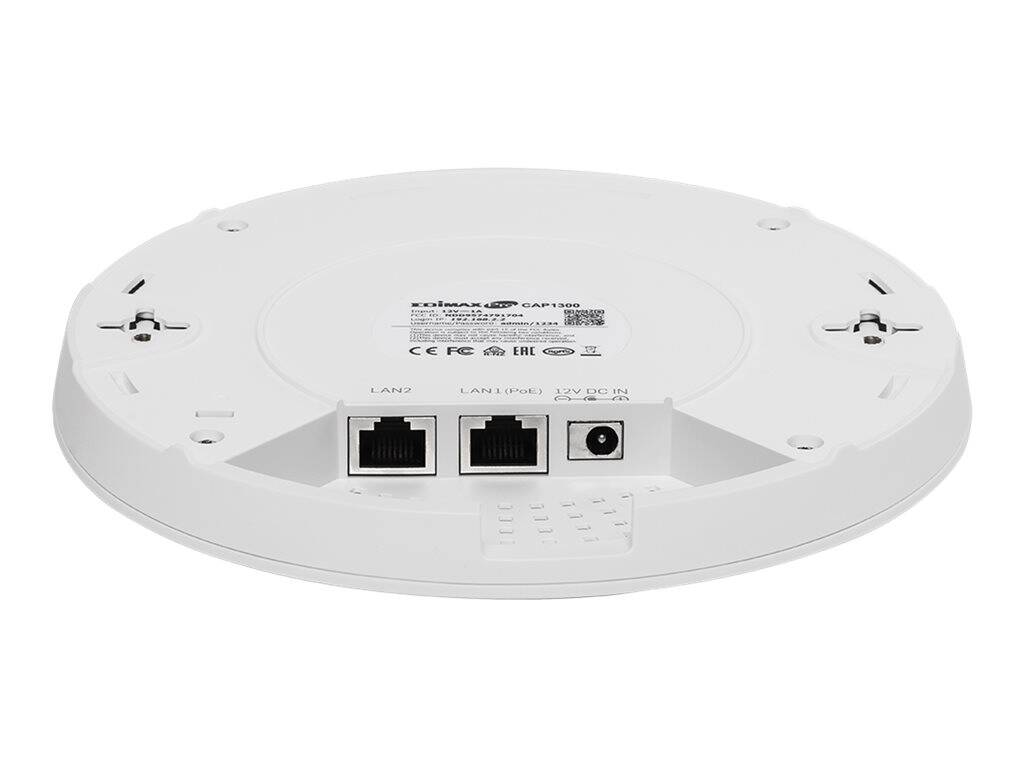

Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 |
Miscellaneous | |
Included Accessories | Ceiling mounting kit, T-Rail mounting kit |
Compliant Standards | FCC |
Power | |
Power Over Ethernet (PoE) Supported | PoE+ |
Power Consumption Operational | 11 Watt |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 - 90% |
