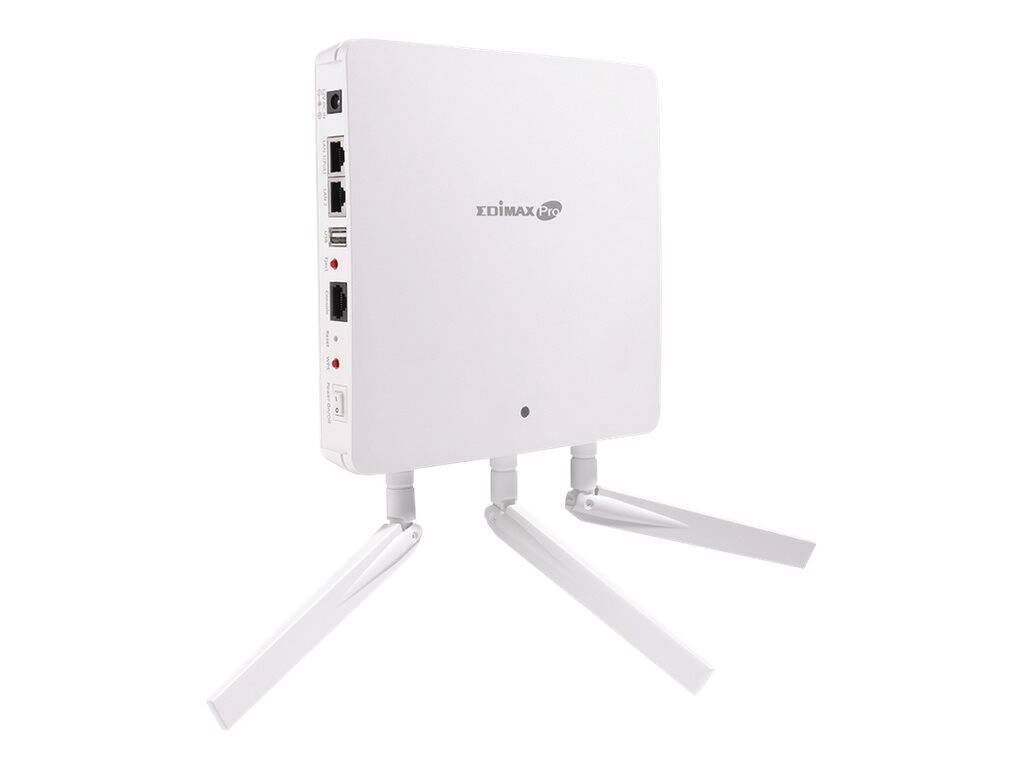

Edimax Pro WAP 1750 - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz | WAP1750
Product Features
- High performance design with high-speed dual-band 11ac
State-of-the-art IEEE 802.11ac wireless technology delivers the Giga-fast Wi-Fi speeds that today's fast-moving modern business environments demand. And simultaneous dual-band coverage means maximum flexibility for mobile-centric business productivity applications. High speeds can handle even the bandwidth intensive tasks, perfect for audio, video and voice applications and significantly faster than traditional 802.11n Wi-Fi. Additionally Edimax Pro series products feature other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability. Durable, robust and ready for business environments. - Wide coverage & multiple SSIDs
With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where it's needed. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security protects sensitive company information and supervise access to internal networks. - Seamless mobility
Typical wireless access points can effectively cover a large radius under normal usage. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization. - Hotels, offices, schools and hospitals
Edimax Pro series access points, with high-speed 11ac high-density networking for many simultaneous users, are ideal for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, conventions or anywhere with large-scale network use, with safety and effectiveness guaranteed.
Special Fetures
- 802.11ac dual-band high speed
- Easy installation
- Designed for high density usage
- Multiple SSIDs for security management
- Fast roaming
- Wide coverage & high sensitivity
- Seamless mobility
- Power over Ethernet
- Built-in RADIUS server
- Business environments
- Central management
Product Specification
Device Type | Radio access point |
Width | 18.3 cm |
Depth | 18.3 cm |
Height | 3.6 cm |
Weight | 560 g |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 1750 Mbps |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Network / Transport Protocol | PPTP, L2TP, IPSec |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Frequency Band | 2.4 GHz, 5 GHz |
Status Indicators | Power, diagnostic |
Features | Power over Ethernet (PoE), VPN support, VLAN support, manageable, MAC address filtering, IPv6 support, Wireless Distribution System (WDS) support, wall mountable, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), RADIUS support, roaming function, Wi-Fi Protected Setup (WPS), Multiple SSID support, hidden SSID, reset button, Management Information Base (MIB), DiffServ Code Point (DSCP) support |
Encryption Algorithm | WPA, WPA2, WEP |
Authentication Method | Extensible Authentication Protocol (EAP), EAP-FAST |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac |
Aerial | |
Antenna | External detachable |
Antenna Qty | 3 |
Gain Level | 2 dBi |
Expansion / Connectivity | |
Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - RJ-45 |
Miscellaneous | |
Compliant Standards | FCC, RoHS |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Power Consumption Operational | 15 Watt |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 0 - 90% |
