EIZO ColorEdge CG2420 / LED monitor / 24.1" / 1920 x 1200 @ 60 Hz / IPS / 400 cd/m² / 1500:1 / 10 ms / HDMI, DVI-D, DisplayPort / black | CG2420

Product Features
- Built-in sensor to automate your workflow

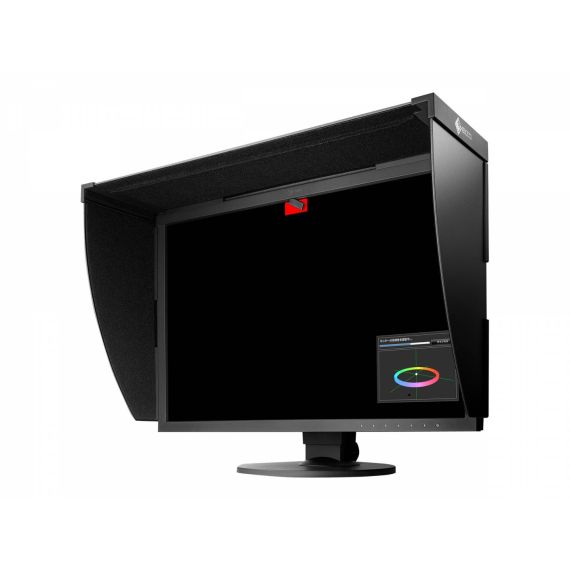

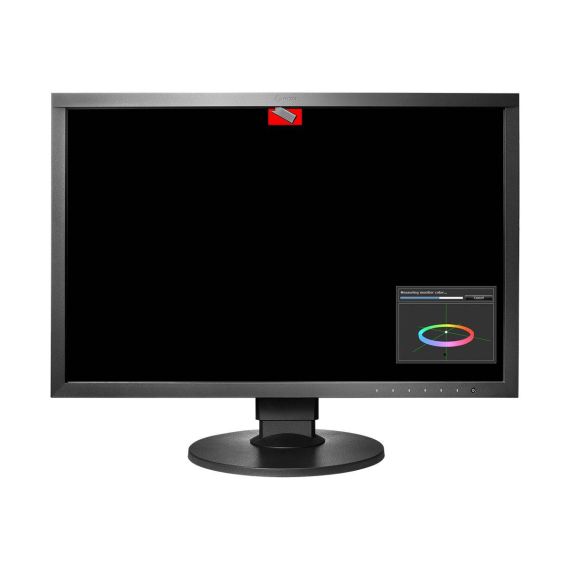

Automate your calibration with the sensor, that is housed within the front bezel. The sensor swings onto the screen only when calibrating, eliminating the need for a calibration device. It even operates, while the monitor is in portrait mode. - Vivid colors
The wide color gamut of the ColorEdge CG2420 reproduces almost the entire RGB color space, so images shot in RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully. The wide color gamut also ensures reproduction of CMYK color spaces, used in printing. - 10-bit simultaneous display
Using the DisplayPort or HDMI inputs, the ColorEdge CG2420 offers 10-bit simultaneous display from a 16-bit look-up-table (LUT), which means it can show more than one billion colors simultaneously. - Stable color
Whether you are working in a studio or taking the monitor with you on location, you get reliable color display soon after turning the monitor on. - Uniformity from corner to corner
Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, the ColorEdge CG2420 is equipped with EIZO's digital uniformity equalizer (DUE) technology to ensure a Delta-E difference of 3 or less across the screen. DUE also counterbalances the influences, that a fluctuating temperature may have on color temperature and brightness for stable image display. - Wide viewing angles with IPS panel
The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast. - True black display
The ColorEdge CG2420 offers a high contrast ratio for producing true blacks, that are otherwise difficult to display on a typical LCD monitor. When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG is equipped with a film, which allows tones to retain their depth even when viewed from an angle. - Slimmer bezels
The slim cabinet features unobtrusive frames that are slimmer, so you can focus more on the screen. - Seamless electrostatic switches
The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to monitor settings. - Built-in carrying handle

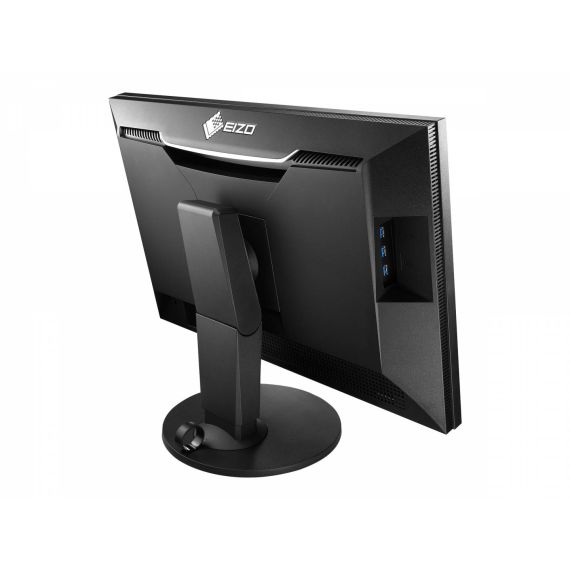

A carrying handle on the back of the monitor allows you to easily move it from one location to another. - Easy-access USB ports
The monitor is equipped with three easy-to-access USB 3.0 ports, including one port for battery charging devices such as a smartphone. - Minimized reflections with non-glare panel
The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment. - Ergonomic stand for comfort and convenience
Adjust the screen to the comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand, that offers height, tilt, and swivel adjustments as well as portrait display. - Multiple inputs
DisplayPort, HDMI, and DVI-D inputs are available and support various types of graphics boards. The HDMI input also offers direct connection with digital cameras. Two USB upstream ports allow two computers to be connected at once.
Special Features
- Simple and precise color management
- Features for creative work
- Feature for video editing and post production
- Sleek, user-friendly design
- Features for comfort and ease of use
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/356600 |
Energy Class | Class F |
Energy Consumption per Year | 33 kWh |
Diagonal Size | 24.1" |
Built-in Devices | USB 3.0 hub, calibration sensor |
Panel Type | IPS |
Aspect Ratio | 16:10 |
Native Resolution | 1920 x 1200 at 60 Hz |
Pixel Pitch | 0.27 mm |
Pixel Per Inch | 94 |
Brightness | 400 cd/m² |
Contrast Ratio | 1500:1 |
Colour Support | 1.07 billion colours |
Colour Gamut | 98% DCI-P3, 99% Adobe RGB |
Response Time | 10 ms (grey-to-grey) |
Vertical Refresh Rate | 24 - 61 Hz |
Horizontal Refresh Rate | 15 - 78 kHz |
Horizontal Viewing Angle | 178 |
Vertical Viewing Angle | 178 |
Backlight Technology | LED backlight |
OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Swedish, Spanish, Japanese |
Features | Auto Calibrate, sRGB colour management, HDCP, Digital Uniformity Equalizer (DUE), Auto Brightness Stabilization, Wide Colour Gamut |
Colour | Black |
Dimensions (WxDxH) | 55.44 cm x 24.5 cm x 39.6 cm - with stand |
Weight | 7.8 kg |
Connectivity | Connectivity |
Interfaces | DisplayPort (HDCP) HDMI (HDCP) DVI-D (HDCP) 3 x USB 3.0 downstream (Type A) USB 3.0 upstream (Type B) |
Mechanical | Mechanical |
Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
Tilt Angle | -5/+35 |
Swivel Angle | 344 |
Rotation Angle | 90 |
Height Adjustment | 155 mm |
VESA Mounting Interface | 100 x 100 mm |
Miscellaneous | Miscellaneous |
Included Accessories | Detachable hood, screen cleaner kit |
Cables Included | 1 x DVI cable - DVI-D to DVI-D 1 x DisplayPort cable - miniDisplayPort to DisplayPort 1 x USB cable - USB Type A to B |
Compliant Standards | FCC Class B certified, TUV GS, CB, TUV Ergo, RoHS, WEEE, cTUVus, VCCI Class B, EAC, RCM, CAN ICES-3 Class B |
Power | Power |
Input Voltage | AC 100/240 V (50/60 Hz) |
Power Consumption (On mode) | 21.2 W |
Power Consumption SDR (On mode) | 21.2 kWh/1000h |
Power Consumption (Typical) | 79 Watt |
Power Consumption Stand by | 0.6 Watt |
On / Off Switch | Yes |
Software / System Requirements | Software / System Requirements |
Included Software | Drivers & Utilities, EIZO ColorNavigator |
Dimensions & Weight | Dimensions & Weight |
Dimensions & Weight Details | With stand - width: 55.44 cm - depth: 24.5 cm - height: 39.6 cm - weight: 7.8 kg Without stand - width: 55.44 cm - depth: 6.4 cm - height: 36.2 cm - weight: 5 kg |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
