Description

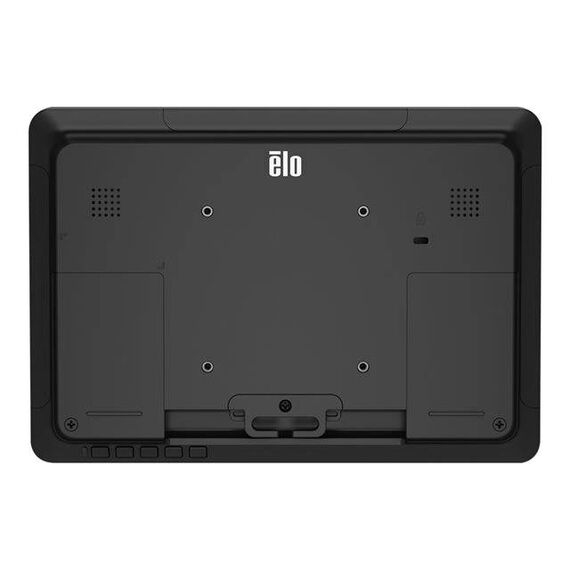

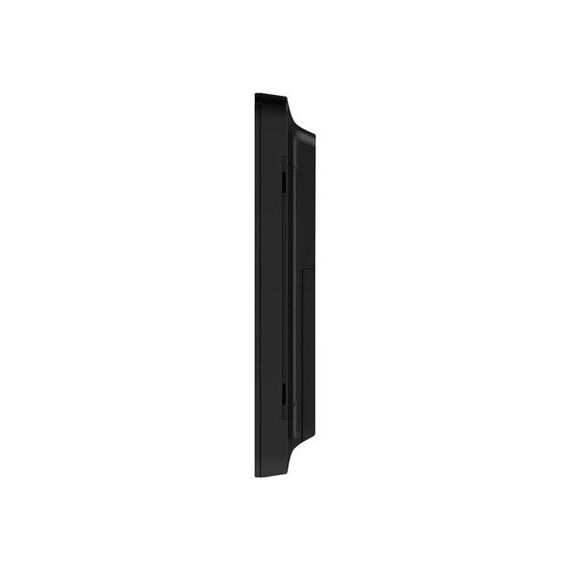

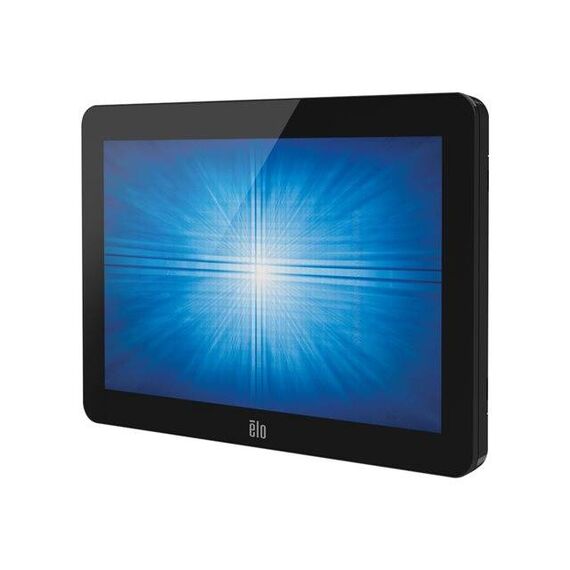

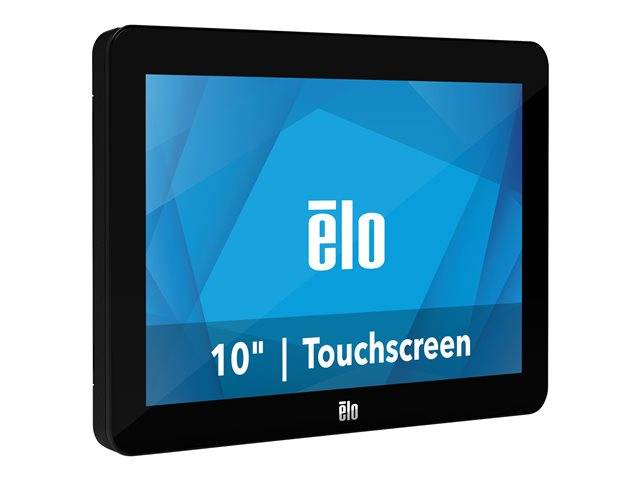

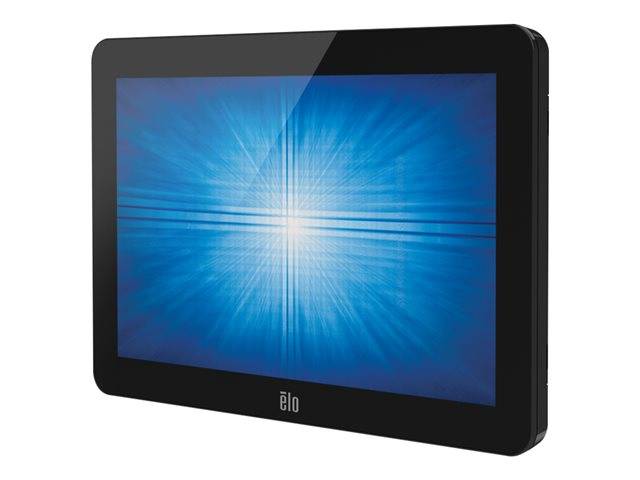

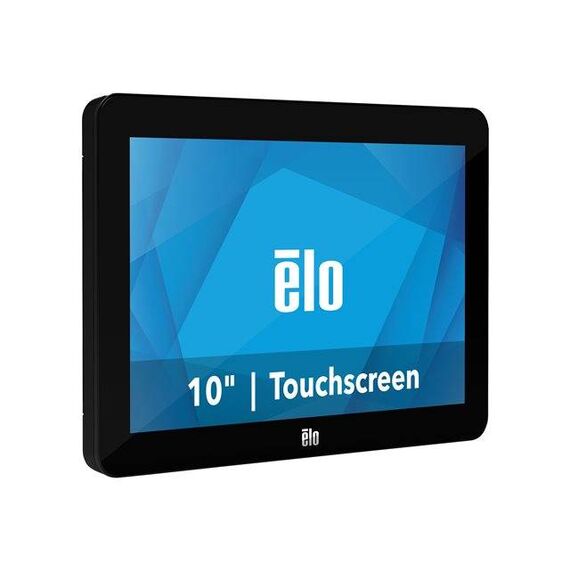

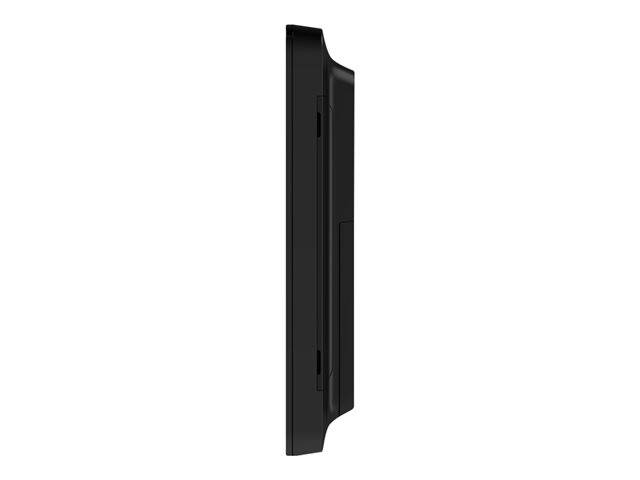

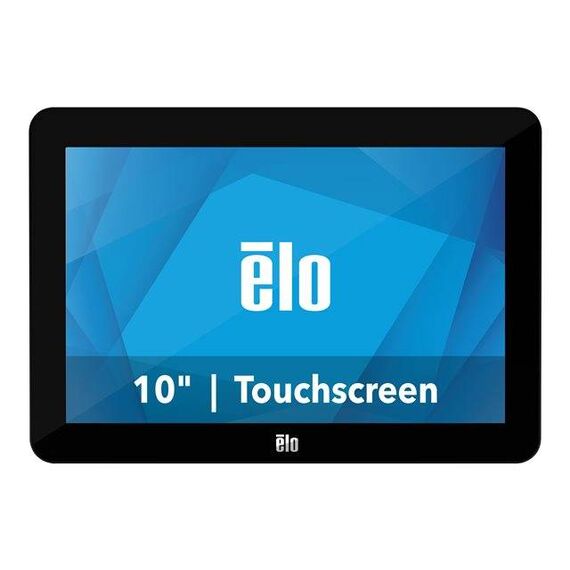

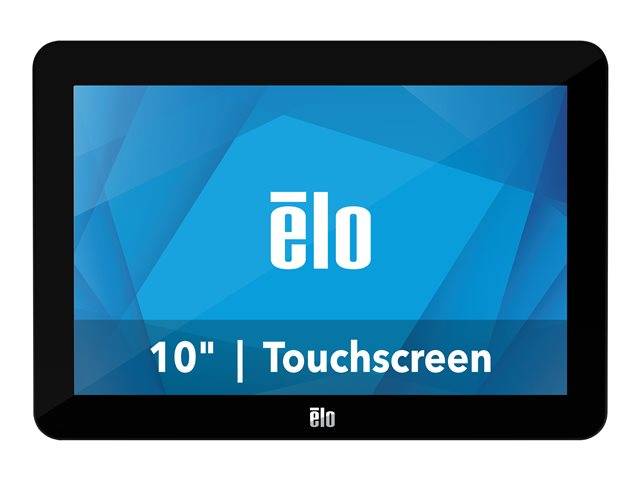

The Elo 1002L 10.1-inch touchscreen monitor delivers a professional-grade interactive solution featuring Elo's industry-leading TouchPro PCAP technology with edge-to-edge glass enabling up to 10 simultaneous touches. The feature rich monitor is equipped with dual built-in speakers and USB Type C, VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, the 1002L is well-suited for POS, self-service, signage and customer-facing point of interaction.Designed for commercial use, the 1002L simplifies business operations by delivering energy efficiency and versatile accessory options - from EMV and MSR payment devices to a barcode scanner and customer facing display.
Elo 1002L / M-Series | E155834
Special Features
- Sleek and modern widescreen design with "built for touch" reliability
- Energy savings using LED technology
- 10 touch projected capacitive (PCAP) touchscreen
- Edge-to-edge glass display with anti-glare for retail interiors
- Installation flexibility with mounting in portrait, landscape and table-top orientation
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 10.1" |
| Aspect Ratio | 16:10 |
| Native Resolution | 1280 x 800 at 60 Hz |
| Brightness | 350 cd/m² |
| Brightness w/touchscreen | 315 cd/m² |
| Contrast Ratio | 800:1 |
| Colour Support | 262,000 colours |
| Response Time | 29 ms |
| Vertical Refresh Rate | 60 Hz |
| Horizontal Refresh Rate | 31.5 - 80 kHz |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +85 / -85 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 25.042 cm x 28.45 cm x 16.31 cm - without stand |
| Weight | 884.2 g |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | Mini-VGA ¦ HDMI ¦ USB (Type C) ¦ Audio line-in ¦ 3 x Micro-USB |

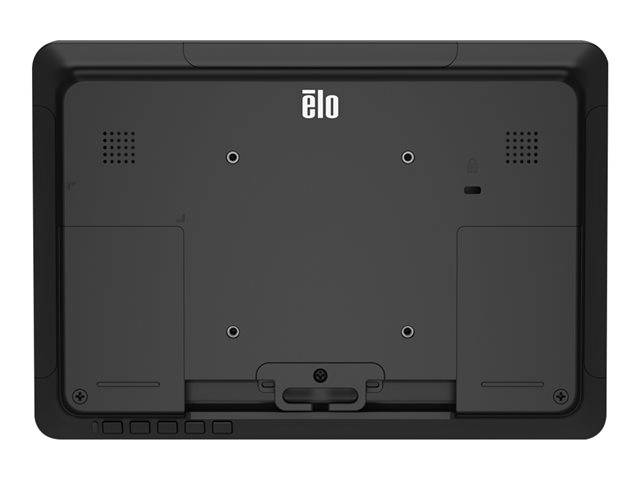

| VESA Mounting Interface | 75 x 75 mm |
| Features | Security lock slot (cable lock sold separately), VESA interface support |
| Included Accessories | 3 screws, 2 screws, cable clamp, 2 tie wraps |
| Cables Included | 1 x HDMI cable ¦ 1 x USB-A to USB-C adapter |
| MTBF | 50,000 hour(s) |
| Compliant Standards | UL, VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, RoHS, KCC, WEEE, REACH, E-Standby, IPX1, RCM, BIS |
| Security Slot Type | Kensington security slot |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.2 Watt |
| Shipping Width | 31.5 cm |
| Shipping Depth | 24.3 cm |
| Shipping Height | 14.4 cm |
| Shipping Weight | 1.827 kg |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
