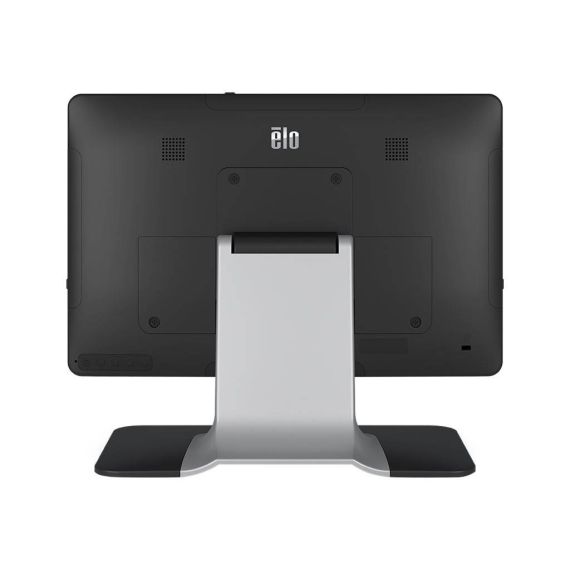

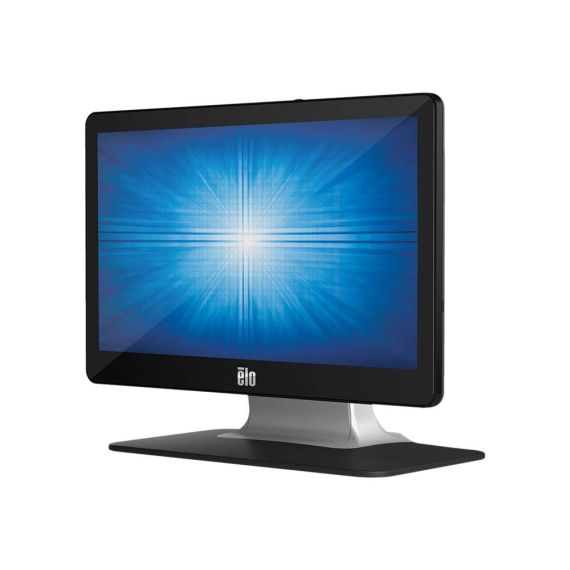

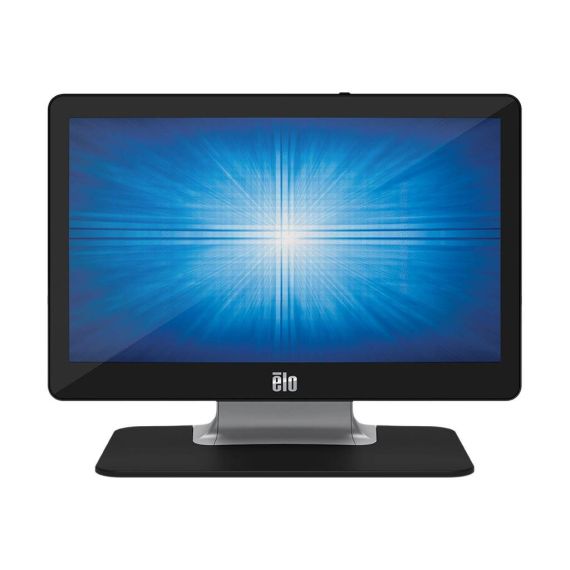

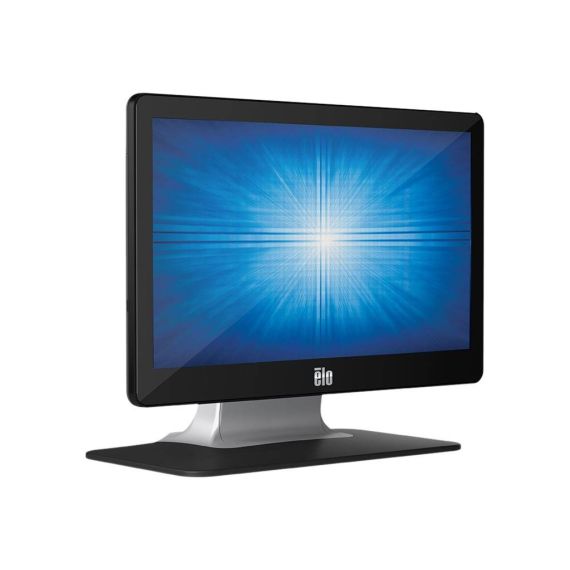

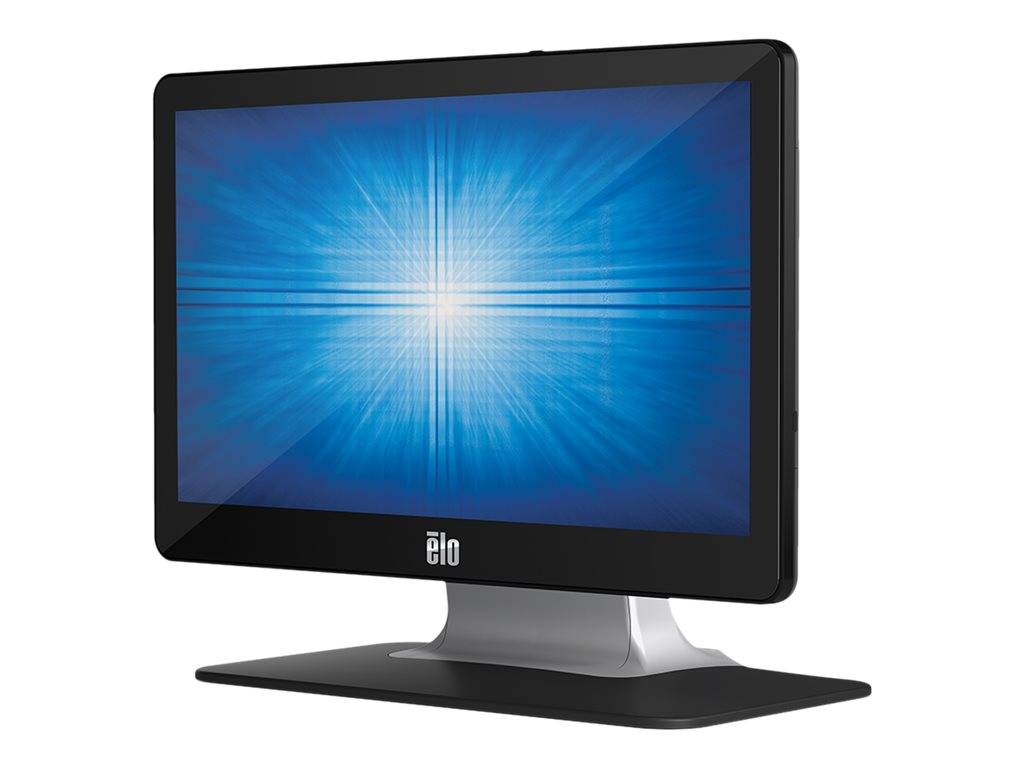

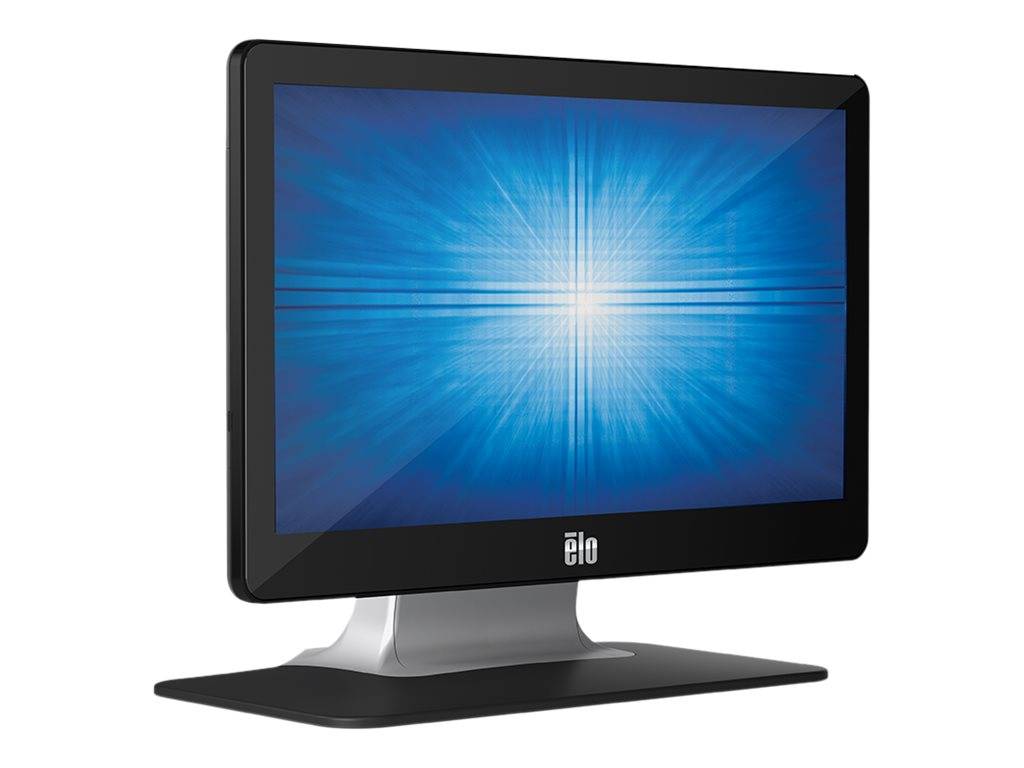

Elo 1302L / With Stand / LCD monitor / 13.3" / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / 300 cd/m² / 800:1 / 25 ms / HDMI, VGA, USB-C / speakers / white | E683396
Elo 1302L / With Stand / LCD monitor / 13.3" / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / 300 cd/m² / 800:1 / 25 ms / HDMI, VGA, USB-C / speakers / white | E683396
€624.61 inc. VAT
E683396
Sales 10%
Promotion details
Sales 10% at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Single cable connection
The 1302L provides a USB Type-C interface that delivers touch, video and power. By reducing the number of cables required for any setup from 3 to 1, installation and servicing is a breeze. - One for you
The 1302L offers dual functionality. Use it as a traditional POS terminal or customer facing display - or both! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion. - Mount with flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party mounts, the touchscreens can be integrated with ease. - Brilliant display
The brilliant touchscreens with Elo technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images.
Special Features
- Single cable connection
- Mount with flexibility
- Brilliant display
Product Specification
| Display Type | LCD monitor / TFT active matrix |
| Energy Class | Class A |
| Energy Consumption per Year | 15 kWh |
| Diagonal Size | 13.3" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 300 cd/m² |
| Brightness w/touchscreen | 270 cd/m² |
| Contrast Ratio | 800:1 |
| Colour Support | 16.7 million colours |
| Response Time | 25 ms |
| Vertical Refresh Rate | 60 Hz |
| Horizontal Refresh Rate | 30 - 75 kHz |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +85 / -85 |
| Screen Coating | Anti-glare |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | TouchPro technology |
| Colour | White |
| Image Colour Disclaimer | The displayed product image may be a different colour |
| Dimensions (WxDxH) | 32.606 cm x 15 cm x 25.957 cm - with stand |
| Weight | 2.32 kg |
| Audio | Audio |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |
| Interfaces | HDMI VGA Audio line-out (mini-jack) USB-C 4 x Micro-USB |
| Mechanical | Mechanical |

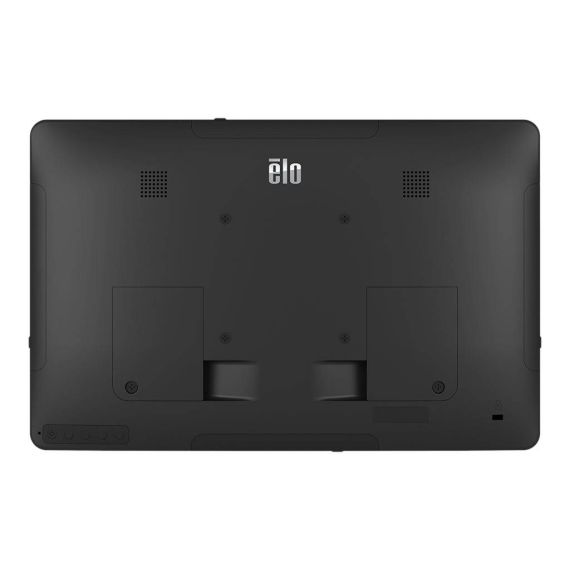

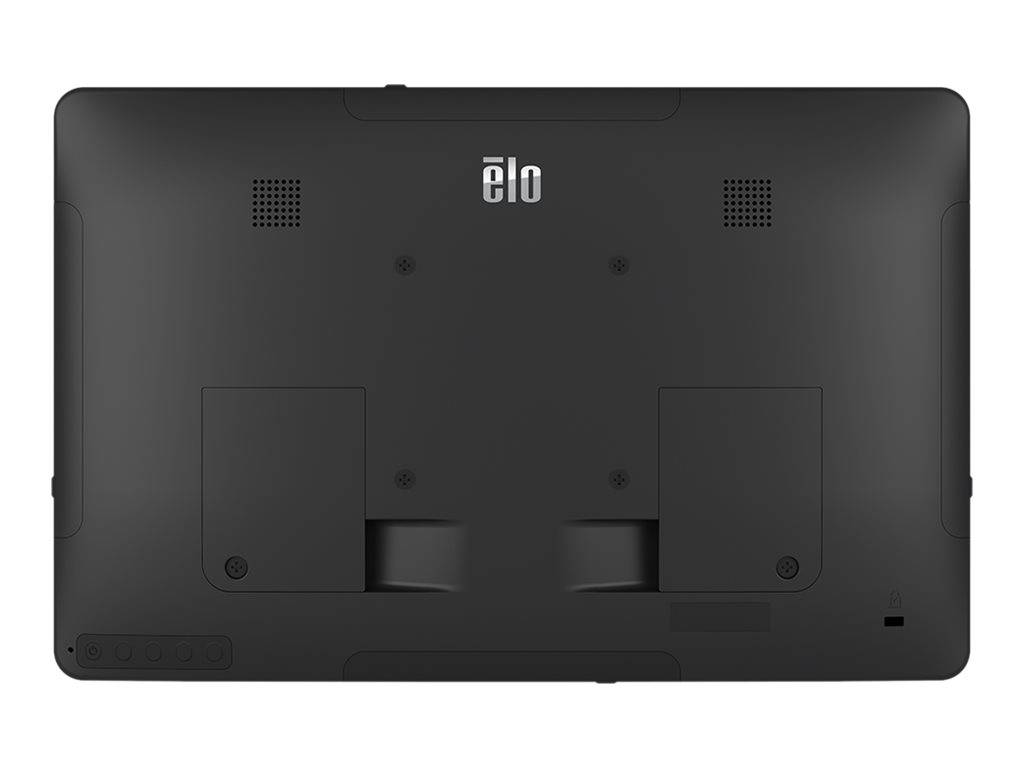

| VESA Mounting Interface | 75 x 75 mm |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 screws, 3 tie wraps |
| Cables Included | 1 x USB-C to USB-A cable 1 x HDMI cable |
| Compliant Standards | VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, RoHS, KCC, WEEE, REACH, IPX1, China RoHS, RCM |
| Localisation | Worldwide |
| Power | Power |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (On mode) | 10 W |
| Power Consumption (Typical) | 10 Watt |
| Power Consumption Stand by | 0.45 Watt |
| Power Consumption (Off Mode) | 0.2 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Dimensions & Weight Details | With stand - width: 32.606 cm - depth: 15 cm - height: 25.957 cm - weight: 2.32 kg Without stand - width: 32.606 cm - depth: 2.505 cm - height: 21.13 cm - weight: 1.22 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 33.3 cm |
| Shipping Depth | 41.5 cm |
| Shipping Height | 22 cm |
| Shipping Weight | 4.62 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% |
