Elo 1515L IntelliTouch / LCD monitor / 15" / touchscreen / 1024 x 768 / 225 cd/m2 / 500:1 / 11.7 ms / VGA / dark grey | E399324

Description

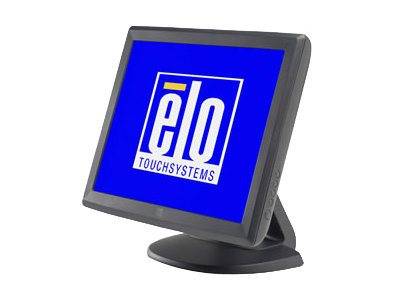

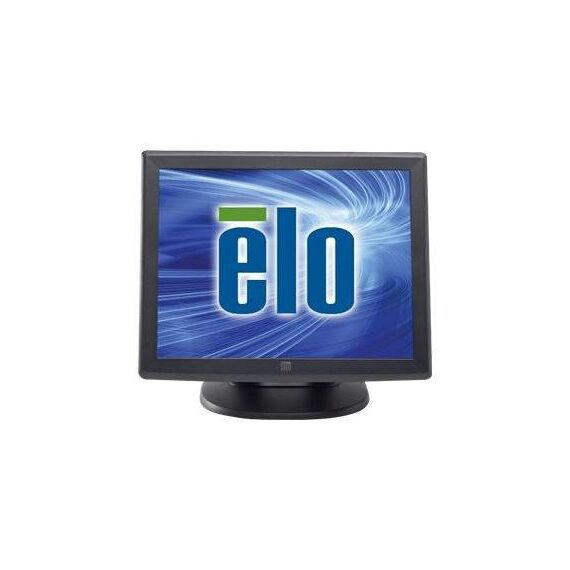

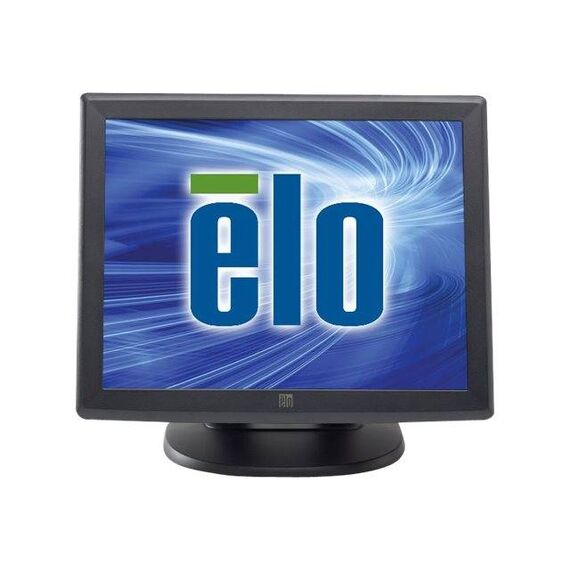

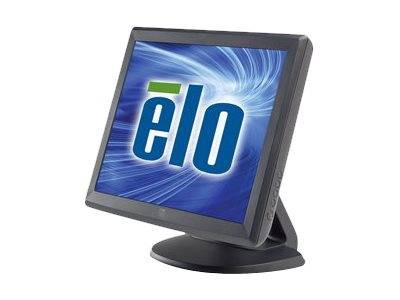

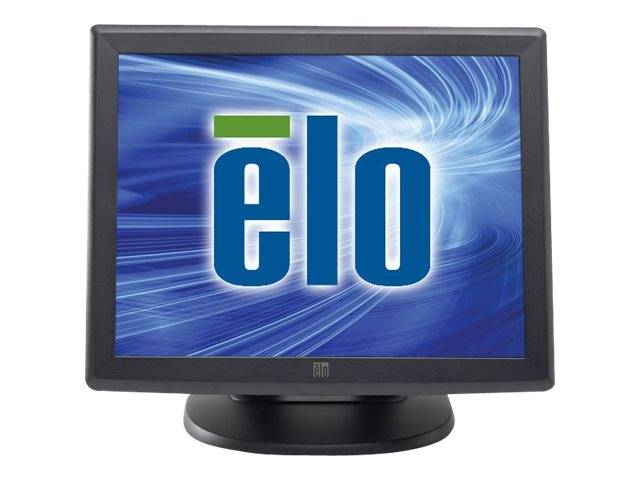

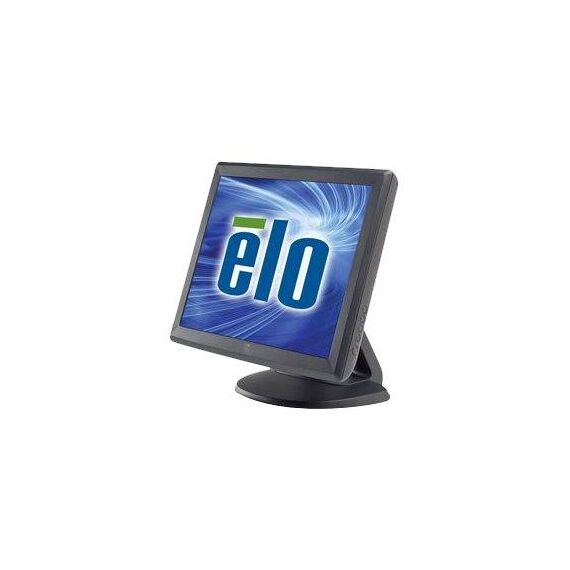

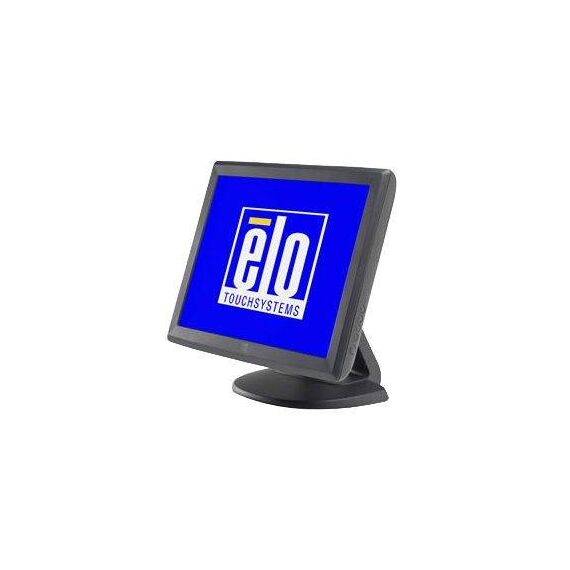

The Elo Touch Solutions 1515L touchmonitor is designed, developed and built to provide a cost-effective touch solution for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor with a footprint smaller than a standard 15" display. This cost and space-saving touchmonitor is "designed for touch"- the technology is built into the 1515L from the ground up and not added as an afterthought by altering the original monitor. It includes a stable base, with controls that are placed on the side rather than the front and are locked-out for public use. The 1515L can function as a desktop or wall-mounted unit. IntelliTouch surface acoustic wave pure-glass touchscreen technology provides superior image quality and can be activated with finger or glove.

Special Features

  • Economical and reliable
  • Up to 1024 x 768 resolution at 75 Hz
  • Available with AccuTouch five-wire resistive technology
  • IntelliTouch surface wave technology for superior image quality
  • Sealed touchscreen
  • Dual serial USB interface

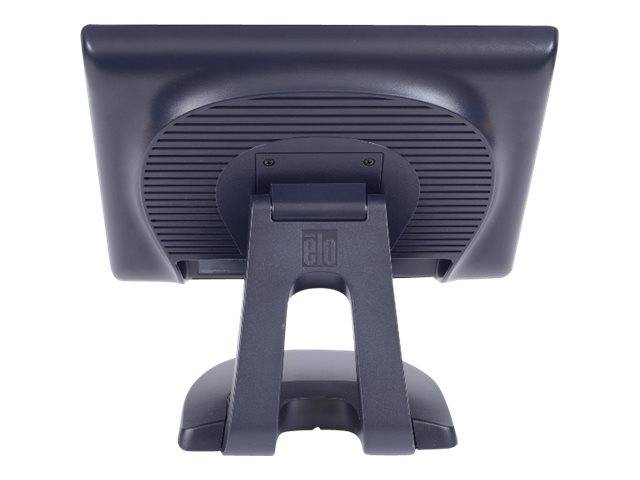

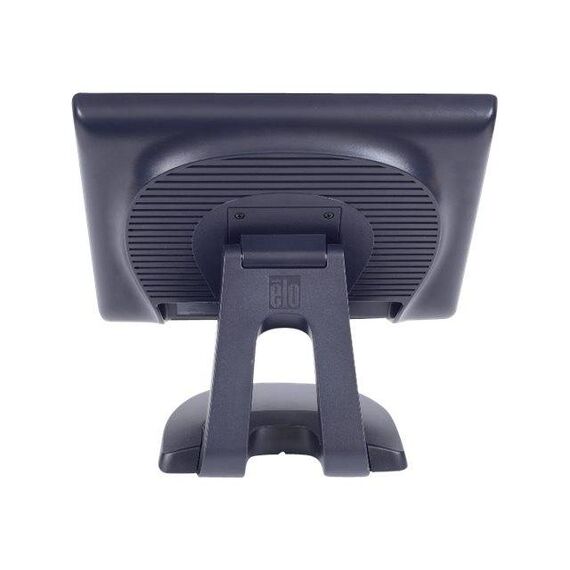

  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security

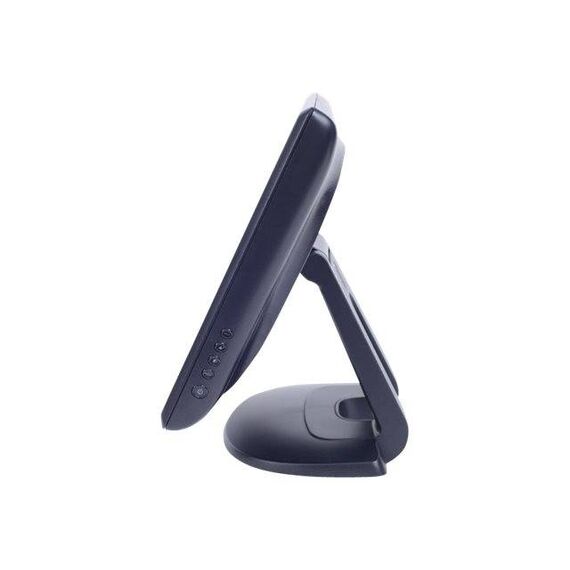

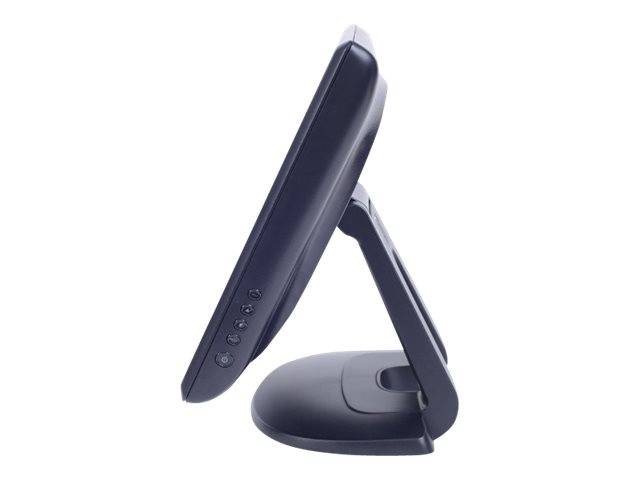

  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Internal power supply

Product Specification

Display Type LCD monitor / TFT active matrix
Diagonal Size 15"
Aspect Ratio 4:3
Native Resolution 1024 x 768 at 75 Hz
Brightness 225 cd/m²
Contrast Ratio 500:1
Colour Support 16.7 million colours
Response Time 11.7 ms
Vertical Refresh Rate 75 Hz
Horizontal Refresh Rate 60.2 kHz
Horizontal Viewing Angle +65 / -65
Vertical Viewing Angle +55 / -65
Screen Coating Anti-glare
Controls & Adjustments Brightness, contrast, H/V position, colour temperature, phase, clock
OSD Languages English, German, French, Spanish, Japanese
Features IntelliTouch Surface Wave, Sync on Green
Colour Dark grey
Dimensions (WxDxH) 35 cm x 17.5 cm x 31 cm
Weight 4.8 kg
Type Touch-screen - touchscreen
Movement Detection Technology Surface acoustic wave
Interfaces 1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B
Flat Panel Mount Interface 75 x 75 mm
Features Security lock slot (cable lock sold separately), wall mountable
Cables Included 1 x VGA cable ¦ 1 x serial cable ¦ 1 x USB cable
Backlight Life 30,000 hours
MTBF 50,000 hour(s)
Compliant Standards UL, VCCI, C-Tick, cUL, MPR III, SEMKO, IC, FCC, RoHS
Power Supply Internal
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 30 Watt
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 20 - 80%
