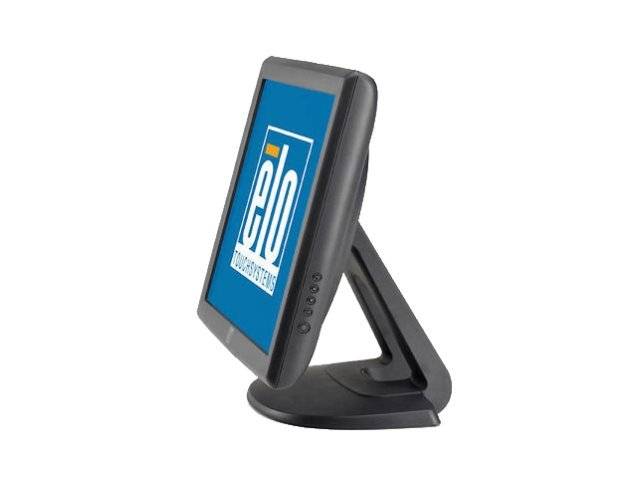

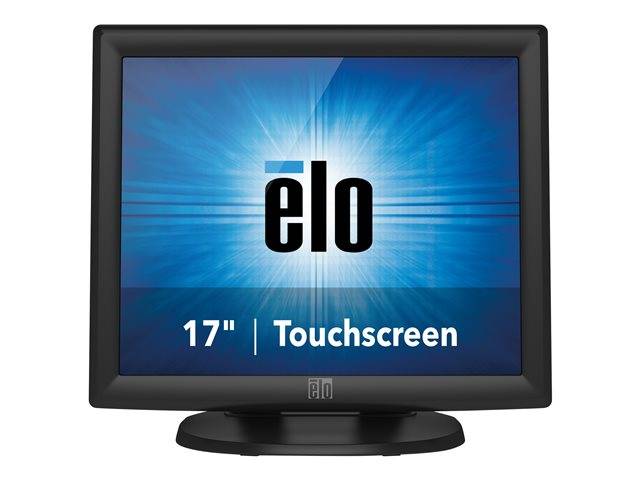

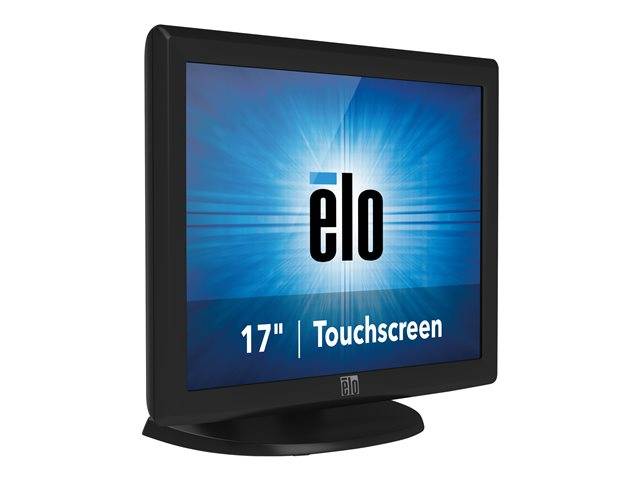

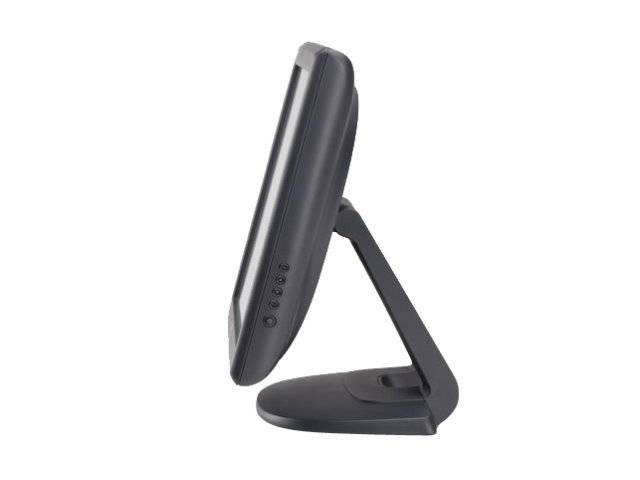

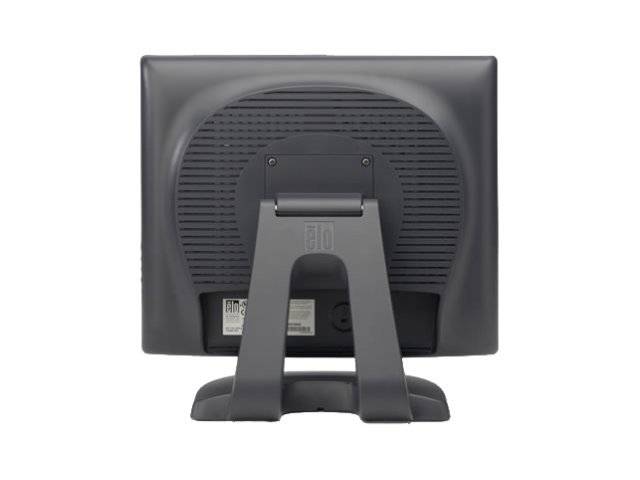

Elo Desktop Touchmonitors 1715L IntelliTouch / LED monitor / 17" / touchscreen / 1280 x 1024 / 225 cd/m2 / 1000:1 / 5 ms / VGA / dark grey | E719160
Description The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. IntelliTouch surface acoustic wave pure-glass touchscreen technology provides superior image quality and can be activated with finger or glove. Special Features
|
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Diagonal Size | 17" |
Aspect Ratio | 5:4 |
Native Resolution | 1280 x 1024 at 75 Hz |
Brightness | 225 cd/m² |
Contrast Ratio | 1000:1 |
Colour Support | 16.7 million colours |
Response Time | 5 ms |
Vertical Refresh Rate | 75 Hz |
Horizontal Refresh Rate | 80 kHz |
Horizontal Viewing Angle | +85 / -85 |
Vertical Viewing Angle | +80 / -80 |
Backlight Technology | LED backlight |
Controls & Adjustments | Brightness, contrast, H/V position, colour temperature, phase, clock |
OSD Languages | English, German, French, Spanish, Japanese |
Features | IntelliTouch Surface Wave, Sync on Green |
Colour | Dark grey |
Dimensions (WxDxH) | 39.1 cm x 20.3 cm x 36.6 cm |
Weight | 6.9 kg |
Type | Touch-screen - touchscreen |
Movement Detection Technology | Surface acoustic wave |
Interfaces | VGA ¦ 2 x serial ¦ USB |
Flat Panel Mount Interface | 100 x 100 mm |
Features | Wall mountable |
Cables Included | 1 x VGA cable ¦ 1 x serial cable ¦ 1 x USB cable |
Backlight Life | 30,000 hours |
MTBF | 50,000 hour(s) |
Compliant Standards | UL, TUV GS, VCCI, C-Tick, cUL, IC, FCC, RoHS |
Power Supply | Internal |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 21 Watt |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 20 - 80% |
