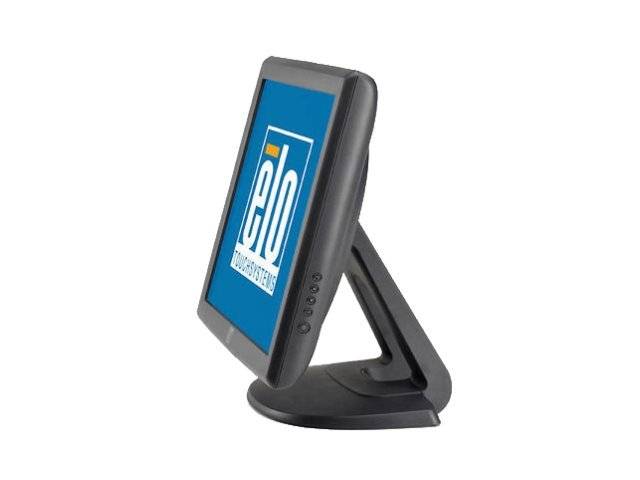

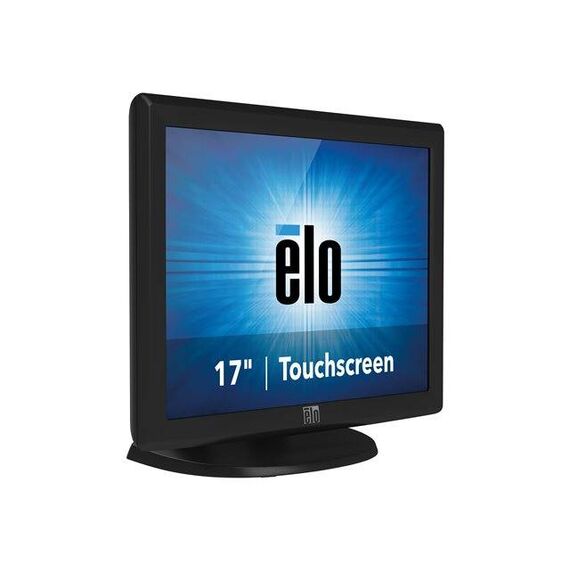

Elo 1715L - TFT - 17" - 1280 x 1024 - 800:1 - 25 ms - VGA - dark grey

Elotouch N300588

Hover over an image to enlarge

E603162
856.04
(Including VAT)
Available
+
E603162
Product Code:N300588
EAN Code:7411493185014
Manufacturer:Elotouch
Delivery
Payment options
Our advantages

24 months warrantyGuarantee for all purchased goods in our online store is 12 months

Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.

Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!


Free Store
Pickup

Delivery within 2-4
business days

2 Years Warranty

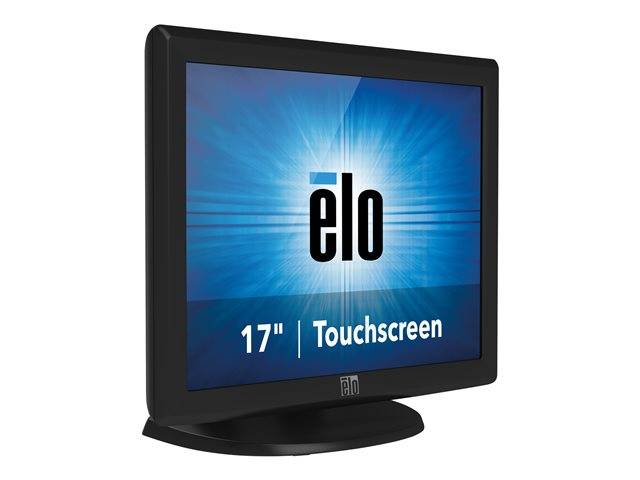

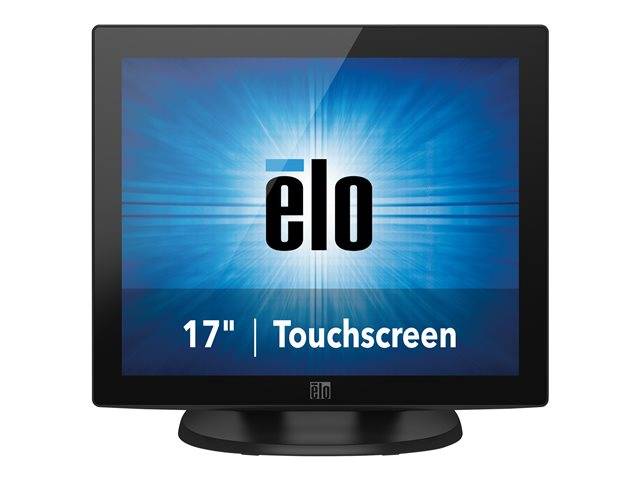

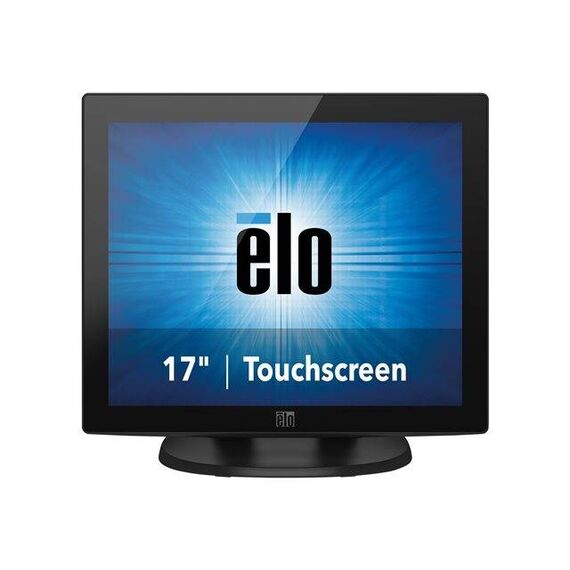

Elotouch E603162 Elo 1715L - TFT - 17" - 1280 x 1024 - 800:1 - 25 ms - VGA - dark grey

Elo 1715L - TFT - 17" - 1280 x 1024 - 800:1 - 25 ms - VGA - dark grey

Elo TouchSystems 1715L 17" Desktop. Display: 17 ", 25 ms, 230 cd/m², 800:1, 1280 x 1024 pixels, 16.2 M, 31.5 - 80 kHz, 56.3 - 75 Hz, 160 °, 160 °, 5:4, 338 x 270 mm. Energy management: 50 W. Weight & dimensions: 391 x 203 x 366 mm, 6900 g. Certificates: UL, cUL, S, MPR II, FCC, CE, VCCI, IC, C-Tick. Endurance: 50000 h

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.

- Entry-level monitor with Elo quality

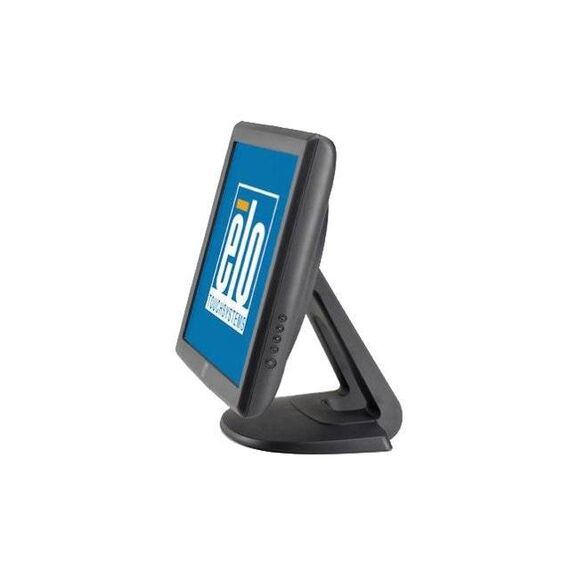

- "Designed for touch" features such as a stable tilt stand
- Long-lasting product cycle
- Available with IntelliTouch Surface ... The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.

- Entry-level monitor with Elo quality
- "Designed for touch" features such as a stable tilt stand
- Long-lasting product cycle
- Available with IntelliTouch Surface Wave Technology, AccuTouch Five-Wire Resistive Technology or Acoustic Pulse Recognition Technology
- Sealed touchscreen
- Dual serial/USB interface

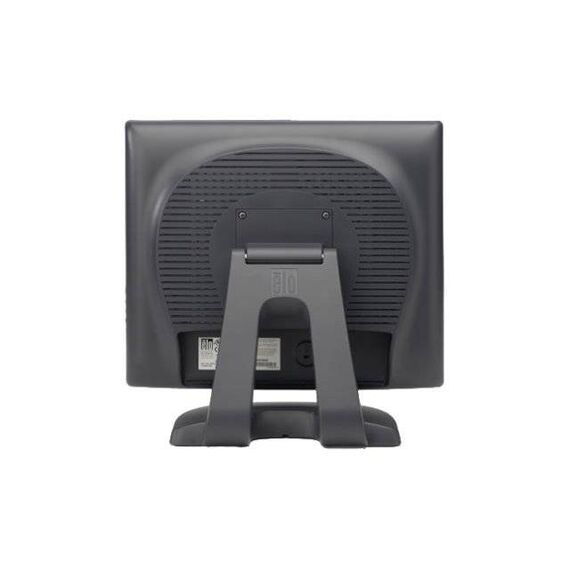

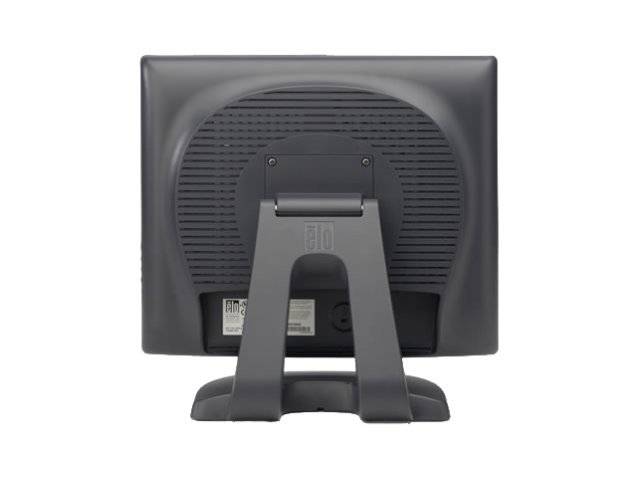

- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security

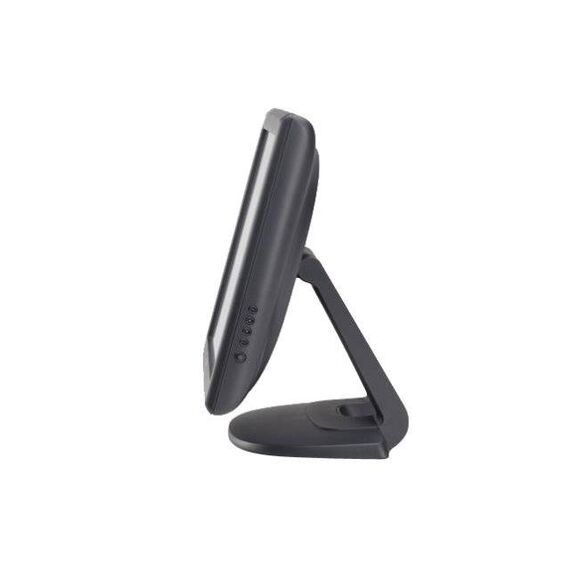

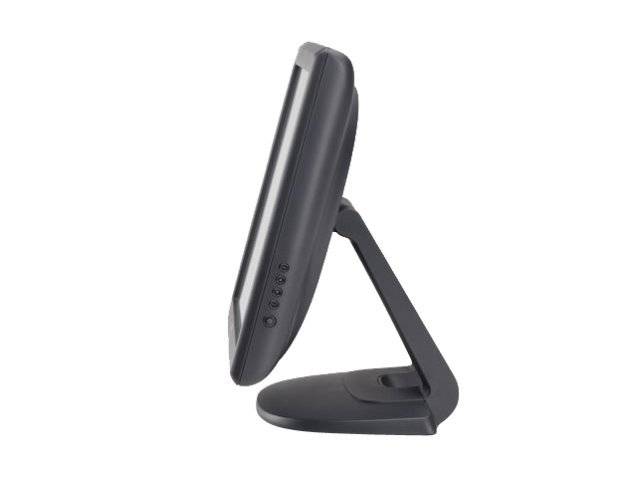

- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals

Display
Display diagonal 43.2 cm (17 ")
Response time 25 ms
Display brightness 230 cd/m²
Contrast ratio (typical) 800:1
Display resolution 1280 x 1024 pixels
Number of colours 16.2 M
Horizontal scan range 31.5 - 80 kHz
Vertical scan range 56.3 - 75 Hz
Viewing angle, horizontal 160 °
Viewing angle, vertical 160 °
Aspect ratio 5:4
Display viewable area HxV 338 x 270 mm
Technical details
Mounting interface 100 mm VESA
Signal input VGA
Technical details
Display resolution at frequency 1280 x 1024 @ 60, 75 Hz,
1280 x 960 @ 60 Hz,
1152 x 864 @ 75 Hz,
1024 x 768 @ 60, 65 Hz (Sun), 70, 75 Hz,
832 x 624 @ 75 Hz (Mac),
800 x 600 @ 56, 60, 72, 75 Hz,
720 x 400 @ 70 Hz,
720 x 350 @ 70 Hz,
640 x 480 @ 60, 66 Hz (Mac), 72, 75 Hz.
Connectivity
USB 2.0 ports quantity 1
VGA (D-Sub) ports quantity 1
Energy management
Power consumption 50 W
Power management DC: +12 VDC ±5%, AC: 100-240 VAC, 50/60 Hz
Endurance
Mean time between failures (MTBF) 50000 h
Weight & dimensions
Dimensions W x D x H 391 x 203 x 366 mm
Weight 6900 g
Certificates
Certification UL, cUL, S, MPR II, FCC, CE, VCCI, IC, C-Tick
Environmental conditions
Storage temperature range (T-T) -20 - 60 °C
Operating temperature range (T-T) 0 - 40 °C
Operating relative humidity range 20 - 80 %
Storage relative humidity range 10 - 90 %
