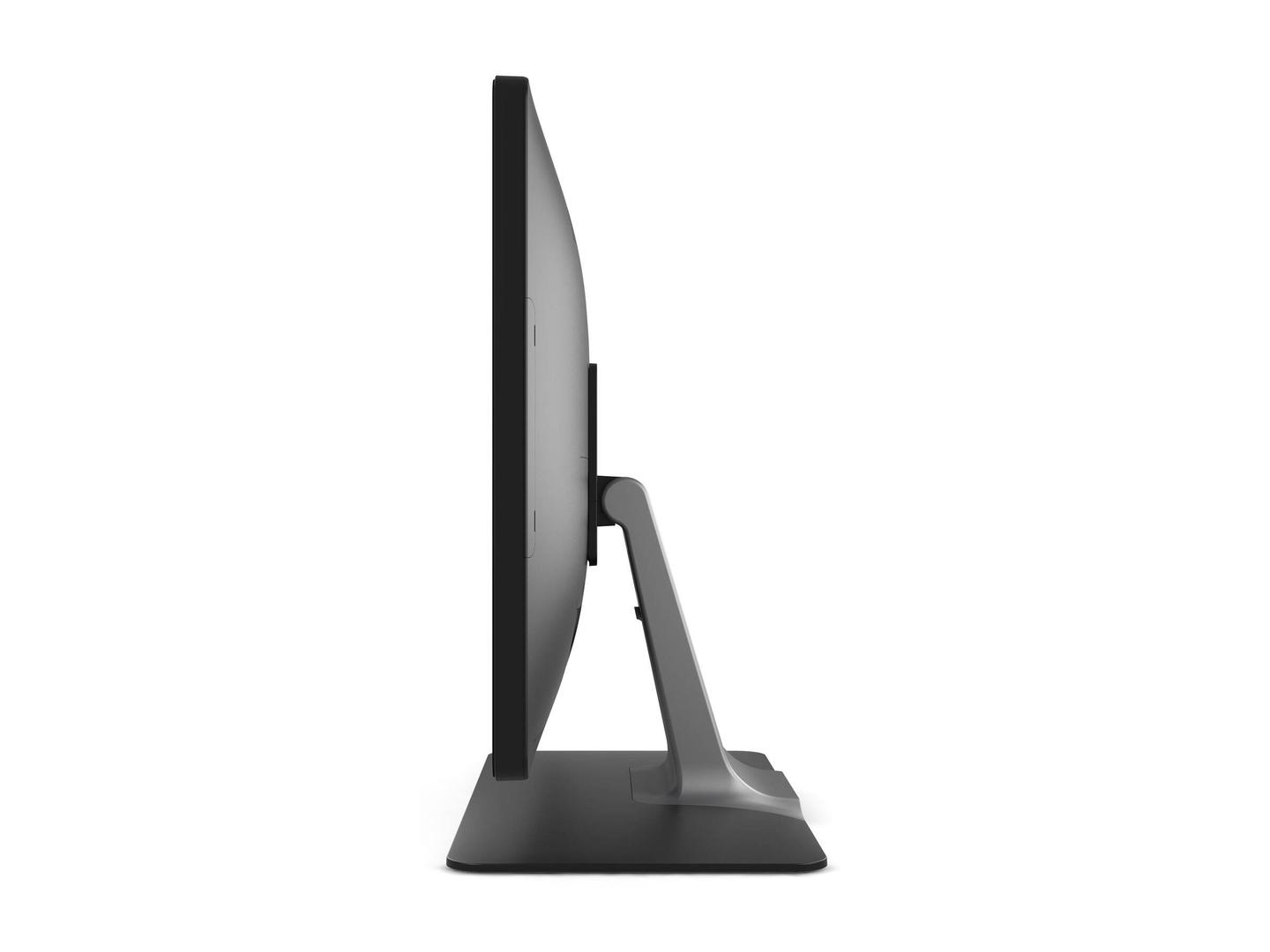

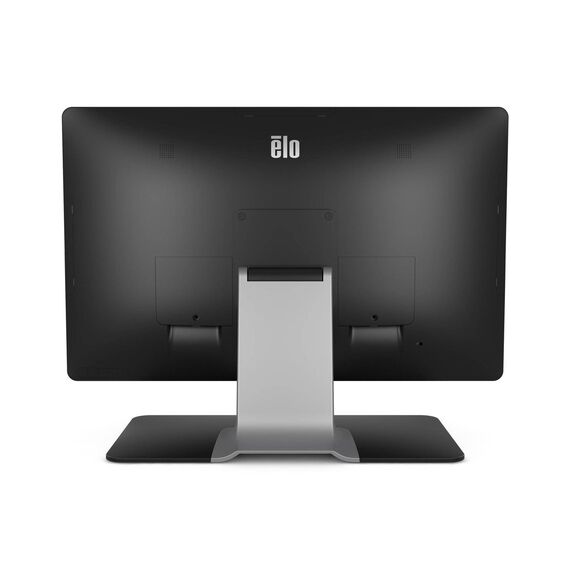

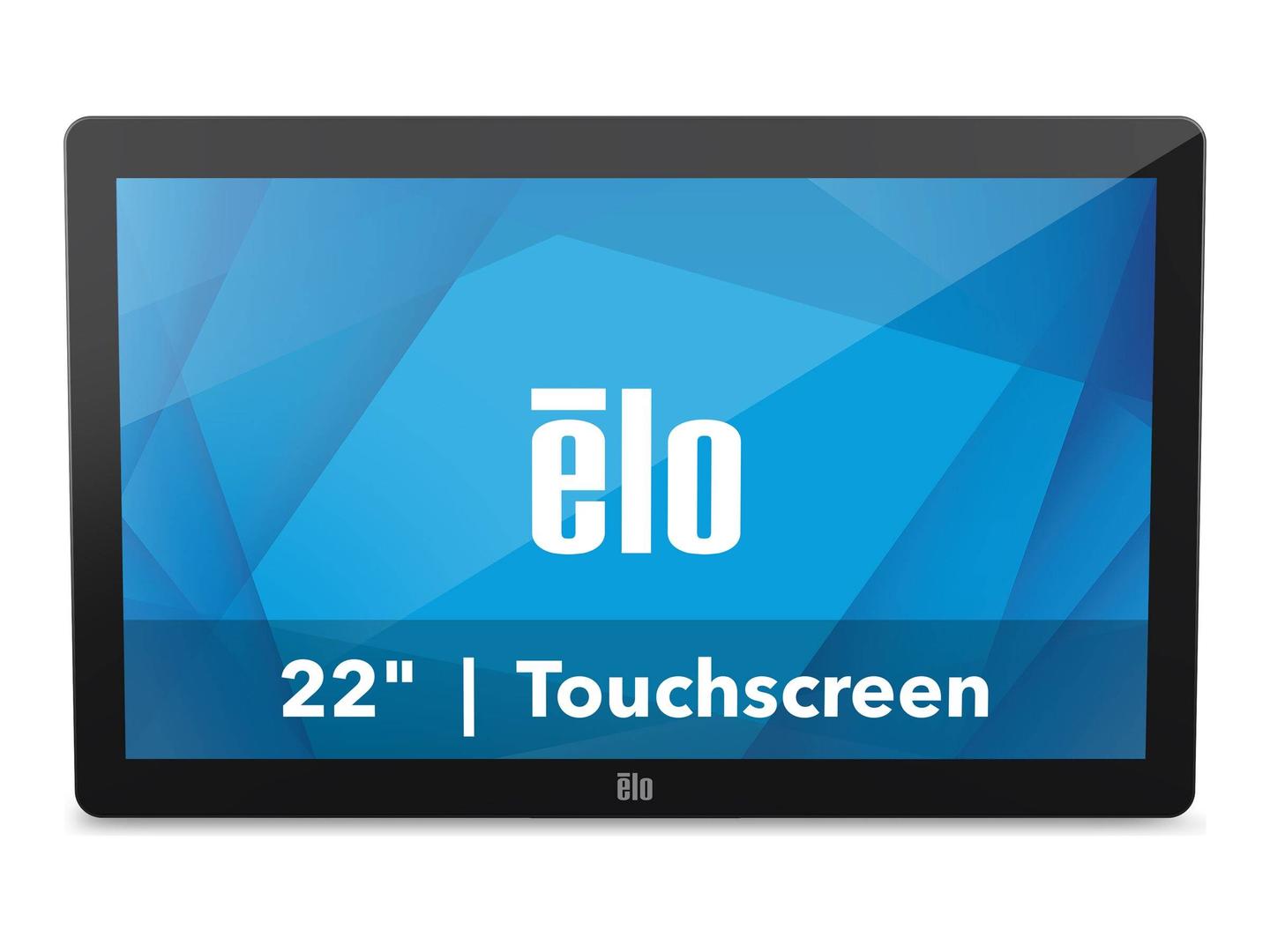

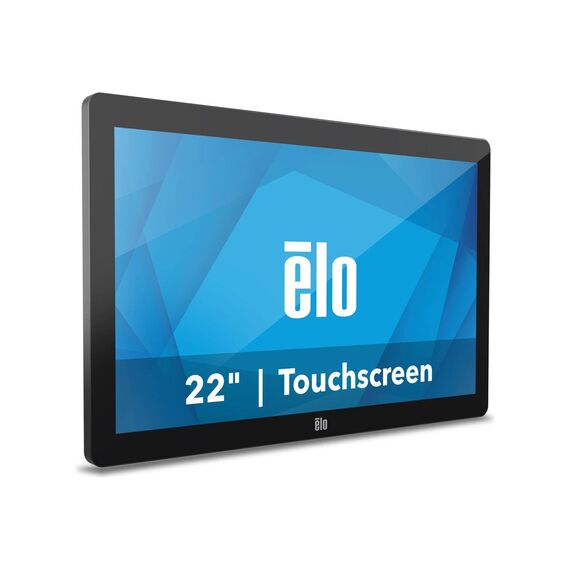

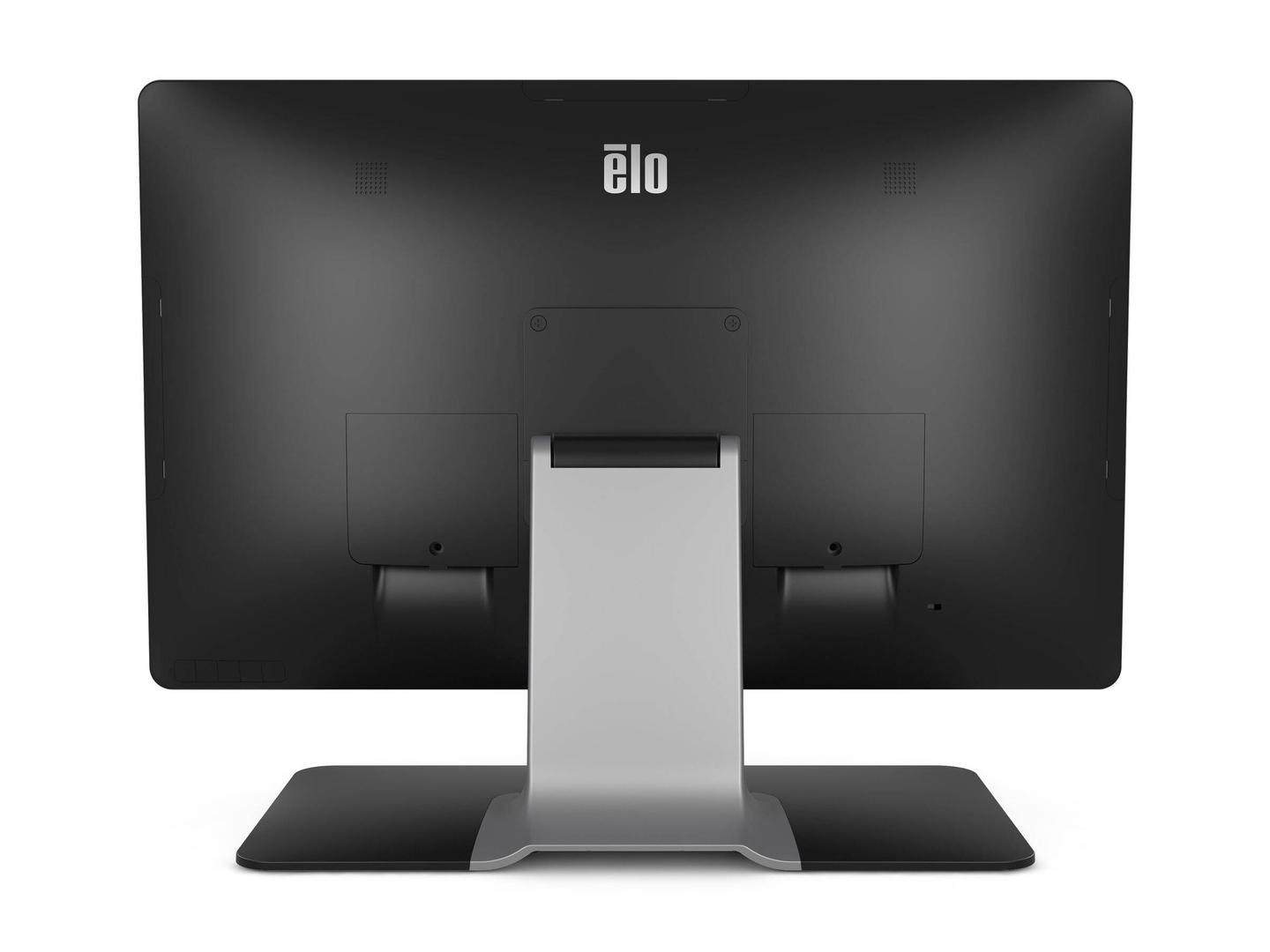

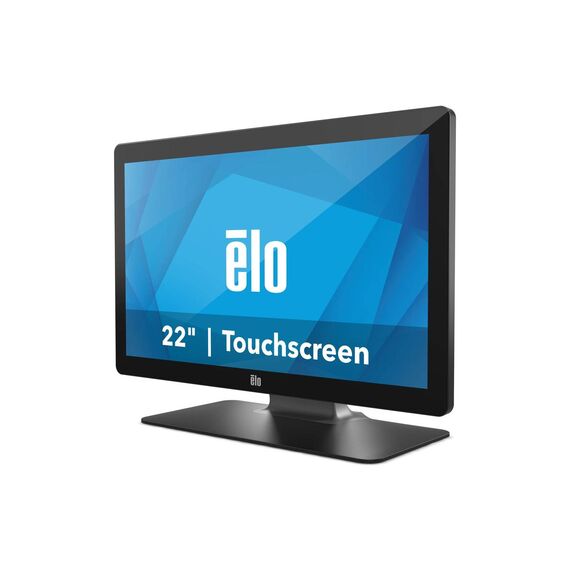

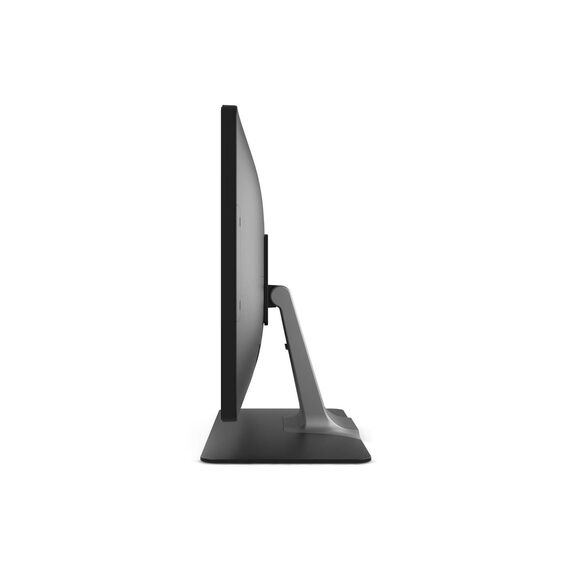

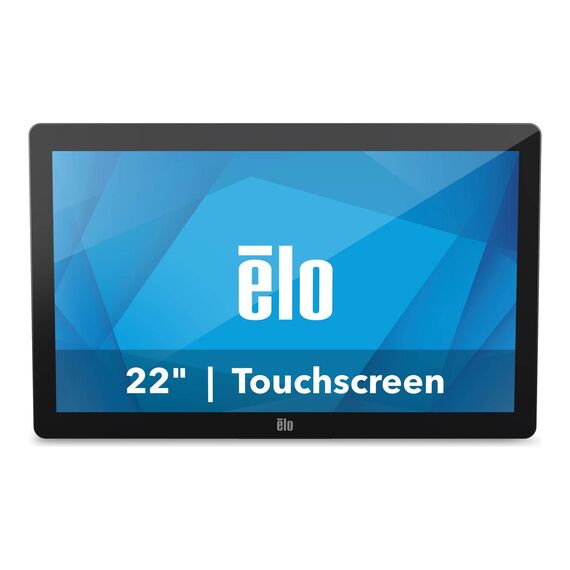

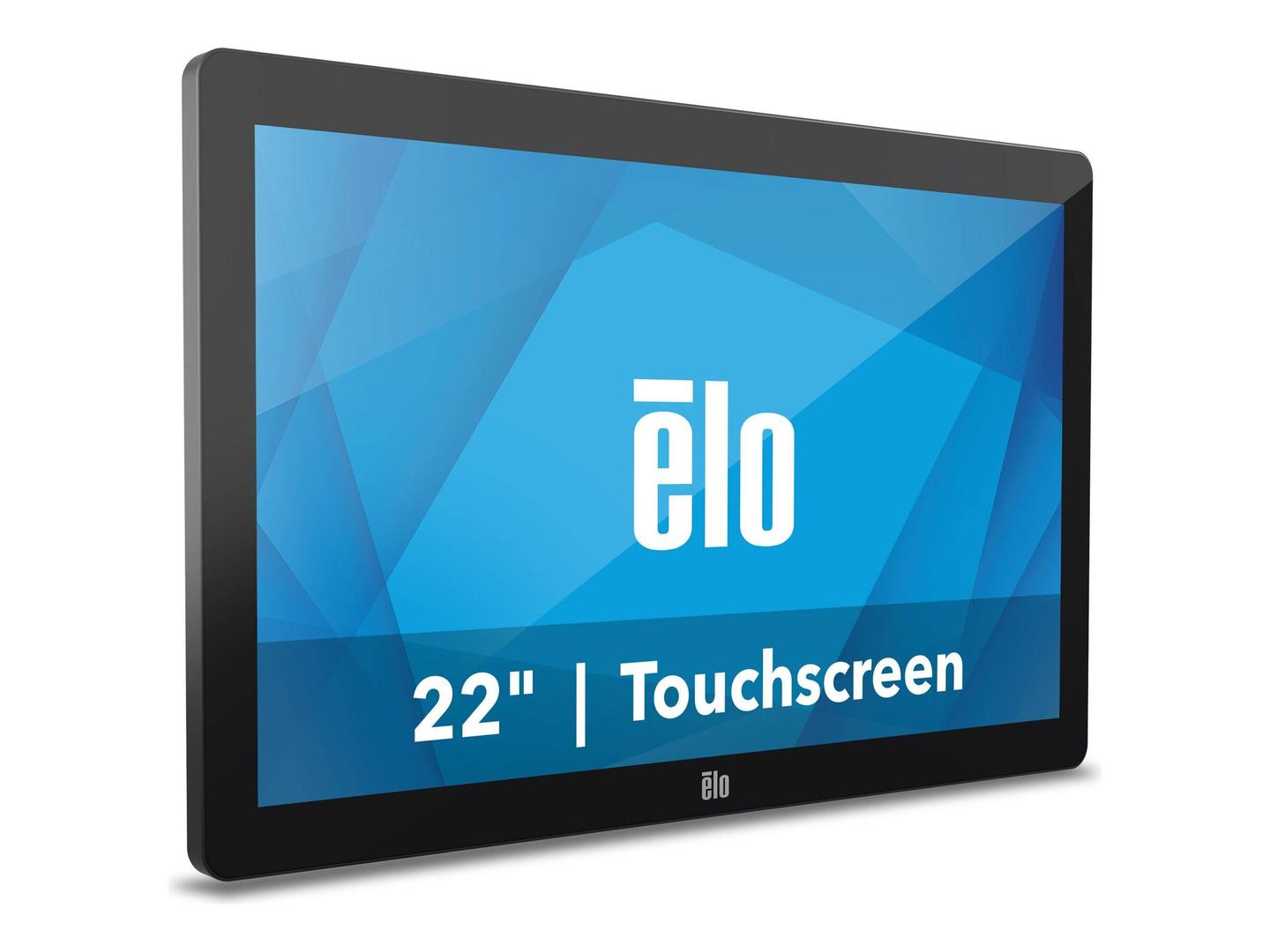

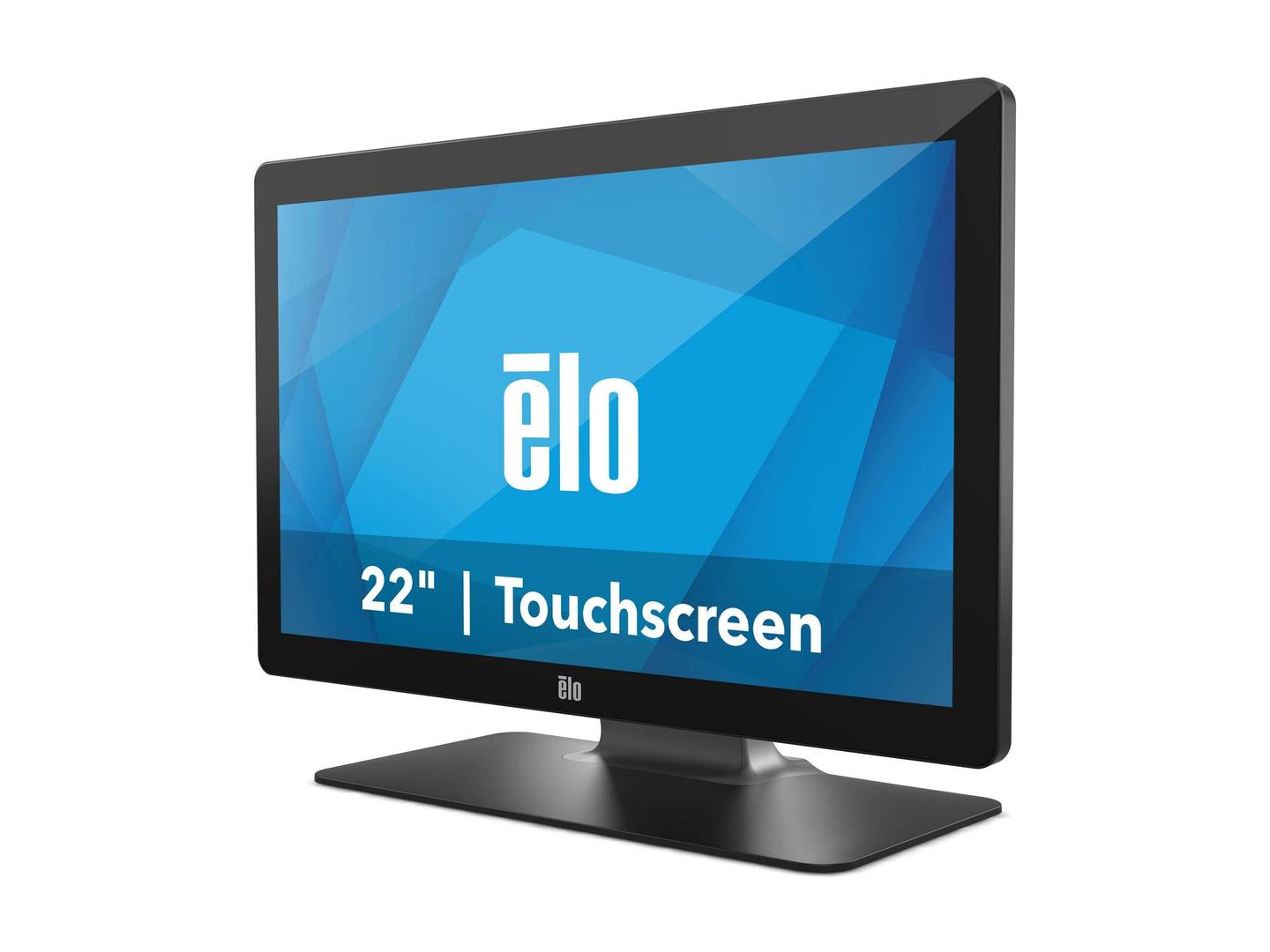

Elo 2202L / LED monitor / 22" (21.5" viewable) / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / 250 cd/m² / 1000:1 / 14 ms / HDMI, VGA / speakers / black | E992622
Please sign in so that we can notify you about a reply
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Built-in Devices | USB Hub |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 14 ms (typical) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean |
| Features | TouchPro technology |
| Colour | Black |
| Dimensions (WxDxH) | 52.69 cm x 4.27 cm x 32.69 cm - without stand |
| Weight | 4.75 kg |
| Audio | Audio |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |
| Interfaces | HDMI ¦ VGA ¦ Headphones ¦ USB (Type B) ¦ USB 2.0 (Type A) ¦ 4 x Micro-USB |
| Mechanical | Mechanical |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 screws, 3 cable ties |
| Cables Included | 1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable ¦ 1 x audio cable |
| MTBF | 50,000 hours |
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, IPX1, EAC, RCM, CoC |
| Power | Power |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (Typical) | 16.78 Watt |
| Power Consumption Sleep | 0.69 Watt |
| Power Consumption (Off Mode) | 0.28 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 63.3 cm |
| Shipping Depth | 19.6 cm |
| Shipping Height | 45 cm |
| Shipping Weight | 7.2 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E992622
Resolution
1920 x XXXX
More Details
Product Code
CH64905
EAN Code
0843173155982
Manufacturer
Elo
