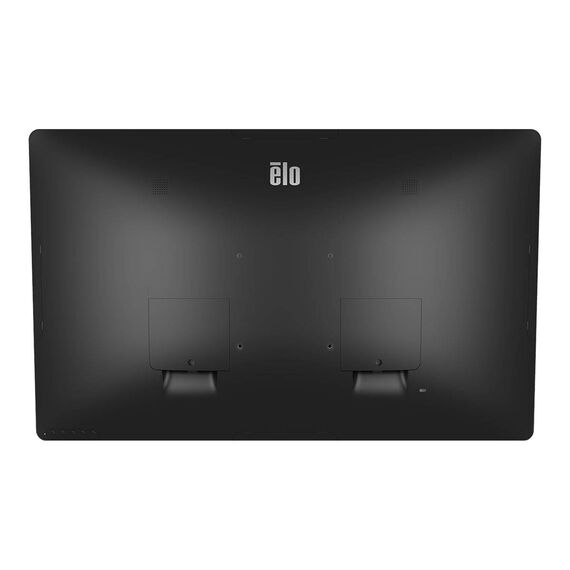

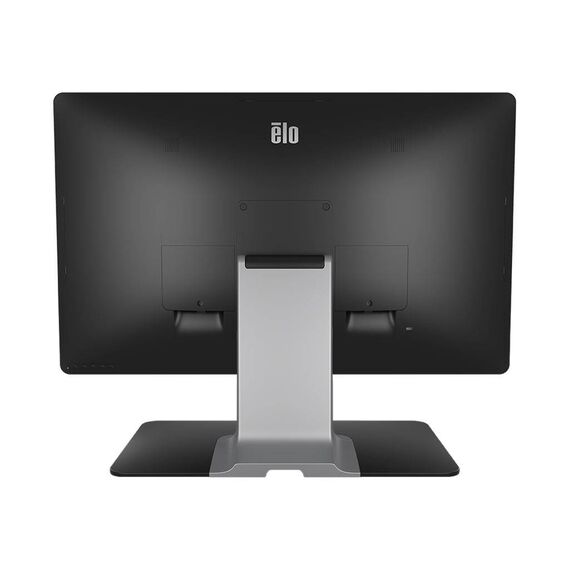

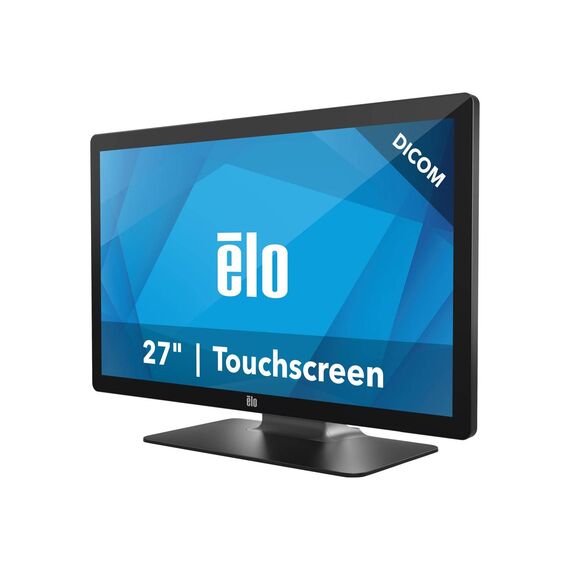

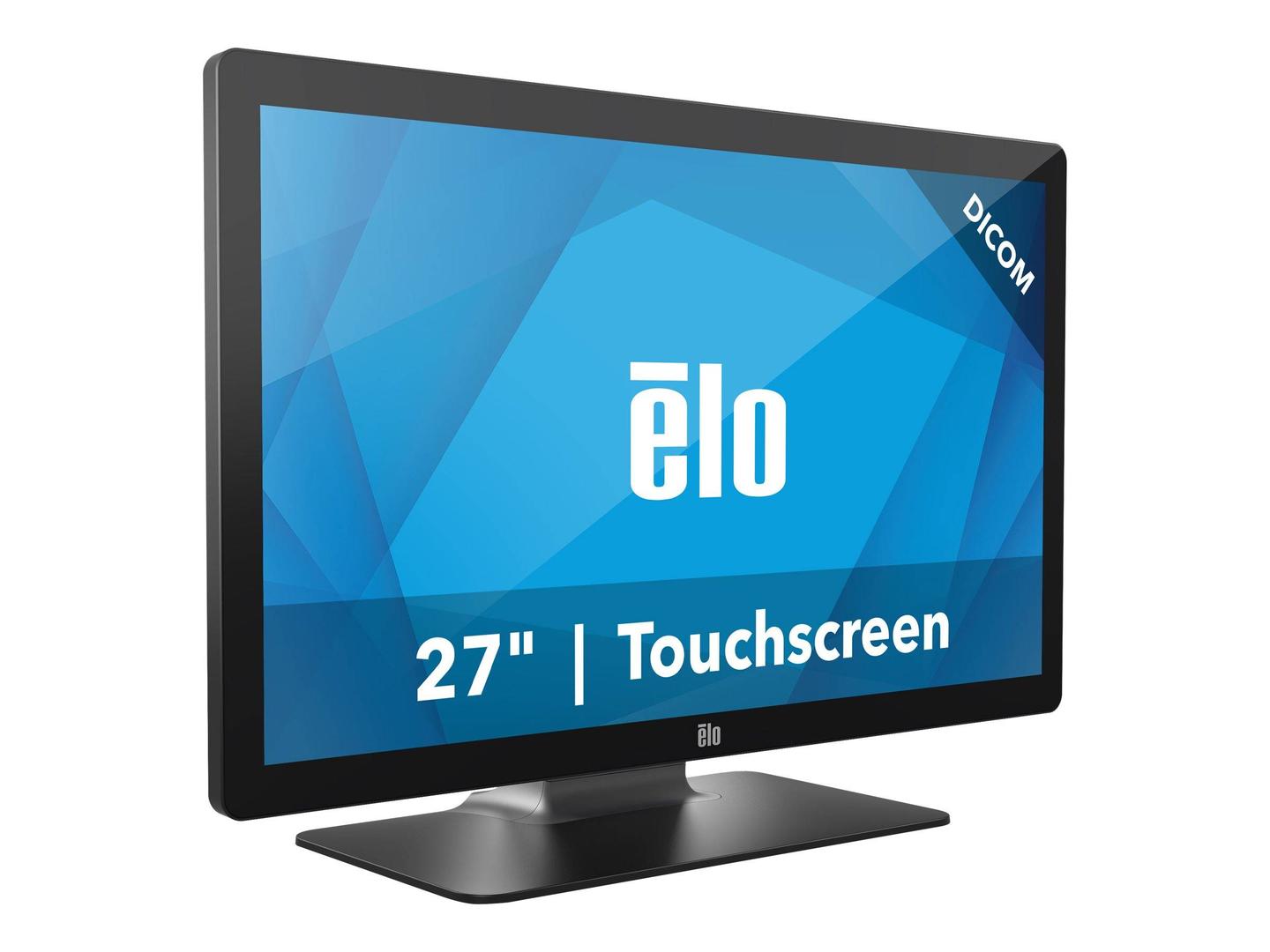

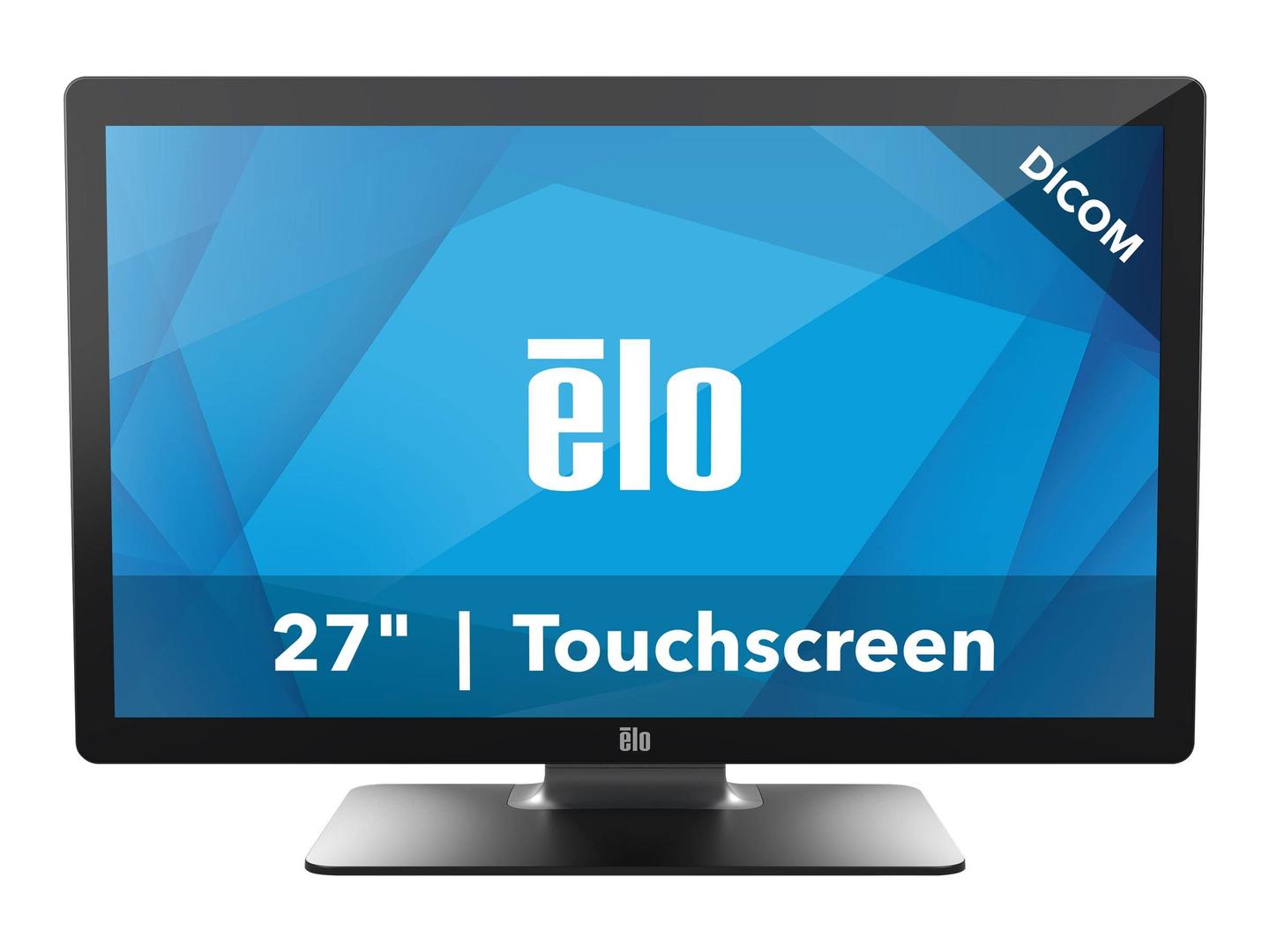

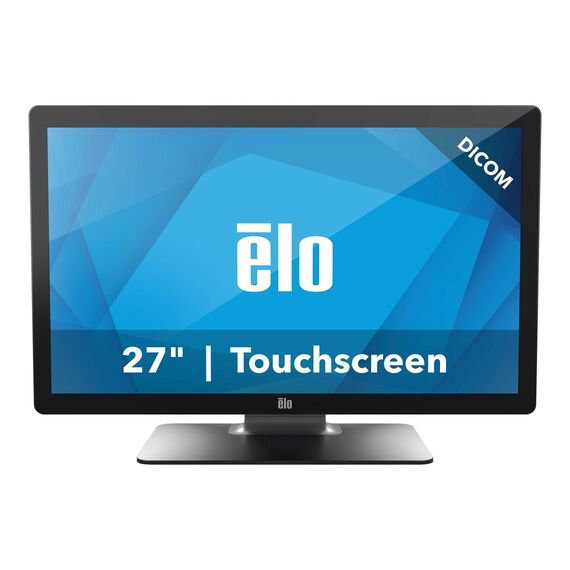

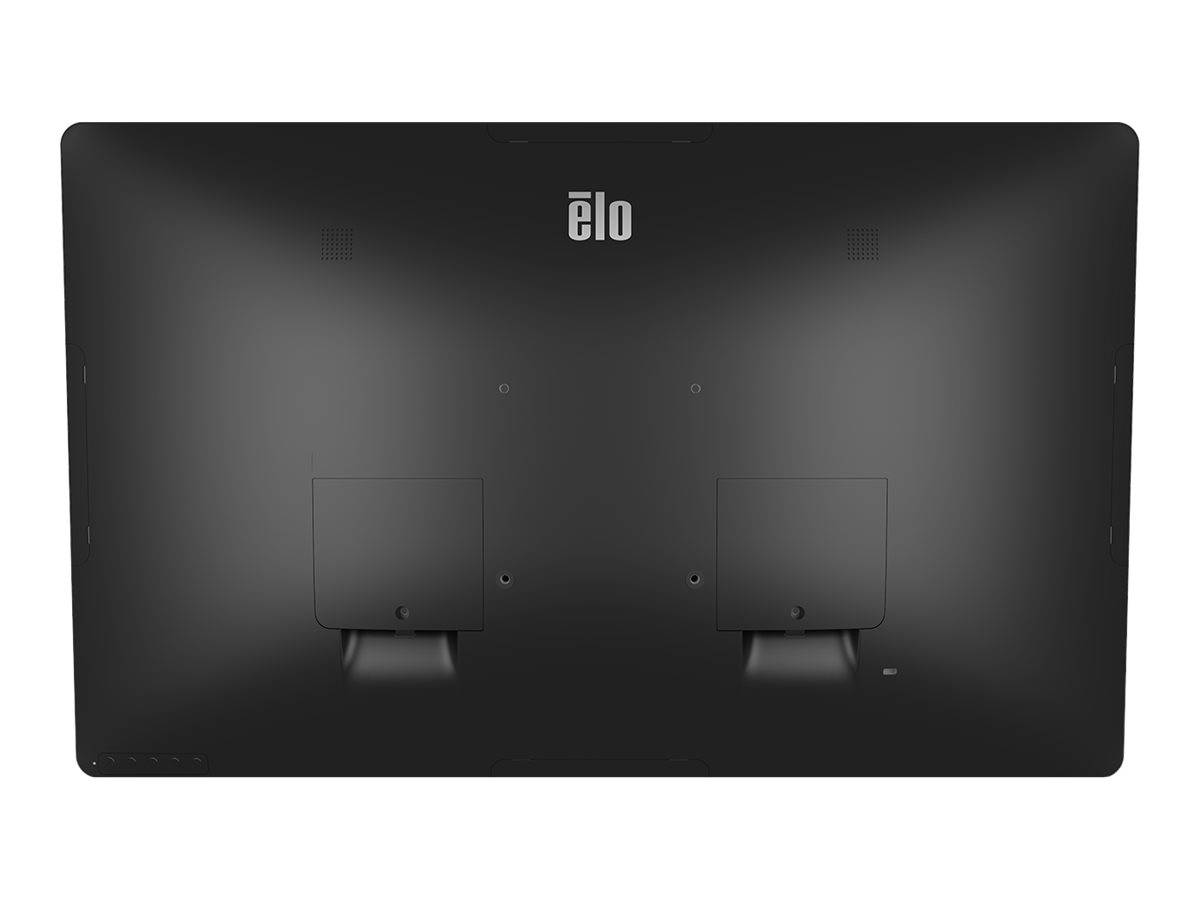

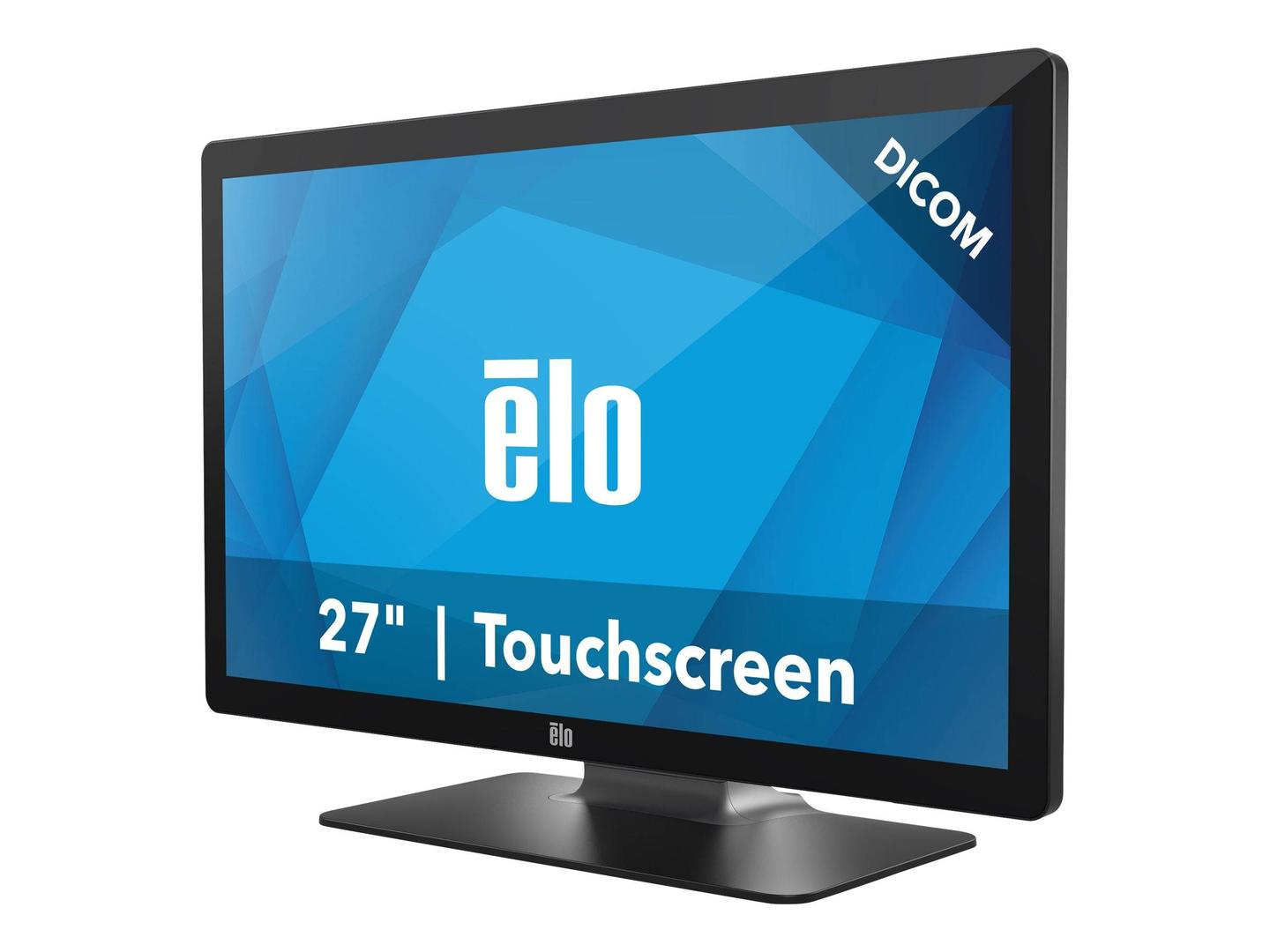

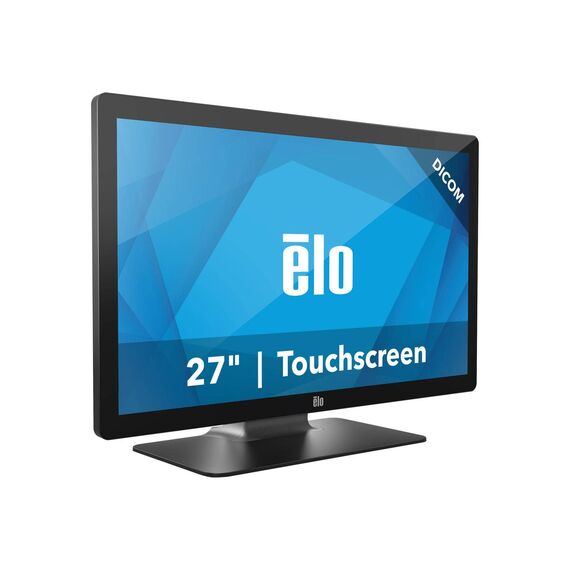

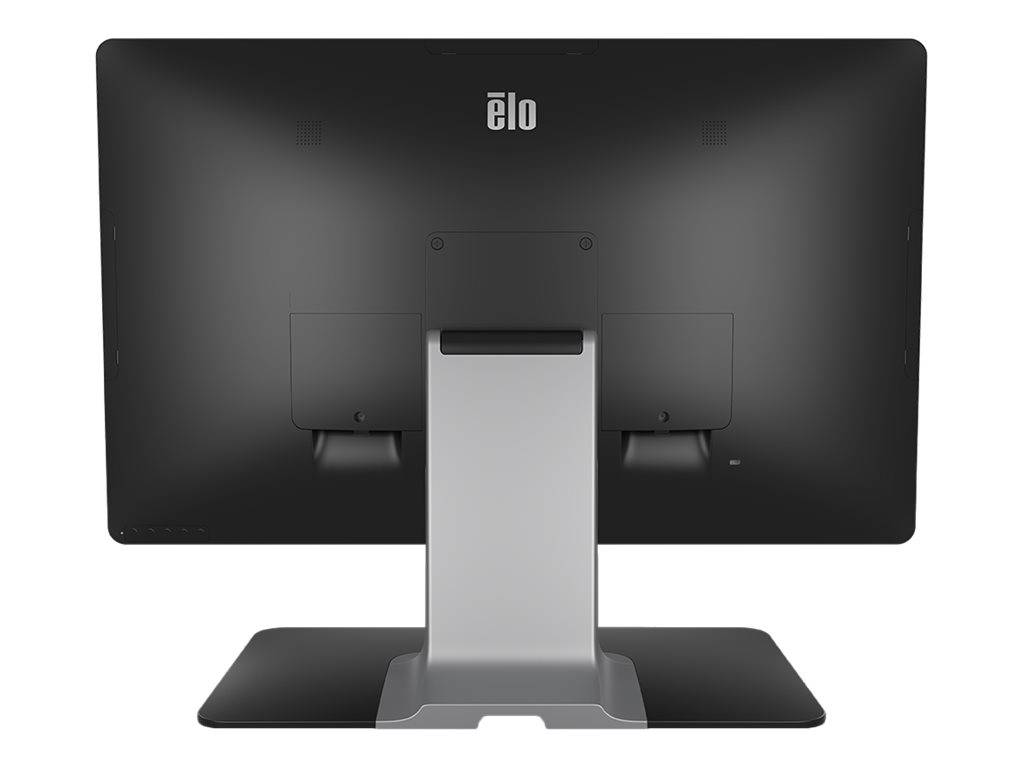

Elo 2703LM / Medical Grade / LCD monitor / 27" / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / 300 cd/m² / 1000:1 / 14 ms / HDMI, VGA / speakers / black | E659596
Please sign in so that we can notify you about a reply
Product Specification
| Display Type | LCD monitor / TFT active matrix |
| Diagonal Size | 27" |
| Built-in Devices | USB Hub |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 300 cd/m² |
| Brightness w/touchscreen | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 14 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean |
| Features | TouchPro technology, DICOM Compliant |
| Colour | Black |
| Dimensions (WxDxH) | 64.76 cm x 23.3 cm x 45.09 cm - with stand |
| Weight | 10.5 kg |
| Audio | Audio |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |
| Interfaces | HDMI ¦ VGA ¦ Audio line-out (mini-jack) ¦ USB (Type B) ¦ USB 2.0 (Type A) ¦ 4 x Micro-USB |
| Mechanical | Mechanical |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable ¦ 1 x audio cable |
| MTBF | 50,000 hours |
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012 |
| Power | Power |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 28 Watt |
| Power Consumption Sleep | 0.45 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 76.4 cm |
| Shipping Depth | 32.2 cm |
| Shipping Height | 56 cm |
| Shipping Weight | 14.3 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E659596
More Details
Product Code
CA69240
EAN Code
0843173135489
Manufacturer
Elo
