Elo 2794L / LED monitor / 27" / open frame / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / 270 cd/m / 3000:1 / 12 ms / HDMI, VGA, DisplayPort / black | E329262
Description

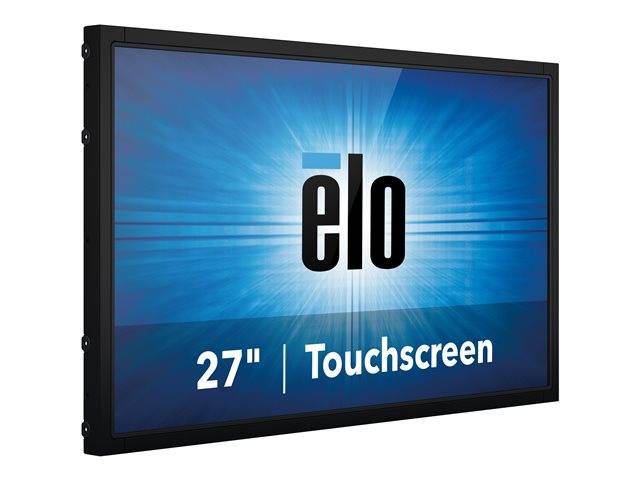

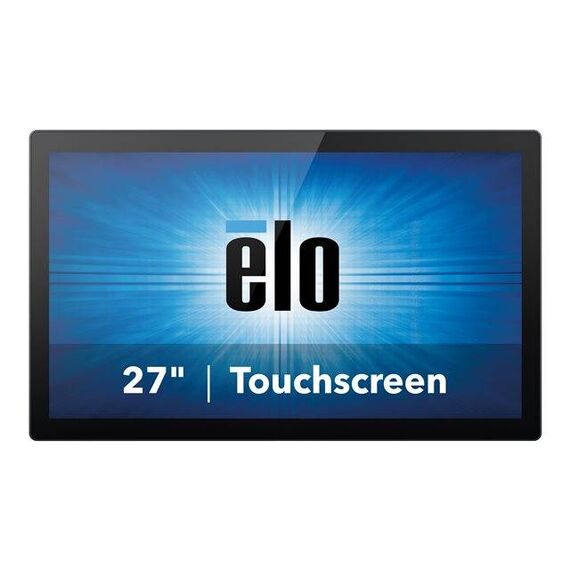

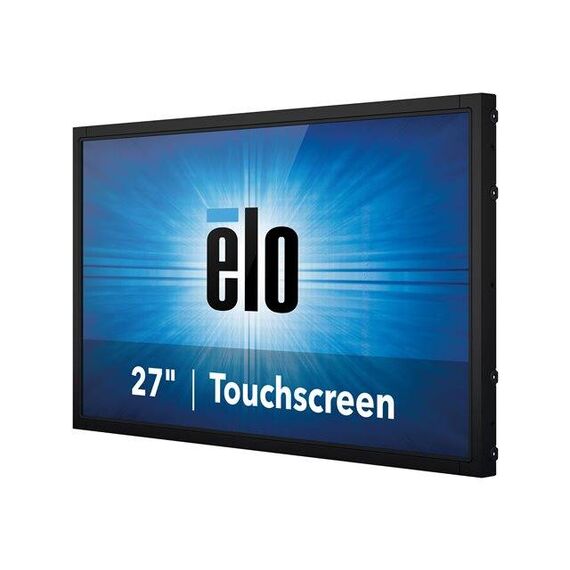

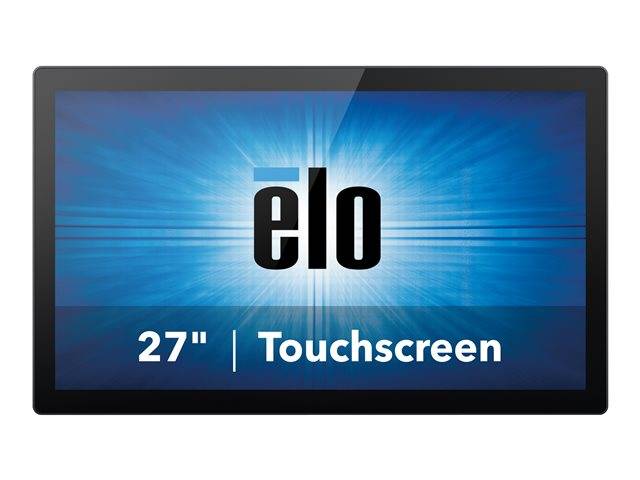

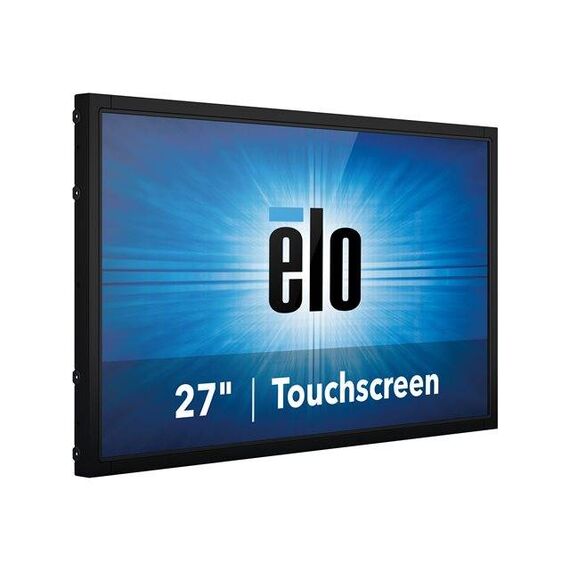

The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Elo 2794L / LED monitor | E329262
Special Features
- Viewing angle of 178° x 178°, for sharp colors and graphics in both portrait and landscape modes
- High definition LCD display offers ultimate HD interactivity, clarity and resolution
- PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities
- Display Port and VGA video interfaces
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class A |
| Energy Consumption per Year | 41 kWh |
| Power Consumption (On mode) | 28 W |
| Diagonal Size | 27" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 270 cd/m² |
| Contrast Ratio | 3000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 12 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Remote OSD, IntelliTouch Surface Acoustic Wave |
| Colour | Black |
| Dimensions (WxDxH) | 63.32 cm x 4.18 cm x 37.44 cm |
| Weight | 7.3 kg |
| Type | Touch-screen, remote control - touchscreen |
| Movement Detection Technology | Intellitouch SAW |
| Interfaces | USB ¦ VGA ¦ DisplayPort ¦ HDMI ¦ Serial |

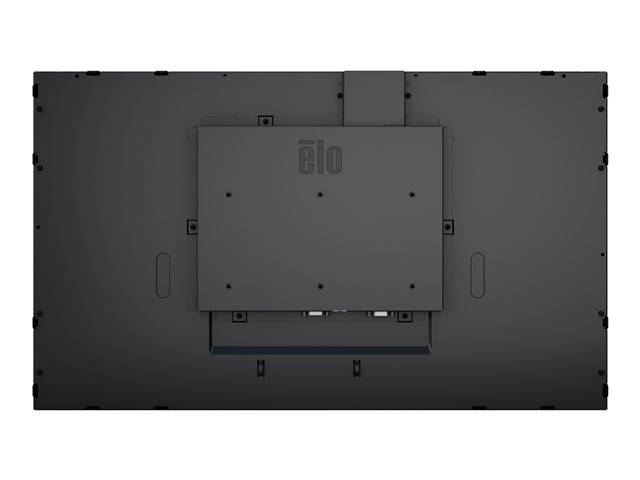

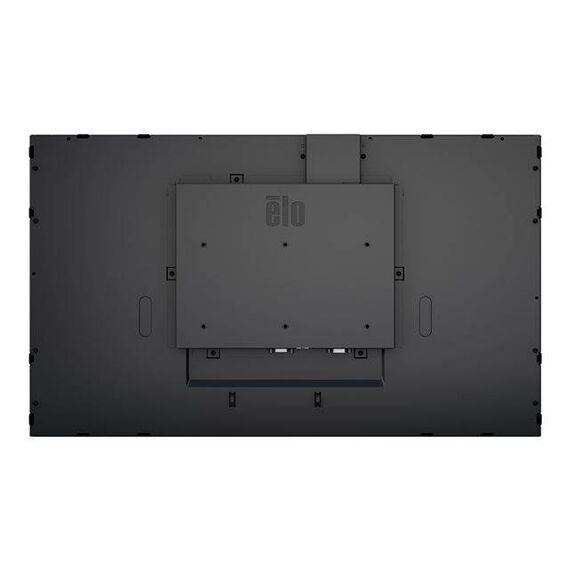

| VESA Mounting Interface | 200 x 100 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, DisplayPort 1.1a, IMERC |
| Power Consumption Operational | 27 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E329262
More Details
Product Code
0V00625
EAN Code
0815335025914
Manufacturer
Elo
