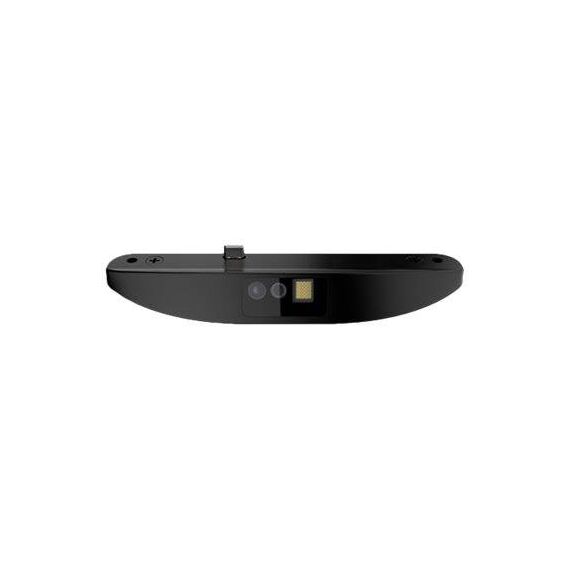

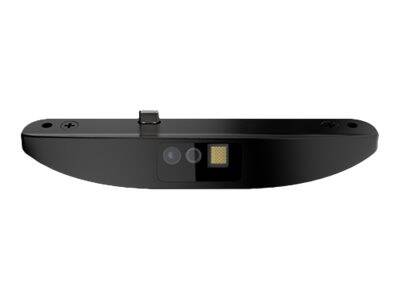

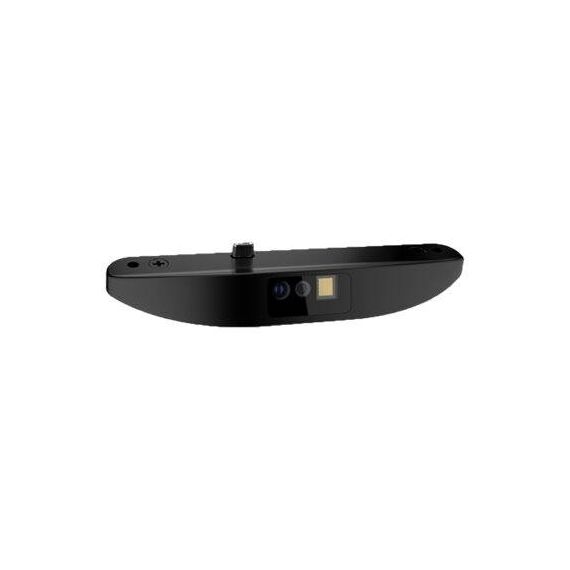

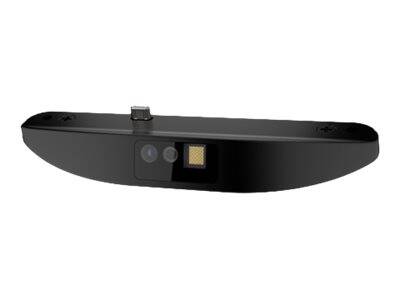

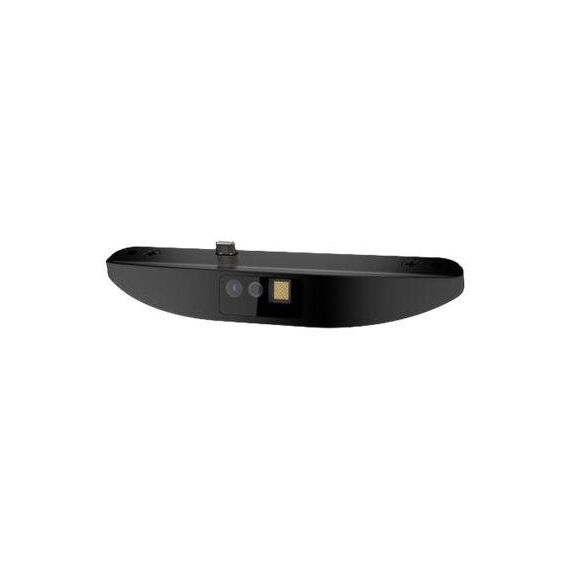

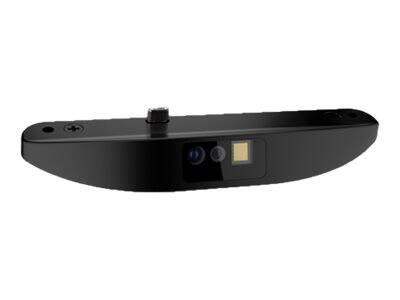

Elo Edge Connect 2D Barcode Scanner - Barcode scanner - plug-in module - USB | E393160

E393160
179.70
(213.84 inc. VAT)
Availability: 246 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.Express DeliveryExpress delivery within 2 to 3 business days.
Find similar
Delivery
Payment options
Product CodeCA63597 EAN Code0843173128511 ManufacturerElo

Product Features

  • Easy installation
    Built on the Elo Edge Connect platform, the 2D Barcode Scanner can be easily integrated with a variety of Elo touchscreens. Simply attach and get started.
  • Modular
    The modular design provides the customers with the building blocks to configure a multitude of solutions - making it easy to deploy a variety of solutions from price checkers and self-checkout to visitor management.
  • Next gen price checker
    Elo's price-checking solutions deliver exactly what the customer wants, when they want it. By pairing Elo's 2D Barcode Scanner with an Elo interactive display, retailers can offer price checking plus in-depth product information, virtual customer service, endless aisle and related item recommendations, wayfinding, BOPIS, loyalty and assisted selling.
  • Simplify employee and visitor management
    Streamline visitor management by allowing guests to scan barcodes and QR codes on their badges or personal devices to gain entry. From hospitals to corporate offices, secured, contactless entry solutions simplify employee and guest screening and automate access. With Elo's modular platform and wide range of Edge Connect accessories, organizations can easily configure a visitor management solution to meet their access control requirements.
  • Self-service checkout
    Self-service allows customers to take control of their experience while limiting close interaction with employees. With Elo's 2D Barcode Scanner, customers can scan products and coupons to add to their cart as well as scan their personal device to add loyalty discounts and process secure payment with a mobile wallet. With Elo, it's easy to configure and deploy the self-checkout kiosks businesses need.

Special Fetures

  • Easy installation
  • Modular
  • Next gen price checker
  • Simplify employee and visitor management
  • Self-service checkout

Product Specification

TypeBarcode scanner - plug-in module - stationary
ColourBlack
Barcode
Interface TypeUSB
Scan Element TypeCMOS
Sensor Resolution640 x 400
Scan ModeFixed projection
Max Working Distance49.5 cm
Skew (Degrees)42
Pitch (Degrees)28
Decode CapabilityQR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, Micro QR code, Grid Matrix Code
Connectivity TechnologyWired
OK NotificationBeeper
FeaturesRed LEDs illumination, Human Interface Device Profile (HID), presentation mode scanning
Expansion / Connectivity
Interfaces1 x USB
Miscellaneous
Included Accessories2 mounting screws, 2 mylar screw covers
Power
Power DeviceNo power supply
Dimensions & Weight
Width11.85 cm
Depth2.66 cm
Weight22 g
Dimensions & Weight (Shipping)
Shipping Width17.5 cm
Shipping Depth11.4 cm
Shipping Weight120 g
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating20 - 80% (non-condensing)

Features - Elo - E393160

More Details
Product Code
CA63597
EAN Code
0843173128511
Manufacturer
Elo
