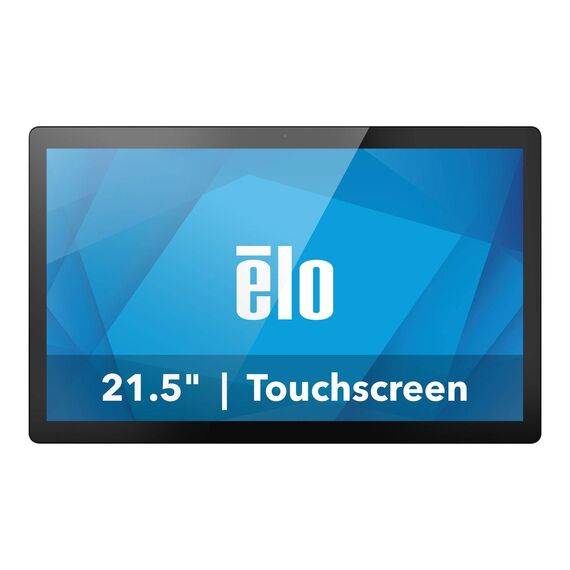

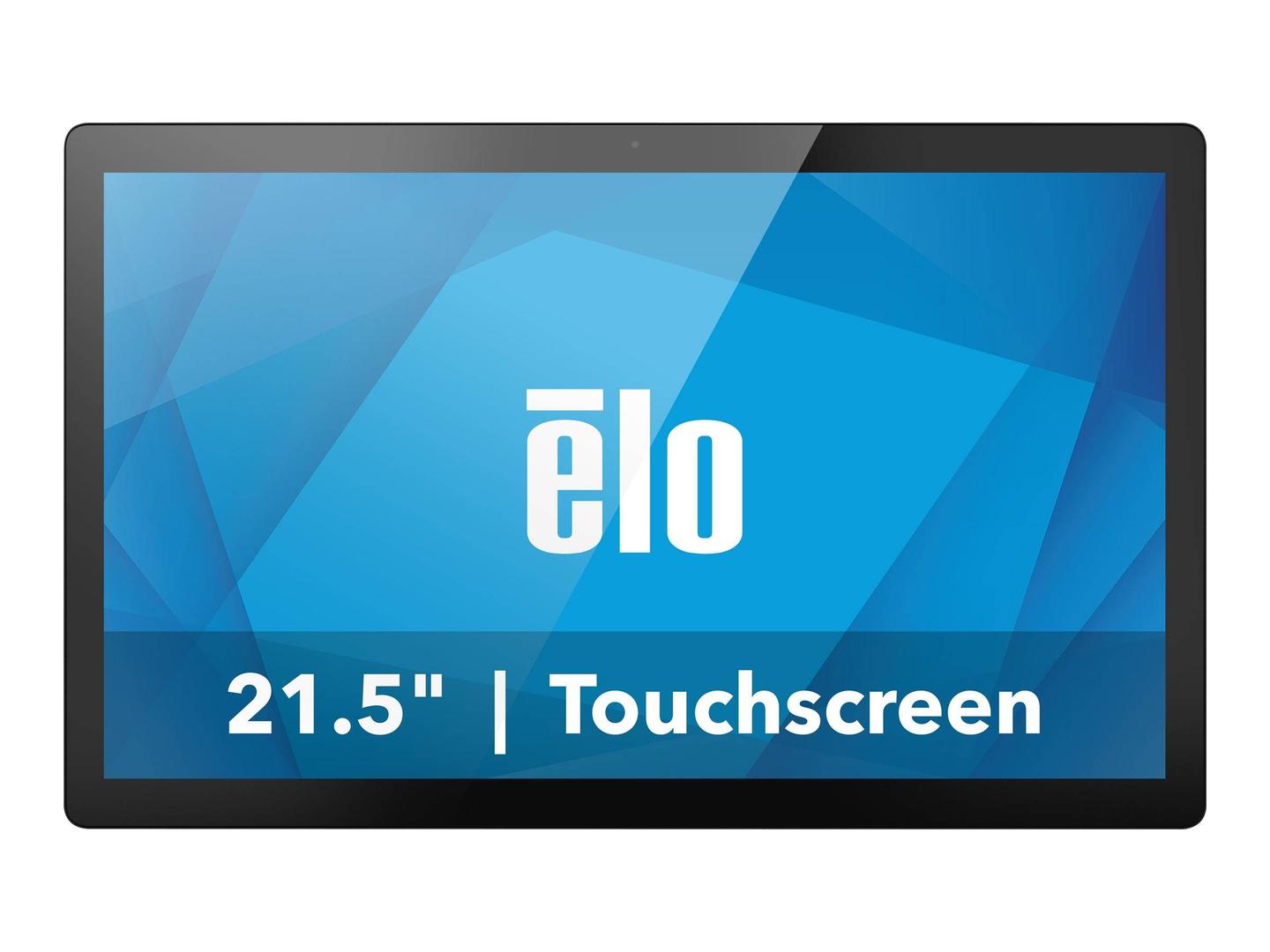

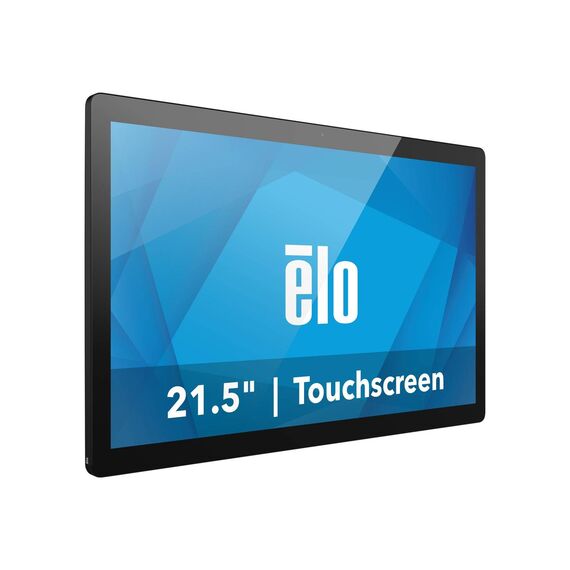

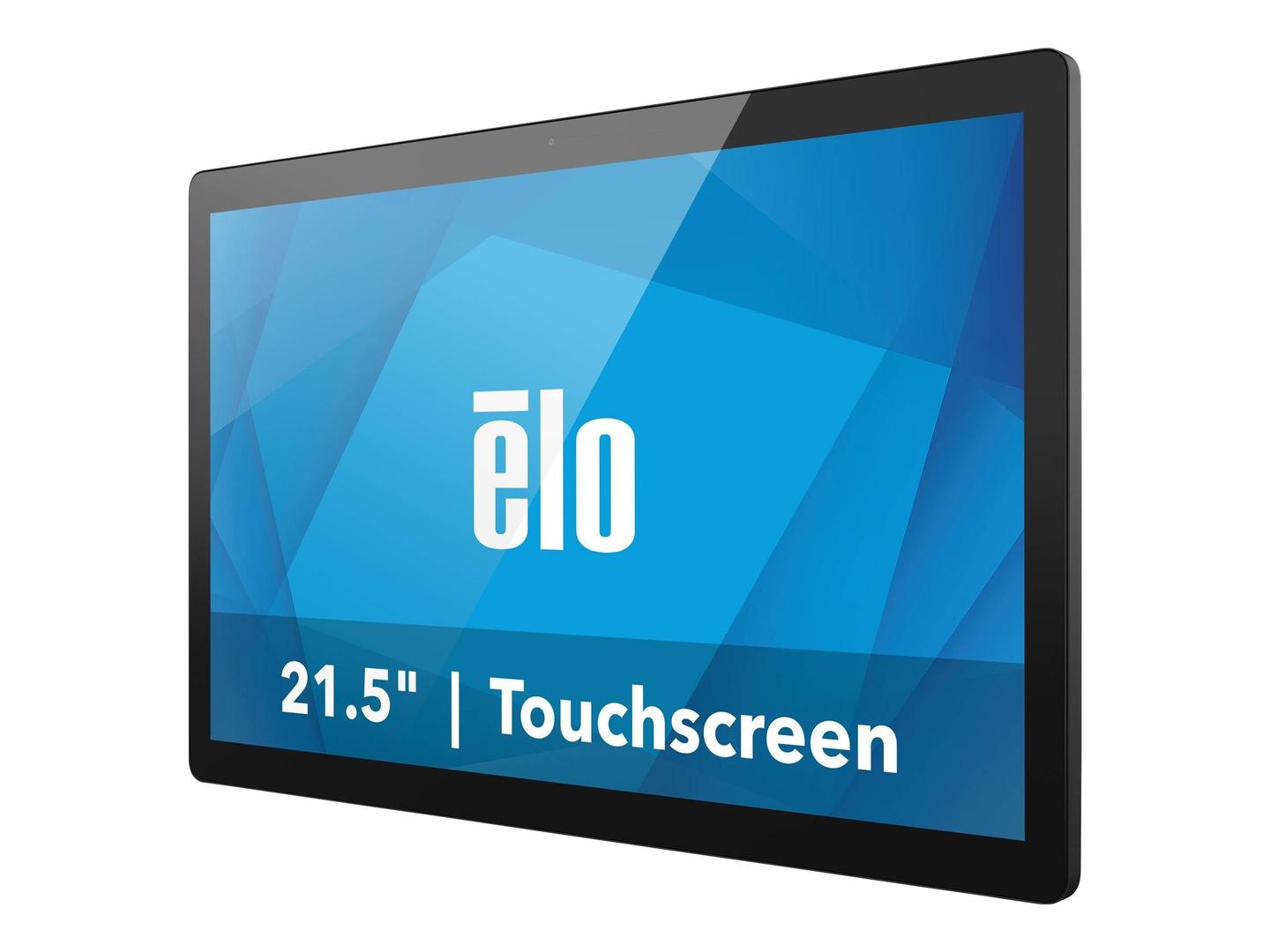

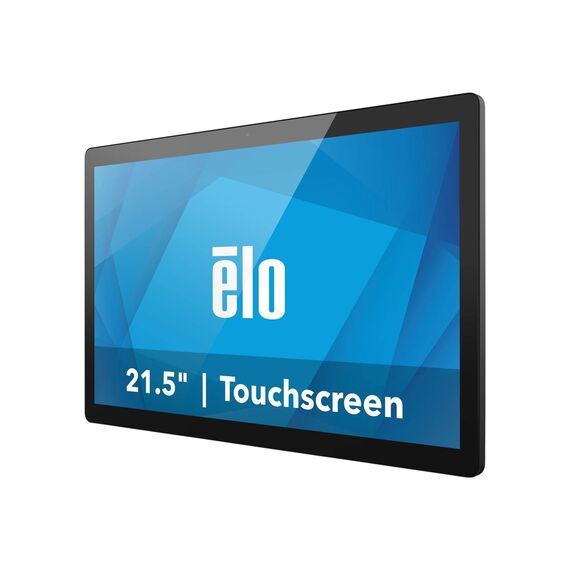

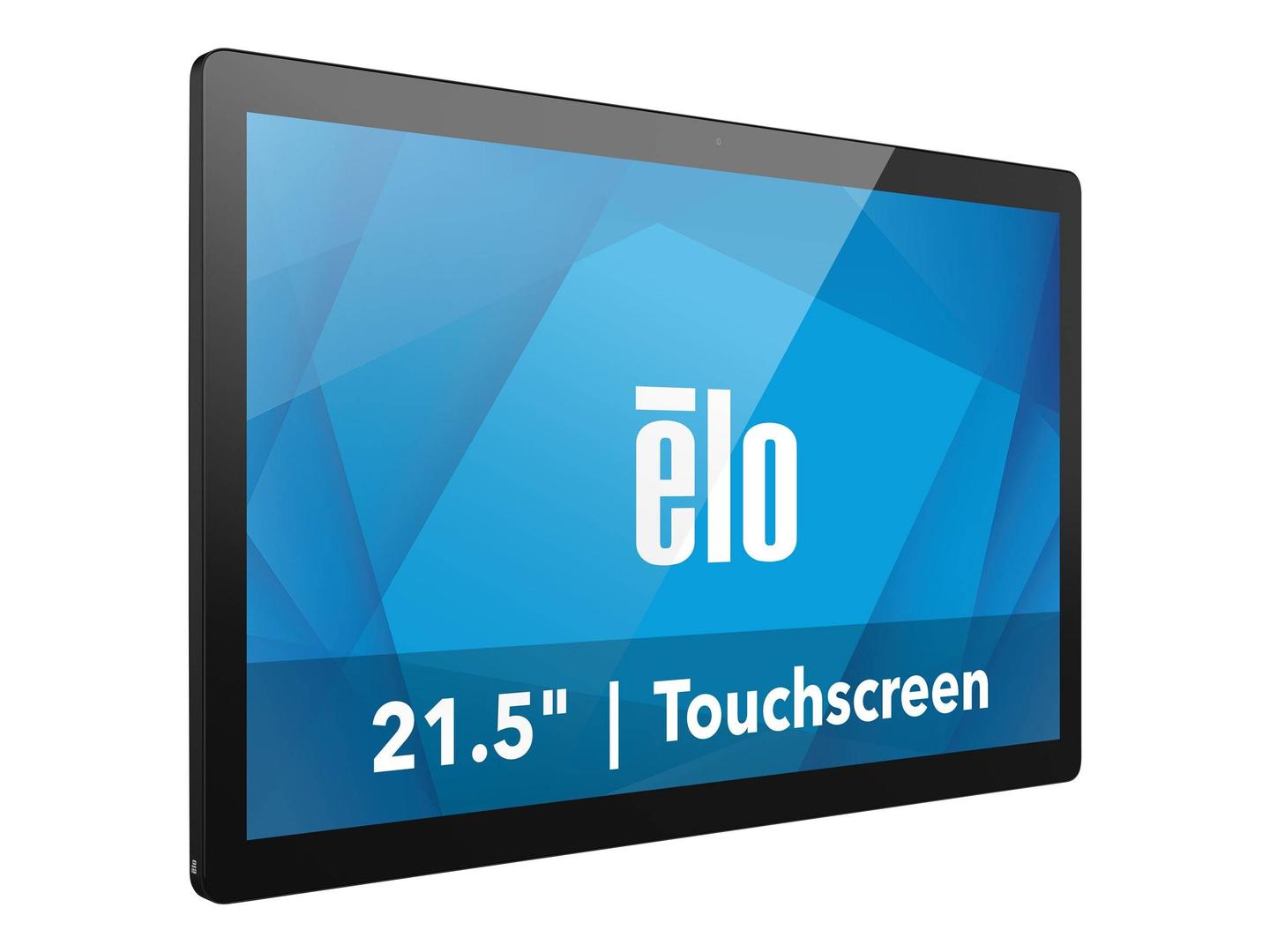

Elo I-Series 4.0 / Value / all-in-one / 1 RK3399 / RAM 4 GB / flash 32 GB / GigE / WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 / Android 10 / monitor: LED 21.5" 1920 x 1080 (Full HD) @ 60 Hz touchscreen / black | E391414
Please sign in so that we can notify you about a reply
Special Features
- High-performance computing
- Sleek edge-to-edge glass PCAP touchscreen
- Modular design with flexible mounting
Product Specification
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | Rockchip RK3399 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| RAM | RAM |
| Installed Size | 4 GB |
| Hard Drive | Hard Drive |
| Type | Flash |
| Capacity | 1 x 32 GB |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Card Reader | Card Reader |
| Type | Card reader |
| Supported Flash Memory Cards | microSD |
| Monitor | Monitor |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 21.5" |
| Native Resolution | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +85 / -85 |
| Response Time | 5 ms |
| Image Brightness | 215 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | TouchPro Pro Projected Capacitive (PCAP) technology |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Camera | Camera |
| Camera | Yes |
| Resolution (MP) | 5 Megapixel |
| Resolution | 1920 x 1080 |
| Features | Autofocus |
| Audio Input | Audio Input |
| Type | Microphone |
| Networking | Networking |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB 3.0 (900 mA) ¦ 1 x USB-C ¦ 1 x GPIO ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 - micro-USB (support for 1.2 A on one port and 500 mA for the remaining three ports) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Power adapter, screw set |

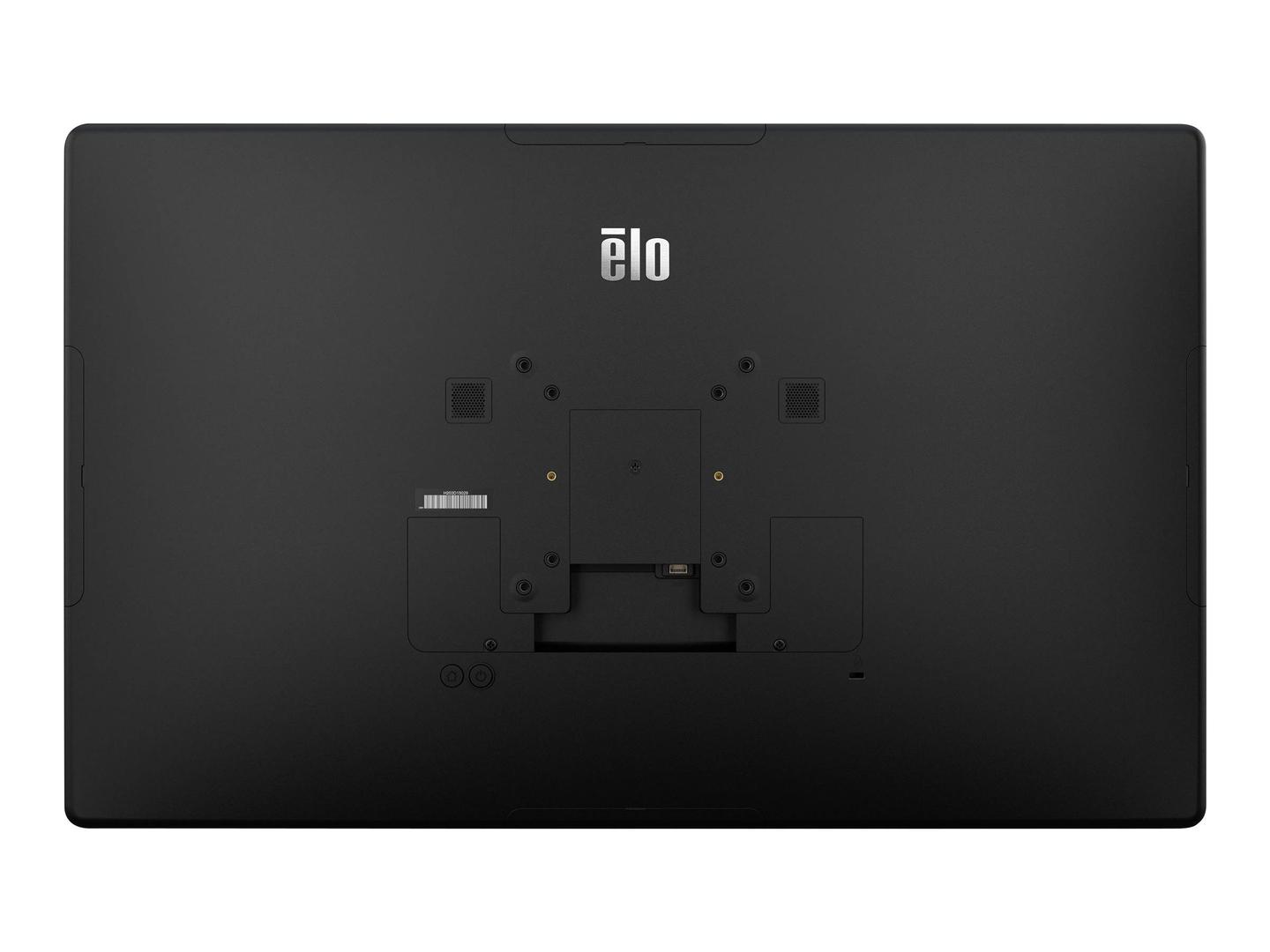

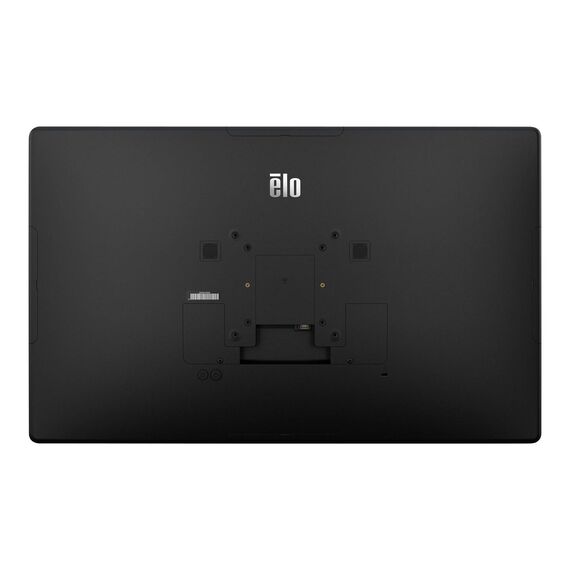

| VESA Mounting Interface | 75 mm, 100 mm, VESA |
| Compliant Standards | UL, VCCI, cUL, CB, IC, MIC, FCC, RCM |
| Power | Power |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 15.7 Watt |
| Power Consumption Stand by | 0.45 Watt |
| Power Consumption Sleep | 2.7 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | Android 10 |
| Software | Google Mobile Services |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 52.48 cm |
| Depth | 2.97 cm |
| Height | 32.48 cm |
| Weight | 4.3 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 60 cm |
| Shipping Depth | 16.8 cm |
| Shipping Height | 40.6 cm |
| Shipping Weight | 7.3 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% |
Features - Elo - E391414
More Details
Product Code
CC02007
EAN Code
0843173128429
Manufacturer
Elo
