Elo 1291L / LED monitor / 12.1" / open frame / touchscreen / 800 x 600 / 450 cd/m / 1500:1 / 25 ms / HDMI, VGA, DisplayPort / black | E331595
|

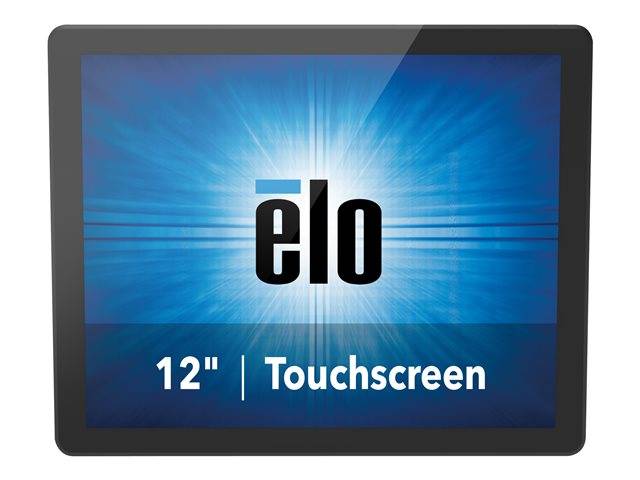

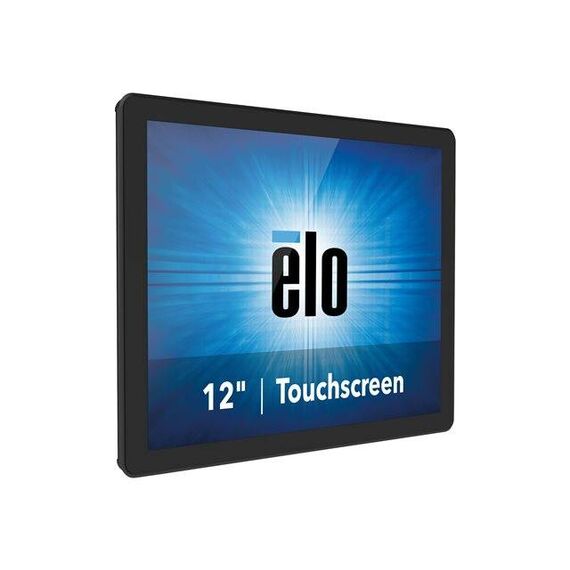

Description The Elo 1291L 12-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments. Elo 1291L / LED monitor | E331595Special Features
|
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 12.1" |
| Aspect Ratio | 4:3 |
| Native Resolution | 800 x 600 at 60 Hz |
| Brightness | 450 cd/m² |
| Brightness w/touchscreen | 405 cd/m² |
| Contrast Ratio | 1500:1 |
| Colour Support | 16.2 million colours |
| Response Time | 25 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 38 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Remote OSD, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 30.25 cm x 4.49 cm x 24.2 cm |
| Weight | 2.65 kg |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | USB ¦ VGA ¦ DisplayPort ¦ HDMI |

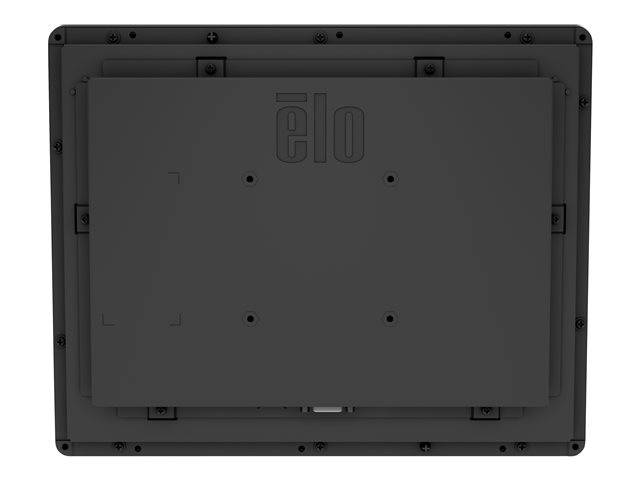

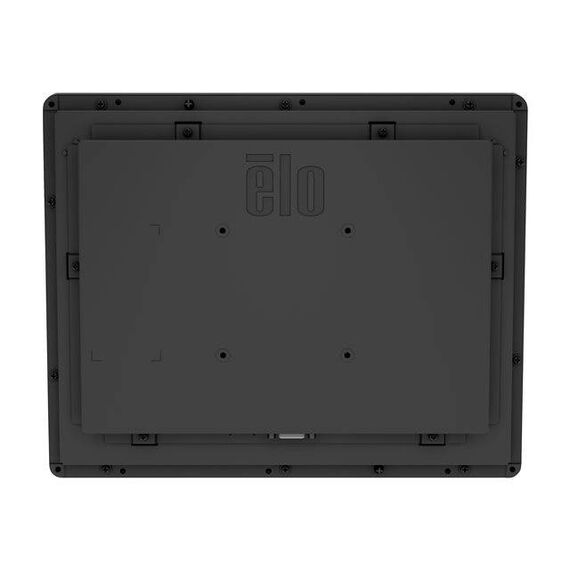

| Flat Panel Mount Interface | 75 x 75 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IK07, DisplayPort 1.1a, IMERC |
| Power Consumption Operational | 12.2 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E331595
More Details
Product Code
0V00615
EAN Code
0815335026034
Manufacturer
Elo
