Elo 1590L / 90-Series / LED monitor / 15" / open frame / touchscreen / 1024 x 768 / 250 cd/m / 700:1 / 16 ms / HDMI, VGA, DisplayPort / black | E334530
|

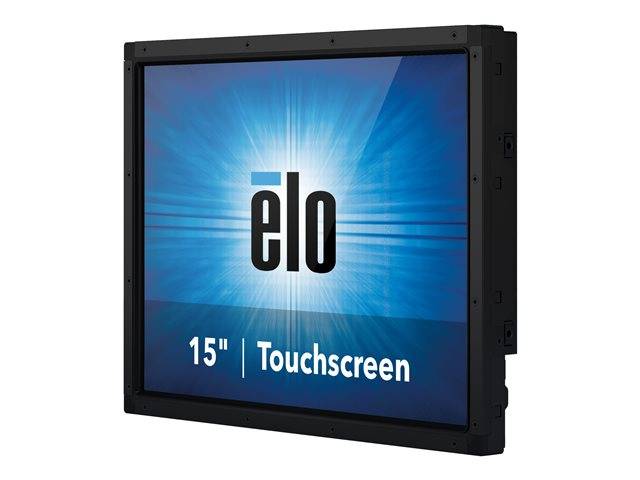

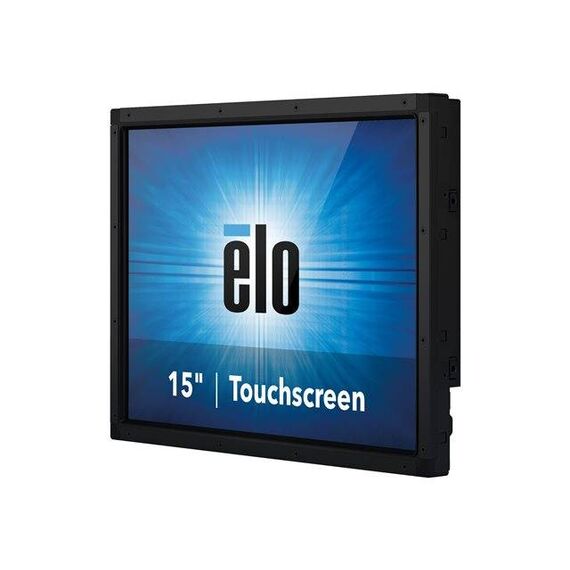

Description The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Elo 1590L / 90-Series | E334530Special Features
|
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 15" |
| Aspect Ratio | 4:3 |
| Native Resolution | 1024 x 768 at 75 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 220 cd/m² |
| Contrast Ratio | 700:1 |
| Colour Support | 16.2 million colours |
| Response Time | 16 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 60 kHz |
| Horizontal Viewing Angle | +80 / -80 |
| Vertical Viewing Angle | +70 / -70 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| Features | Remote OSD, SecureTouch Surface Wave |
| Colour | Black |
| Dimensions (WxDxH) | 33.64 cm x 4.19 cm x 26.44 cm |
| Weight | 2.9 kg |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Surface acoustic wave |
| Interfaces | VGA ¦ DisplayPort ¦ USB (Type B) ¦ Management (RJ-45) ¦ HDMI ¦ Serial (DB-9) |

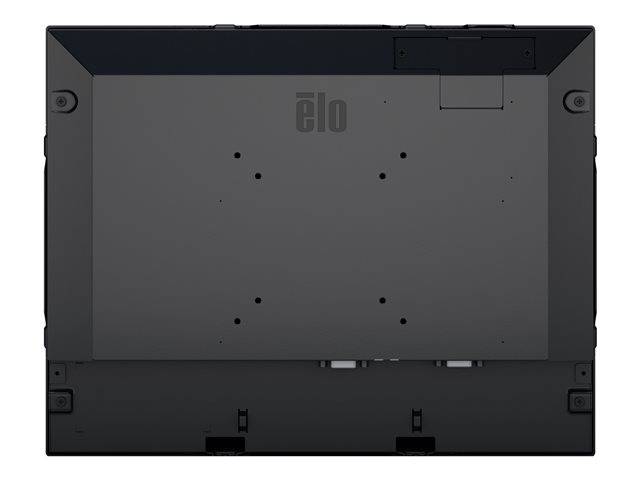

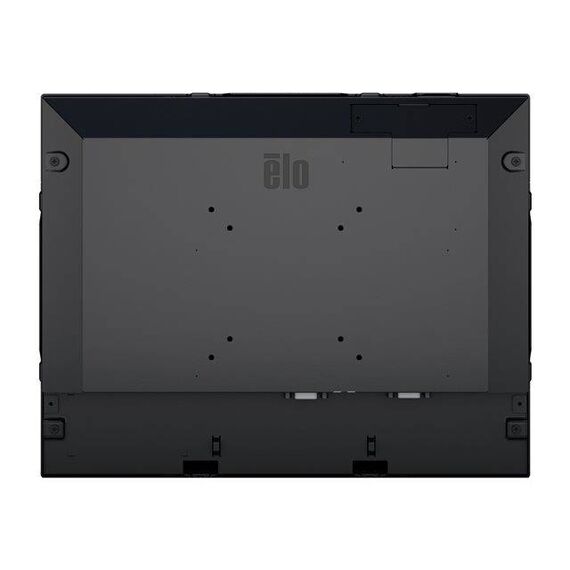

| Flat Panel Mount Interface | 100 x 100 mm, 75 x 75 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Localisation | Worldwide |
| Power Consumption Operational | 12.5 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E334530
More Details
Product Code
0V00626
EAN Code
0815335026096
Manufacturer
Elo
