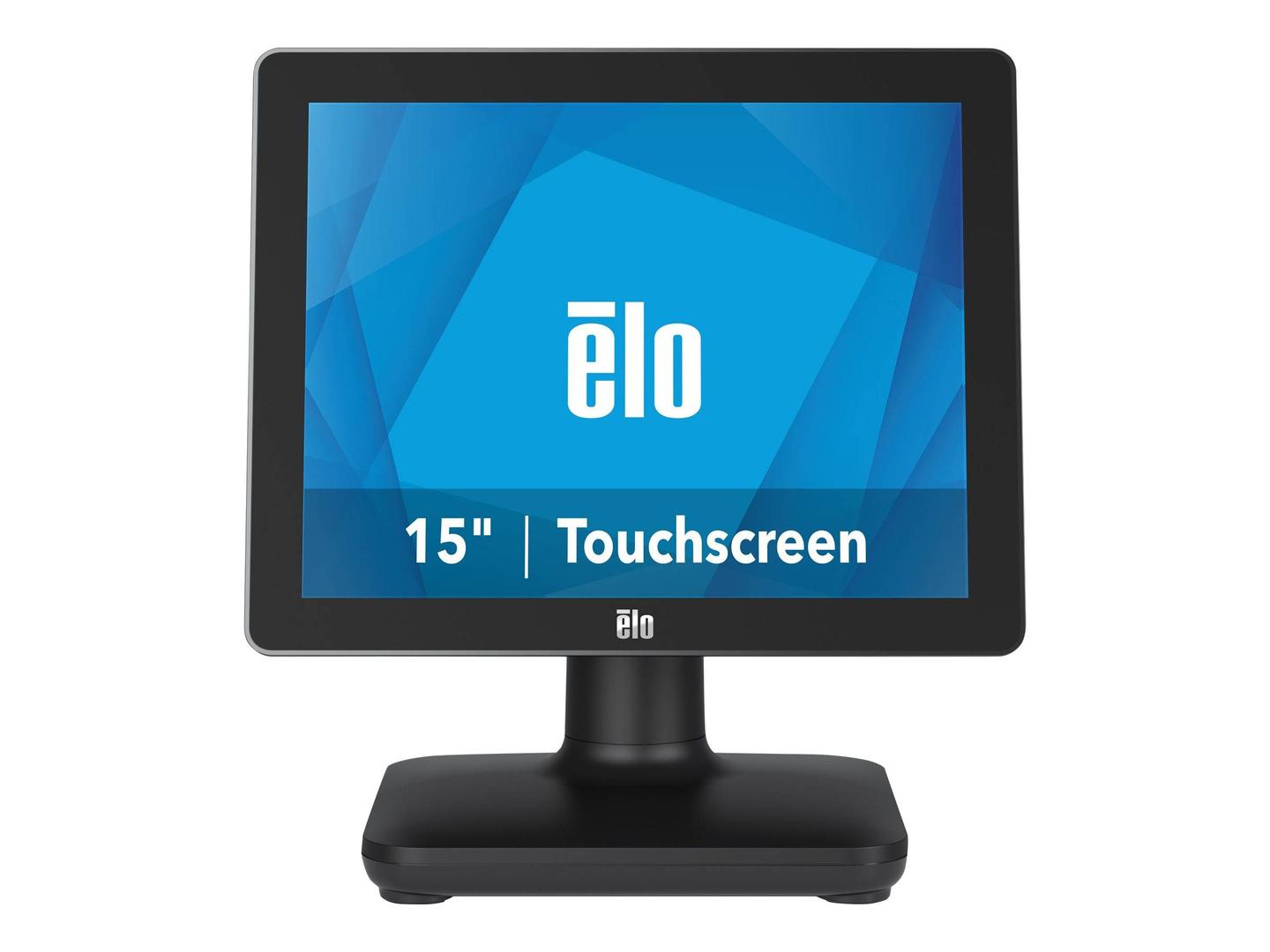

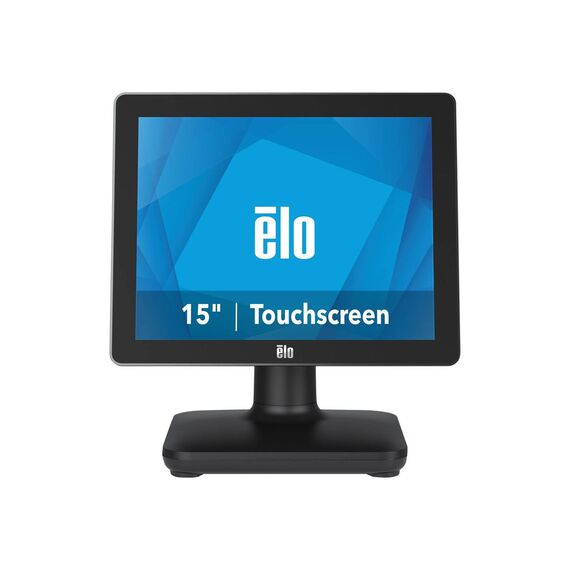

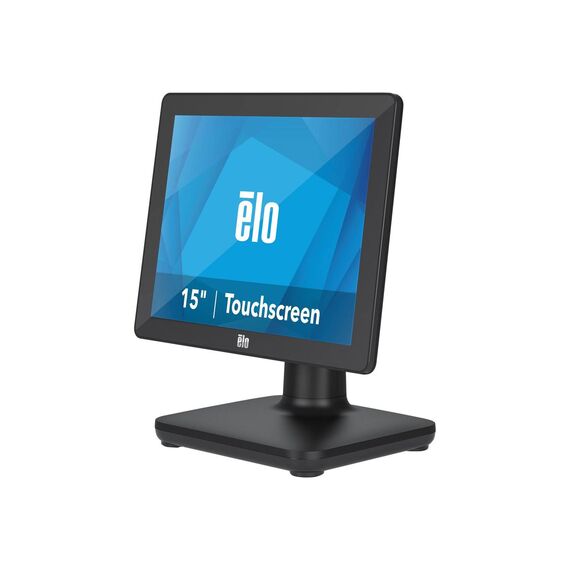

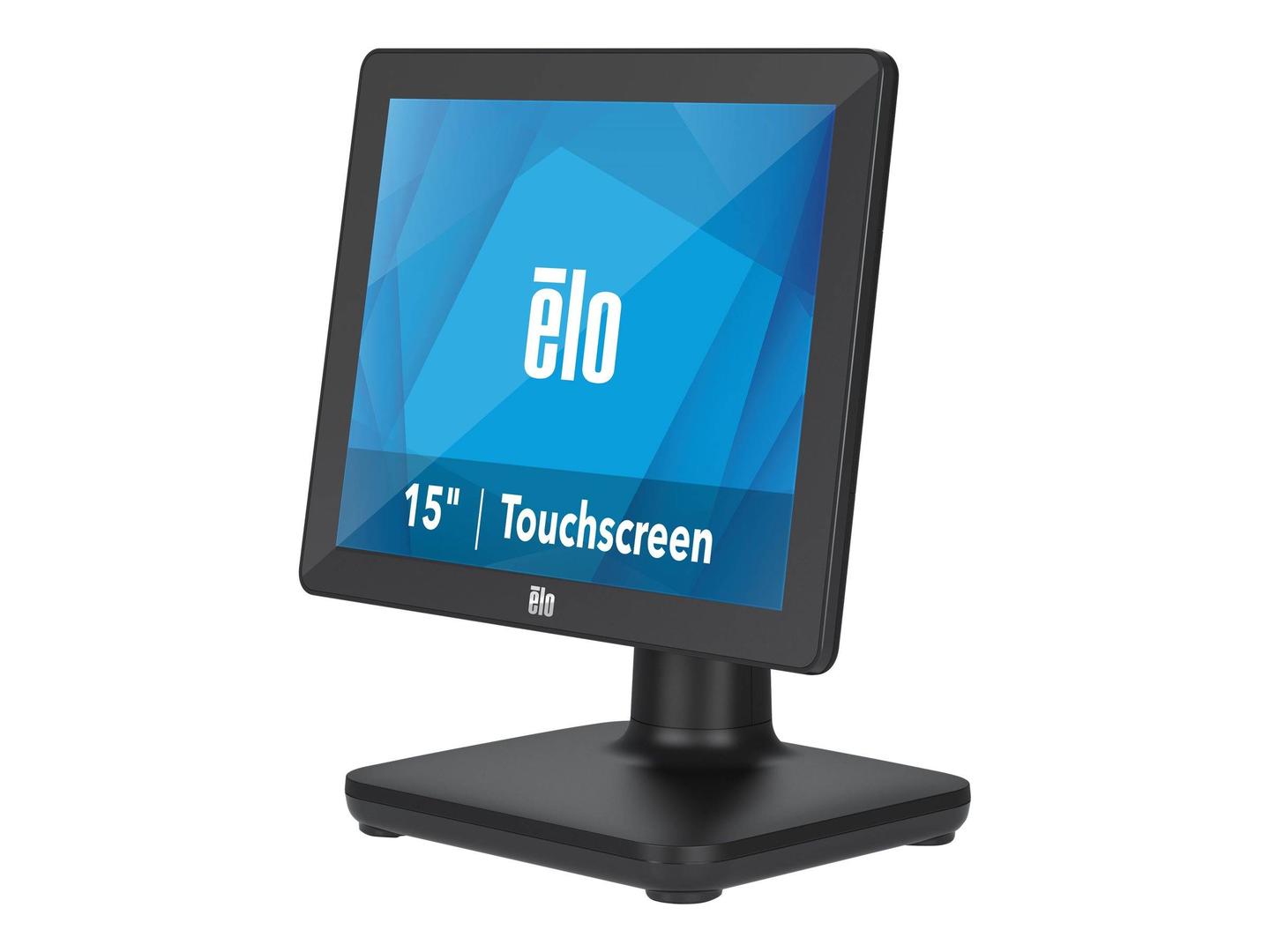

EloPOS System / With I/O Hub Stand / all-in-one / 1 x Core i3 8100T / 3.1 GHz / RAM 4 GB / SSD 128 GB / UHD Graphics 630 / GigE / WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 / no OS / monitor: LED 15" 1024 x 768 (XGA) touchscreen / black | E931706
Please sign in so that we can notify you about a reply
Product Specification
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i3 (8th Gen) 8100T |
| Clock Speed | 3.1 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel H310 |
| Cache Memory | Cache Memory |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | RAM |
| Installed Size | 4 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 1 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 4 GB |
| Hard Drive | Hard Drive |
| Type | SSD - 2.5" |
| Capacity | 1 x 128 GB |
| Interface Type | SATA 6Gb/s |
| SSD Endurance | 72 TB |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 15" |
| Native Resolution | 1024 x 768 (XGA) |
| Widescreen Display | No |
| Image Aspect Ratio | 4:3 |
| Horizontal Viewing Angle | 160 |
| Vertical Viewing Angle | 160 |
| Response Time | 23 ms |
| Image Brightness | 340 cd/m² |
| Image Contrast Ratio | 800:1 |
| Monitor Features | Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 630 |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Networking | Networking |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 0 (free) x internal 2.5" x 1/8H |
| Slots | 1 (total) / 1 (free) x M.2 Card |
| Interfaces | 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable cover locking screw |
| Cables Included | RJ-45 to DB-9 cable |
| VESA Mounting Interface | 75 mm |
| Compliant Standards | UL, TUV, VCCI, cUL, NOM, CB, CCC, FCC, S Mark, RCM, CE/EMC |
| Power | Power |
| Device Type | Power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Power Consumption Operational | 71 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Environmental Standards | Environmental Standards |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 7.1 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Dimensions & Weight Details | 35.97 cm - 22.13 cm - 39.04 cm - 5.3 kg - with stand |
| Width | 35.97 cm |
| Depth | 22.13 cm |
| Height | 39.04 cm |
| Weight | 5.3 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 45.5 cm |
| Shipping Depth | 37.2 cm |
| Shipping Height | 50.9 cm |
| Shipping Weight | 8.2 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E931706
More Details
Product Code
CA05164
EAN Code
0843173115870
Manufacturer
Elo
