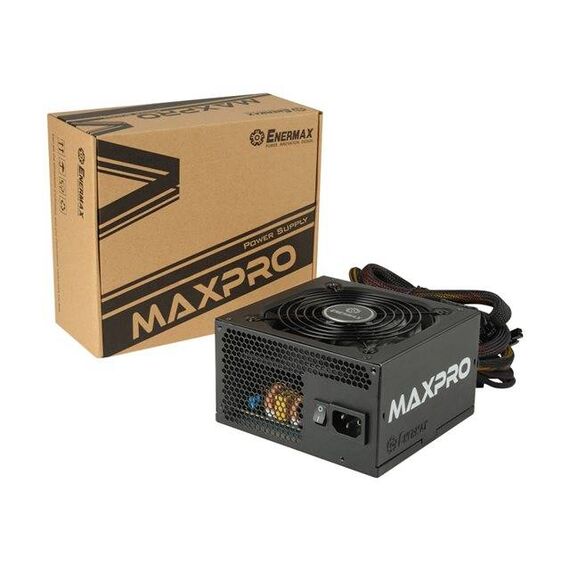

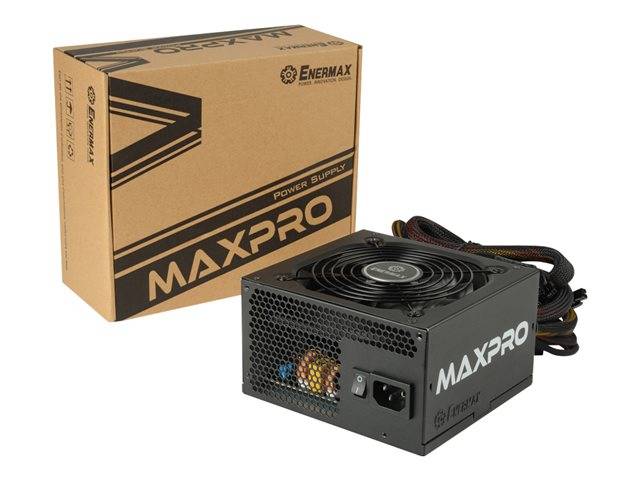

Enermax MaxPro EMP600AGT / Power supply / ATX12V 2.3 / 80 PLUS / AC 200-240 V / 600 Watt / active PFC | EMP600AGT
Enermax MaxPro EMP600AGT / Power supply / ATX12V 2.3 / 80 PLUS / AC 200-240 V / 600 Watt / active PFC | EMP600AGT
Special Features
Product features
|
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance | ATX12V 2.3 |
Input Voltage | AC 200-240 V |
Frequency Required | 47 - 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX ¦ 6 x 15 pin Serial ATA power ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 600 Watt |
Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 46 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
Power Factor (PF) | 0.98 |
80 PLUS Certification | 80 PLUS |
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | Over current protection, over voltage protection, overpower protection, short-circuit protection, AirGuard, SafeGuard |
Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 6 |
Service & Support | Limited warranty - 3 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 20 - 90% (non-condensing) |
Sound Emission | 22.4 dBA |
Width | 15 cm |
Depth | 14 cm |
Height | 8.6 cm |
Weight | 1.8 kg |
