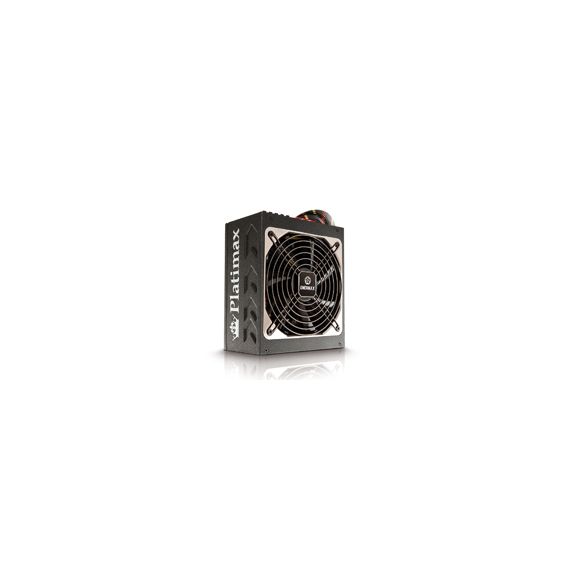

Enermax Platimax EPM1000EWT OC Edition power supply, / ATX12V 2.3/ EPS12V 2.92 80 PLUS Platinum / AC 115-240 V 1000 Watt active PFC

Enermax EPM1000EWT Enermax Platimax EPM1000EWT OC Edition power supply, / ATX12V 2.3/ EPS12V 2.92 80 PLUS Platinum / AC 115-240 V 1000 Watt active PFC

89PLUS ready!
World’s leading modular cable PSU series with 89-94% efficiency @ 20-100% load. Compliant with 80PLUS® PLATINUM efficiency requirement.

ErP Lot 6 ready!
Help system to meet ErP Lot 6 2010 <1W at standby mode with high efficiency 5Vsb circuitry.

High compatibility ready!
Single rail 12V output highly compatible with various types of high-end graphics card at full-load operation.

World ready!
100-240VAC in with automatic adjustment and active PFC for global usage

24/7 @ 50°C ready!
Non-Stop industrial class performance at 50°C ambient.

C6 & Hybrid ready!
Maximum compatibility with C6 & hybrid states of current and future CPU & GPU generations by ZERO LOAD design.

DXXI ready!
100% 62P 8P PCI-E connector to support new generation DXXI graphic cards.

Future ready!
12P modular design for possibly upcoming new CPU and GPU 10P and/or 12P connectors.

SERVER ready!
SSI PSDG support for latest Intel® Core™ Extreme/i7/i5/i3, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8.

EMC ready!
Full-scale electromagnetic filtering protects your system against radiation interferences.

CordGuard
Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

HeatGuard
Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.

SafeGuard
Industry-leading multiple protection circuitry of OCP, OVP, DC UVP, OPP, OTP, SCP & SIP

SpeedGuard
World’s leading patented fan control starting with unmatched 550RPM to a maximum of 1500RPM for optimal cooling and minimum noise.

Twister fan inside!
13.9cm Twister-bearing fan with low noise and long lifetime. 100,000 hours MTBF, Patented

100% 105 Japanese electrolytic capacitors
Highest components standards for maximum durability and stability.

Dynamic Hybrid Transformer Topology
Technological breakthrough topology using a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load.

Feature list

Nominal power:	1000 W
Peak power:	1100 W
AC input voltage:	115 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	10.5 - 4.5 A
Power Factor Correction PFC type:	Active
DC output voltage:	12V, 3.3V, 5V, 5Vsb, -12V
Combined power 12V:	996 W
Combined power -12V:	6 W
Combined power 5Vsb:	15 W
Max output current 3.3V:	20 A
Max output current 12V:	83 A
Max output current 5V:	20 A
Max output current -12V:	0.5 A
Max output current 5Vsb:	3 A
Efficiency:	92 %
Power protection features:	Over current, Over power, Over voltage, Short circuit, Under voltage
Number of fans:	1
Fan location:	Top
Fan speed:	1500 RPM
Cooling type:	Active
Motherboard power connector:	24-pin ATX
Number of SATA power connectors:	12
Peripheral Molex power connectors 4-pin:	8
PCI Express power connectors 62 pin:	2
CPU power connector 44 pin:	Y
Floppy drive power connector:	1
CPU power connectors 8-pin:	1
Cabling type:	Modular
Form factor:	ATX
Purpose:	PC/server
ATX version:	2.3
EPS version:	2.92
Mean time between failures MTBF:	100000 h
Colour of product:	Grey, Silver
Width:	150 mm
Depth:	175 mm
Height:	86 mm
80 PLUS certification:	80 PLUS Platinum
Energy Star certified:	Y
