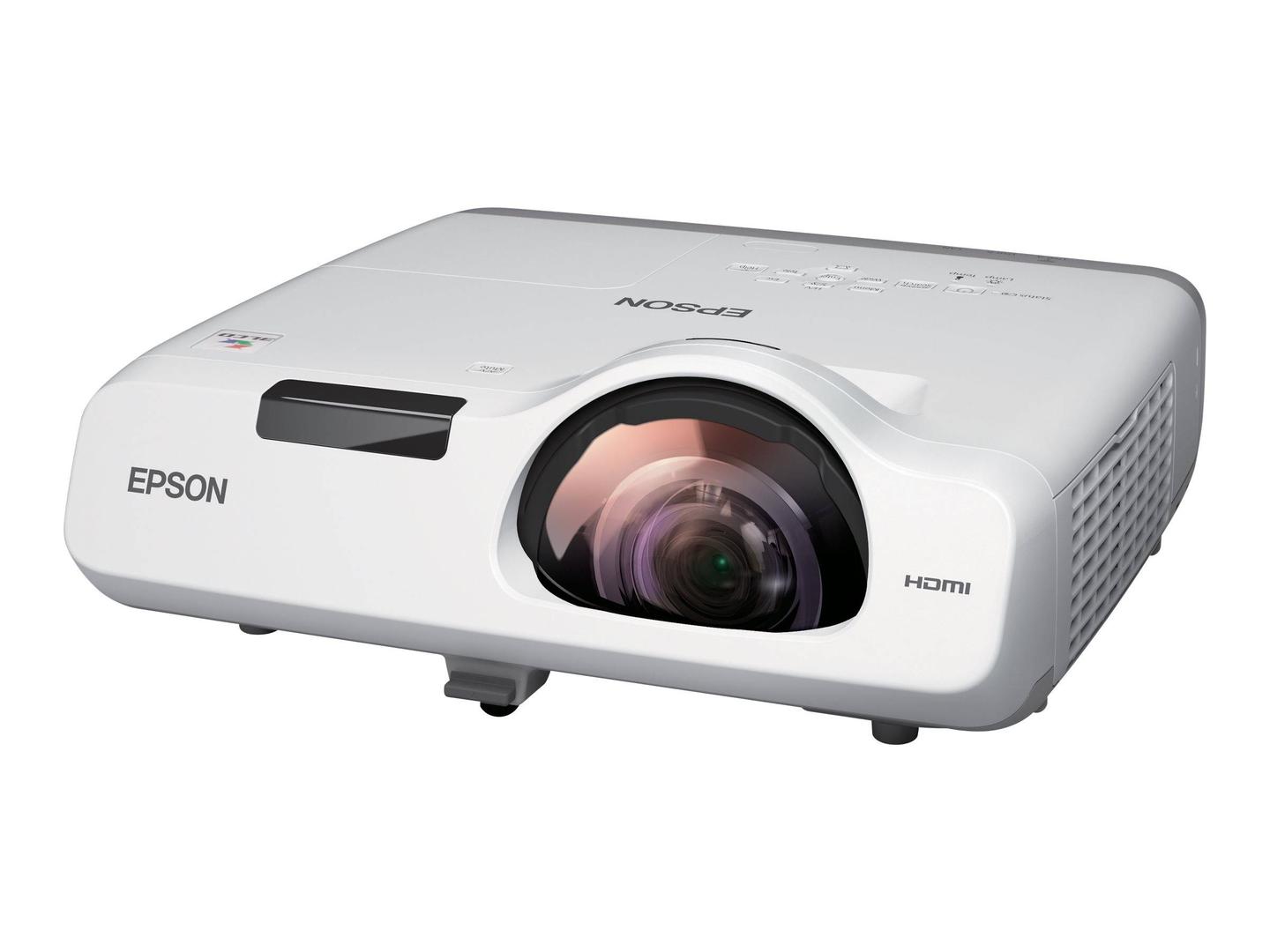

Epson EB-535W / 3LCD projector / 3400 lumens (white) / 3400 lumens (colour) / WXGA (1280 x 800) / 16:10 / 720p / LAN | V11H671040
Product Features
- High-quality image
Complete with 3LCD technology, the EB-535W displays superior-quality, bright images with more accurate colors. The image can be seen even in brightly-lit rooms thanks to an equally high white and color light output. Image detail is clear thanks to a high contrast ratio and short throw lens means sharper images and improved focus. - More value for your money
The lamp in the EB-535W lasts long hours in eco mode. The projector even conserves power during presentations by automatically adjusting the light output depending on the content. The A/V mute function pauses the presentation and dims the lamp by 70% to conserve energy while the projector is not in use. The projectors' built-in 16 W speaker means audio content can be played directly through the projector, without the need for additional external speakers. The microphone input transforms the projector into a PA system, meaning presenters can be easily heard in a classroom environment. - Easy to set up and use
The EB-535W has both horizontal and vertical keystone correction to achieve a perfectly shaped image and help avoid distortion. When setting up several projectors, the OSD settings can be copied from one projector to many others meaning you don't need to set up projectors individually. Multi-PC projection software allows content from four devices, including PC's, tablets, smart phones, to be displayed simultaneously.
Special Features
- Exceptional image quality: Epson's 3LCD technology displays brighter images and more accurate colours
- Equally high white and colour light output: Projected image can be seen clearly even in brightly-lit rooms
- Clearer detail: Increased contrast ratio of 16,000:1
- Longer lamp life means low TCO: 10,000 hours in eco mode / 5,000 hours in normal mode
- Flexible installation options: Horizontal and vertical keystone correction for off-centre and uneven placement
Product Specification
Device Type | 3LCD projector - 720p |
Built-in Devices | Speaker, 0.59-inch TFT LCD |
Networking | Ethernet |
Projector | Projector |
Brightness (White) | 3400 lumens |
Brightness (Colour) | 3400 lumens |
Brightness (Reduced) | 1900 lumens |
Contrast Ratio | 16000:1 (dynamic) |
Image Size | 134 cm - 294 cm |
Projection Distance | 0.5 m - 1.2 m |
Throw Ratio | 0.48:1 |
Digital Zoom Factor | 1.35x |
Resolution | WXGA - WXGA (1280 x 800) |
Native Aspect Ratio | 16:10 |
Colour Support | 1.07 billion colours |
Bulb type | 215 Watt |
Bulb life cycle | Up to 5000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode |
Controls & Adjustments | Keystone correction |
Features | EPSON 3LCD technology |
Lens | Lens |
Focus Type | Manual |
Lens Aperture | F/1.6 |
Keystone Correction Direction | Horizontal, vertical |
Vertical Keystone Correction | -15 / +15 |
Horizontal Keystone Correction | -15 / +15 |
Video Input | Video Input |
Analogue video Signal | RGB, S-Video, composite video, component video |
Video Interfaces | VGA, HDMI, component video, composite video, S-Video |
LAN and Wireless Image Transferring Protocols | Wired LAN |
Speakers | Speakers |
Type | Integrated |
Sound Output Mode | Mono |
Output Power / Channel | 16 Watt |
Expansion / Connectivity | Expansion / Connectivity |

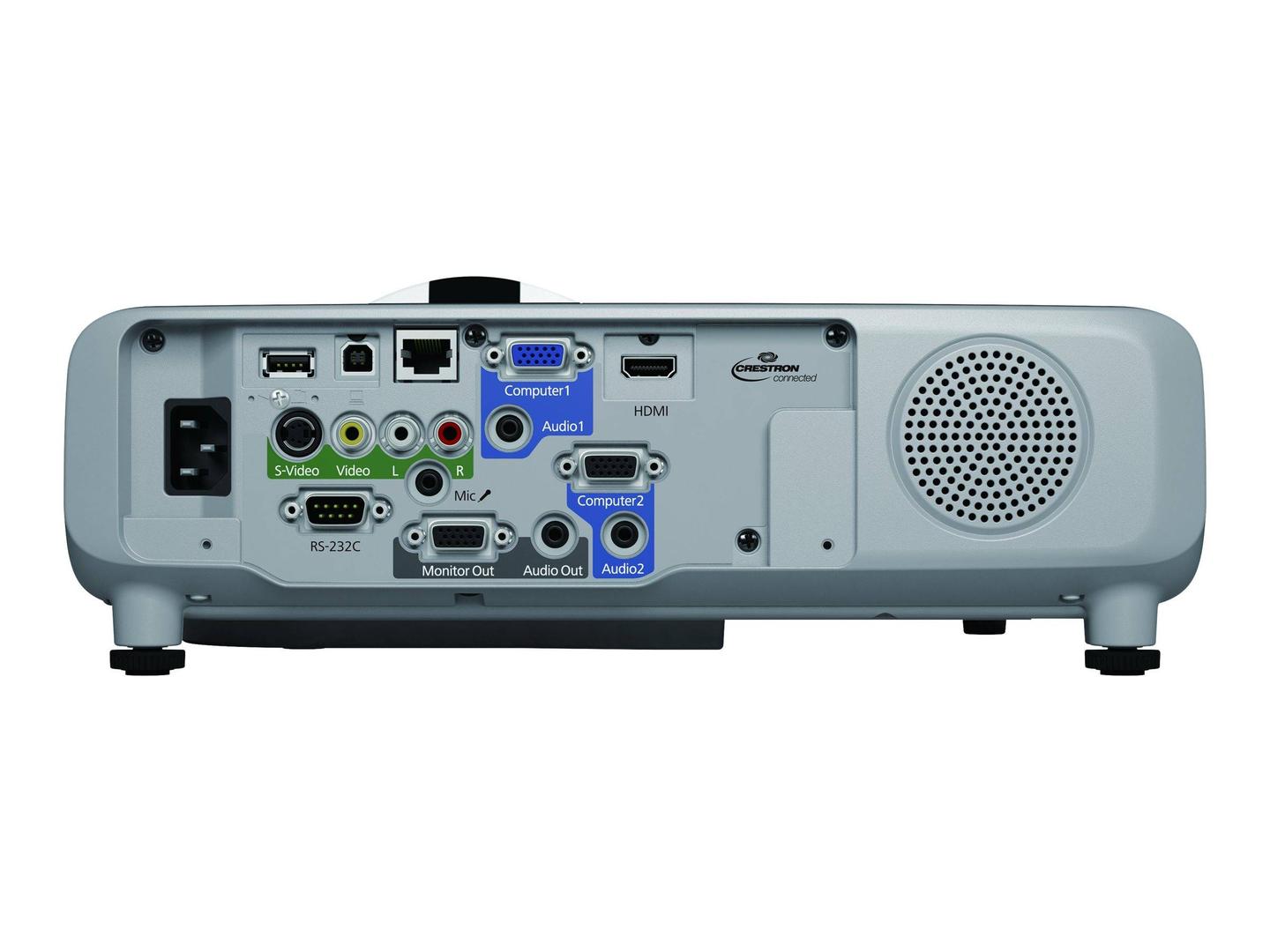

Interfaces | 1 x HDMI input - 19 pin HDMI Type A ¦ 2 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x composite video input - RCA ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x S-video input ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x network - RJ-45 ¦ 1 x microphone - mini-phone 3.5 mm ¦ 2 x component video input ¦ 1 x serial RS-232 |
Miscellaneous | Miscellaneous |
Included Accessories | Remote control |
Security Features | Security lock slot (cable lock sold separately) |
Power | Power |
Nominal Voltage | AC 120/230 V (50 - 60 Hz) |
Power Consumption Operational | 298 Watt |
Power Consumption Stand by | 0.28 Watt |
Software / System Requirements | Software / System Requirements |
Software Included | EasyMP Network Projection, EasyMP Monitor, EasyMP Multi PC Projection |
Dimensions & Weight | Dimensions & Weight |
Width | 34.4 cm |
Depth | 31.5 cm |
Height | 9.4 cm |
Weight | 3.7 kg |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years - carry-in |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 - 80% |
Sound Emission | 35 dBA |
Sound Emission (Economic Mode) | 28 dBA |
