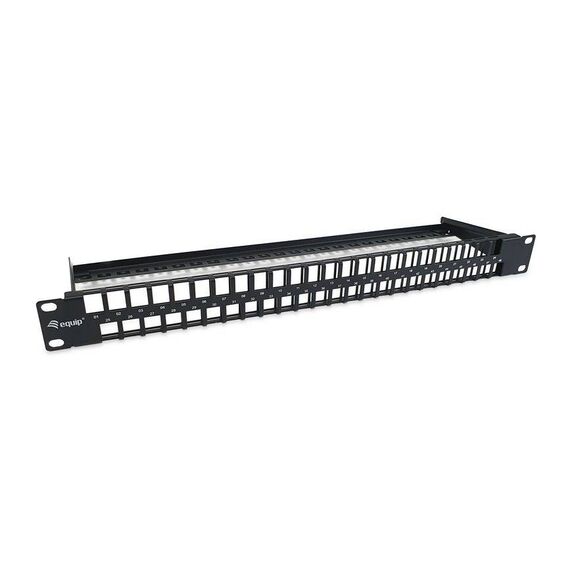

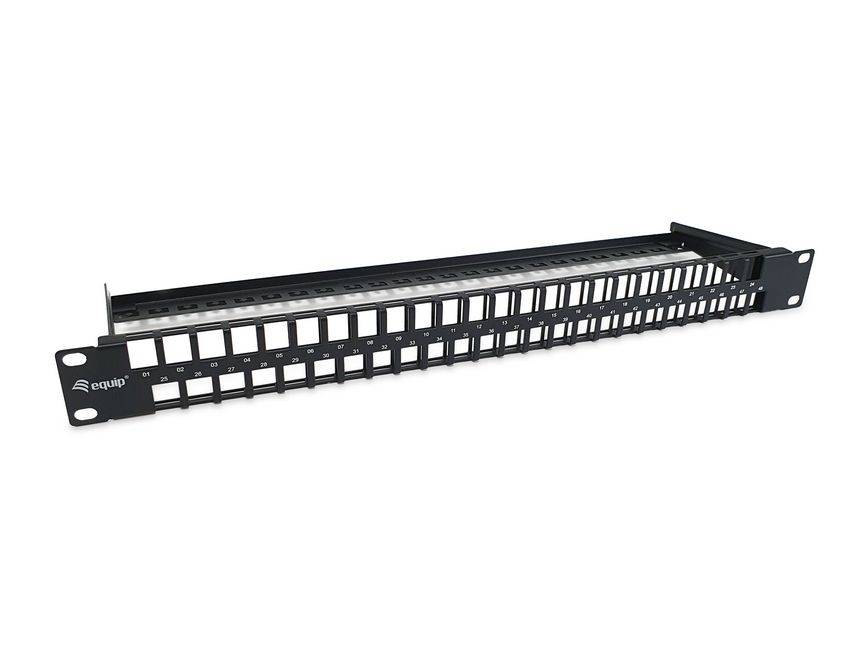

Equip 48-Port Keystone Cat.6 Unshielded Patch Panel, Black | 769258
The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 48 shielded RJ45 ports, this patch panel is recommended to connect with equip® shielded patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition.
- 19", 1U
- 48 Port x Keystone Cat.6
- Unshielded
- Snap-in mounting
- Including support bar
- Material: Sturdy Steel
- Color: Black (RAL 9005)
Product Specification
Connector(s) | RJ-45 |
Cable types supported | Cat6 |
Product colour | Black |
Material | Steel |
Rack capacity | 1U |
Width | 482.6 mm |
Height | 126.4 mm |
Depth | 44.5 mm |
Package width | 500 mm |
Package depth | 150 mm |
Package height | 55 mm |
Country of origin | China |
Master (outer) case width | 515 mm |
Master (outer) case length | 290 mm |
