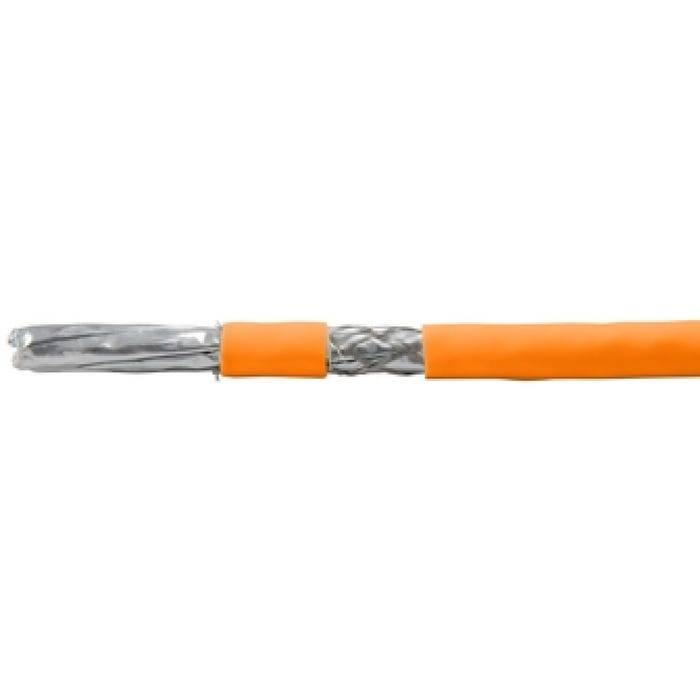

The equip® Installation Cable is made of preeminent materials and thoroughly examined to meet or surpass industrial standards. The solid installation cable is aimed to offer sturdy wide-ranged cable deployments, including 1000BASE-T Gigabit Ethernet and 100BASE-TX Fast Ethernet.
Special Features
- AWG 23/1, 0.56mm
- Solid bare copper conductor
- Foil and braid shield reduces EMI/RFI interference
- Low Smoke Zero Halogen (LSZH/LSOH)
- CPR Certified, Class Eca
Product Specification
| Network Cable Type | Bulk cable - CAT 7 |
| Technology | Shielded foiled twisted pair (SFTP) |
| Shielding Material | Aluminum mylar foil with braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 23 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Impedance | 100 Ohm |
| Features | Halogen-free, solid, minimised Near-End Crosstalk (NEXT), bare copper conductors, FEXT (Far End Crosstalk), CPR certificate |
| Length | 200 m |
| Colour | Orange, RAL 2003 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, WEEE, ISO/IEC 11801, ANSI/TIA-568-C.2, EN 50575:2014 - up to 1000 MHz |
Features - Equip - 187323
Length
>50m
General
CAT7
More Details
Product Code
04:285849
EAN Code
4015867207826
Manufacturer
Equip
