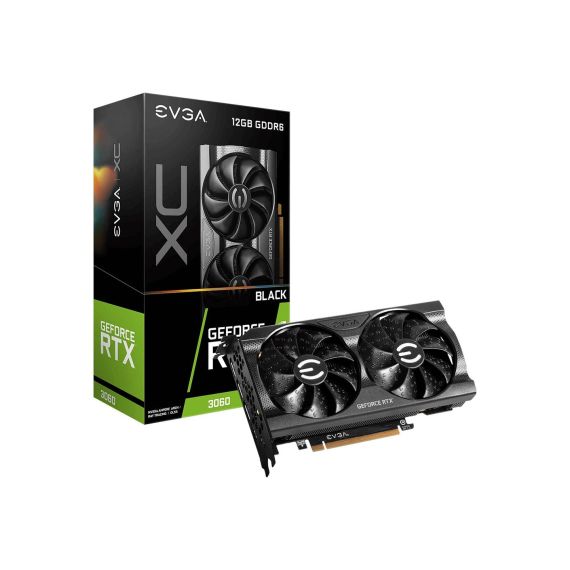

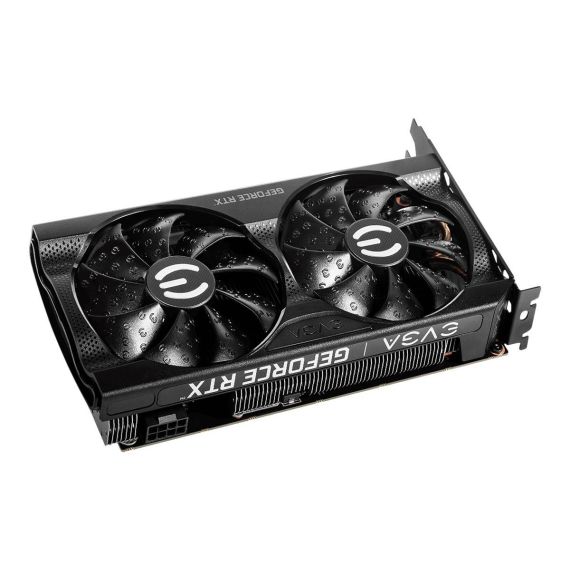

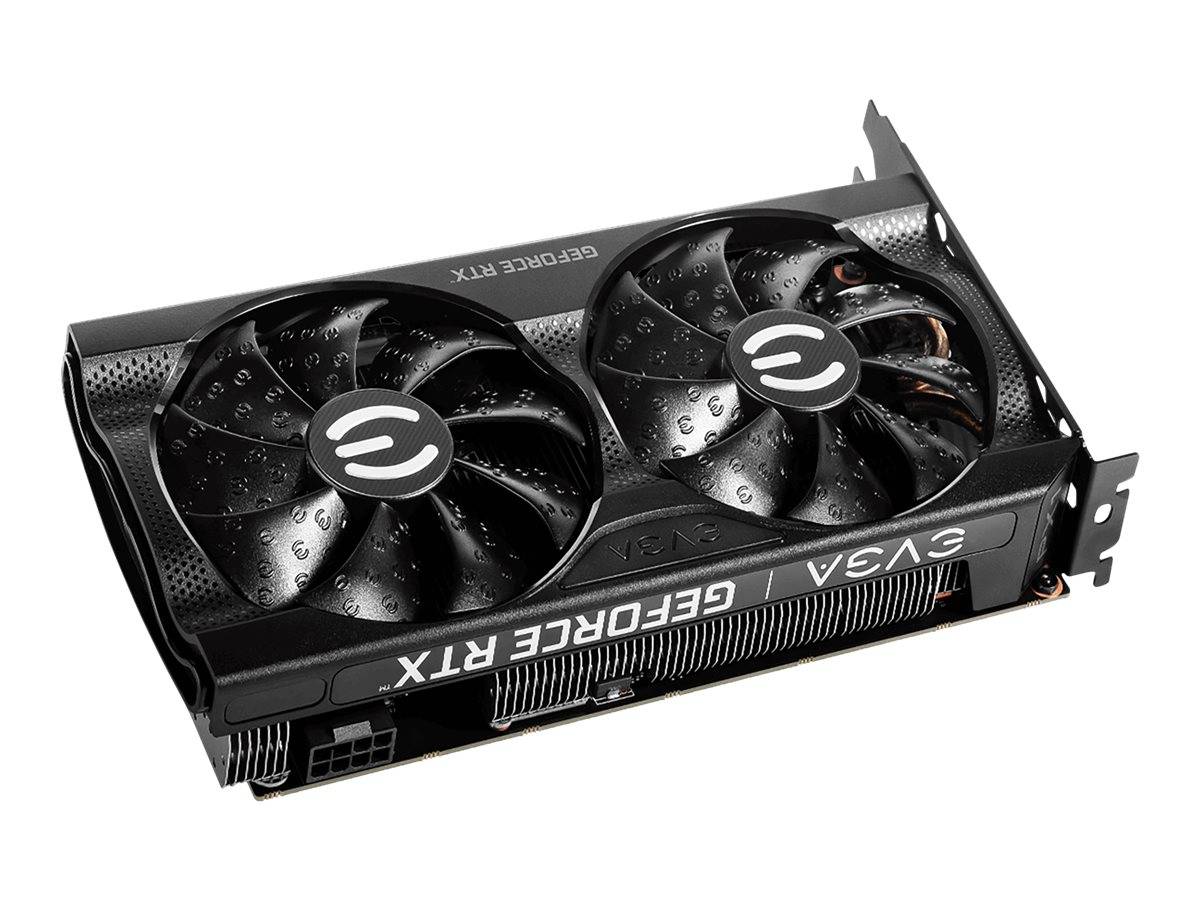

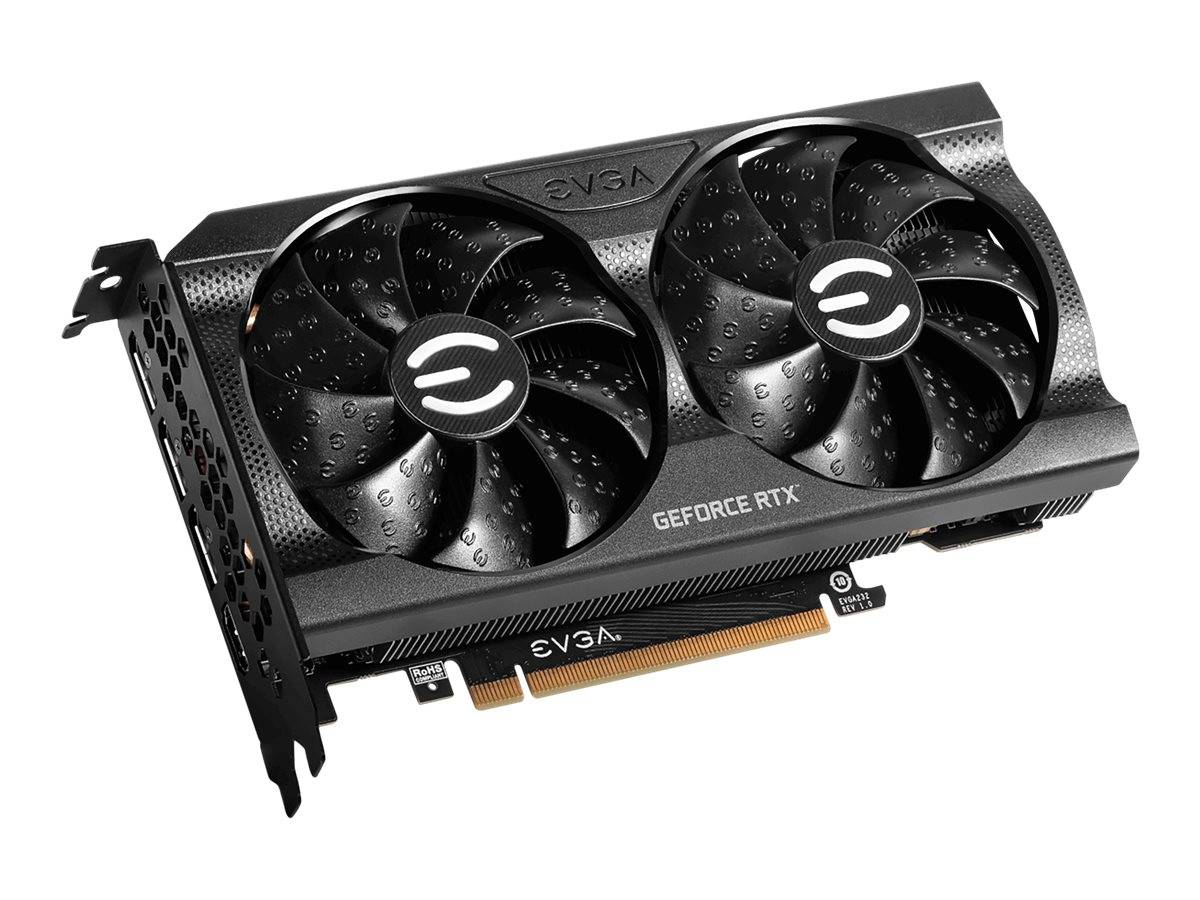

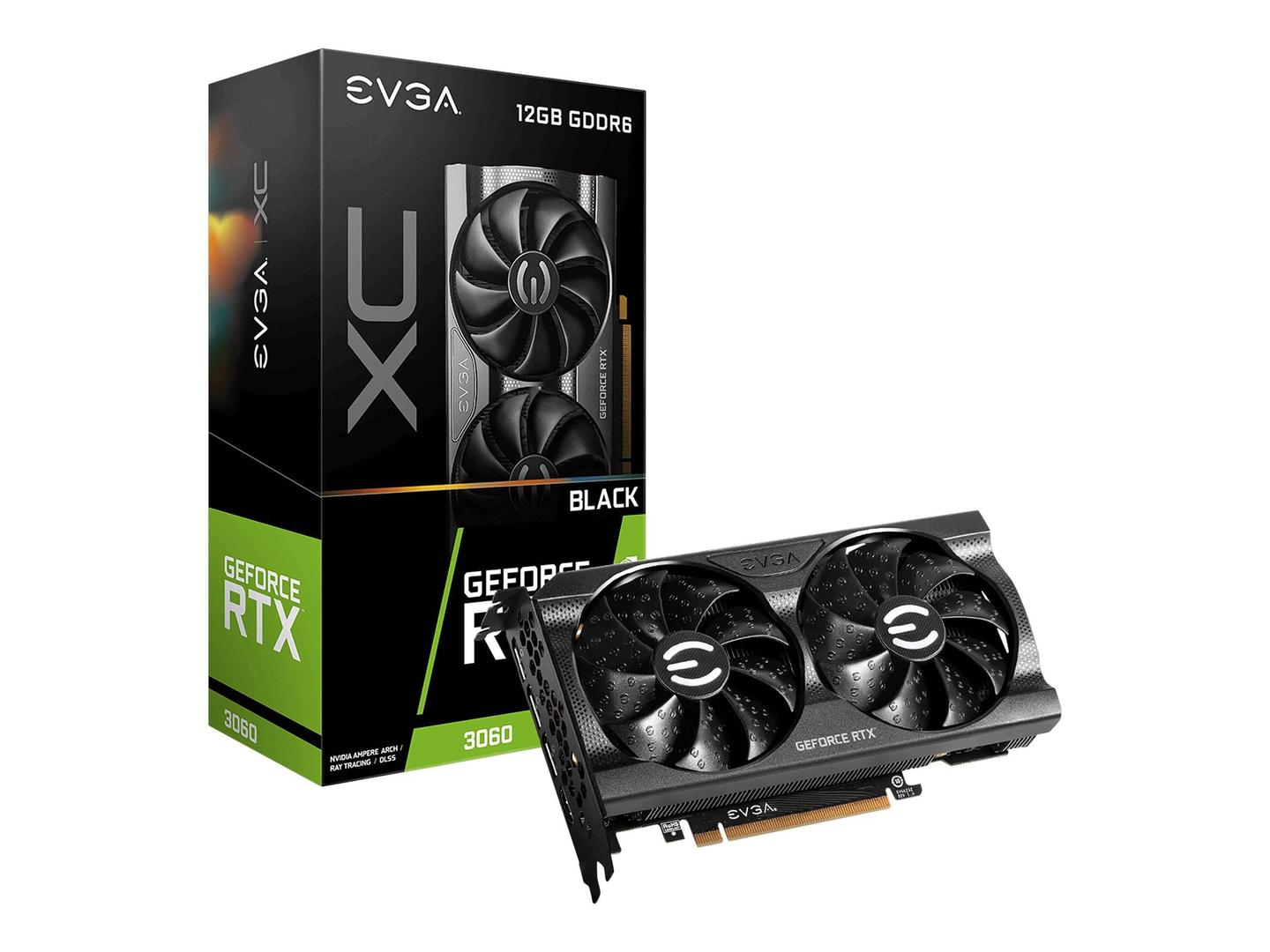

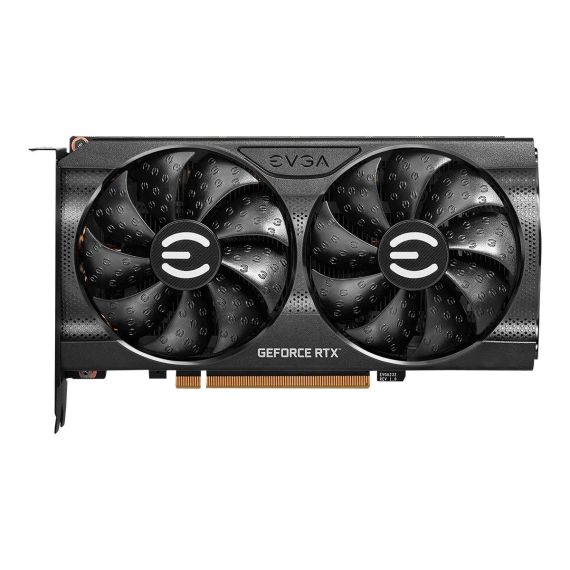

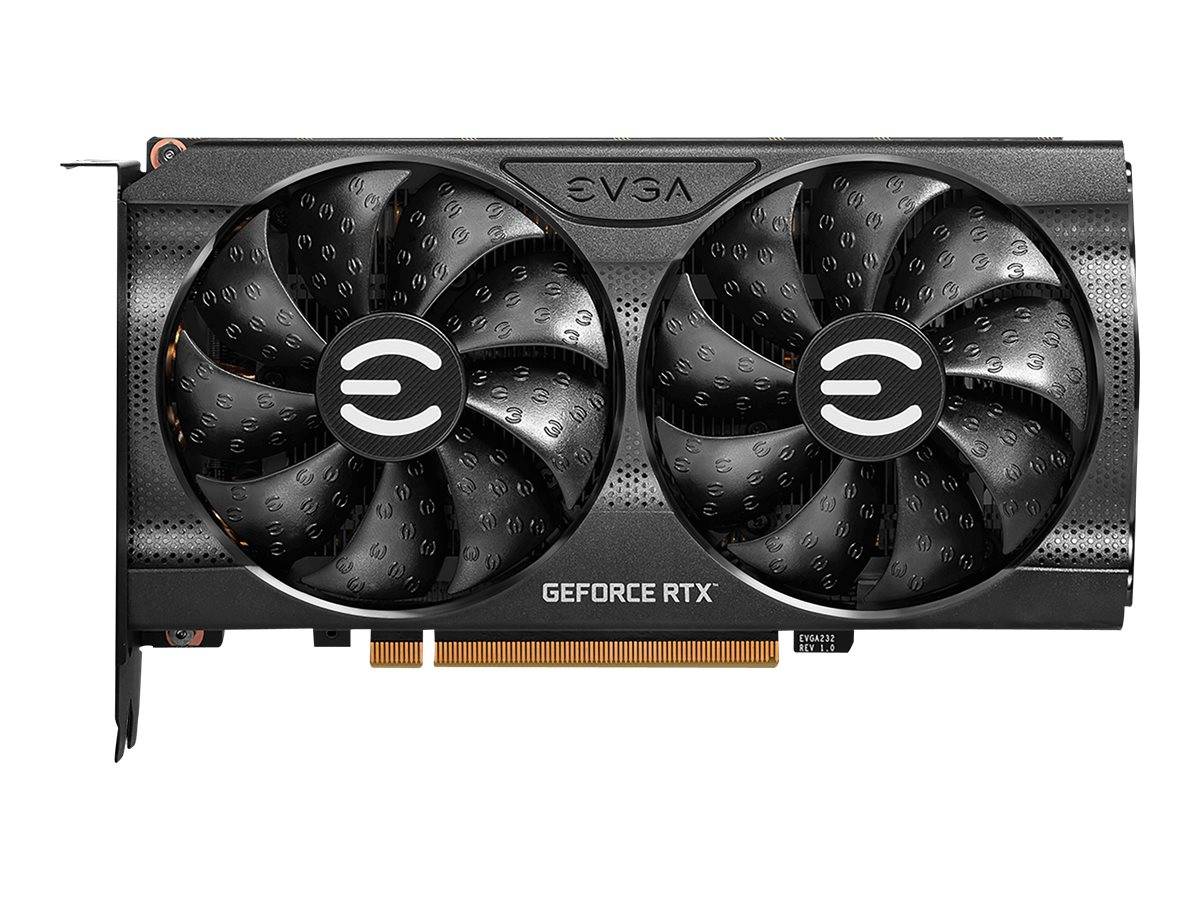

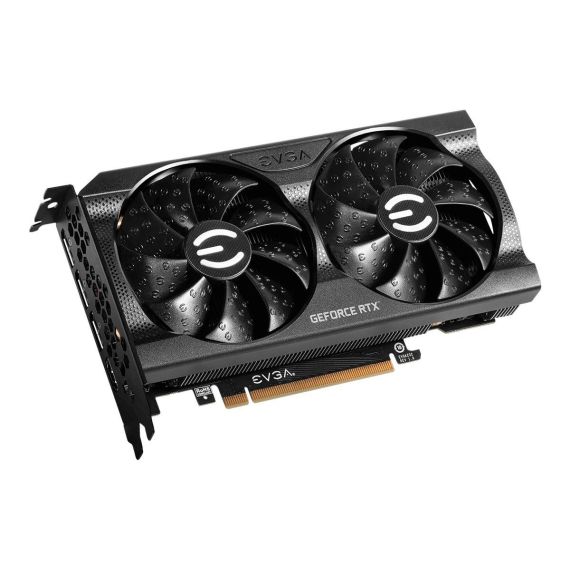

EVGA GeForce RTX 3060 XC BLACK GAMING / Graphics card / GF RTX 3060 / 12 GB GDDR6 / PCIe 4.0 / HDMI, 3 x DisplayPort | 12G-P5-3655-KR
Product Features
- Advanced features
With its efficient, high-performance architecture and the second generation of NVIDIA RTX, the GeForce RTX 3060 brings amazing hardware ray-tracing capabilities and support for NVIDIA DLSS and other technologies. The RTX 3060 supports the trifecta of GeForce gaming innovations: NVIDIA DLSS, NVIDIA Reflex and NVIDIA Broadcast, which accelerate performance and enhance image quality. Together with real-time ray tracing, these technologies are the foundation of the GeForce gaming platform, which brings great performance and features to games and gamers everywhere. - Air-through PCB
Carefully placed cutouts in the PCB and backplate improve airflow and decrease exhaust recovery.
Special Features
- Advanced features
- Air-through PCB
Product Specification
Device Type | Graphics card |
Bus Type | PCI Express 4.0 |
Graphics Engine | NVIDIA GeForce RTX 3060 |
Boost Clock | 1777 MHz |
CUDA Cores | 3584 |
VR Ready | Yes |
Max Resolution | 7680 x 4320 |

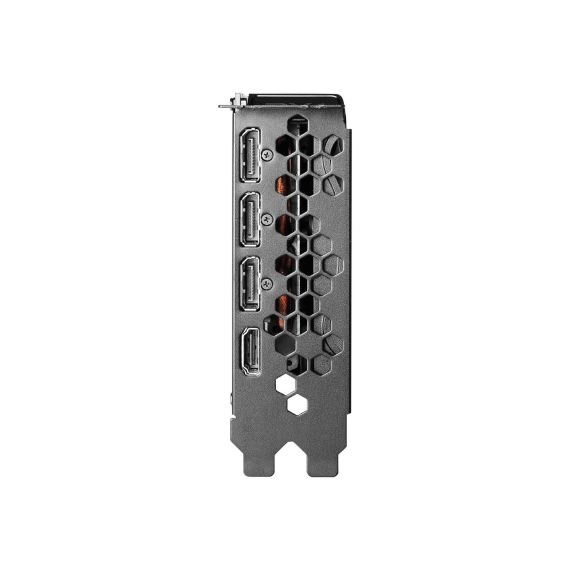

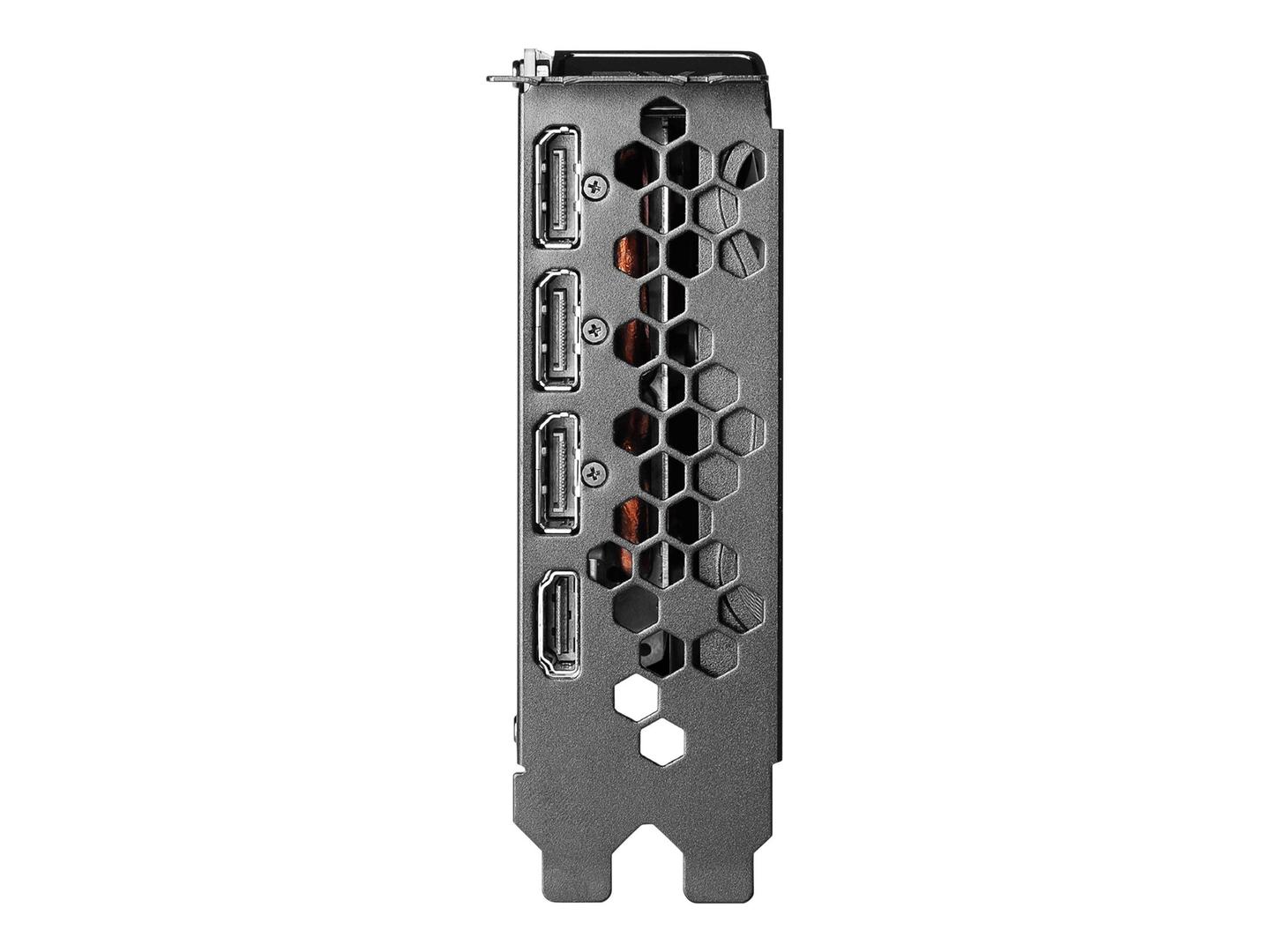

Interfaces | HDMI ¦ 3 x DisplayPort |
API Supported | Vulkan, OpenGL 4.6, DirectX 12 Ultimate |
Features | Dual Fan Design, NVIDIA GPU Boost, NVIDIA G-Sync ready, 2-slot Fan Cooler, NVIDIA Tensor Core, Real-Time Ray Tracing, Nvidia RT Core, Nvidia DLSS, NVIDIA Ampere GPU technology, NVIDIA Reflex, HDCP |
Memory | Memory |
Size | 12 GB |
Technology | GDDR6 SDRAM |
Effective Clock Speed | 15000 MHz |
Bus Width | 192-bit |
Bandwidth | 360 GBps |
System Requirements | System Requirements |
OS Required | Microsoft Windows 7 / 10 (64-bit) |
Required Power Supply | 550 W |
Additional Requirements | 8 pin PCI Express power connector |
Miscellaneous | Miscellaneous |
Power Consumption Operational | 170 Watt |
Software Included | Display drivers, NVIDIA GeForce Experience, EVGA Precision X1 |
Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
Depth | 20.18 cm |
Height | 11 cm |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
