Home/Power supplies for pc/Power Supply from 850W/EVGA SuperNOVA 1000 G3 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 1000 Watt | 220-G3-1000-X2

EVGA SuperNOVA 1000 G3 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 1000 Watt | 220-G3-1000-X2

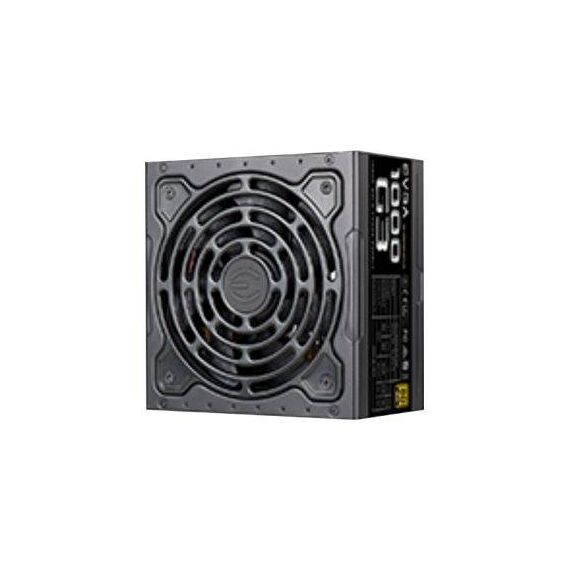

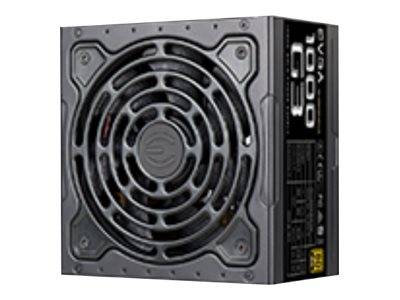

EVGA SuperNOVA 1000 G3 Power supply 220-G3-1000-X2

Description
Features

EVGA SuperNOVA 1000 G3 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 1000 Watt | 220-G3-1000-X2

Description

EVGA SuperNOVA power supplies deliver extreme efficiency, performance and reliability. EVGA's dedication to performance has forged the advanced power supply platform: the EVGA SuperNOVA G3 Series. The SuperNOVA G3's smaller size, improved performance and a Hydraulic Dynamic Bearing fan give you ultra-quiet performance with an increased lifespan.

EVGA SuperNOVA 1000 G3 / Power supply (internal) | 220-G3-1000-X2

Special Features

Small size, big performance
Next-generation performance
Whisper quiet

Product features

Small size, big performance
A reduced size does not mean reduced performance with the EVGA SuperNOVA G3 power supplies. These supplies offer improved performance and features.
Next-generation performance
Next-generation systems deserve next-generation performance. The EVGA SuperNOVA G3 takes the already efficient G2 series and makes it even better with improved efficiency and lower ripple. These power supplies are extremely efficient!
Whisper quiet
EVGA ECO mode means the power supply is completely silent during low to medium loads.

Product Specification

Device Type	Power supply - internal
Specification Compliance	ATX12V / EPS12V
PSU Form Factor	ATX
Input Voltage	AC 100-240 V
Frequency Required	50 - 60 Hz
Power Output Connectors Details	1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector
Output Voltage	+3.3, +5, ±12 V
Power Capacity	1000 Watt
Output Current	+3.3V - 24 A ¦ +5V - 24 A ¦ +12V - 83.3 A ¦ +5VSB - 3 A ¦ -12V - 0.5 A
Efficiency	90% (115VAC) / 92% (220-240VAC)
Modular Cable Management	Yes
80 PLUS Certification	80 PLUS Gold
MTBF	100,000 hour(s)
Cooling System	130 mm fan
Features	Overheat protection, over current protection, over voltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, short-circuit protection, ECO Intelligent Thermal Control System, fluid dynamic bearing cooling fan, fully modular
Compliant Standards	TUV, CB, FCC, RoHS, WEEE, cTUVus, Energy-Related Products (ErP) Lot 6, RCM
Service & Support	Limited warranty - parts and labour - 10 years
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Width	15 cm
Depth	15 cm
Height	8.5 cm
Weight	4.54 kg
