EVGA SuperNOVA 1000 G6 Power supply 1000Watt 80PLUS Gold / ATX12V / EPS12V / AC 100-240 V / 1000Watt / active PFC / Europe | 220-G6-1000-X2
220-G6-1000-X2
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
EVGA SuperNOVA 1000 G6 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 1000 Watt / active PFC / Europe | 220-G6-1000-X2
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |

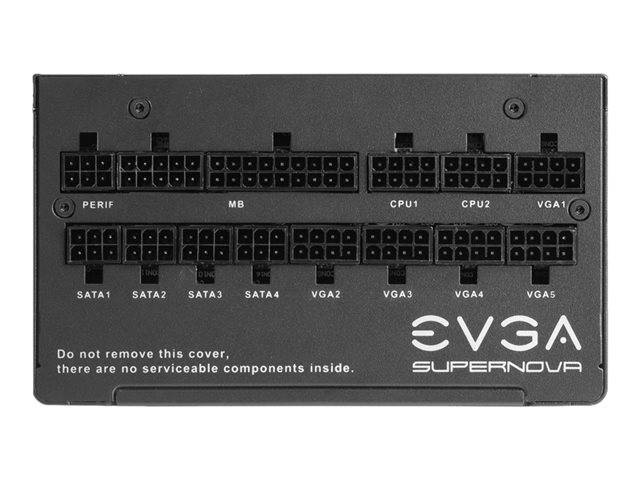

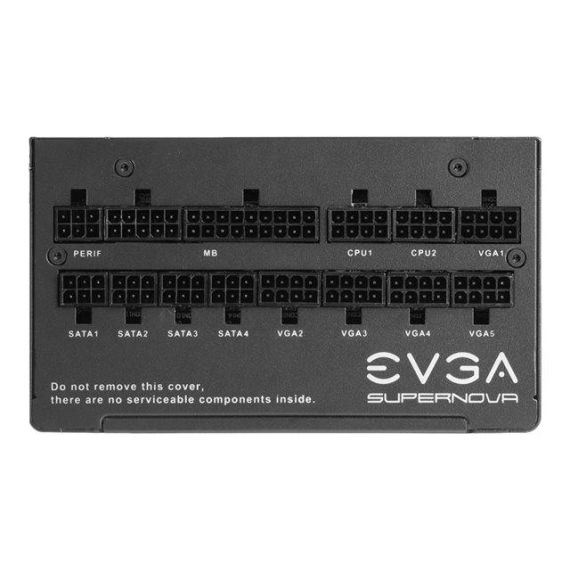

| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |

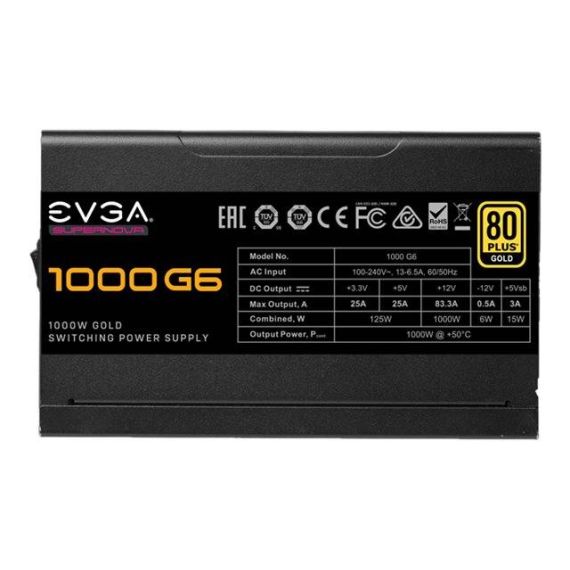

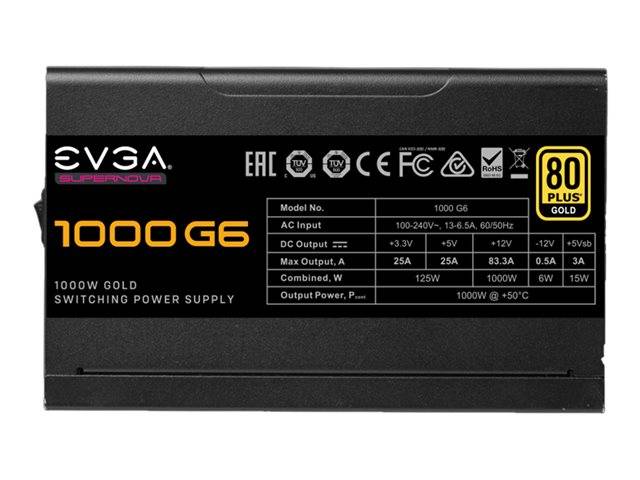

| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ +5VSB - 3 A ¦ -12V - 0.5 A |
| Efficiency | 91% (115VAC) / 92% (220-240VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| MTBF | 100,000 hour(s) |
| Cooling System | 135 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, Eco-Mode, fluid dynamic bearing cooling fan, Power-On Self-Test (POST), fully modular, LLC resonant converter technology |
| Compliant Standards | TUV, CB, FCC, RoHS, WEEE, cTUVus, RCM, ErP Lot 3 2014 Ready |
| Service & Support | Limited warranty - 10 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 3.18 kg |
Features - EVGA - 220-G6-1000-X2
More Details
Product Code
03:162249
EAN Code
4250812439437
Manufacturer
EVGA
