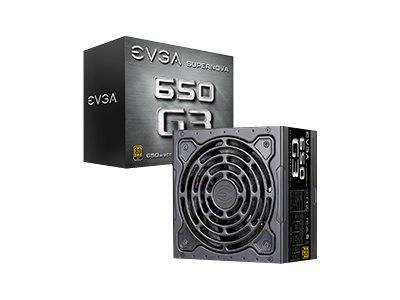

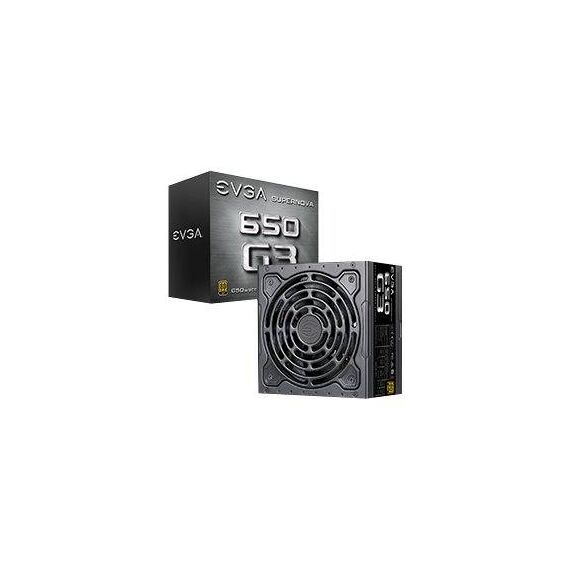

EVGA SuperNOVA 650 G3 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 650 Watt / Europe | 220-G3-0650-Y2
EVGA SuperNOVA 650 G3 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 650 Watt / Europe | 220-G3-0650-Y2
Description EVGA SuperNOVA power supplies are well-known for their extreme efficiency, performance and reliability. In fact, over the last 3 years EVGA SuperNOVA power supplies have won over 70 awards from leading review sites. EVGA's dedication to performance has forged the latest power supply platform: the EVGA SuperNOVA G3 Series. With these power supplies, EVGA took the best features of the award-winning G2 lineup and made them even better. The SuperNOVA G3's smaller size, improved performance and a Hydraulic Dynamic Bearing fan give you ultra-quiet performance with an increased lifespan. Special Features
Product features
|
Product Specification
Device Type | Power supply - internal |
Specification Compliance | ATX12V / EPS12V |
Localisation | Europe |
Input Voltage | AC 100-240 V |
Frequency Required | 50 - 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 650 Watt |
Output Current | +3.3V - 24 A ¦ +5V - 22 A ¦ +12V - 54.1 A ¦ +5VSB - 3 A ¦ -12V - 0.5 A |
Efficiency | 90% (115VAC) / 92% (220-240VAC) |
80 PLUS Certification | 80 PLUS Gold |
Cables Included | Power 24 pin ATX modular cable - 60 cm ¦ Power 8 pin EPS12V modular cable - 70 cm ¦ 2 x PCI Express power cable ¦ 2 x Serial ATA power cable ¦ 4 pin internal power cable ¦ Floppy adapter - 10 cm ¦ Power cable - 1.5 m |
MTBF | 100,000 hour(s) |
Cooling System | 130mm fan |
Features | Overheat protection, over current protection, over voltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, short-circuit protection, automatic self-test, hydrodynamic bearing cooling fan, ECO Intelligent Thermal Control System, Eco-Mode |
Compliant Standards | TUV, CB, FCC, RoHS, WEEE, cTUVus, Energy-Related Products (ErP) Lot 6, RCM |
Service & Support | Limited warranty - 7 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Width | 15 cm |
Depth | 15 cm |
Height | 8.5 cm |
Weight | 1.81 kg |
