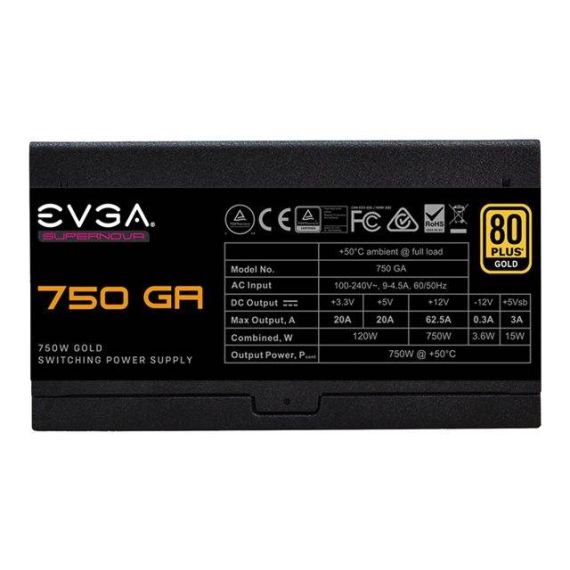

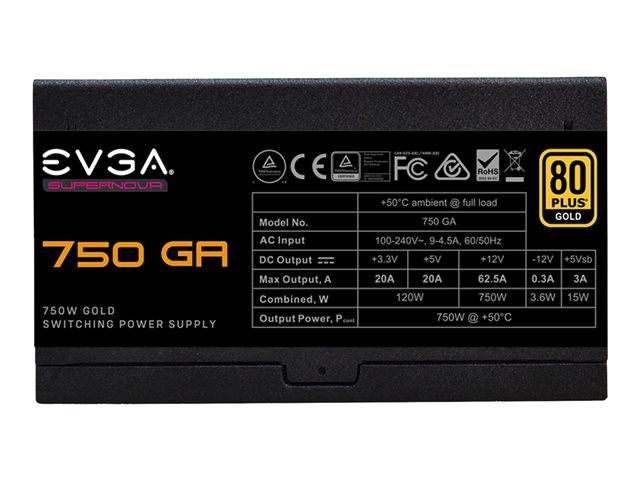

EVGA SuperNOVA 750 GA Power supply 750Watt 80PLUS Gold / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 750 Watt / active PFC | 220-GA-0750-X2

220-GA-0750-X2
141.42
168.29 inc. VAT
Standard DeliveryStandard delivery within 3 to 8 business days.
Availability: 347 item(s)
Find similar
Delivery
Payment options
Product Code03:146475 EAN Code4250812433183 ManufacturerEVGA

Description

EVGA SuperNOVA 750 GA / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 750 Watt / active PFC | 220-GA-0750-X2

Product Specification

Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V / EPS12V
PSU Form Factor ATX
Input Voltage AC 100-240 V
Frequency Required 50/60 Hz
Power Output Connectors Details 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 6 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector
Output Voltage +3.3, +5, ±12 V
Power Capacity 750 Watt
Output Current +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ +5VSB - 3 A ¦ -12V - 0.3 A
Efficiency 90% (115VAC) / 92% (220-240VAC)
Modular Cable Management Yes
80 PLUS Certification 80 PLUS Gold
MTBF 100,000 hour(s)
Cooling System 135 mm fan
Features Overheat protection, over current protection, over voltage protection, overpower protection, SLI ready, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, CrossFireX ready, DC-DC technology, ECO Intelligent Thermal Control System, Eco-Mode, Power-On Self-Test (POST), fully modular
Compliant Standards TUV, CB, CCC, FCC, RoHS, WEEE, cTUVus, RCM, ErP Lot 3 2014 Ready
Service & Support Limited warranty - 10 years
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Width 15 cm
Depth 15 cm
Height 8.6 cm
Weight 2.72 kg

Features - EVGA - 220-GA-0750-X2

More Details
Product Code
03:146475
EAN Code
4250812433183
Manufacturer
EVGA
