EVGA SuperNOVA 850 G5 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 850 Watt / active PFC / Europe | 220-G5-0850-X2
Description
The EVGA SuperNOVA G5 joins the elite ranks of the EVGA 80 PLUS Gold power supplies.
EVGA SuperNOVA 850 G5 / Power supply (internal) | 220-G5-0850-X2
Special Features
- 100% Japanese Capacitors ensure long-term reliability
- Fully modular to reduce clutter and improve airflow
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
- Active Clamp +DC to DC design for efficient operation
- Active Power Factor Correction
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Product features
- Active clamp design
The G5 power supplies also feature an active clamp circuit design, DC-to-DC converter, and active PFC to provide tight voltage regulation and low ripple and noise. - Fully modular design

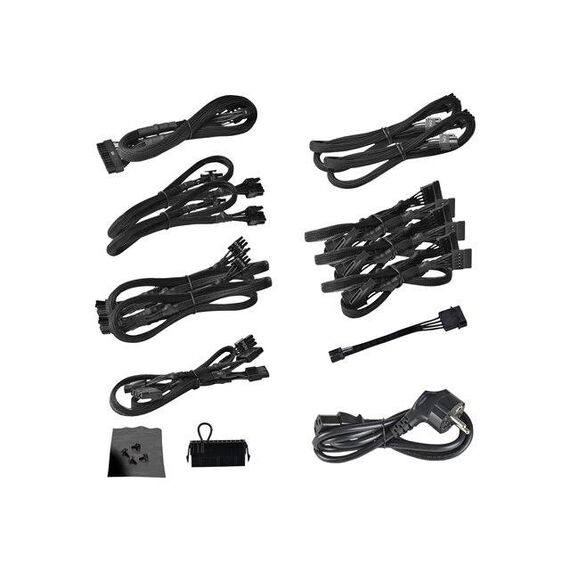

Use only the cables you need, reducing cable clutter and improving case airflow. - Aluminum solid state capacitors on the modular board
Solid State Capacitors improve efficiency and reduce the impact of environmental factors after power is converted to DC, but before it leaves the power supply. - Ultra quiet 135 mm fluid dynamic bearing fan
The G5 features a larger fan than the G3 to reduce noise without increasing the size of the power supply.
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Localisation | Europe |

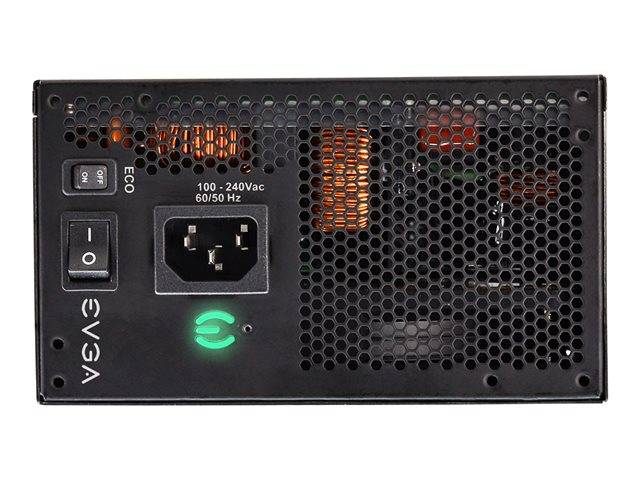

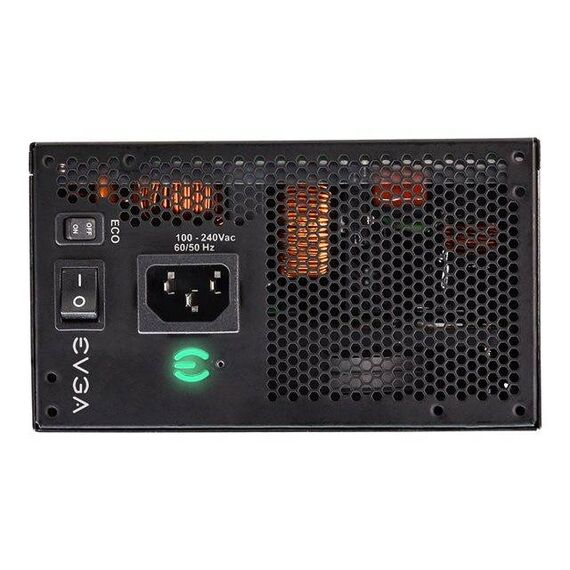

| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |

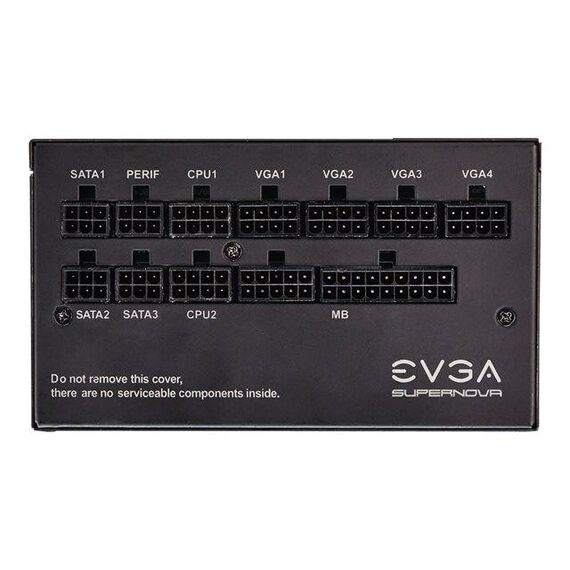

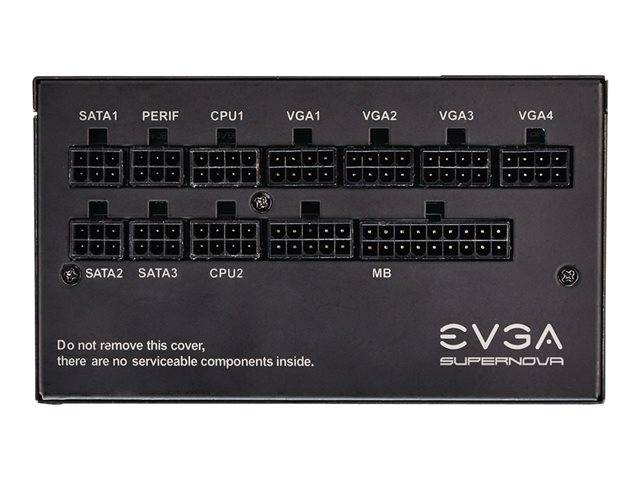

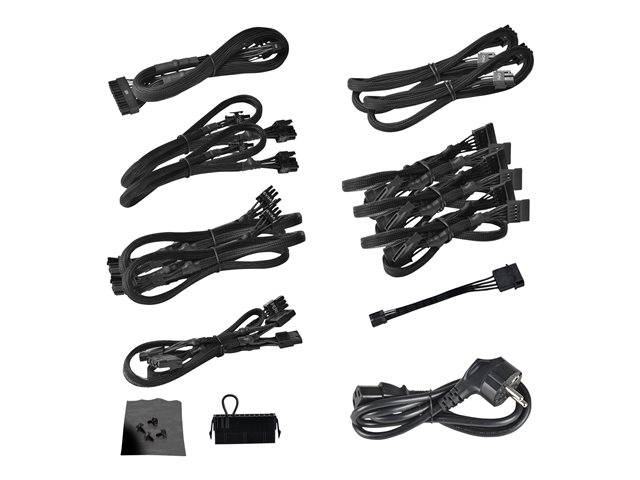

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |

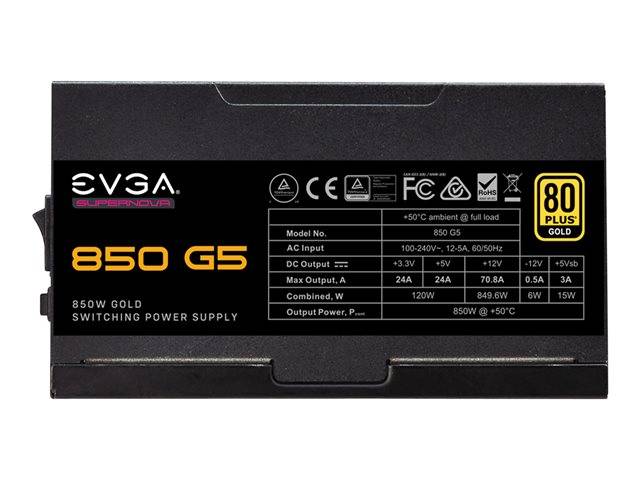

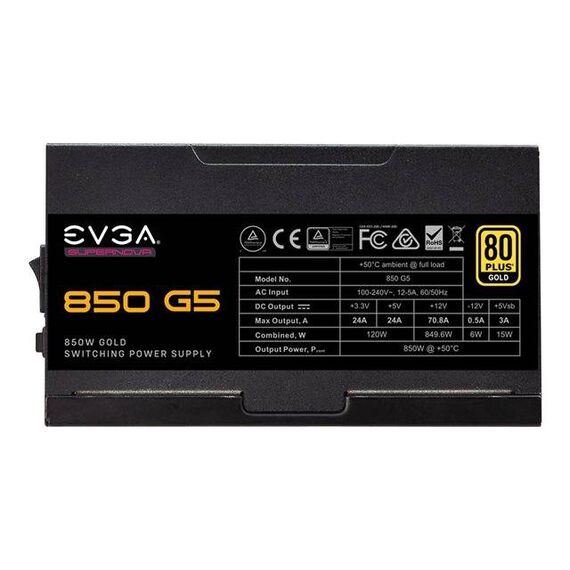

| Output Current | +3.3V - 24 A ¦ +5V - 24 A ¦ +12V - 70.8 A ¦ +5VSB - 3 A ¦ -12V - 0.5 A |
| Efficiency | 91% (115VAC) / 92% (220-240VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| MTBF | 100,000 hour(s) |
| Cooling System | 135 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, short-circuit protection, active CLAMP circuitry, DC-DC technology, ECO Intelligent Thermal Control System, Eco-Mode, fluid dynamic bearing cooling fan, Power-On Self-Test (POST), fully modular |
| Compliant Standards | TUV, CB, FCC, RoHS, WEEE, cTUVus, RCM, ErP Lot 3 2014 Ready |
| Service & Support | Limited warranty - parts and labour - 10 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
| Weight | 3.18 kg |
