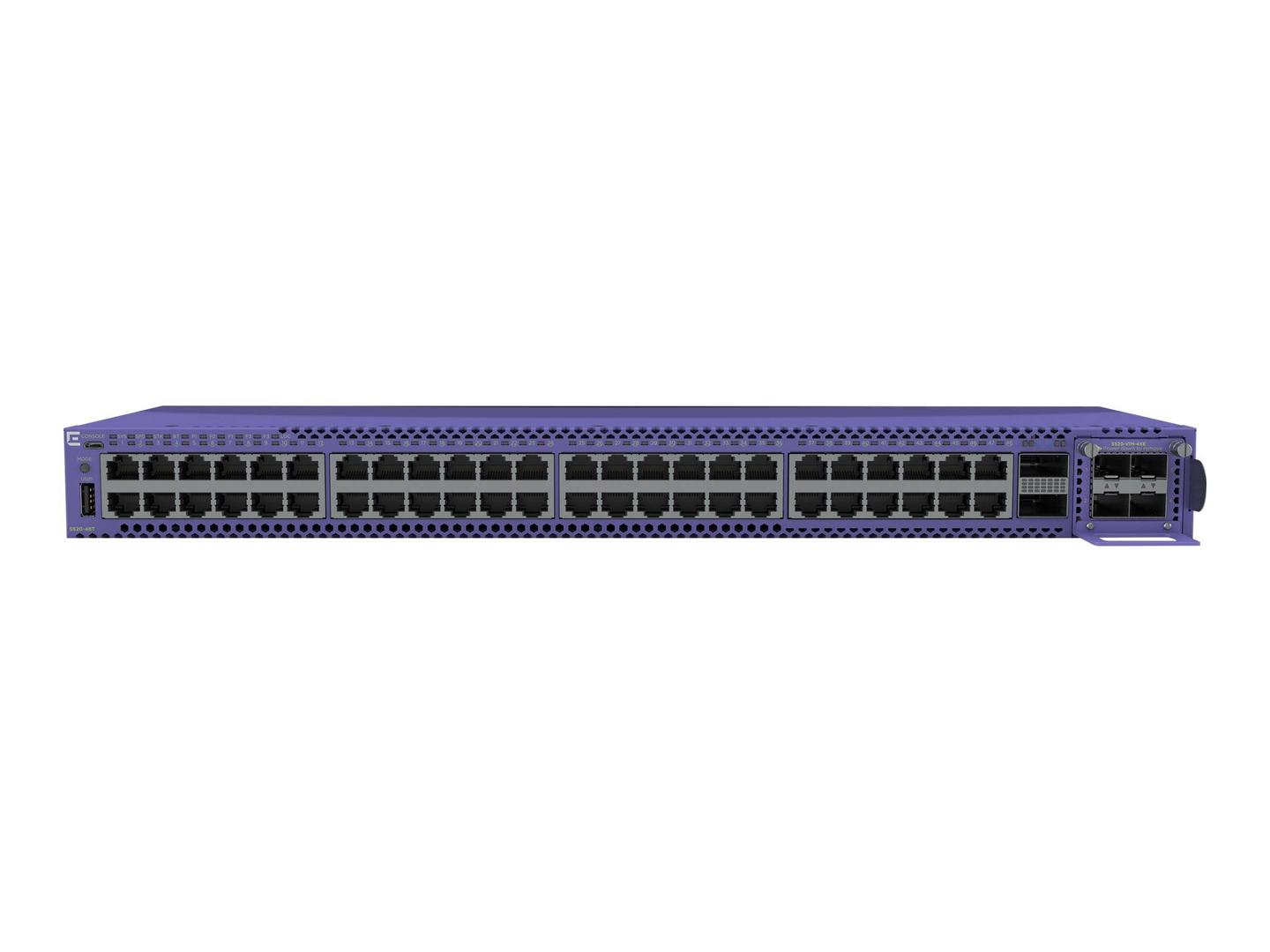

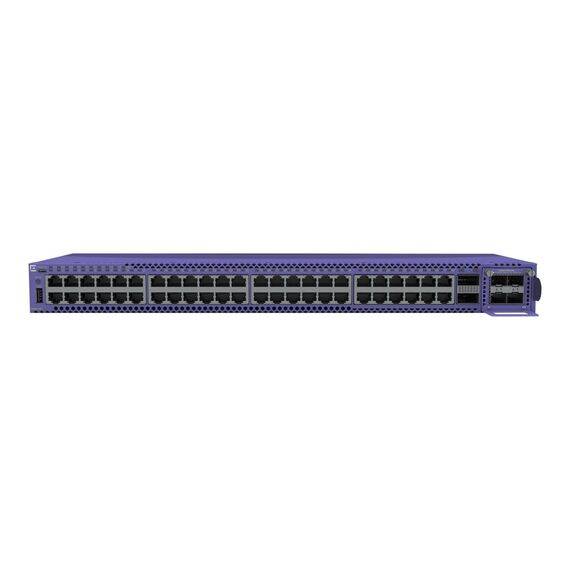

Extreme Networks ExtremeSwitching 5520 series 5520-48T / Switch / L3 / Managed / 48 x 10/100/1000 / rack-mountable | 5520-48T
5520-48T
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Universal hardware platform
The 5520 series as a universal hardware platform comes with a dual-persona capability allowing user choice of the switch operating system (OS). - Ethernet Fabric services
The 5520 supports a variety of Ethernet Fabric services, including Extreme's Fabric Connect when running VOSS and Extreme's IP Fabric when running ExtremeXOS. - Extended edge switching
The 5520 supports Extended Edge Switching, an innovative solution that simplifies the deployment and operation of edge switches.
Special Features
- High-performance feature-rich fixed-form switch for enterprise edge and aggregation deployments
- Universal hardware platform providing end-to-end network segmentation
- Hot-swappable, redundant power supplies and fans
- MACsec on access and modular uplink ports for secure link encryption
- Non-blocking, wire-speed design
Product Specification
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 |
| Performance | Aggregate switching bandwidth: 696 Gbps ¦ Forwarding performance: 517.8 Mpps |
| Capacity | Policy profiles: 63 ¦ Unique permit/deny rules per switch: 8120 ¦ Authenticated policy users/switch: 9216 ¦ Fabric adjacencies per switch: 128 ¦ Fabric nodes per area (BEB + BCB): 800 ¦ BEB nodes per VSN: 500 ¦ L2 VSN: 3500 ¦ L3 VSN: 256 |
| Max Units In A Stack | 8 |
| Features | Auto-sensing per device, half duplex mode, full duplex mode, Energy Efficient Ethernet, MACsec support, 3 fan trays |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3az |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 ¦ 2 x network stack device QSFP28 ¦ 1 x serial (console) RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x USB Type A ¦ 1 x console (micro-USB) Type B |
| Expansion Slots | 1 (total) / 1 (free) x Versatile Interface Module (VIM) |
| Power | Power |
| Power Device | Internal power supply (not installed) |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 171 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, IEC 61000-4-2, IEC 61000-4-6, NOM, EN55024, CB, AS/NZS 60950-1, EN 61000-4-2, CCC, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, EN 55011, ANATEL, REACH, CDRH, Directive 2011/65/EU, VCCI Class A, EAC, China RoHS, RoHS 2011/65/EU, EN 61000-3-3:2013, WEEE 2012/19/EU, EMC 2014/30/EU, EN 61000-3-2:2014, FCC CFR47 Part 15 A, EN 300 386, Directive 2014/35/EU, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, EN 55032 Class A, ETSI EN 300 019-2-3 V2.1.2, ETSI EN 300 019-2-2 V2.1.2, NRCS, EN/ETSI 300 019-2-1 v2.1.2, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, SJ/T 11363-2006, AS/NZS CISPR32:2013, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 60950-1, FCC CFR21 Part 1040.10, Taiwan BSMI RoHS, CNS 15663, EN/ETSI 300 753 (1997-10), UL/CUL 62368-1 |
| Software / System Requirements | Software / System Requirements |
| Software Included | ExtremeCloud IQ Pilot (1 year) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.1 cm |
| Depth | 44.2 cm |
| Height | 4.4 cm |
| Weight | 5.76 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
Features - extreme networks - 5520-48T
More Details
Product Code
CA83439
EAN Code
0644728046980
Manufacturer
extreme networks
