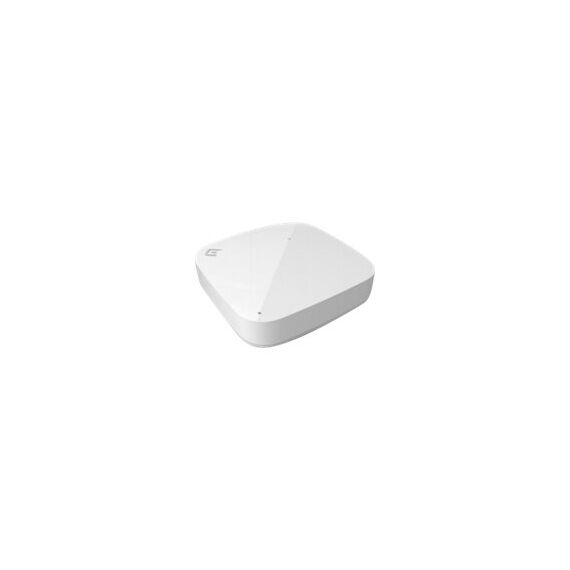

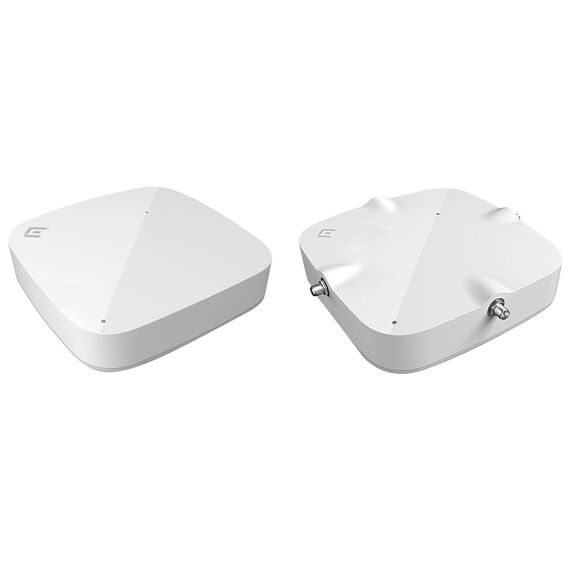

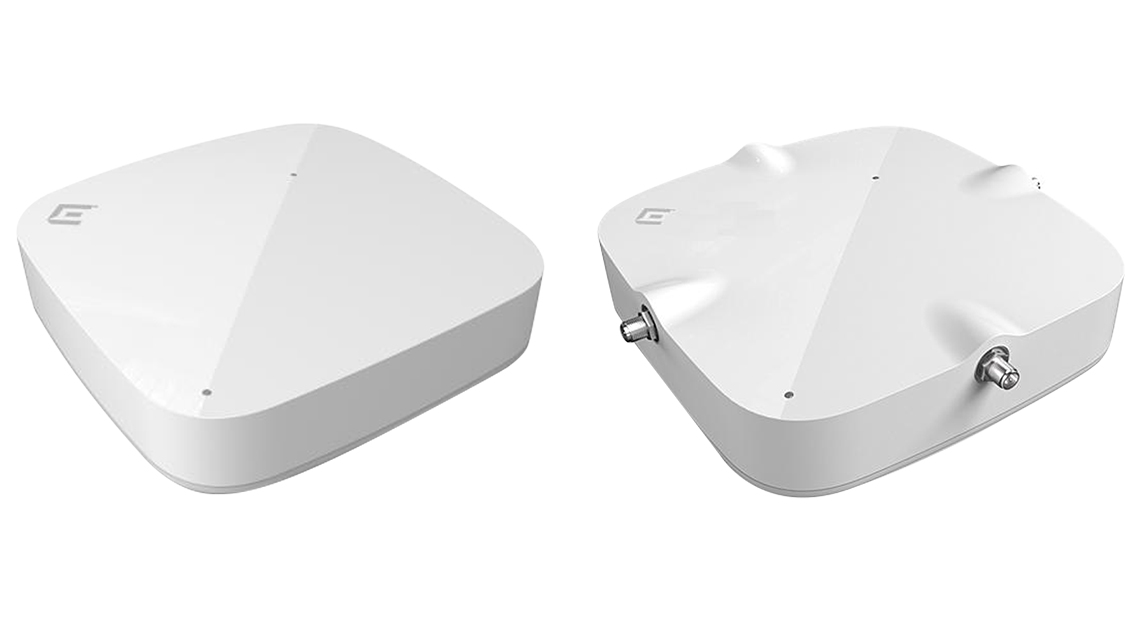

Extreme Networks ExtremeWireless AP305C - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz | AP305C-1-WR
Extreme Networks ExtremeWireless AP305C - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz | AP305C-1-WR
€625.92 inc. VAT
AP305C-1-WR
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Software Selectable Radios (SSR)
Support for 5 GHz and 2.4 GHz concurrent, or dual 5 GHz operation delivers optimal radio management to provide the highest level of client performance. - Optimal RF management user experience
Adaptive RF management with AI/ML functionality provide intelligent selection of the best channels and transmit power for an optimal user experience. - Contextualized security and performance optimization
User, device, and application profiling at the edge of the network identifies and fine-tunes network access and performance based on role and privileges, ensuring secure, compliant, and high-performance wireless connectivity.
Special Fetures
- Software Selectable Radios (SSR)
- Optimal RF management user experience
- Contextualized security and performance optimization
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 13.3 cm |
| Depth | 13.3 cm |
| Height | 3.7 cm |
| Weight | 400 g |
| Localisation | EMEA, Rest of World |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | 256 QAM, OFDM, 1024 QAM, DSSS |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1200 Mbps ¦ Maximum data rate (5 GHz): 574 Mbps |
| Capacity | SSIDs per radio: 8 ¦ SSIDs total: 16 ¦ Users per radio: 512 ¦ Total users: 1024 |
| Features | Auto-sensing per device, Wi-Fi Multimedia (WMM) support, Direct Sequence Spread Spectrum (DSSS), packet aggregation A-MPDU, packet aggregation A-MSDU, dual band, 2x2:2 MU-MIMO technology, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), security slot (Kensington security lock compatible), Cellular Coexistence Filter (CCF), Transmit Beamforming, Private Pre-Shared Key (PPSK) |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 4 |
| Directivity | Omni-directional |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class B, AS/NZS 60950-1, UL 2043, RoHS, IEC 60950-1, EN 60950-1, AS/NZS 4268, EN 60601-1-2, FCC CFR47 Part 15 B, EN 62311, Directive 2011/65/EU, EN 50581, EN 300.440, EN 300 328, EN 50385, EN 301 489-1, RSS-247, EN 55032 Class B, EN 301 893, CISPR 32, FCC Subpart C 15.247, FCC Subpart E 15.407, EN 301 489-17, IEC 62368, EN 62368, AS/NZS 62368, IEC/EN 60601-1-2, EN 55011 Group 1 Class B |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 9.98 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
Features - extreme networks - AP305C-1-WR
More Details
Product Code
CE79834
EAN Code
0644728058280
Manufacturer
extreme networks
