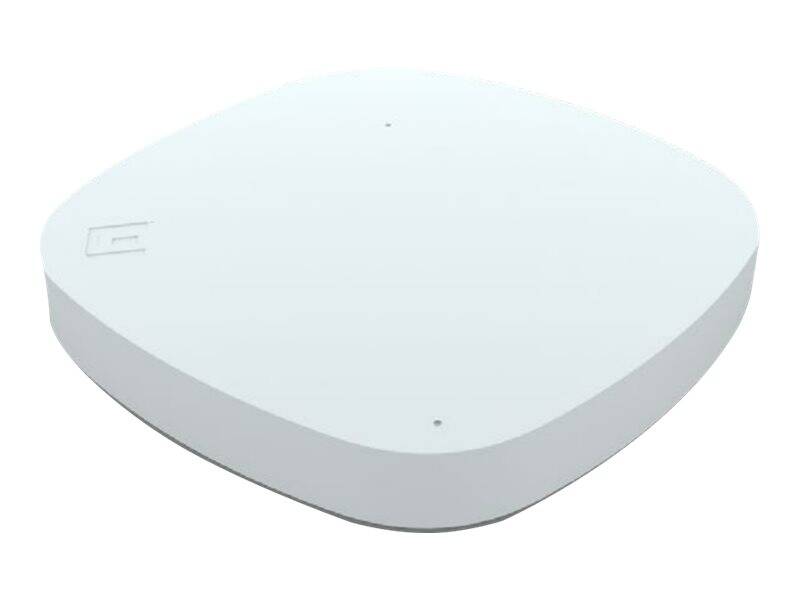

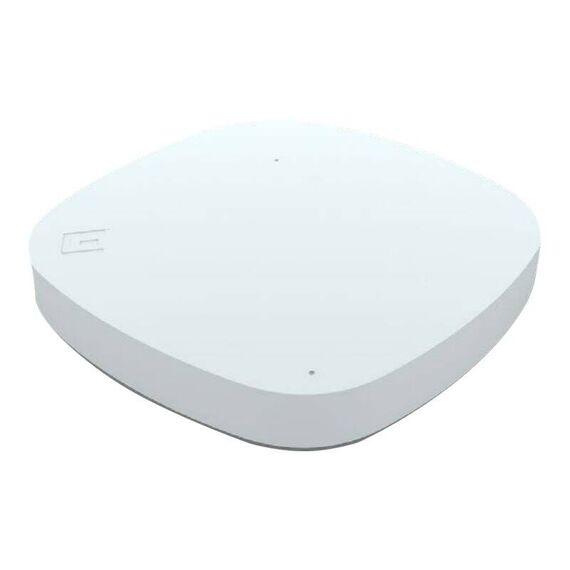

Extreme Networks Universal Wireless AP4000 - Radio access point - Wi-Fi 6E - Bluetooth - 2.4 GHz, 5 GHz, 6 GHz | AP4000-WW
Please sign in so that we can notify you about a reply
Product Features
- Wi-Fi 6E technology
Wi-Fi 6E leverages 802.11ax/Wi-Fi 6 capabilities such as high-density, high-capacity, and high-efficiency performance, and extends these capabilities to the 6 GHz band. The vast expansion of frequency enables new use cases and offers improved user experiences, particularly in mission-critical and dense environments. - Universal hardware
AP4000 is a universal hardware platform, which simplifies your deployment experience through powerful cloud management and simplified licensing. The AP4000 can run multiple Extreme operating systems, providing flexibility and choice while minimizing total cost of ownership. - Superior tri-frequency radio performance
The industry's first Wi-Fi 6E tri-radio AP is capable of multiple operating modes, optimizing for maximum performance without trading off security. The AP4000 can transmit with three data radios or with two data radios and dedicated tri-frequency sensor.
Special Fetures
- Multi-band filter enables superior radio performance across 5 GHz and 6 GHz spectrum
- Optimal user experiences powered by AI/ML with SmartRF and ExtremeCloudIQ CoPilot
- Secure Wi-Fi with Extreme AirDefense and support for WPA3 and Wi-Fi Enhanced Open
- Integrated multi-purpose IoT radio for a variety of IoT applications
- Gateway designed to protect high risk, wired IoT devices using ExtremeIoT Essentials
- Fully functional over 802.3at
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Built-in Devices | Light sensor, power sensor |
| Width | 20.5 cm |
| Depth | 20.5 cm |
| Height | 3.7 cm |
| Weight | 850 g |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.9 Gbps |
| Line Coding Format | 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2 LE |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Capacity | SSIDs per radio: 8 ¦ SSIDs total: 24 ¦ Users per radio: 512 ¦ Total users: 1536 |
| Features | Trusted Platform Module (TPM), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), MU-MIMO technology, SU-MIMO technology, High-Throughput (HT) support, Orthogonal Frequency Division Multiplexing (OFDM), 2x2:2 streams, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), High Efficiency (HE) support, Cellular Coexistence Filter (CCF) |
| Encryption Algorithm | WPA3 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.15.4, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 7 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Thread, Zigbee |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5GBase-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Miscellaneous | |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 60601-1-2, AS/NZS 60950-1, ICES-003 Class A, UL 2043, UL 60950-1 Second Edition, EN 55011, EN 6100-3-2, CSA C22.2 No. 60950-1 Second Edition, EN 62311, EN 300.440, EN 300 328, RoHS 2011/65/EU, EN 50385, WEEE 2012/19/EU, EMC 2014/30/EU, EN 301 489-1, FCC CFR47 Part 15 A, RSS-247, EN 300 386, EN 6100-3-3, EN 62479, RSS-102 Issue 5, EN 62368-1, IEC/EN 61000-4-11, EN 55032 Class A, EN 301 893, FCC Subpart C 15.247, FCC Subpart E 15.407, CISPR 32 Class A, REACH 2006/1907, EN 55035, EN 301 489-17, China RoHS SJ/T 11363-2006, RoHS CNS 15663, RED 2014/53/EU, AS/NZS CISPR 32, CB 62368-1, FCC CFR47 Part 1 1.1310, EN 302 502, UL/CUL 62368-1, IEC 60950-1 (CB Certificate), FCC Part 15 Subpart B Class B, CISPR 24 Class A, SCIP, LVD 2014/35/UE |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - extreme networks - AP4000-WW
More Details
Product Code
CC32358
EAN Code
0644728053599
Manufacturer
extreme networks
