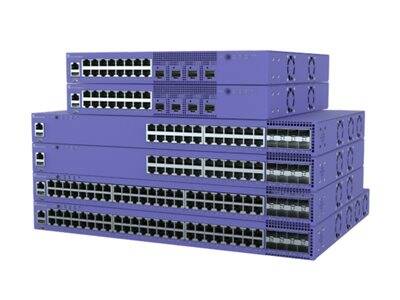

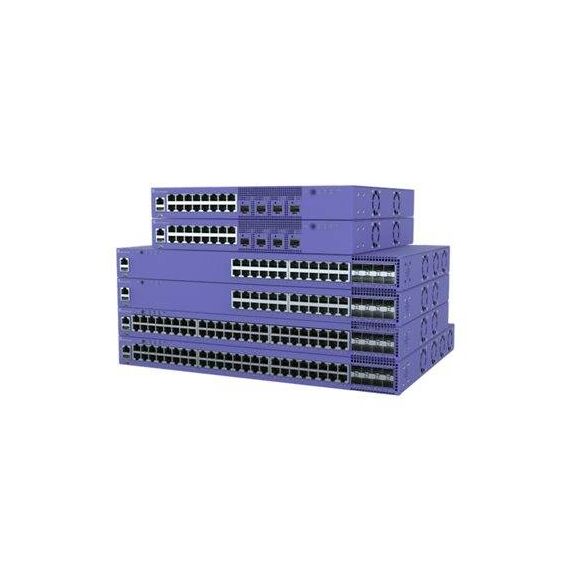

Extreme Networks ExtremeSwitching 5320 - Switch - L3 - Managed - 16 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ + 2 x SFP-DD (stackable) - rack-mountable - PoE (185 W) - AC | 5320-16P-4XE
5320-16P-4XE
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 16 ports - L3 - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ + 2 x SFP-DD (stackable) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 185 W |
| Performance | Aggregate bandwidth: 112 Gbps ¦ Frame rate: 83.3 Mpps |
| MAC Address Table Size | 32000 entries |
| Max Units In A Stack | 4 |
| Remote Management Protocol | CLI |
| Features | Auto-sensing per device, half duplex mode, full duplex mode, MACsec support |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az |
| Expansion / Connectivity | |
| Interfaces | 16 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10GBase-X SFP+ ¦ 1 x serial (console) RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB ¦ 1 x console (micro-USB) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | BSMI, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, UL 60950-1, KCC, ANATEL, CDRH, CSA C22.2 No. 60950-1 Second Edition, VCCI Class A, EAC, EN 61000-3-3:2013, EMC 2014/30/EU, EN 61000-3-2:2014, FCC CFR47 Part 15 A, LVD 2014/35/EU, EN 300 386, EN 62368-1, EN 55032 Class A, CISPR 32, NRCS, ACMA RCM, IEEE 802.3at, EN 60825-1 Class 1, EN60950-1 (2nd Edition), IEEE 802.3ae, IEEE 802.3az, FCC CFR21 Part 1040.10, AS/NZS CISPR 32, IEC 62368-1 CB Scheme, Mexico NOM, UL/CUL 62368-1, IEC 60950-1 (CB Certificate), IEEE 802.3ab, CISPR 24 Class A |
| Software / System Requirements | |
| Software Included | Base Software License, ExtremeCloud IQ Pilot (1 year) |
| Dimensions & Weight | |
| Width | 31 cm |
| Depth | 30 cm |
| Height | 4.36 cm |
| Weight | 3 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% RH (non-condensing) |
Features - extreme networks - 5320-16P-4XE
General
16-Port
More Details
Product Code
CD09799
EAN Code
0644728053261
Manufacturer
extreme networks
