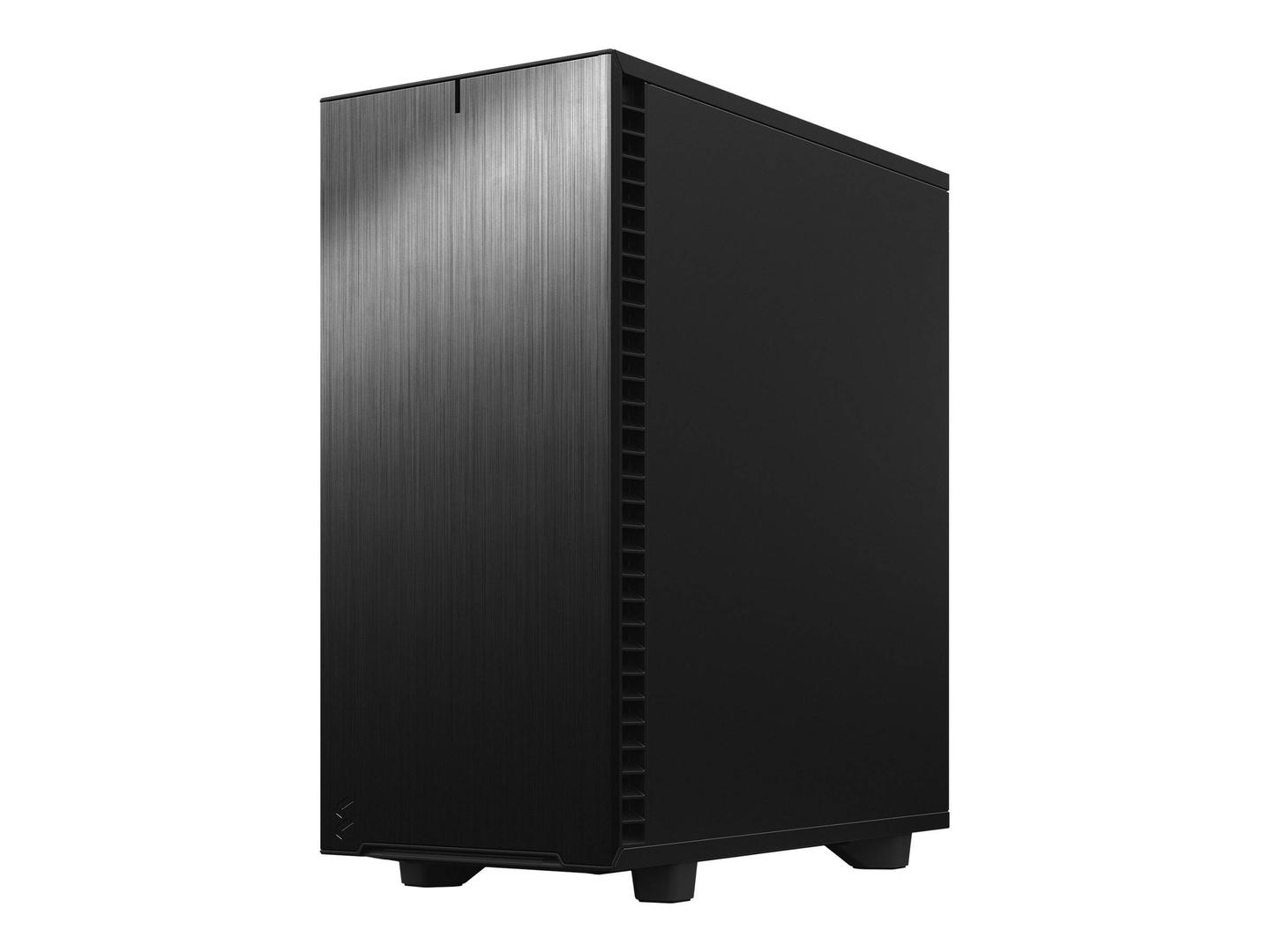

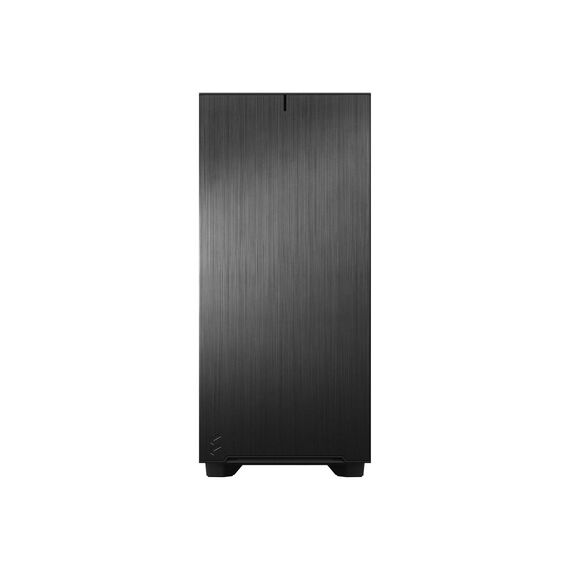

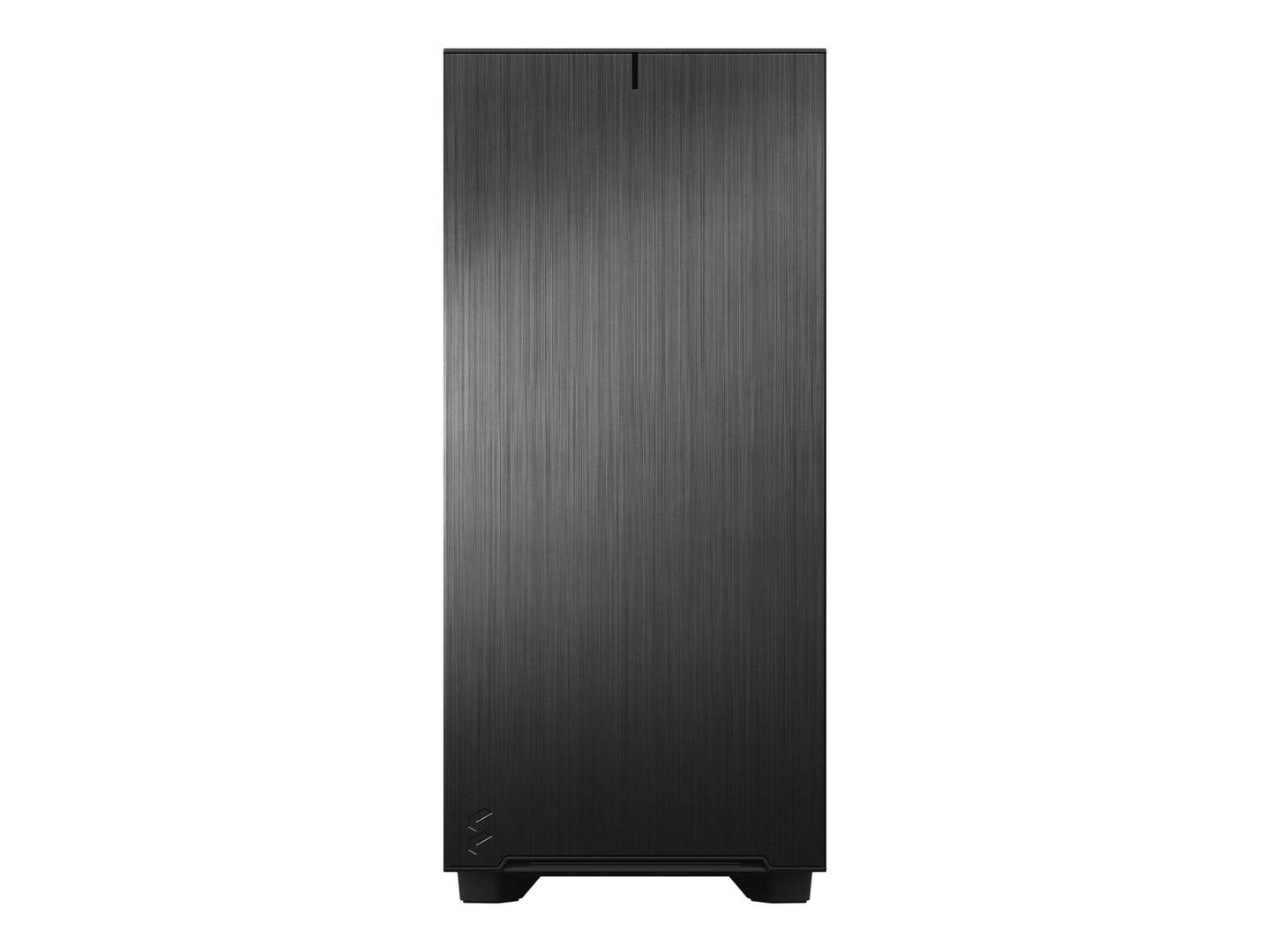

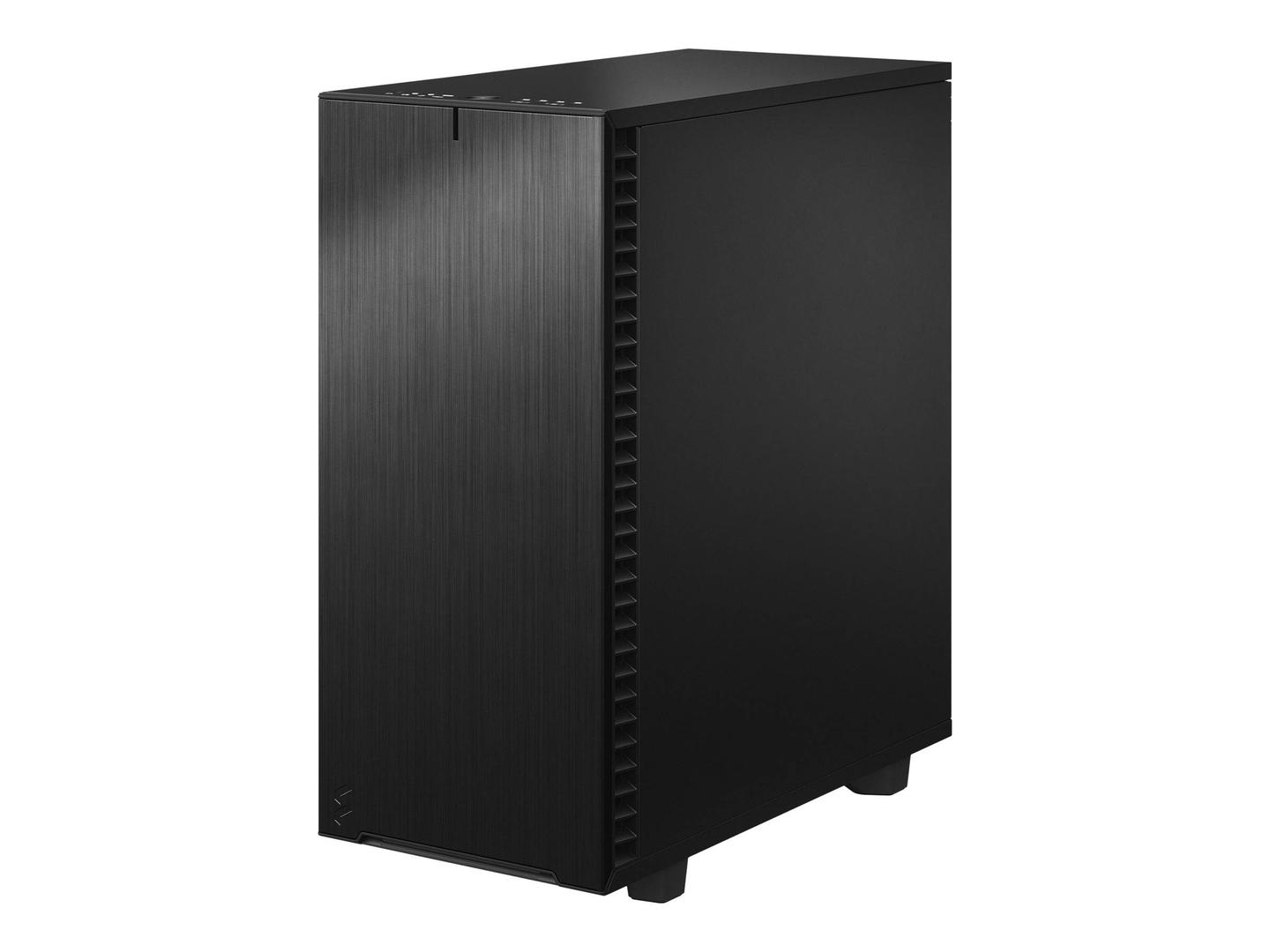

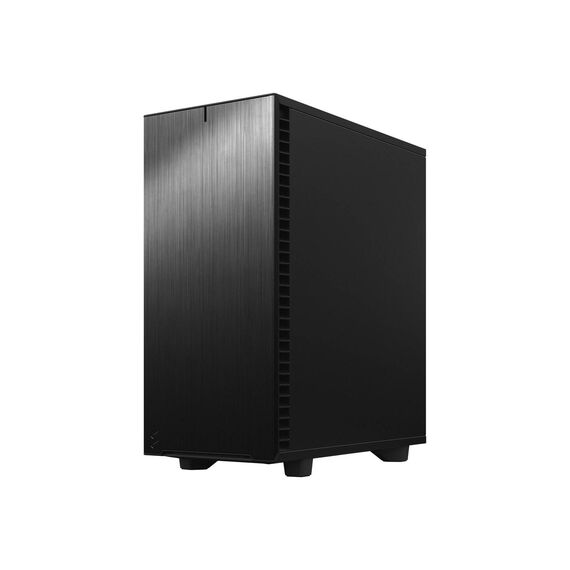

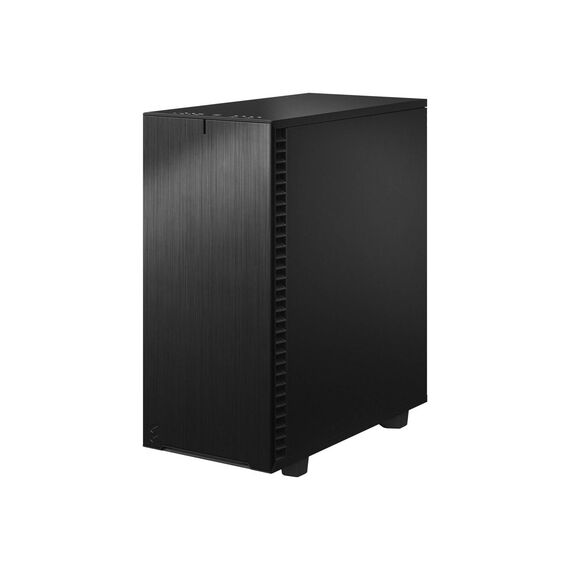

Fractal Design Define 7 Compact / Tower / ATX / no power supply (ATX) / black solid / USB/Audio | FD-C-DEF7C-01
Please sign in so that we can notify you about a reply
Special Features
- Compact yet spacious interior
- Top panel effortlessly swaps from solid steel to filtered ventilation
- Easy-to-clean nylon filters

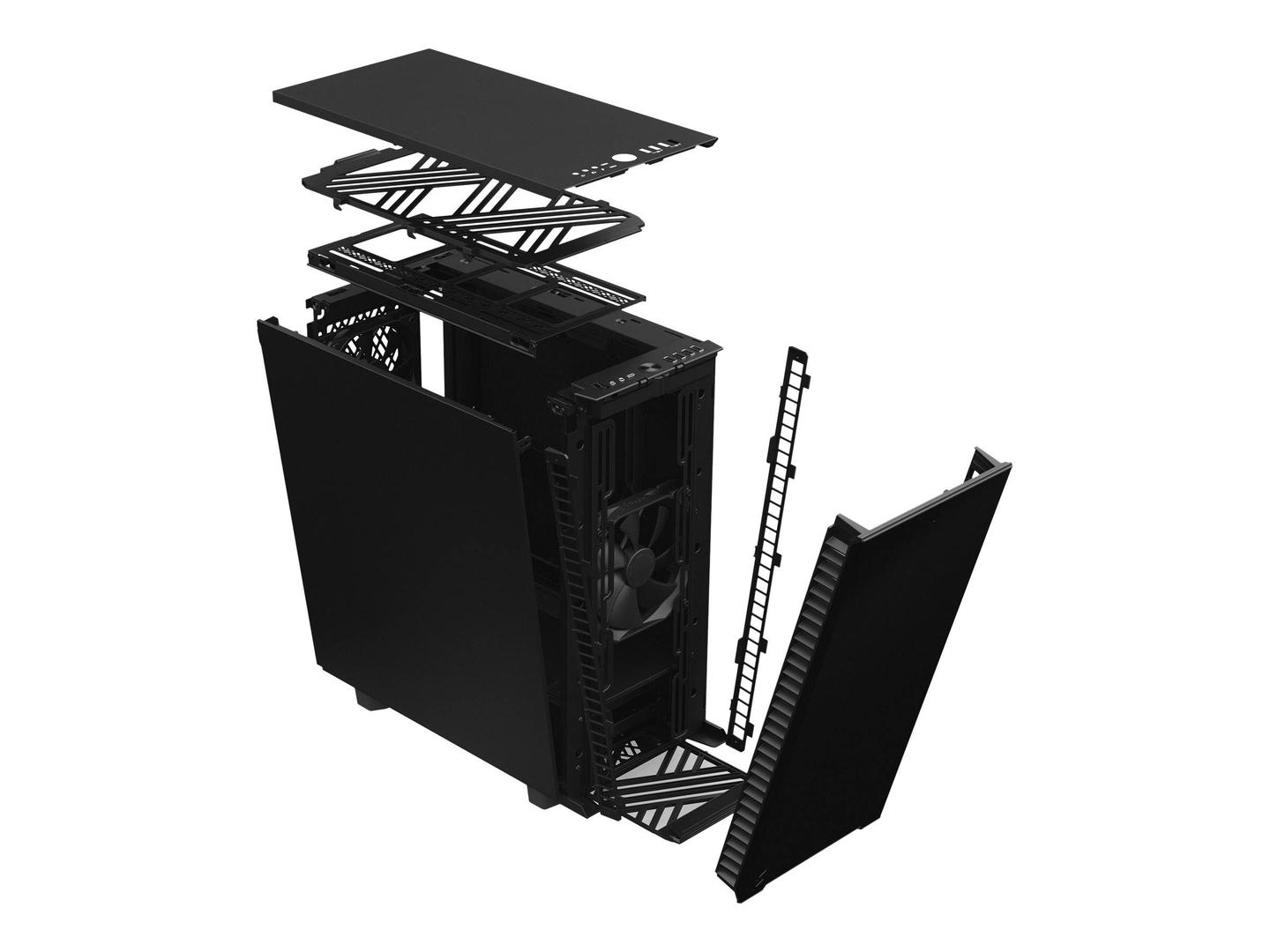

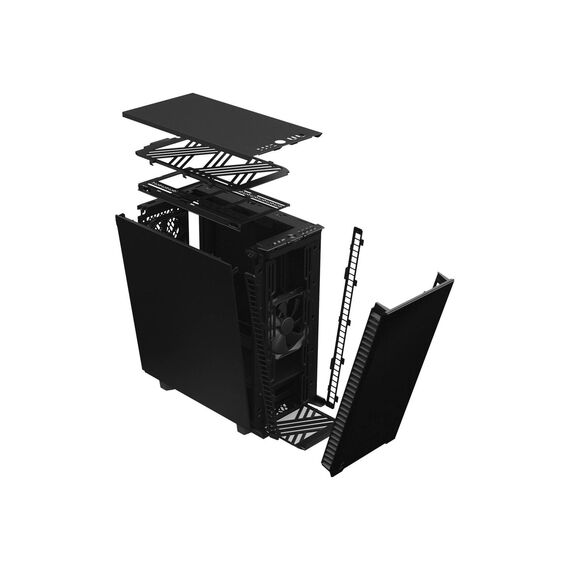

- Remove the entire top to build and route with zero hindrance
Product Specification
| Form Factor | Tower |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| Internal Bays Qty | 8 |
| Colour | Black solid |
| Cooling System | Front: 140 mm fan x 1 ¦ Top: 120/140 mm fan mount x 2 ¦ Rear: 120 mm fan x 1 ¦ Bottom: 120 mm fan mount x 1 ¦ Front: 140 mm fan mount x 2 / 2 x 140 mm fan or 3 x 120 mm fan supported |
| Video Card Max Length | 341 mm |
| Power Supply Max Length | 200 mm |
| System Cabinet Features | Top panel dust filter, front dust filter, cable management system, supports 240 mm radiator in top, supports 120 mm radiator in rear, supports 120 mm radiator in bottom, bottom dust filter, supports 280/360 mm radiator in front panel |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x internal - 2.5" |
| Expansion Slots | 7 |
| Interfaces | 2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x headphones - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB 3.1 Gen 2 - USB-C |
| Power | Power |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | Dimensions & Weight |
| Width | 21 cm |
| Depth | 42.7 cm |
| Height | 47.4 cm |
| Weight | 8.61 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 31 cm |
| Shipping Depth | 53.6 cm |
| Shipping Height | 52.1 cm |
| Shipping Weight | 10.87 kg |
Features - Fractal Design - FD-C-DEF7C-01
More Details
Product Code
07:120695
EAN Code
7340172702160
Manufacturer
Fractal Design
