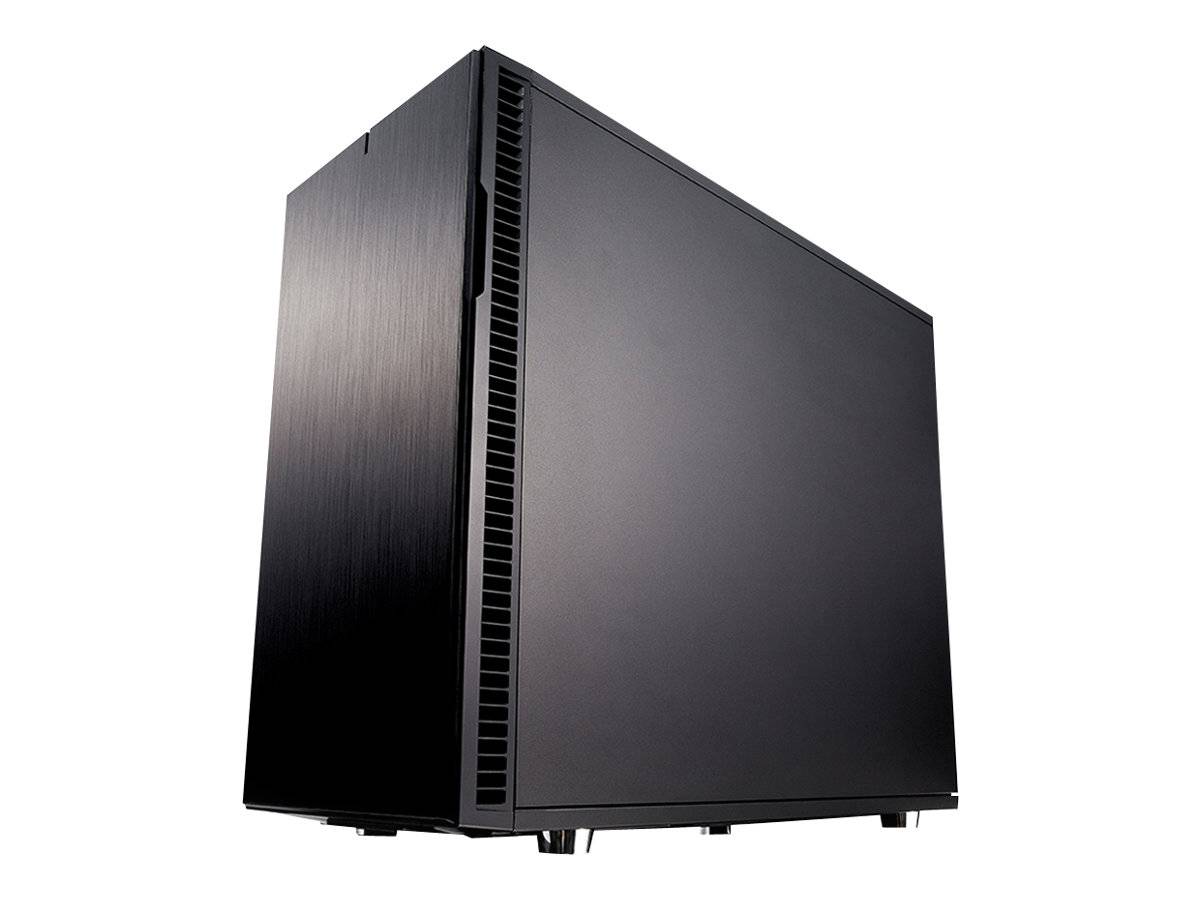

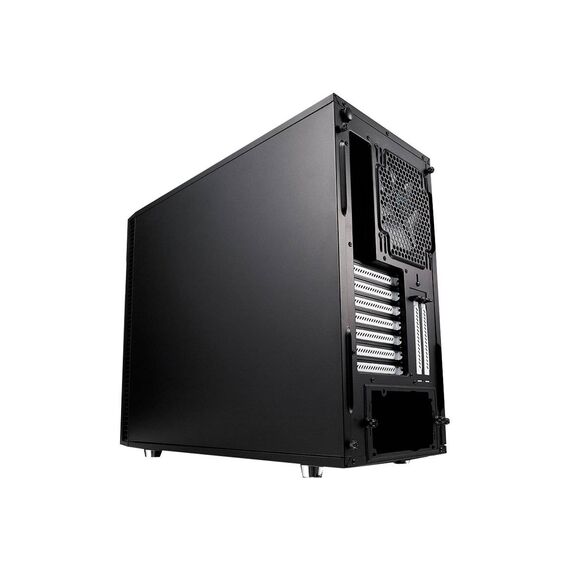

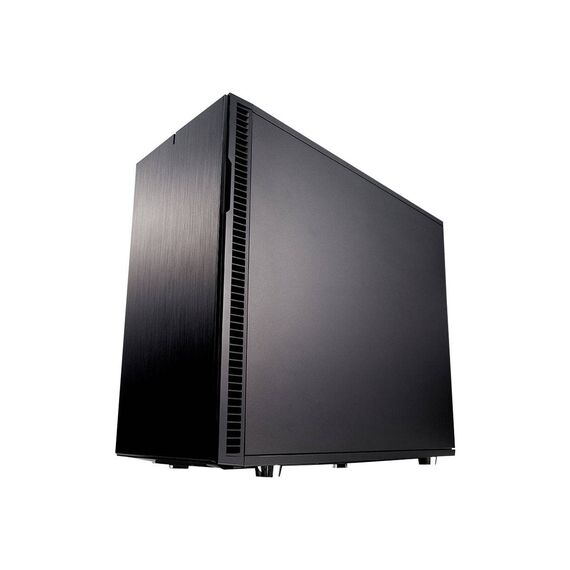

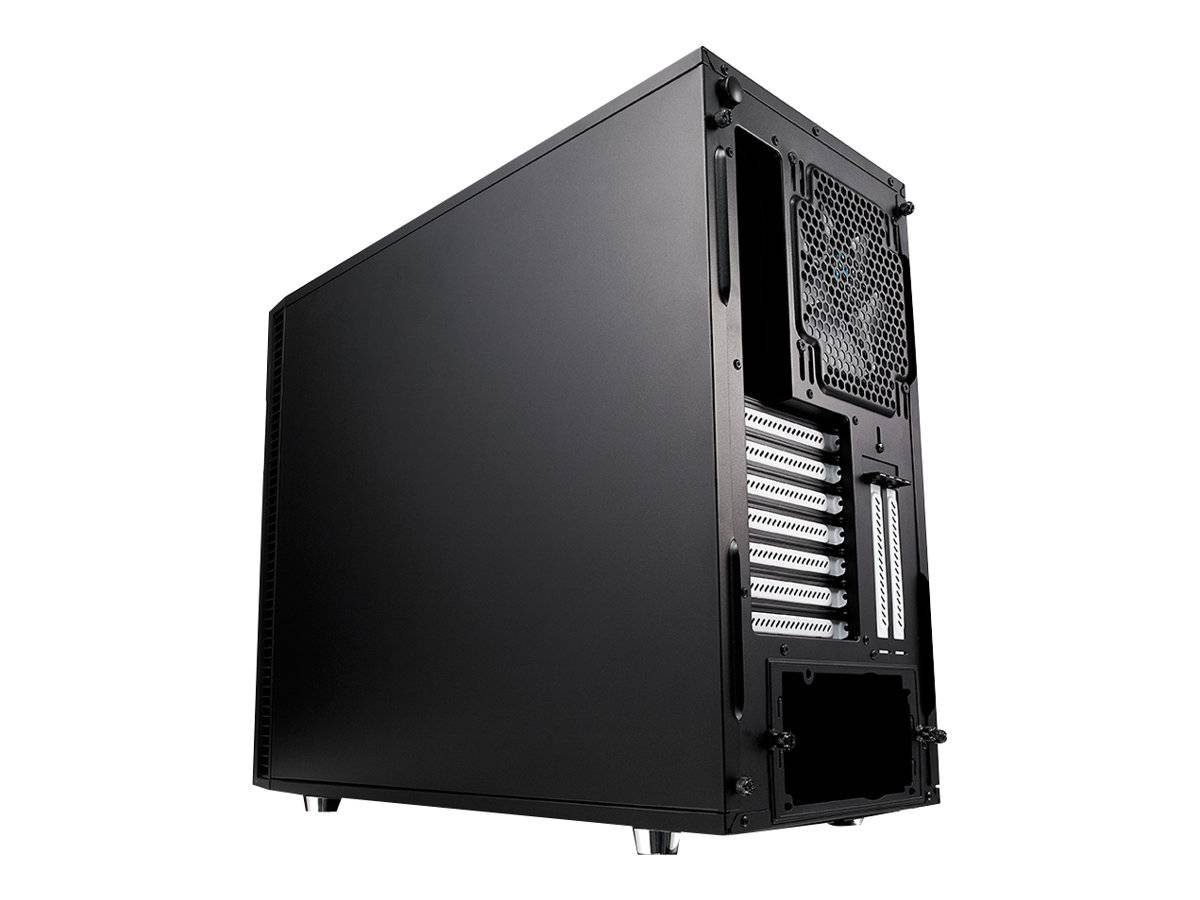

Fractal Design Define Series R6 / Tower / extended ATX / no power supply (ATX) / black / USB | FD-CA-DEF-R6-BK
FD-CA-DEF-R6-BK
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Optimized for silence with high-density industrial dampening on side, top and front panels

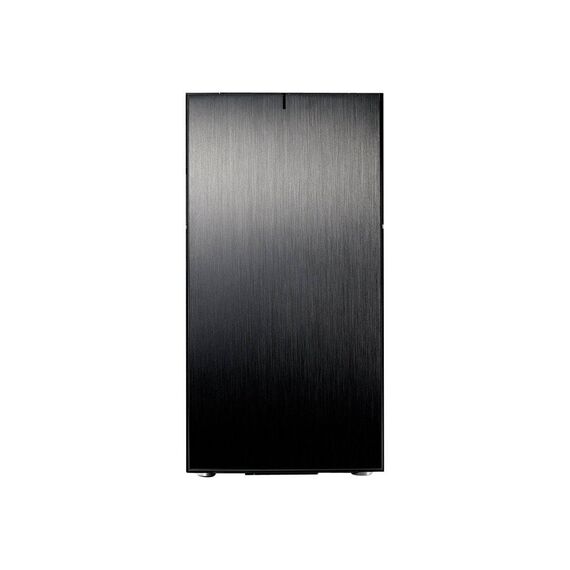

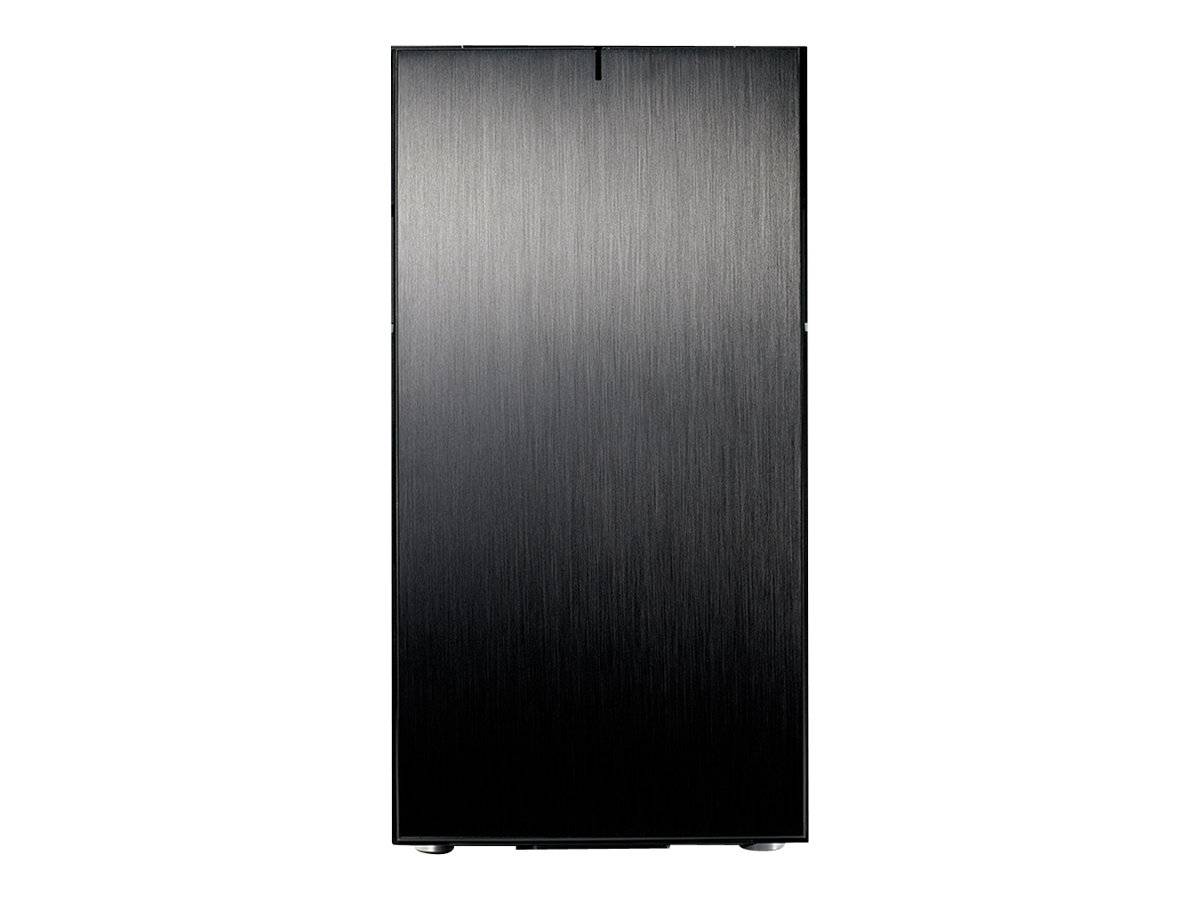

- Reversible front door with anodized aluminum cover and dual mounting system for adaptability with elegance
- Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity
- Three silent, airflow-optimized fans come pre-installed helping ensure superior airflow via two intake fans and a single exhaust
- Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and up to 280 mm in the base
- Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
- Vertical 2.5 slot GPU mount

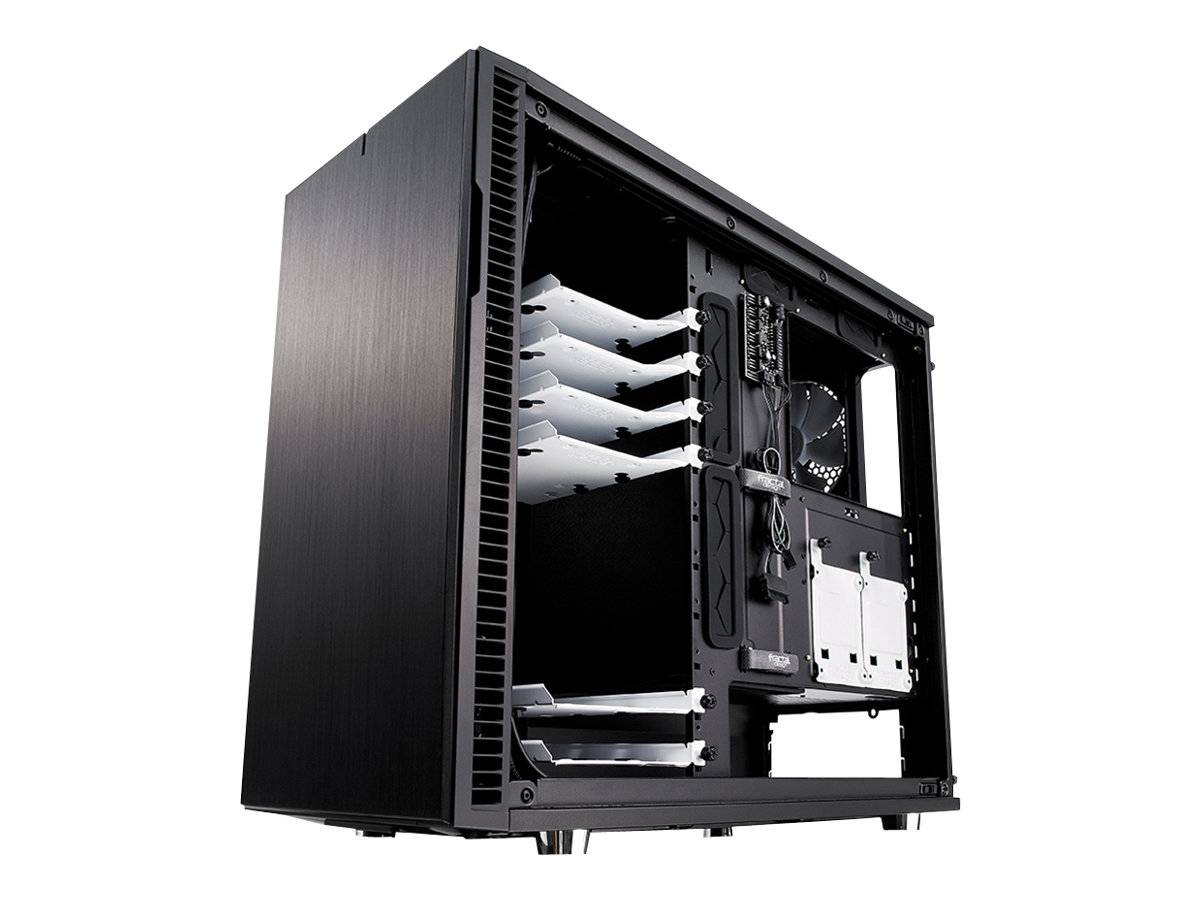

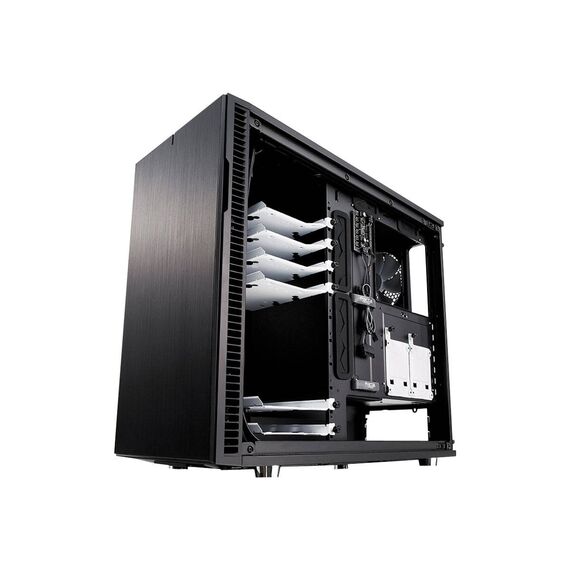

- Highly modular interior includes six universal SSD/HDD trays, that can be independently repositioned
Product Specification
| Form Factor | Tower |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX, ITX |
| Specification Compliance | ATX |
| Internal Bays Qty | 8 |
| Built-in Devices | 3 x Fractal Design Dynamic X2 GP-14, Nexus+ Smart Hub |
| Product Material | Anodised aluminium, sound-dampened steel |
| Colour | Black |
| Cooling System | Front: 140 mm fan x 2 / intake / 3 x 120 mm or 2 x 140 mm fan supported ¦ Top: 120 mm fan mount x 3 / 2 x 140 mm fan supported, open layout 3 x 120/140 mm fan supported ¦ Rear: 140 mm fan x 1 / exhaust / 1 x 120/140 mm fan supported ¦ Bottom: 120/140 mm fan mount x 2 |
| CPU Cooler Max Height | 185 mm |
| Video Card Max Length | 440 mm |
| System Cabinet Features | Top panel dust filter, front dust filter, ModuVent, cable management system, supports 120 mm radiator in rear, screwless side panels, supports 120/140/240/280/360 mm radiator in front panel, supports 120/240/360 mm radiator in top, supports 120/140/240/280 mm radiator in bottom, vertical/horizontal graphic card orientation, bottom + PSU dust filter |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 6 (total) / 6 (free) x internal - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x internal - 2.5" ¦ 1 (total) / 1 (free) x front accessible - 5.25" |

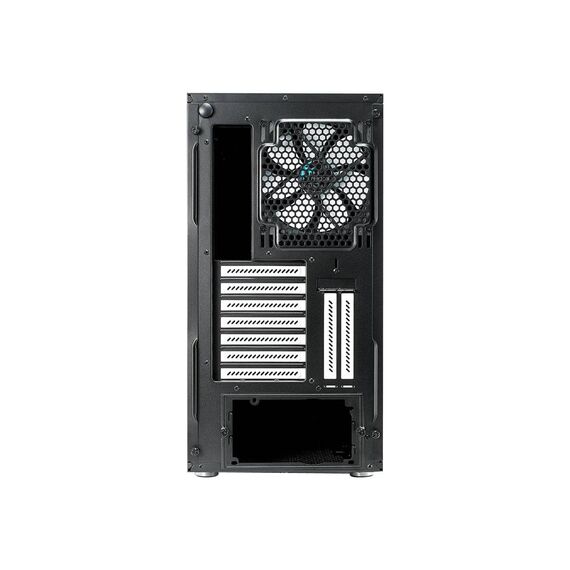

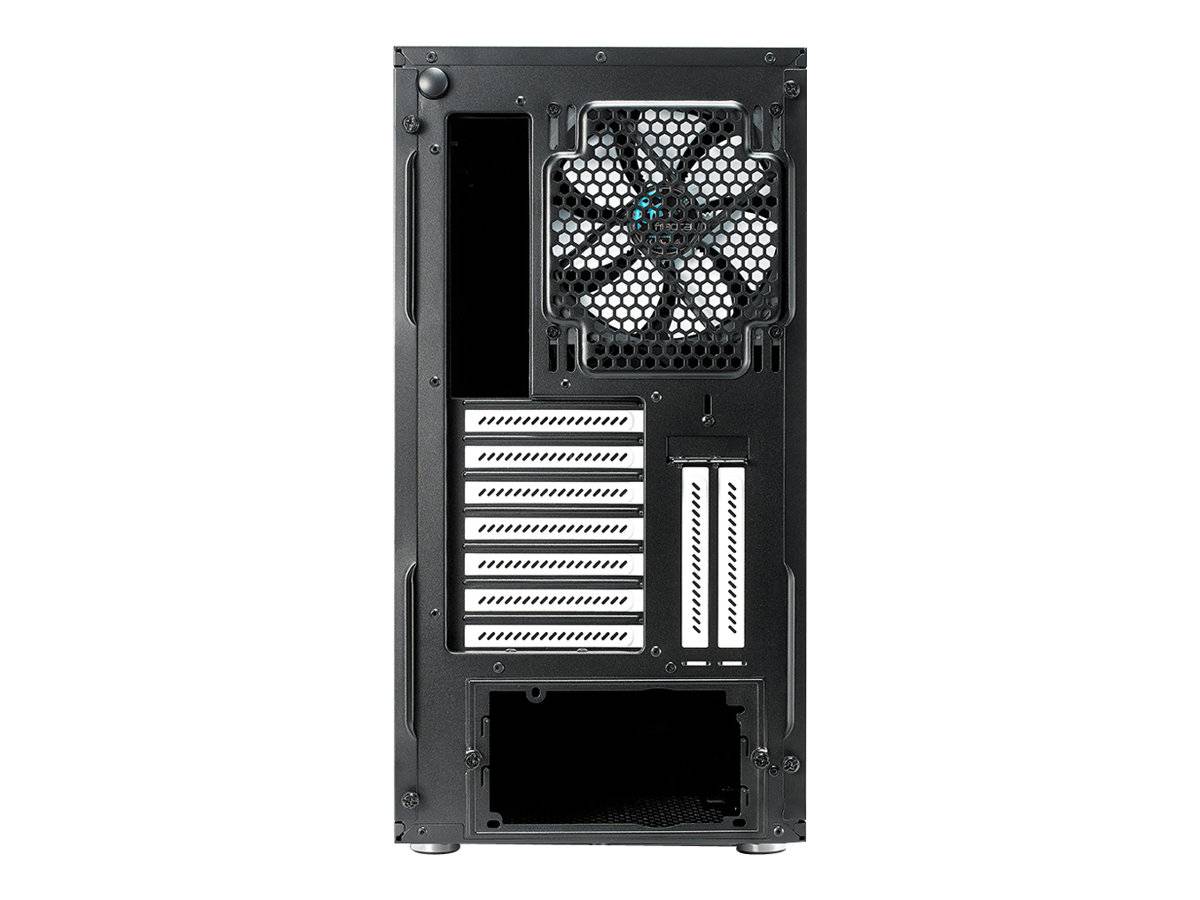

| Expansion Slots | 9 |
| Interfaces | 2 x USB 2.0 ¦ 2 x USB 3.0 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Accessory box |
| Power | Power |
| Power Device | No power supply |
Features - Fractal Design - FD-CA-DEF-R6-BK
More Details
Product Code
07:101976
EAN Code
7350041085867
Manufacturer
Fractal Design
