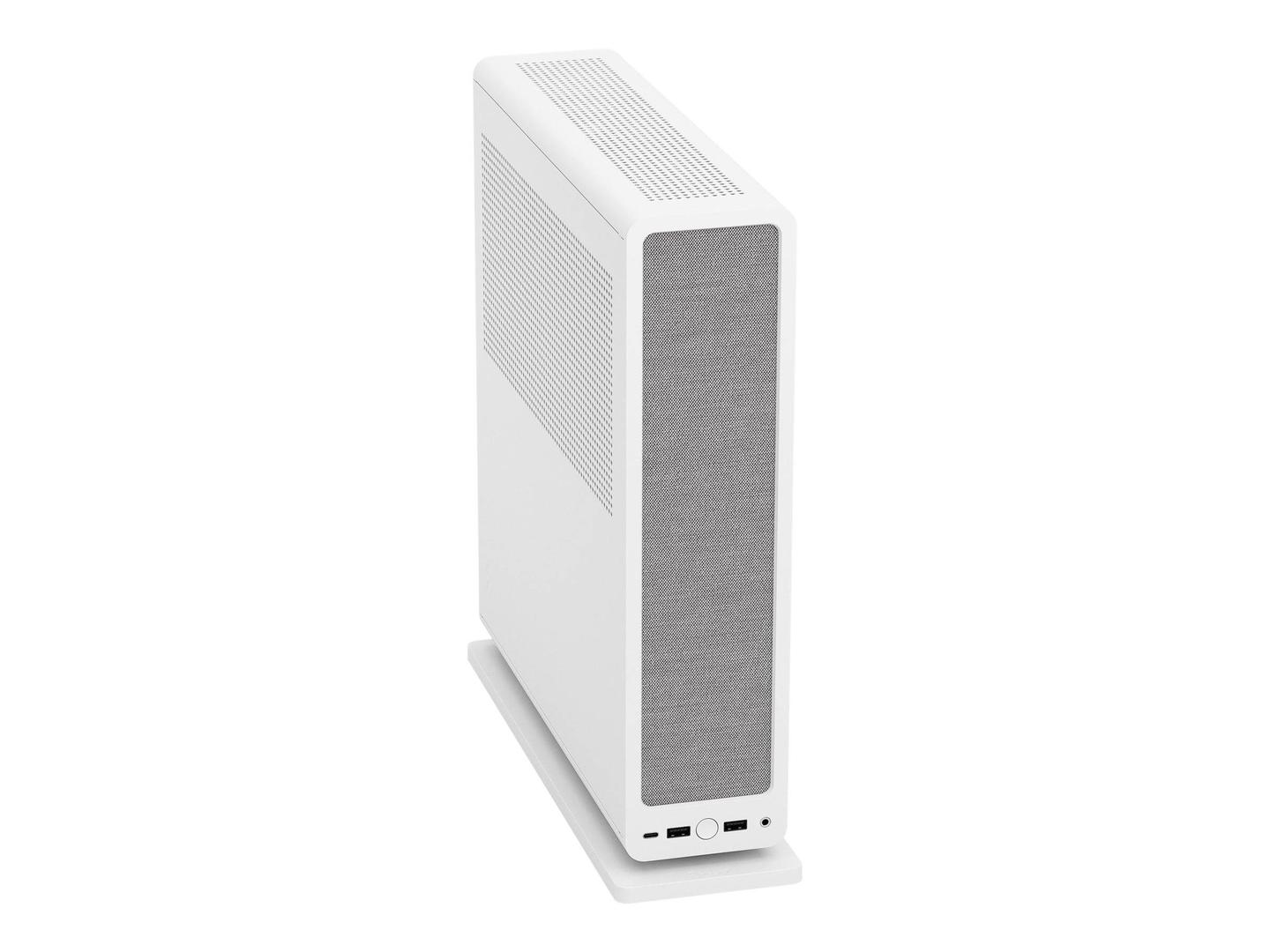

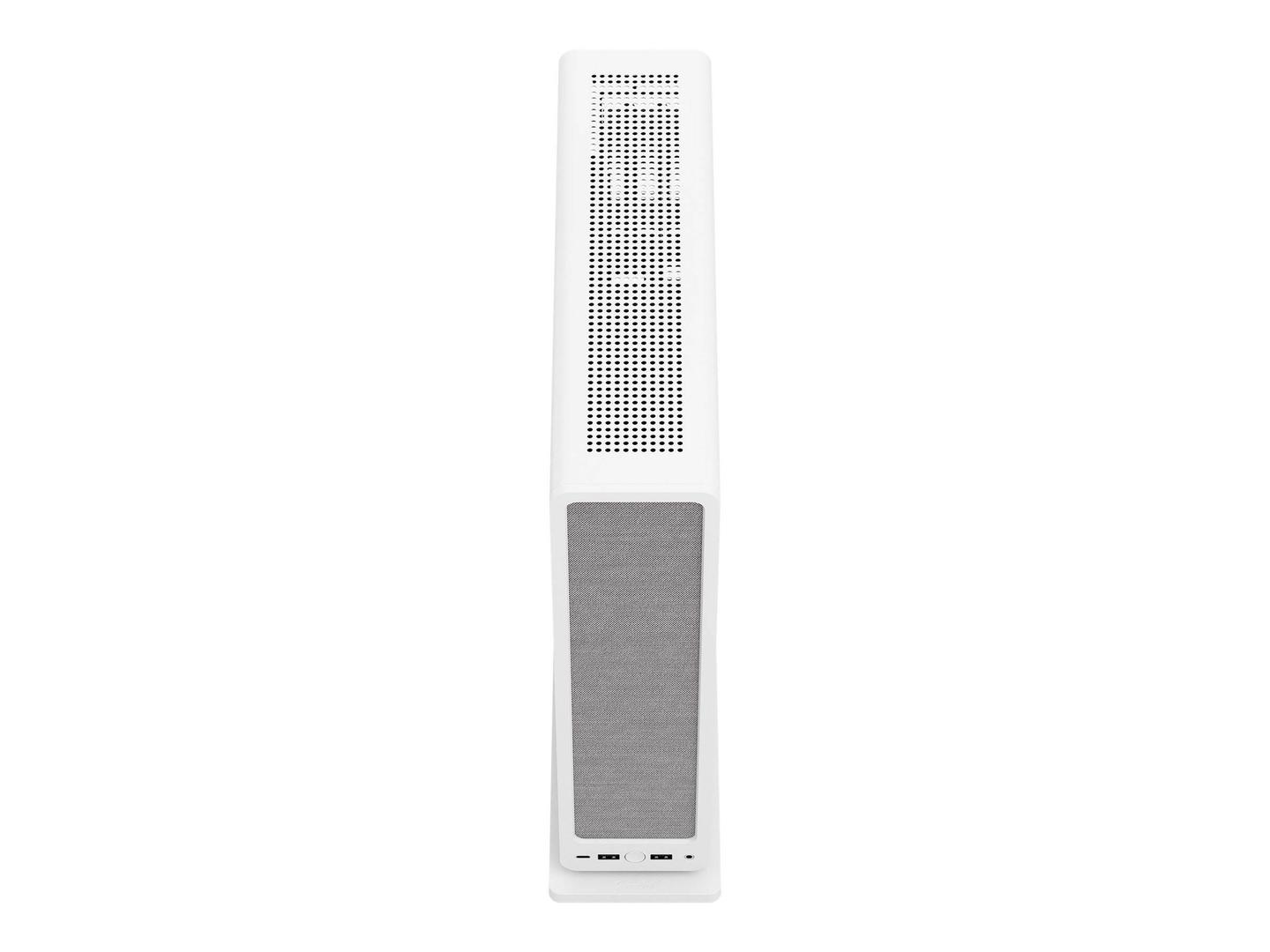

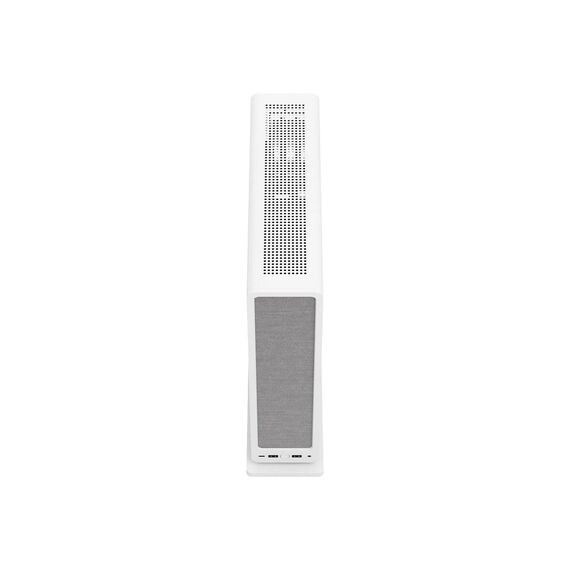

Fractal Design Ridge / SFF / mini ITX / no power supply (SFX12V/SFX-L12V) / white / USB/Audio | FD-C-RID1N-12
Please sign in so that we can notify you about a reply
Product Features
- Inch-perfect efficiency
Meticulously engineered to maximize its capability while minimizing its footprint. Small form factor case with a volume of 12.6 liters. - Horizontal or vertical
Multiple feet configurations allow for both horizontal and vertical orientation. Elevate any gaming desk, workspace or entertainment area. - All-around ventilation

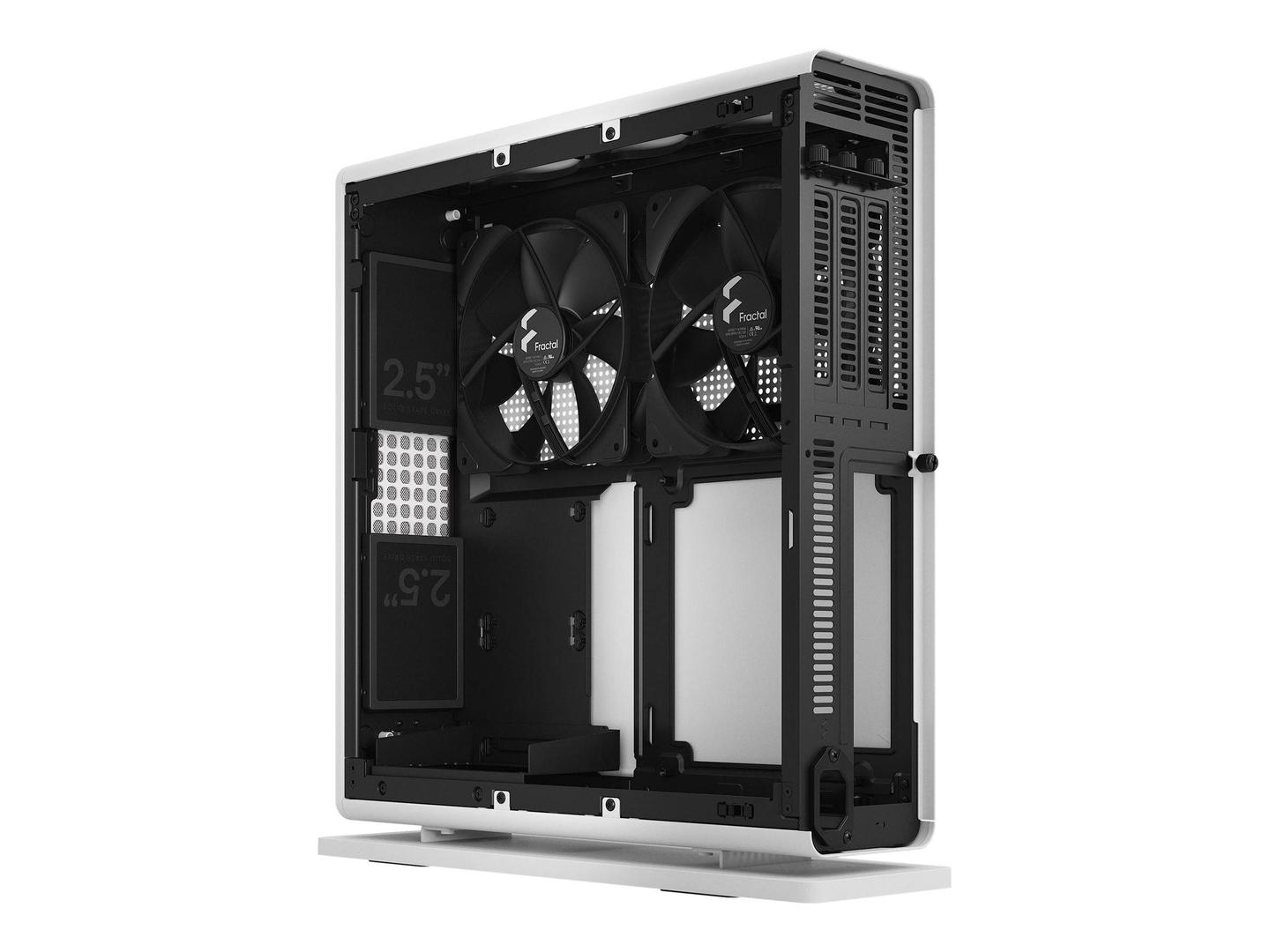

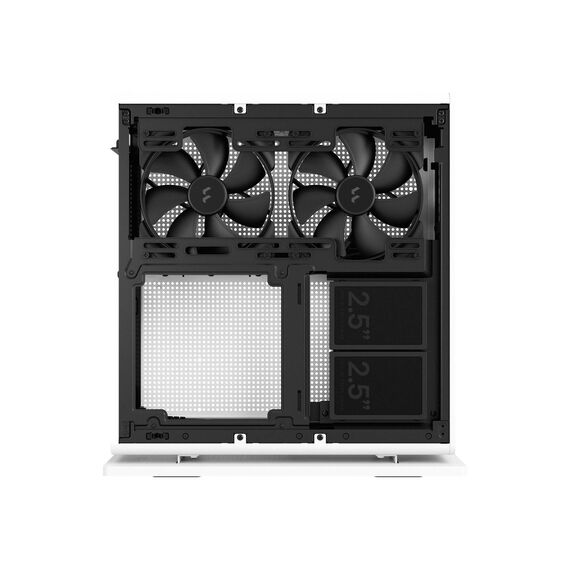

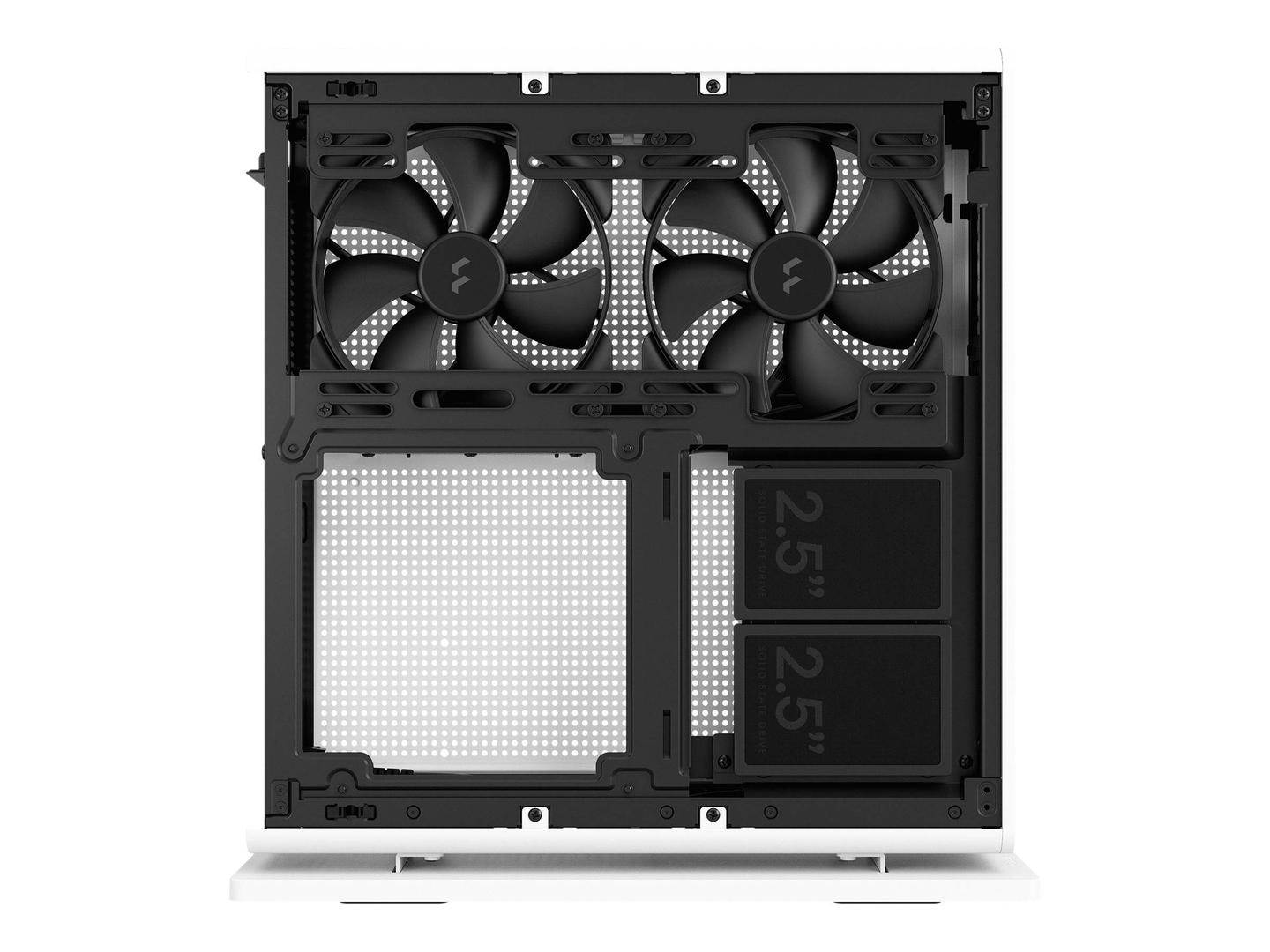

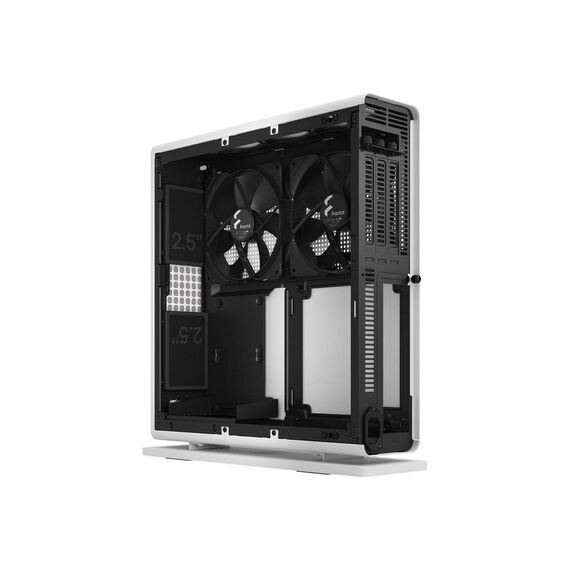

Ventilated on all sides to maximize its cooling potential. Comes with 2x 140 mm PWM Aspect fans pre-installed. - Well-balanced design

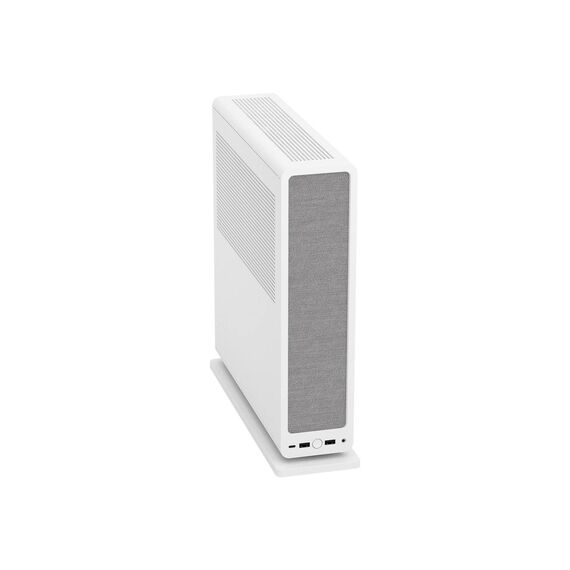

Stylish fabric front with CNC machined aluminum frame. Features a power LED bar in front. - Type-C interface

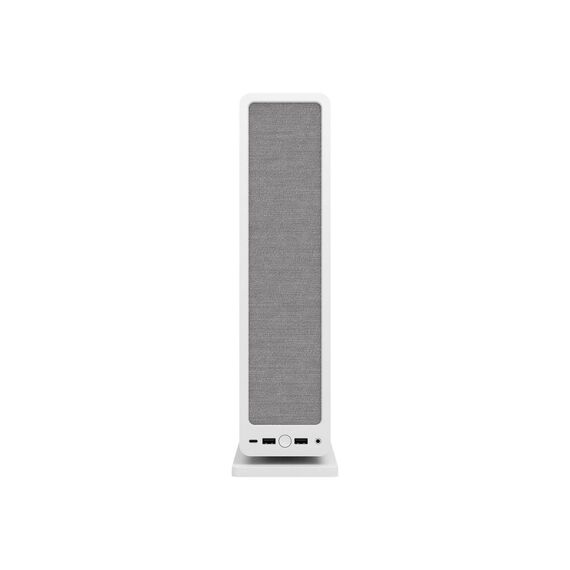

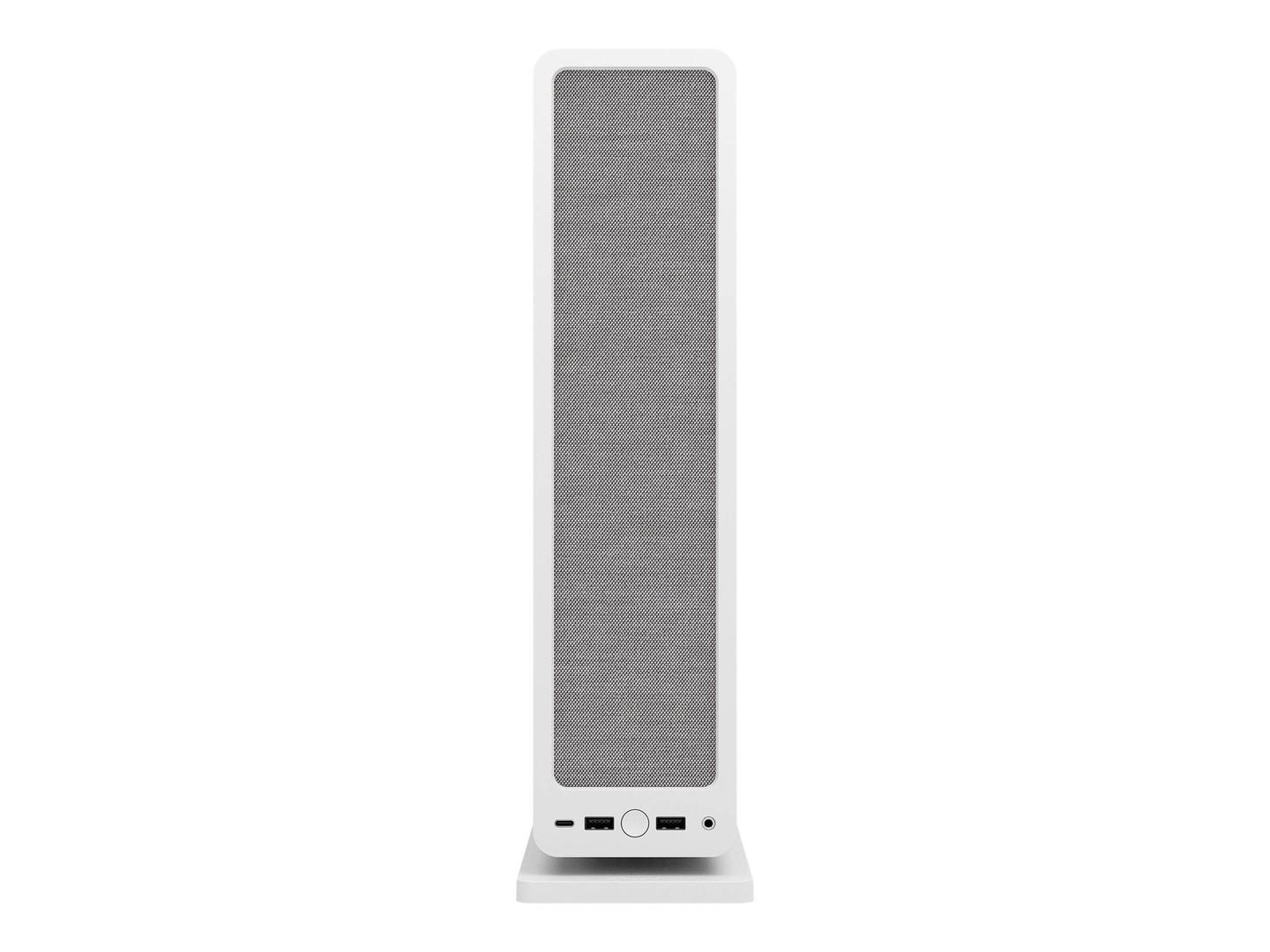

Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack.
Special Features
- Engineered to maximize its capability while minimizing its footprint
- All panels are removable, enabling maximum accessibility
- Multiple feet configurations allow for both horizontal and vertical orientation
- Ventilated on all sides to maximize its cooling potential
Product Specification
| Form Factor | Small form factor |
| Max Mainboard Size | Mini ITX |
| Supported Motherboards | Mini-ITX |
| Internal Bays Qty | 4 |
| Product Material | Steel, aluminium frame |
| Colour | White |
| Cooling System | Side: 140 mm fan x 2 / 2 x 120 mm supported, Pulse-width modulation (PWM) support ¦ Top: 80 mm fan mount x 3 |
| CPU Cooler Max Height | 70 mm |
| Video Card Max Length | 335 mm |
| System Cabinet Features | Vertical/horizontal orientation, power button, tool-less side panels, power LED bar, ventilated on all sides, fabric on front panel |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 4 (total) / 4 (free) x internal - 2.5" |
| Expansion Slots | 3 |
| Interfaces | 1 x USB 3.1 Gen 2 - USB-C ¦ 2 x USB 3.0 ¦ Headphone/microphone - mini-jack |
| Miscellaneous | Miscellaneous |
| Included Accessories | Accessory box, PCIe 4.0 riser card |
| Power | Power |
| Power Device | No power supply |
| Specification Compliance | SFX12V/SFX-L12V |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11 cm |
| Depth | 37.4 cm |
| Height | 39.5 cm |
| Weight | 4.3 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 16.7 cm |
| Shipping Depth | 42.6 cm |
| Shipping Height | 43.1 cm |
| Shipping Weight | 5.5 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
Features - Fractal Design - FD-C-RID1N-12
More Details
Product Code
07:131559
EAN Code
7340172706106
Manufacturer
Fractal Design
