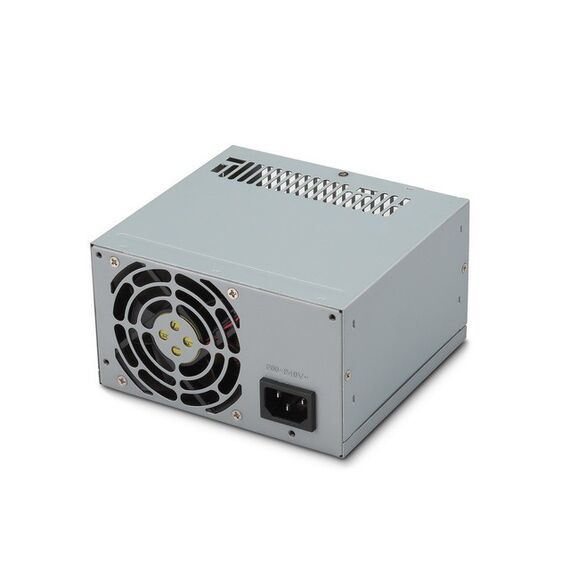

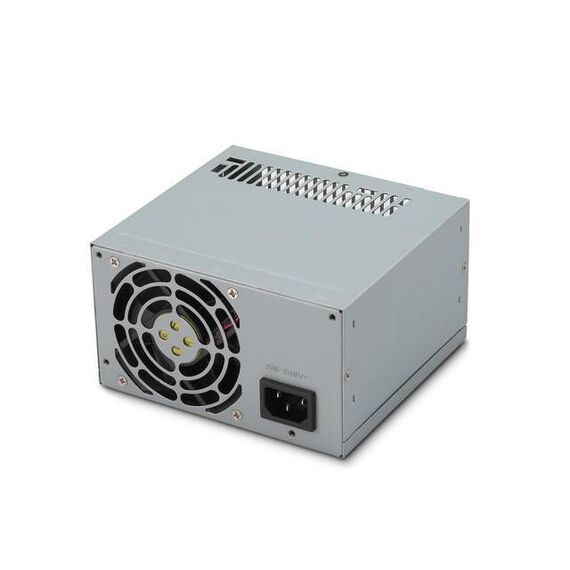

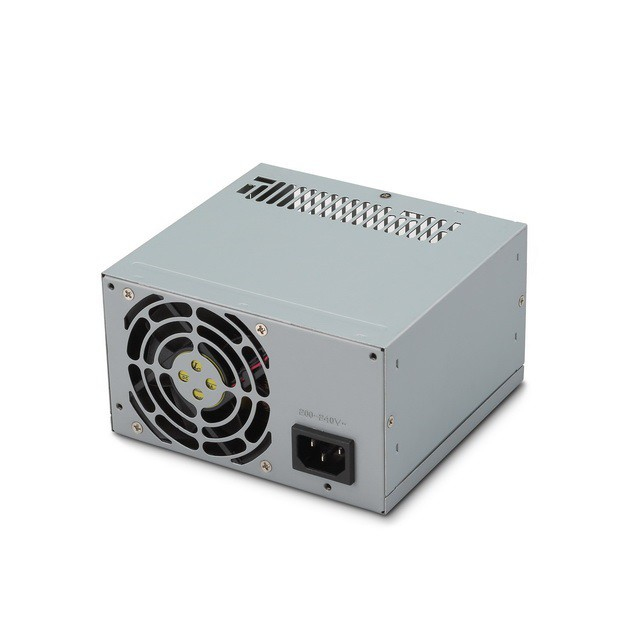

FSP FSP460-70PFL - Power supply (internal) - ATX - 80 PLUS Bronze - AC 115/230 V - 460 Watt - active PFC | 9PA4604401
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 115/230 V |
| Frequency Required | 47 - 63 Hz |
| Output Voltage | +3.3, ±5, ±12 V |
| Power Capacity | 460 Watt |
| Circuit Protection | Fuse |
| Output Current | +3.3V - 21 A / 0.5 A ¦ +5V - 16 A / 0.5 A ¦ +12V1 - 18 A / 0.5 A ¦ +12V2 - 18 A / 0.5 A ¦ -12V - 0.5 A / 0 A ¦ +5VSB - 30 A / 0.1 A ¦ -5V - 0.3 A / 0 A |
| Efficiency | 85% |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Features | Short-circuit protection, automatic shut down, vacuum-impregnated transformer, non-modular |
| Compliant Standards | UL, TUV, cUL, CCC, FCC |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Fortron-Source - 9PA4604401
More Details
Product Code
04:267453
EAN Code
4713224521744
Manufacturer
Fortron-Source
