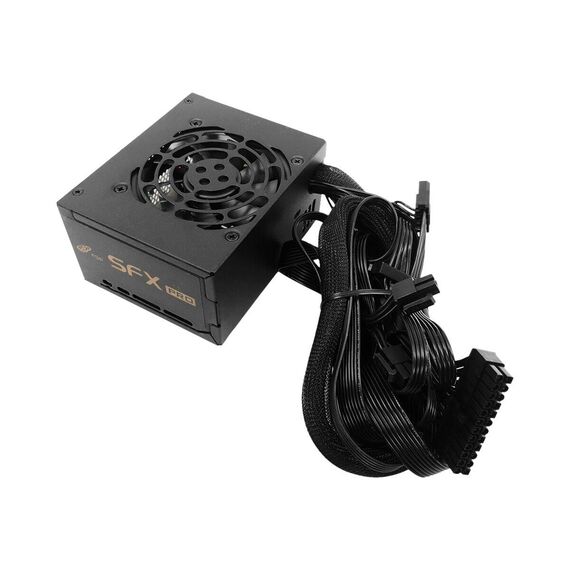

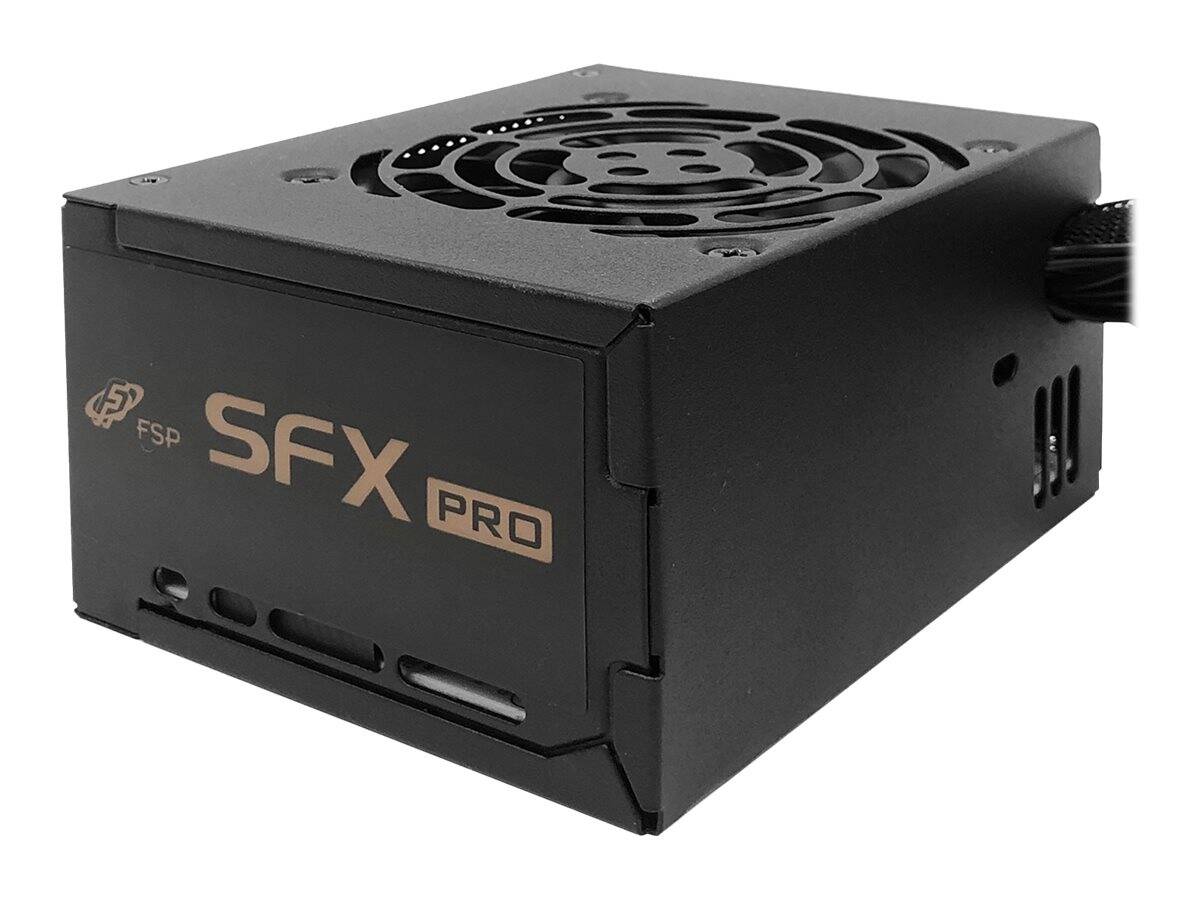

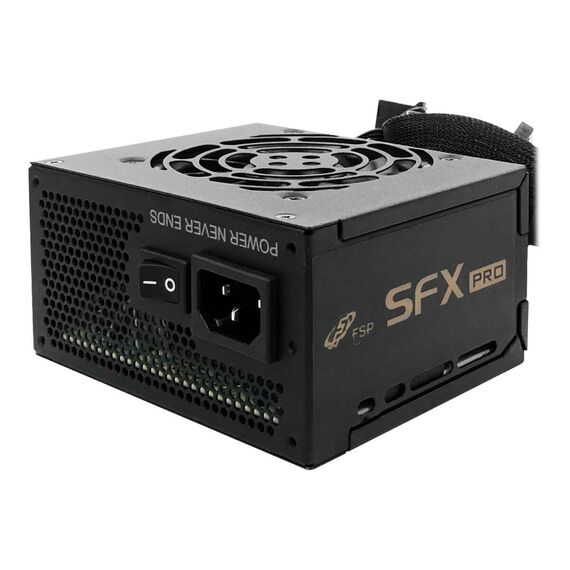

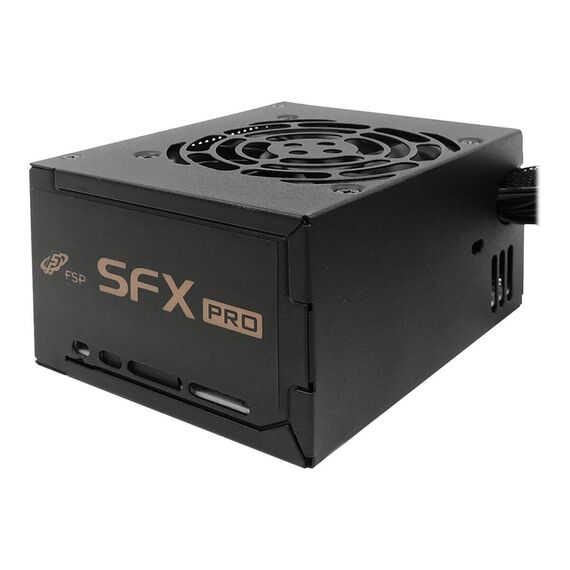

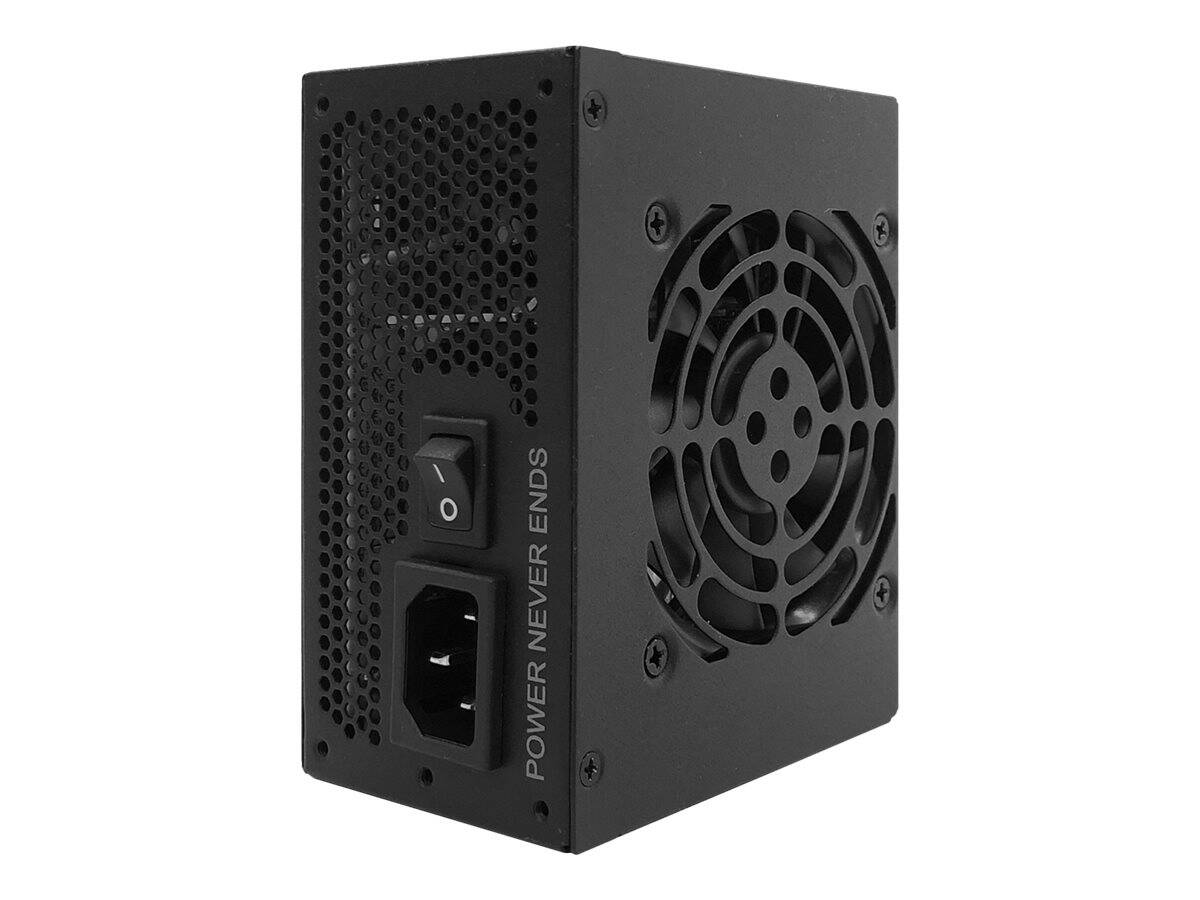

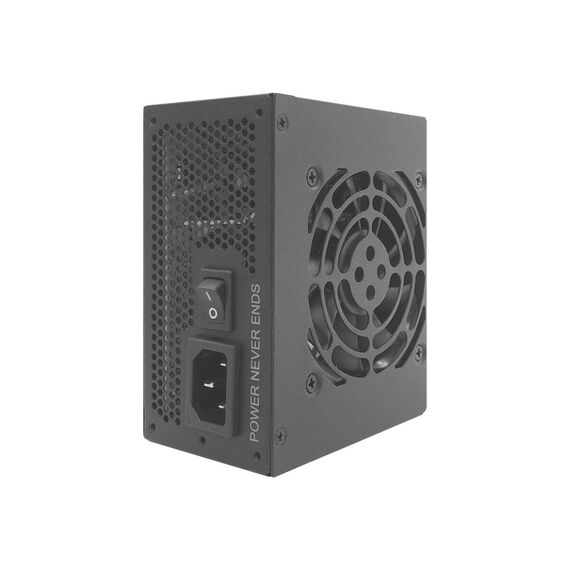

FSP SFX PRO FSP450-50SAC - Power supply (internal) - SFX12V 3.3 - 80 PLUS Bronze - AC 100-240 V - 450 Watt - active PFC | PPA450AA00
Please sign in so that we can notify you about a reply
Product Features
- Intelligent fan speed control
SFX PRO's sleeve fan will automatically adjust its fan speed according to the PSU's temperature. This helps to provide excellent airflow and low-noise operation. - DC-to-DC module design
With DC-to-DC structure, SFX PRO series ensure you the outstanding conversion efficiency and offers reliability and stability. - Universal use
Wide input voltage can ensure the stability of the system when the input voltage is not stable.
Special Fetures
- Intelligent fan speed control
- DC-to-DC module design
- Universal use
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | SFX12V 3.3 |
| PSU Form Factor | SFX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x 2 x 6 pin PCI Express power ¦ 3 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Max Electric Current | 37.5 A |
| Power Capacity | 450 Watt |
| Output Current | +3.3V - 16 A ¦ +5V - 16 A ¦ +12V - 37.5 A ¦ +5VSB - 2.5 A ¦ -12V - 0.3 A |
| Efficiency | 85% |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 80 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, rifle bearing cooling fan |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width | 12.5 cm |
| Depth | 10 cm |
| Height | 6.3 cm |
| Weight | 1.22 kg |
Features - Fortron-Source - PPA450AA00
More Details
Product Code
07:703196
EAN Code
4713224522123
Manufacturer
Fortron-Source
