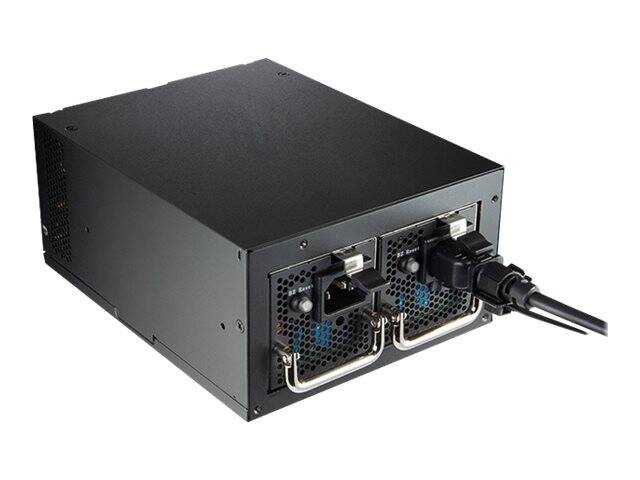

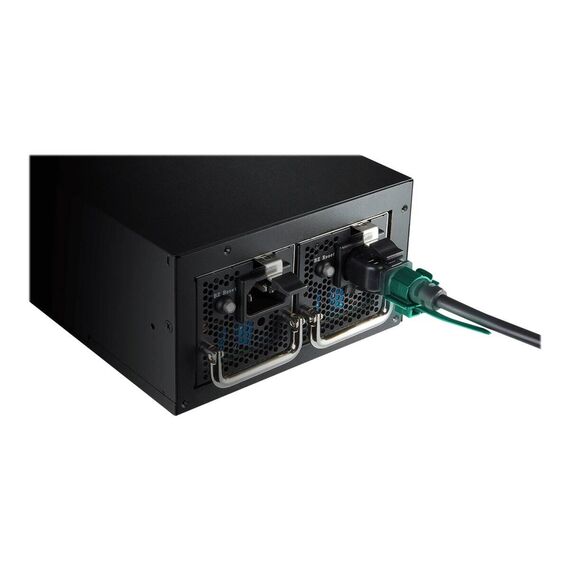

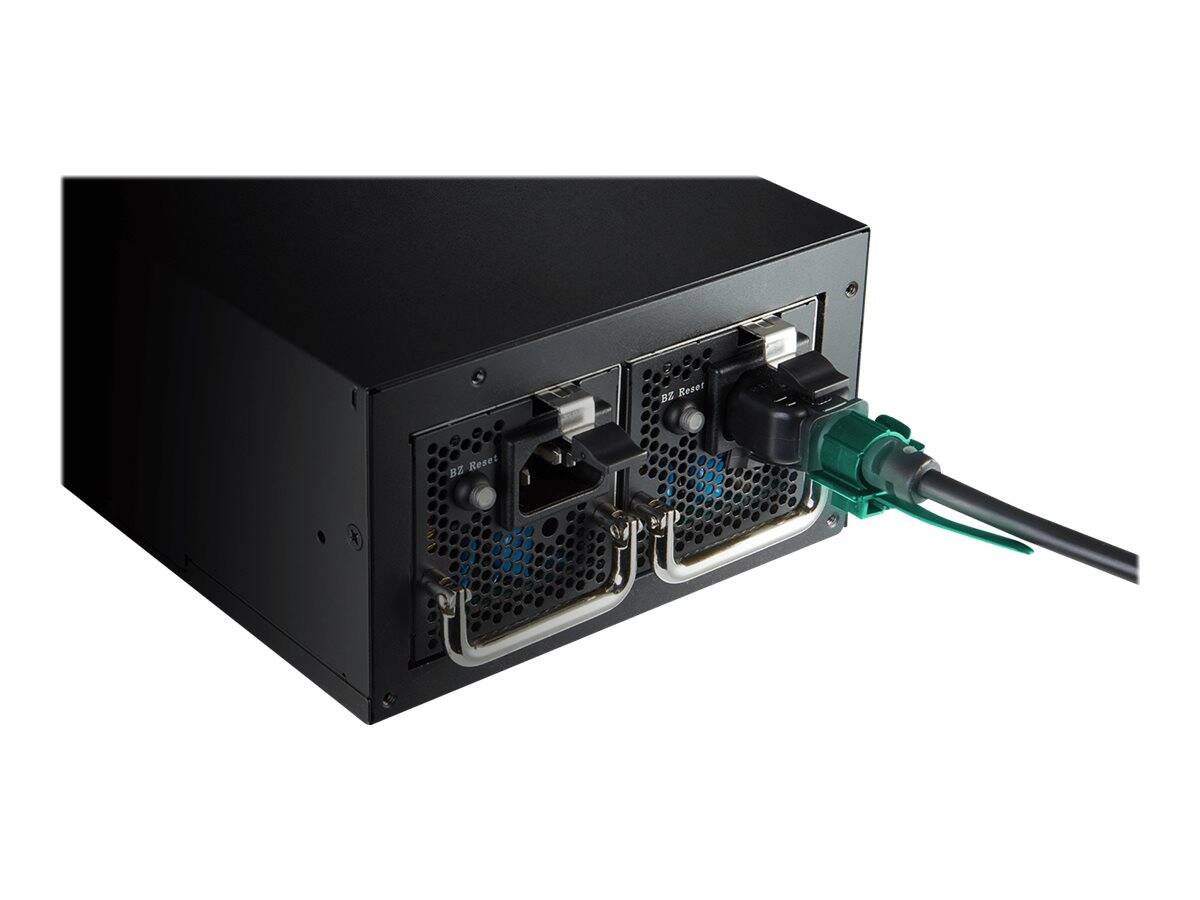

FSP Twins Pro FSP900-50REB - Power supply (internal) - ATX12V - 80 PLUS Gold - AC 100-240 V - 900 Watt - active PFC | PPA9000600
Please sign in so that we can notify you about a reply
Special Fetures
- ATX PS2 redundant size
- Efficiency ? 90% at typical load
- Quiet and long-lasting 40mm ball bearing fan
- Ribbon cables for th need of enthusiasts
- Powerful single +12V rail design
- All Japanese electrolytic capacitors
- Intel latest CPU ready
- Full protections OCP, OVP, SCP, OPP, OTP, FFP, UVP
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Power Device | |
| Installed Power Modules | 2 |
| Supported Power Modules | 2 |

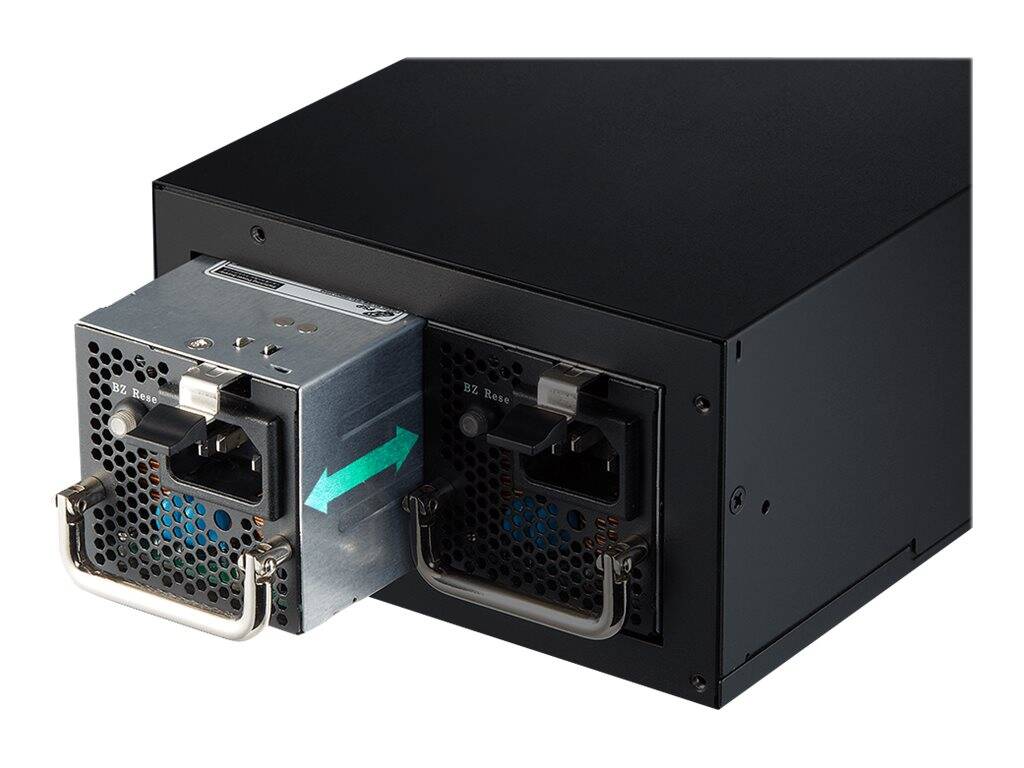

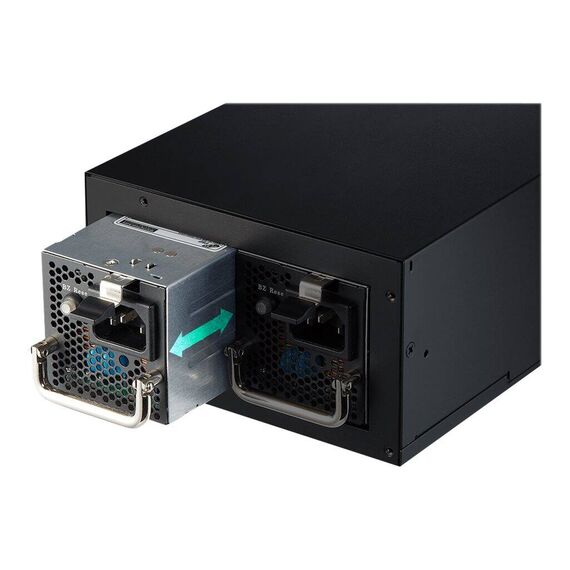

| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | DC +3.3, DC +5, DC ±12 V |
| Power Capacity | 900 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 71 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Cooling System | 40mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, hot swappable PSU, short-circuit protection, triple 12V rails, dual ball bearing cooling fan, non-modular, fan failure protection, cable locks |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 19 cm |
| Height | 8.6 cm |
Features - Fortron-Source - PPA9000600
More Details
Product Code
07:123726
EAN Code
4713224523823
Manufacturer
Fortron-Source
