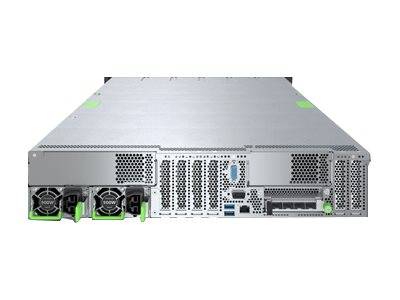

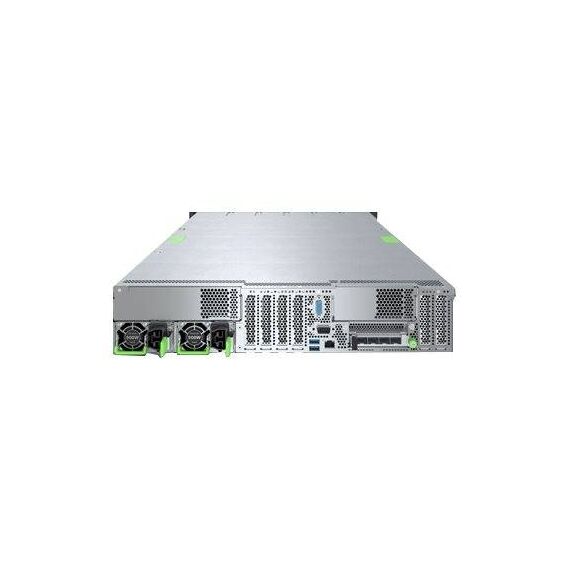

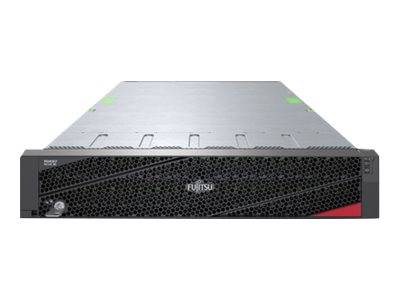

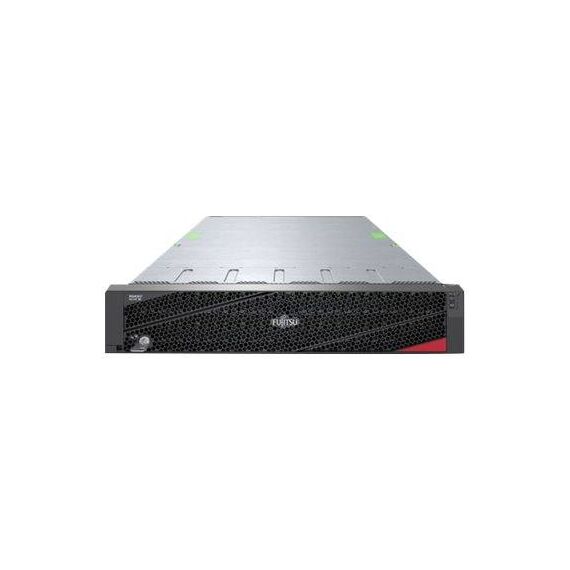

Fujitsu PRIMERGY RX2540 M6 / Server / rack-mountable / 2U / 2-way / 1 x Xeon Silver 4309Y / 2.8 GHz / RAM 16 GB / SAS / hot-swap 2.5" bay(s) / no HDD / no OS | VFY:R2546SC250IN
VFY:R2546SC250IN
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Unmatched scalability and performance
2U, 2-socket platform that provides scalability and performance to adapt to a variety of applications. Drive demanding workloads by latest 3rd Generation Intel Xeon Scalable processors with up to 40 cores per CPU. - Accelerate IT transformation
Transform your data center for modern operations and drive demanding workloads with 32 DIMM modules. Intel Optane persistent memory provide fast, high capacity and cost effective memory for memory intensive workloads. - Extensive expandability
Maximize storage performance with up to 12x 3.5", up to 24x 2.5", or 64x EDSFF storage drives and ensure application performance scales to meet demands. Up to 8 PCIe Gen 4 slots and flexible DynamicLoM adapters via OCP V3 also ensures enough growth opportunities. - Agile infrastructure management
As you scale your infrastructure, scale your profitability with embedded intelligence from iRMC S5 as well as Infrastructure Manager (ISM) which enables organizations to have centralized control over the entire data center using a single user interface.
Special Features
- Dual-socket x86 server that delivers powerful performance in a compact 2U chassis
- Ideal for collaboration, business processing, graphics rendering or in-memory databases
- Drive demanding workloads with 32 DIMM modules
- Scale to meet demands with up to 12x 3.5", up to 24x 2.5", or 64x EDSFF storage devices
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 24 |
| Localisation | Region: Europe |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Xeon Silver 4309Y |
| Clock Speed | 2.8 GHz |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C621A |
| Cache Memory | Cache Memory |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | RAM |
| Installed Size | 16 GB / 12 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2667 MHz |
| Rated Memory Speed | 3200 MHz |
| Slots | 32 (Total) / 31 (empty) |
| Features | Registered, Memory Mirroring, dual rank, Independent Memory Mode, slots 17 - 32 are available in two-processor configuration only, memory scrubbing, Single Device Data Correction (SDDC), Adaptive Double-Device Data Correction (ADDDC) |
| Configuration Features | 1 x 16 GB |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s / PCIe |
| Storage Controller Name | Fujitsu PRAID EP520i |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 2 GB |
| Storage Controller (2nd) | Storage Controller (2nd) |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1 |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Video Interfaces | VGA |
| Networking | Networking |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Integrated Remote Management Controller (iRMC S5) |
| Features | PXE support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 24 (total) / 24 (free) x hot-swap 2.5" |
| Slots | 3 PCIe 4.0 x8 - low-profile ¦ 4 PCIe 4.0 x16 - low-profile |
| Interfaces | 6 x USB 3.0 (2 front, 2 rear, 2 internal) ¦ 1 x VGA ¦ 1 x management - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rack mounting kit, power supply dummy, Quick-Release-Lever |
| Cables Included | No power cord is included |
| Compliant Standards | FCC Class A certified, BSMI, GS, CCC, ICES-003 Class A, RoHS, WEEE, KC, NRTL, VCCI Class A, JIS C 61000-3-2, EAC, NMB-3 Class A, RCM, BIS |
| Power | Power |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 900 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 94% |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years - on-site |
| Dimensions & Weight | Dimensions & Weight |
| Width | 48.25 cm |
| Depth | 80 cm |
| Height | 8.69 cm |
| Environmental Parameters | Environmental Parameters |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
