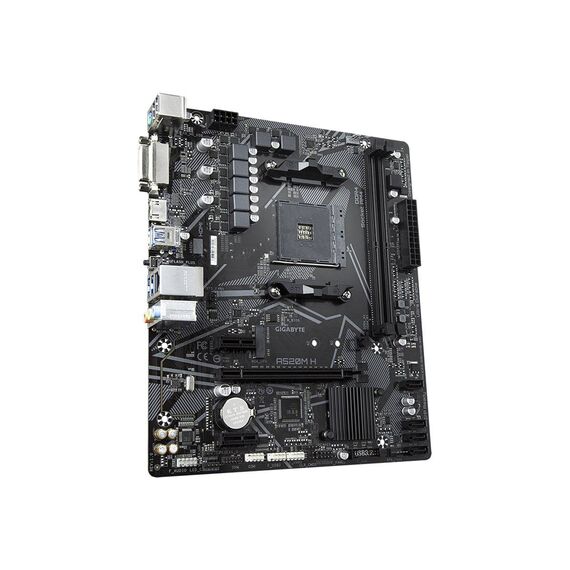

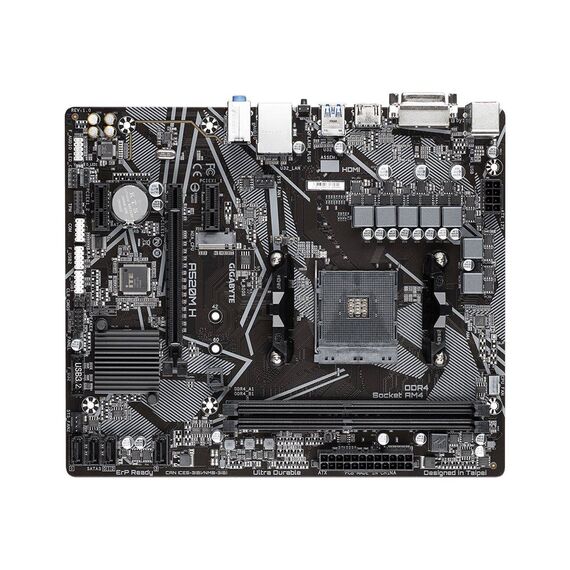

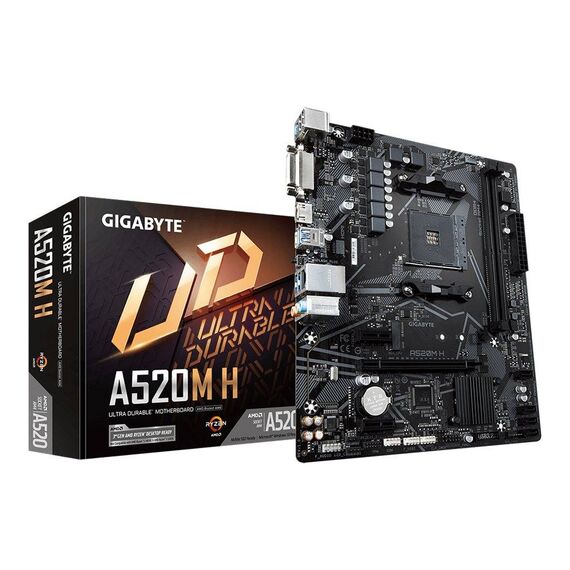

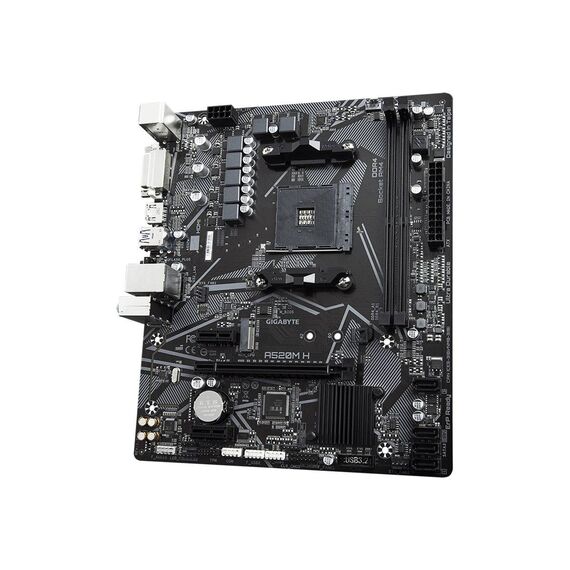

Gigabyte A520M H / 1.0 / motherboard / micro ATX / Socket AM4 / AMD A520 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | A520M H

A520M H
70.73
76.88
(84.17 inc. VAT) You save: 6.15
Out of stock
Find similar
Delivery
Payment options
Product Code03:144760 EAN Code4719331809683 ManufacturerGigaByte CPU SocketSocket AM4

Product Features

  • High-speed Gigabit LAN with automatic bandwidth allocation
    Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
  • LAN static-electricity and surge protection
    GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect the motherboard, and the PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
  • High-end audio capacitors
    GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
  • Audio noise guard
    GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
  • Smart Fan 5
    With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
  • Intelligent fan control design
    Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops and at what temperature - all of it can be customized to your liking.
  • Hybrid fan pin headers
    Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the hybrid fan pin headers or external thermistor sensors - giving you absolute mastery over your PC. All hybrid fan headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or voltage mode.
  • Solid pin power connectors
    A520 motherboards feature solid plated ATX 12V 8-pin power connectors for offering stable power supply while CPU overloading.

Special Features

  • High-speed Gigabit LAN with automatic bandwidth allocation
  • LAN static-electricity and surge protection
  • High-end audio capacitors
  • Audio noise guard
  • Smart Fan 5
  • Intelligent fan control design
  • Hybrid fan pin headers
  • Solid pin power connectors

Product Specification

Product Type Motherboard - micro ATX
Chipset Type AMD A520
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
Supported RAM Supported RAM
Max Size 64 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.)
Supported RAM Integrity Check Non-ECC, ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics Graphics
Max Allocated RAM Size 16 GB
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC887
Compliant Standards High Definition Audio
LAN LAN
Network Interfaces Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

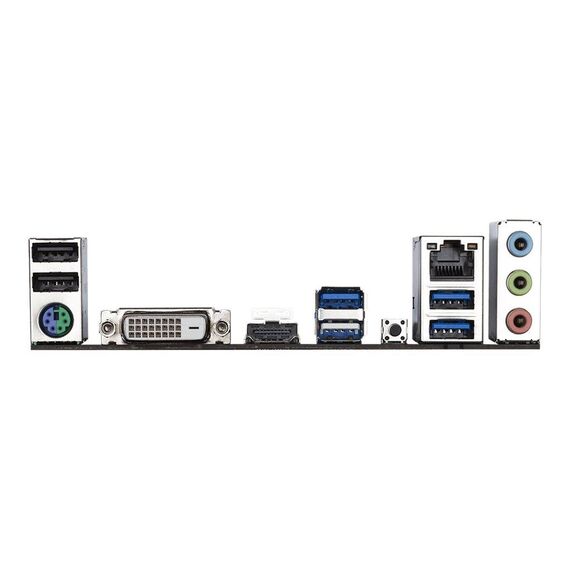

Interfaces 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0
Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Type AMI
BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Hardware Features Q-Flash, On/Off Charge, Ultra Durable, Q-Flash Plus, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Solid Pin Power Connectors, RGB FUSION 2.0
Miscellaneous Miscellaneous
Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Width 24.4 cm
Depth 20.5 cm

Features - GigaByte - A520M H

CPU Socket
  • Socket AM4
More Details
Product Code
03:144760
EAN Code
4719331809683
Manufacturer
GigaByte
