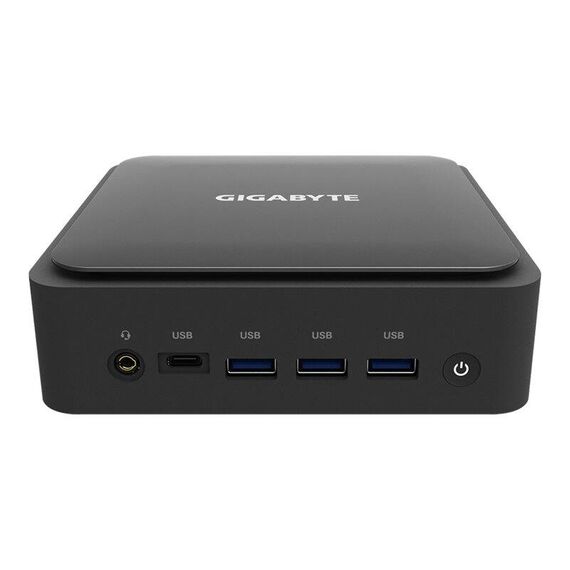

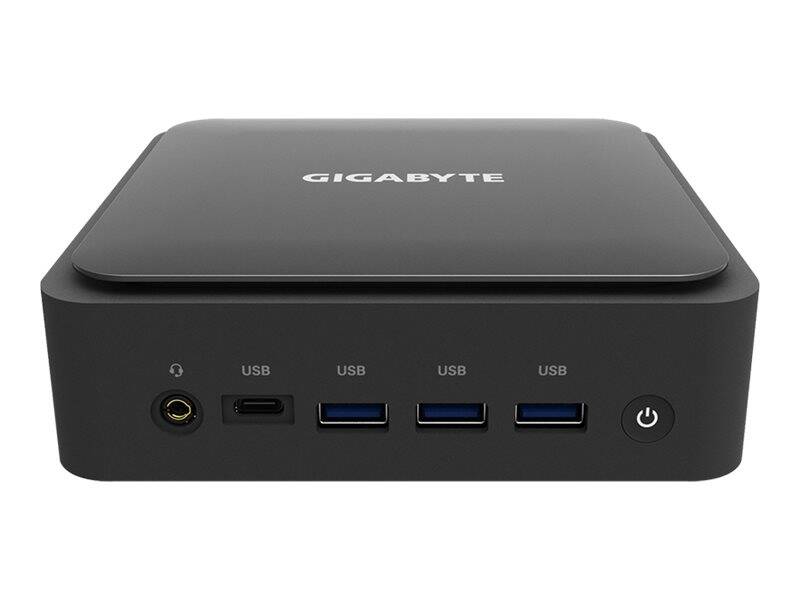

Gigabyte BRIX Extreme GB-BEi7-1260 (rev. 1.0) / Barebone / mini PC / 1 x Core i7 1260P / 2.1 GHz / RAM 0 GB / Intel Iris Xe Graphics / Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) WLAN: / Bluetooth 5.2, 8 | GB-BEI7-1260
GB-BEI7-1260
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Compact and versatile design
The Gigabyte BRIX Extreme boasts an ultra small form factor, making it an ideal choice for users with limited space. Despite its compact size, it offers robust performance and is capable of supporting a wide range of computing tasks. - High-speed connectivity
Equipped with Thunderbolt 4, USB-C 3.2 Gen 2, and 2.5 Gigabit Ethernet, this mini PC ensures fast data transfer rates and high-speed Internet connectivity. It's designed to keep you connected to devices and networks. - Advanced wireless capabilities
Featuring Bluetooth 5.2 and Wi-Fi 6E support, the Gigabyte BRIX Extreme offers advanced wireless technology, ensuring faster and more reliable connections to a wide range of devices and networks. - Powerful processing
Powered by an Intel Core i7-1260P processor with a max turbo speed of 4.7 GHz, this mini PC delivers exceptional performance for its size. It's capable of handling demanding applications and multitasking with ease. - Flexible display options
With support for up to 4 monitors through HDMI and Mini DisplayPort connections, this device offers versatile display options for both work and play. Whether you're editing videos, gaming, or multitasking, the Gigabyte BRIX Extreme has you covered.
Special Features
- Ultra small form factor for space-saving setup
- Thunderbolt 4 and USB-C 3.2 Gen 2 for high-speed connectivity
- Bluetooth 5.2 and Wi-Fi 6E for advanced wireless connections
- Intel Core i7-1260P processor for powerful performance
- Supports up to 4 monitors for flexible display configurations
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i7 (12th Gen) 1260P |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 4.7 GHz (P-core) / 3.4 GHz (E-core) |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | Cache Memory |
| Installed Size | L3 Cache - 18 MB |
| Cache Per Processor | 18 MB |
| RAM | RAM |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel Iris Xe Graphics |
| Max Monitors Supported | 4 |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Networking | Networking |
| Ethernet Controller | Intel i225 |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) |
| Interfaces | 1 x USB-C 3.2 Gen 2 (1 front) ¦ 3 x USB 3.2 Gen 2 (3 in front) ¦ 1 x headphones/microphone - mini-jack (1 front) ¦ 2 x HDMI (2 rear) ¦ 1 x Mini DisplayPort (1 rear) ¦ 1 x Thunderbolt 4/DisplayPort/USB-C (1 rear) ¦ 2 x USB 2.0 (2 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear) |
| Miscellaneous | Miscellaneous |
| Included Accessories | VESA bracket |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Power | Power |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 135 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| OS Certified | Windows 10, Windows 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 13.42 cm |
| Depth | 13.91 cm |
| Height | 4.83 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
